FLS Series, Hydraulic Spreaders

FLS15 & FLS15-ST hydraulic flange spreaders are ideal for pipe and flange repair. They can also be used for removing elbows, gasket and metal seal replacement on couplers, heavy equipment maintenance, and many other tasks. The hydraulic flange spreaders are capable of developing up to 15 metric tons of force, are lightweight (only 7 lbs. [3.2 kg]), and easy to use due to their ergonomic design.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Spreaders

33,000 pound (15 metric ton) wedge driven spreader

Jaws fully supported by wedge for excellent durability

Ideal for flanges with narrow gaps – only .2 inches (5 mm) required for entry

Flange Spreaders are very high strength due to special alloy used

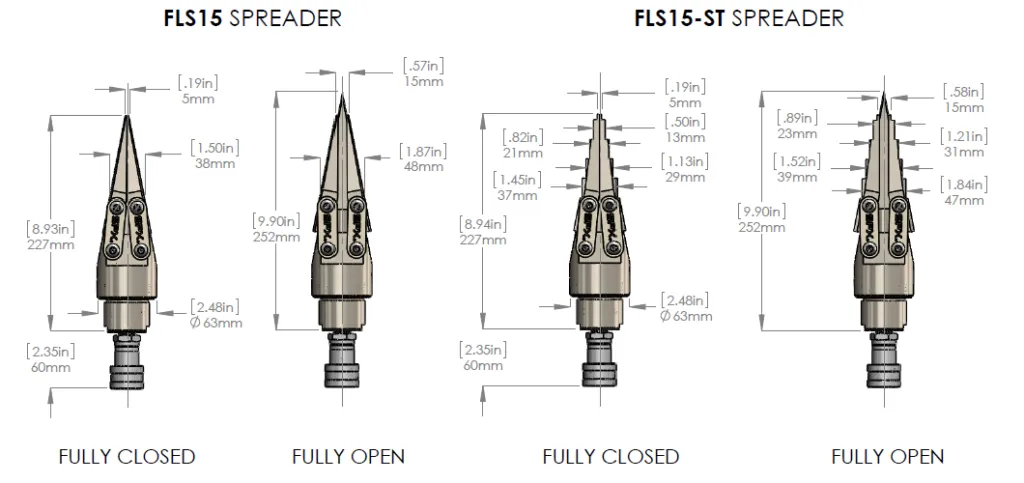

Compact and lightweight design – only 9.9 inches (252 mm) long at a weight of 7 pounds (3.2 kg)

Easy to use – ergonomically balanced handle

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

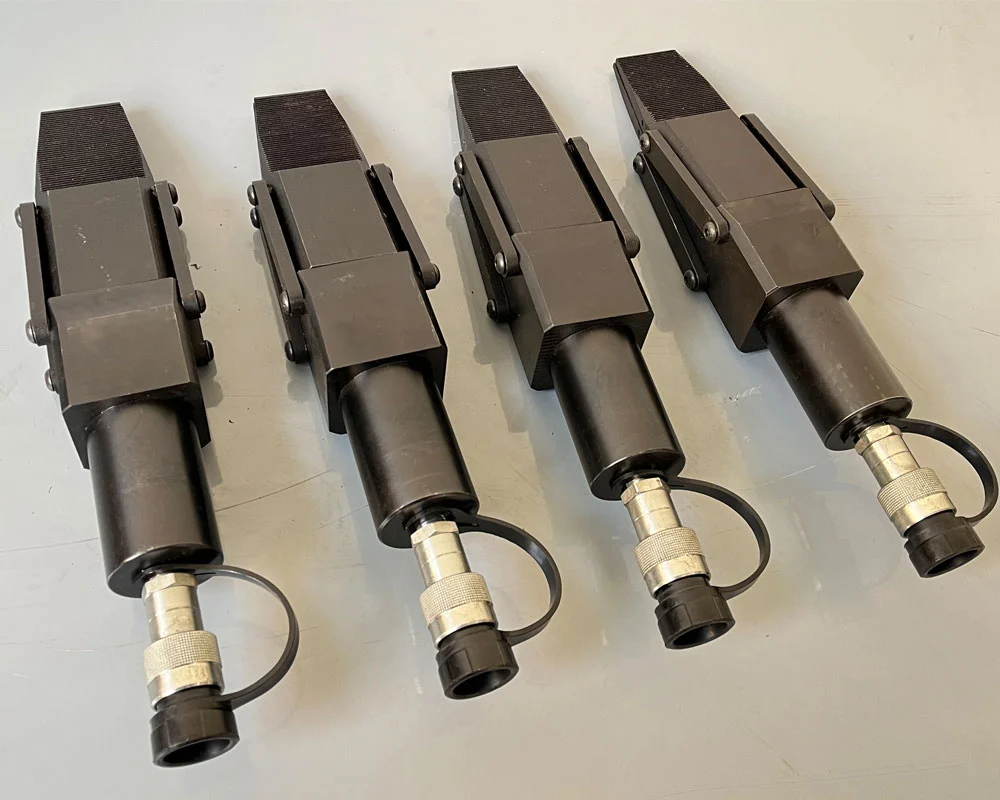

Image Gallery

Series Specifications

Maximum Operating Pressure (bar)	700
Maximum Spreading Force (ton)	15
Maximum Spread (mm)	5-48
Tip Clearance (mm)	5
Power Source	Split Hydraulic Power
Weight:	3.2

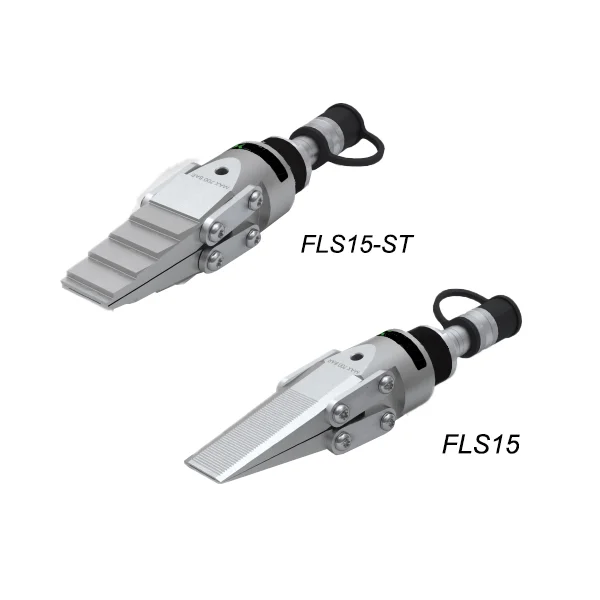

Series Comparison

Model No.	Shoe Type	Capacity(T)	Tip clearance（mm)	Oil Capacity（cm³）	Weight (kg)
FLS15	Serrated	15	5	16	3.2
FLS15-ST	Stepped	15	5	16	3.2

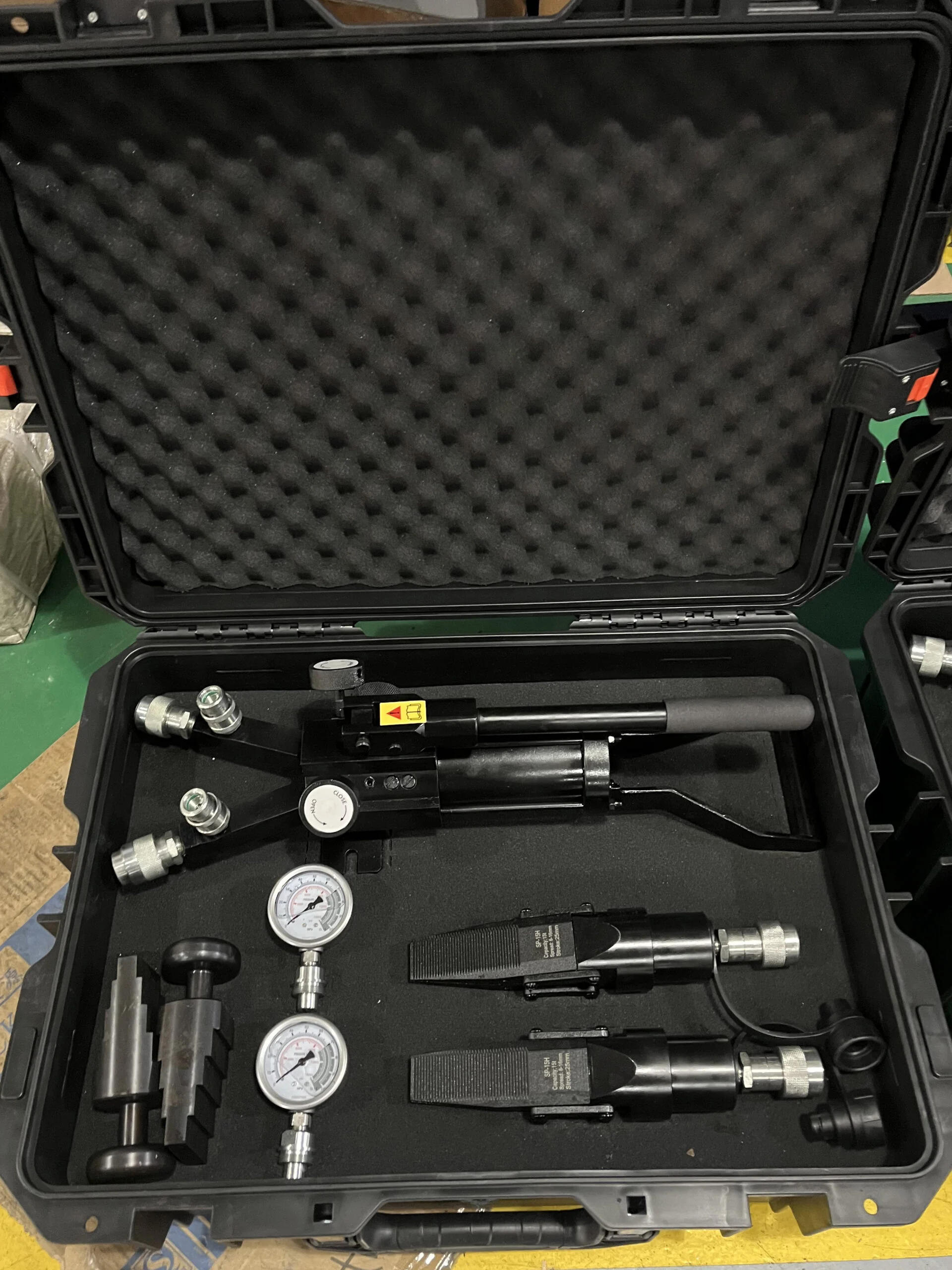

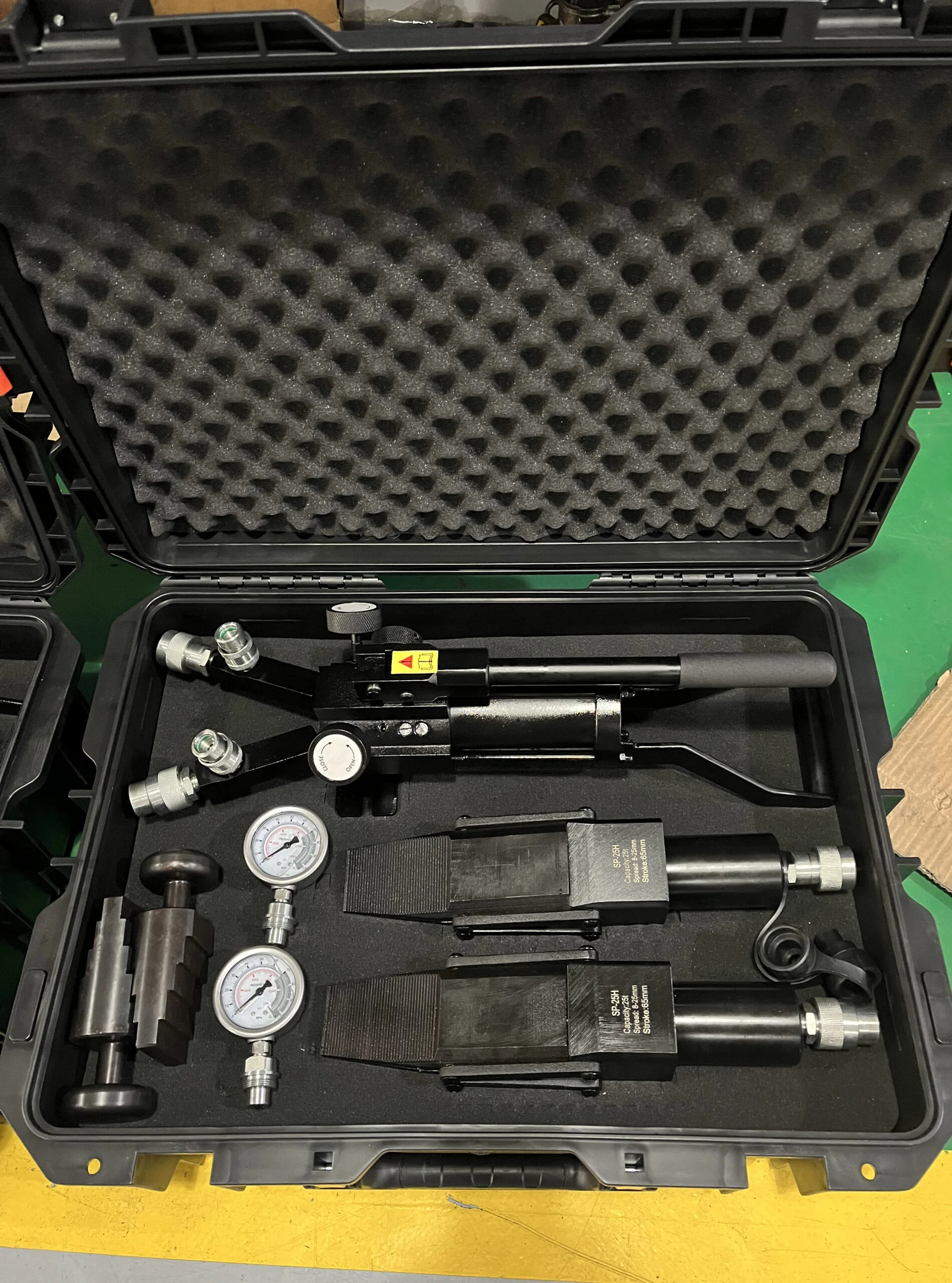

Kit Contents	Model No. FLS15 SK	Model No. FLS15 TK	Model No. FLS15-ST SK	Model No. FLS15-ST TK
Hydraulic Spreader	1	2	–	–
Hydraulic Spreader,Stepped	–	–	1	2
Aluminium Holding Block	1	2	1	2
Hand Pump	1	1	1	1
Hose	1	2	1	2
Guage	1	2	1	2
Handle for Spreader	1	2	1	2
Robust Carrying Case	1	1	1	1
