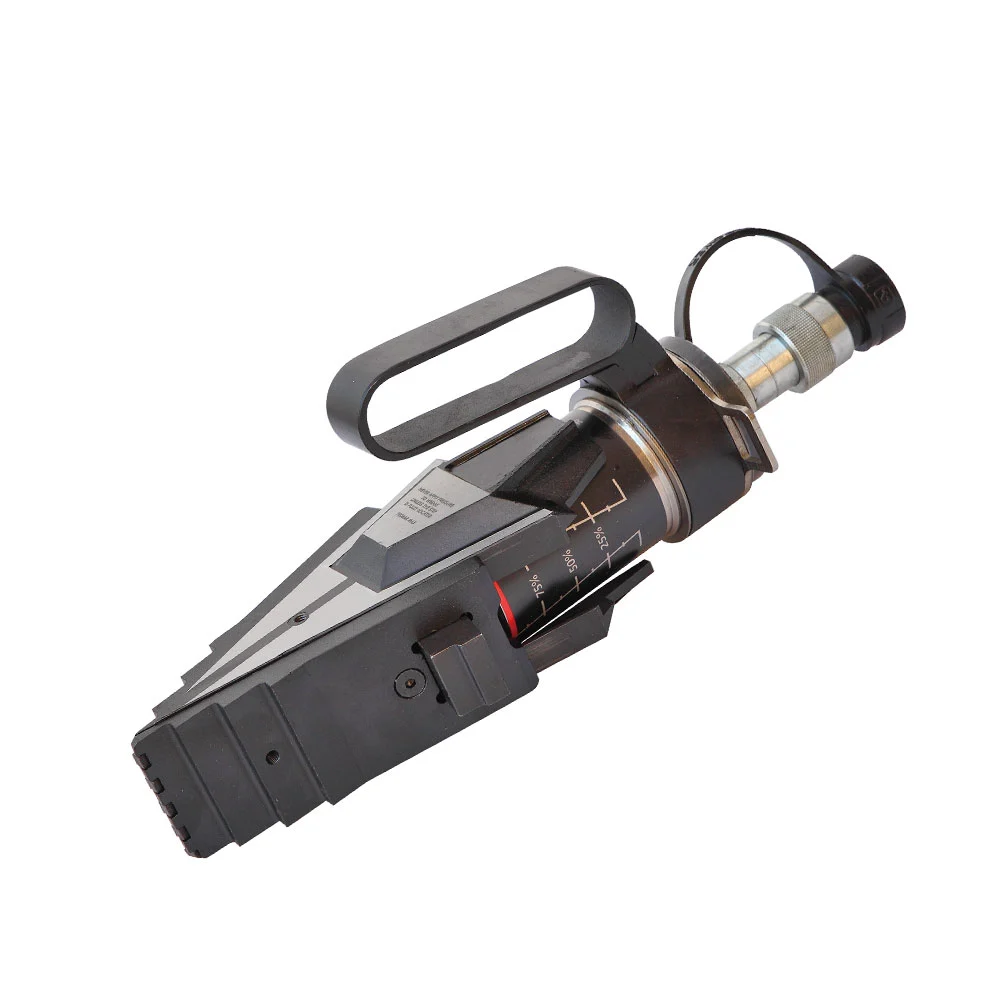

FSW25TE, 24 Ton Hydraulic Flange Spreader
Pullertop supplies full ranges of hydraulic flange spreaders, our flange spreader tools are normally used for separating flanges, widely being used in industrial applications such as pipeline maintenance, pipeline construction, testing and flange replacement, maintenance gaskets, pressure vessels, cylinder head opening, power plants, bearing disassembly, oil and electricity drilling, motor rotor disassembly, offshore platforms, jacking work, Shipbuilding, industrial equipment, horizontal movement of workpieces and so on. Tool selection is made on the basis of the access gap between the flange faces, the flange size, and the required scope of work.
Product Description
Product Lines: Hydraulic Flange Spreader
- Practical, portable, and lightweight
- Revolving handle to aid horizontal or vertical spreading
- Removable handle for improved access
- No finger pinch-point
- Increased step-depth on upper steps
- Safety lanyard – 1,0 m length
- Forged key components for strength and reliability
- Rapid disassembly and assembly
- Narrow jaw teeth – improved tool wear.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

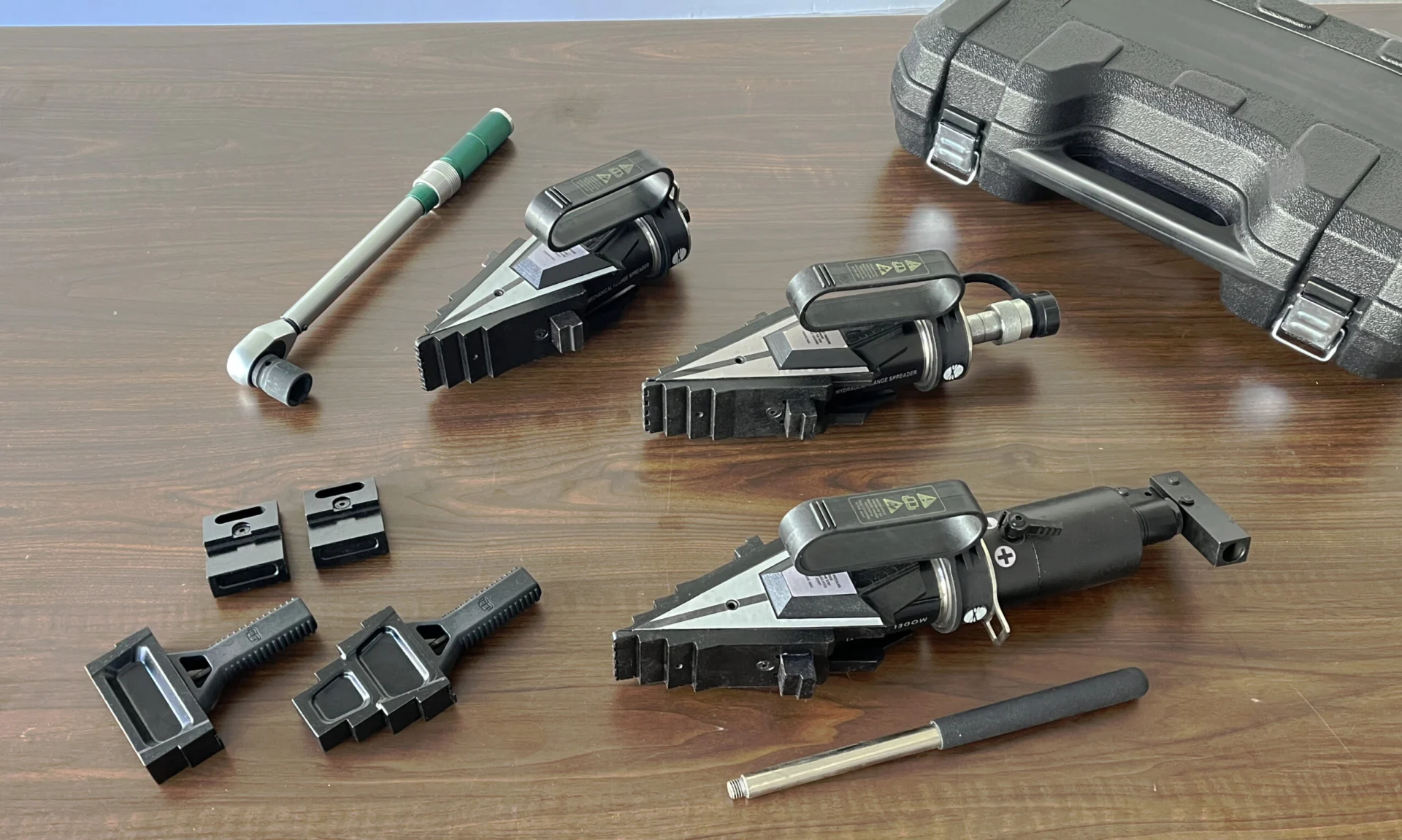

Image Gallery
Series Specifications
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 24 |
| Maximum Spread (mm) | 103.5 |
| Tip Clearance (mm) | 6 |
| Jaw Width(mm) | 60 |
| Power Source | Split Hydraulic Power |
| Oil Capacity (cm3) | 250 |
| Weight: | 15 |

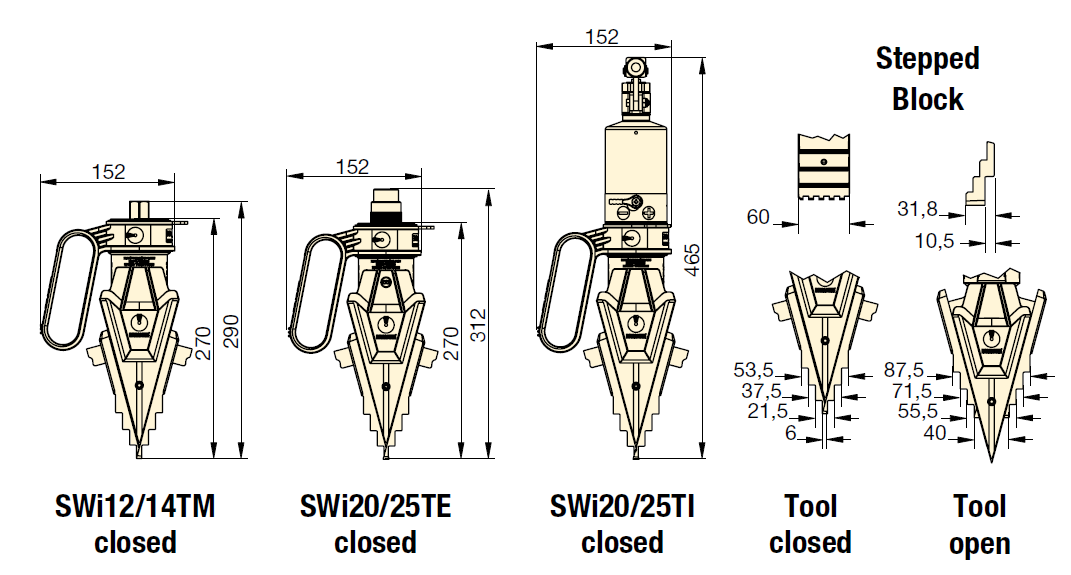

Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Content | Oil Capacity/cm3 | Power | Weight/Kg |
|---|---|---|---|---|---|---|---|
| FSW14TM | 14 | 103,5 | 6 | STANDARD KIT | * | Mechanical Type | 13 |
| FSW25TI | 24 | 103,5 | 6 | STANDARD KIT | * | Integral Hydraulic Type | 18.1 |

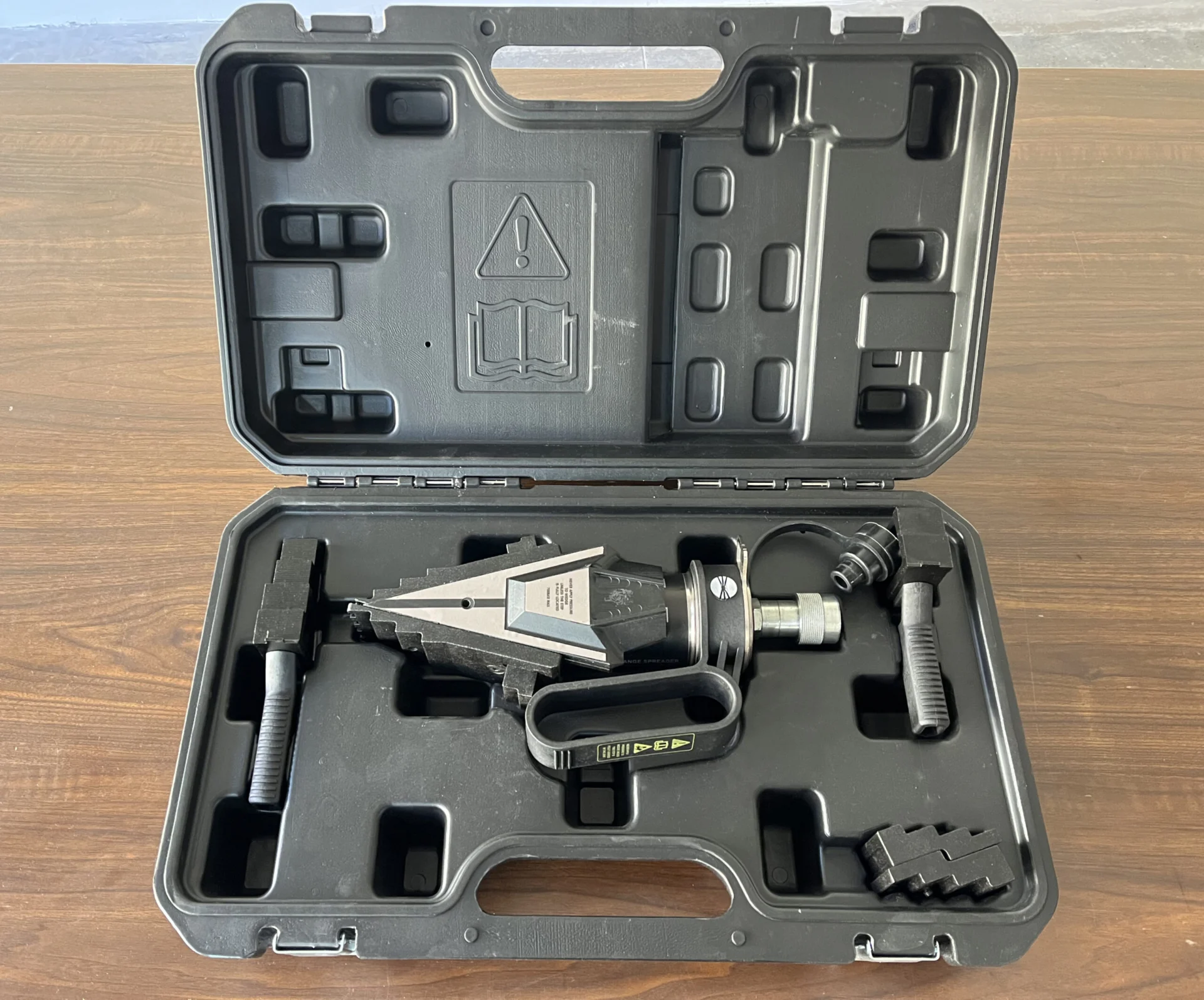

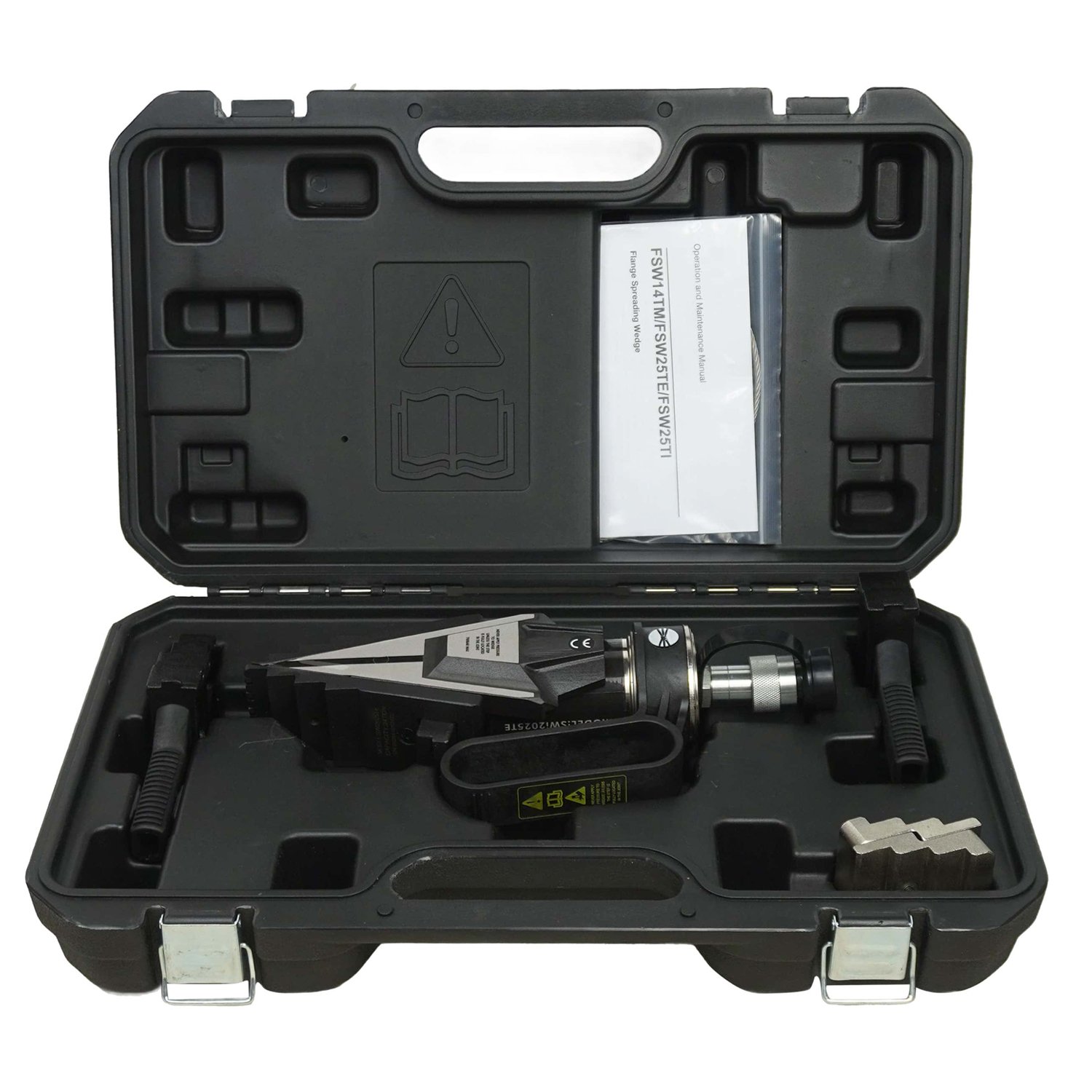

| FSW25TE | 24 | 103,5 | 6 | MINI KIT | 250 | Split Hydraulic Power | 15 |

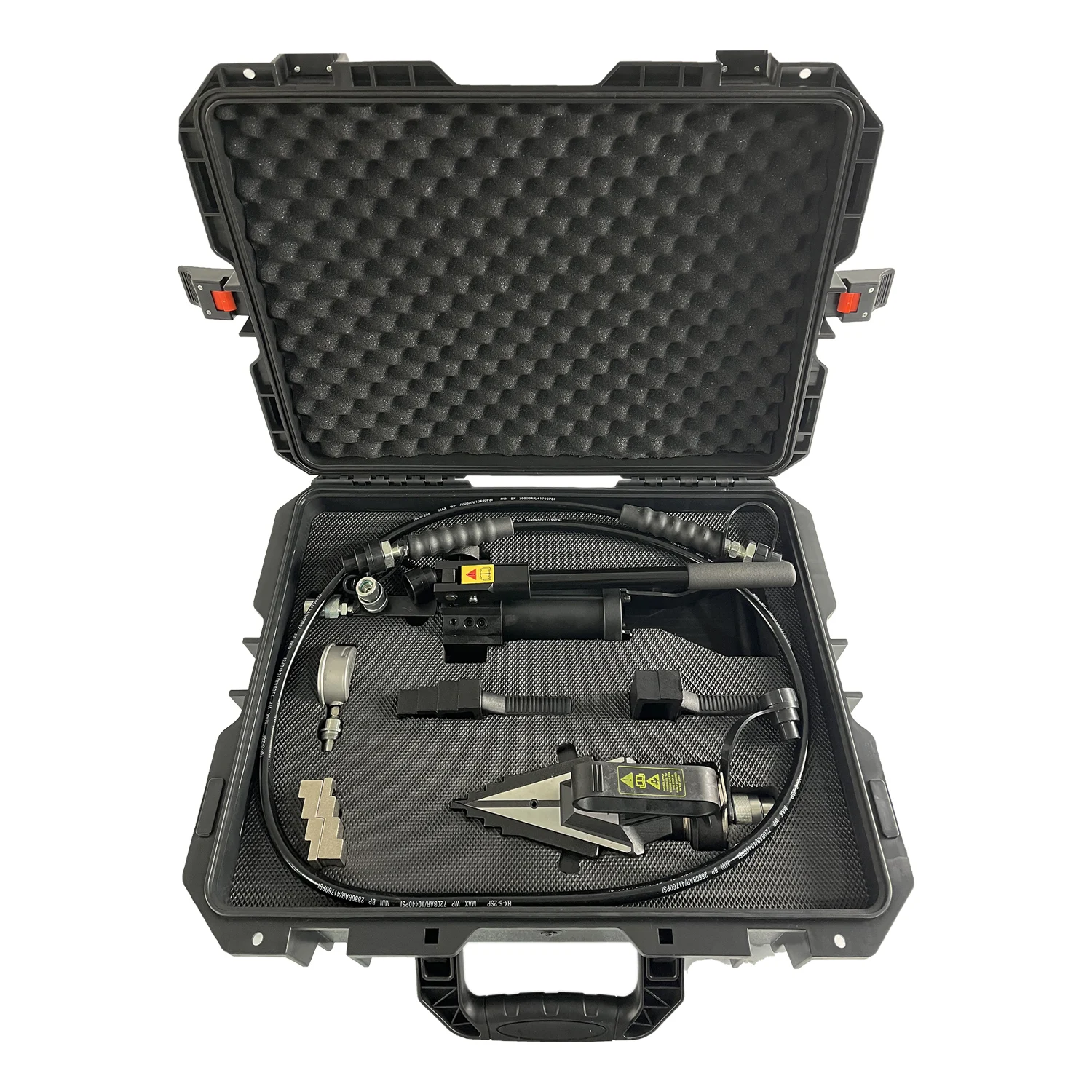

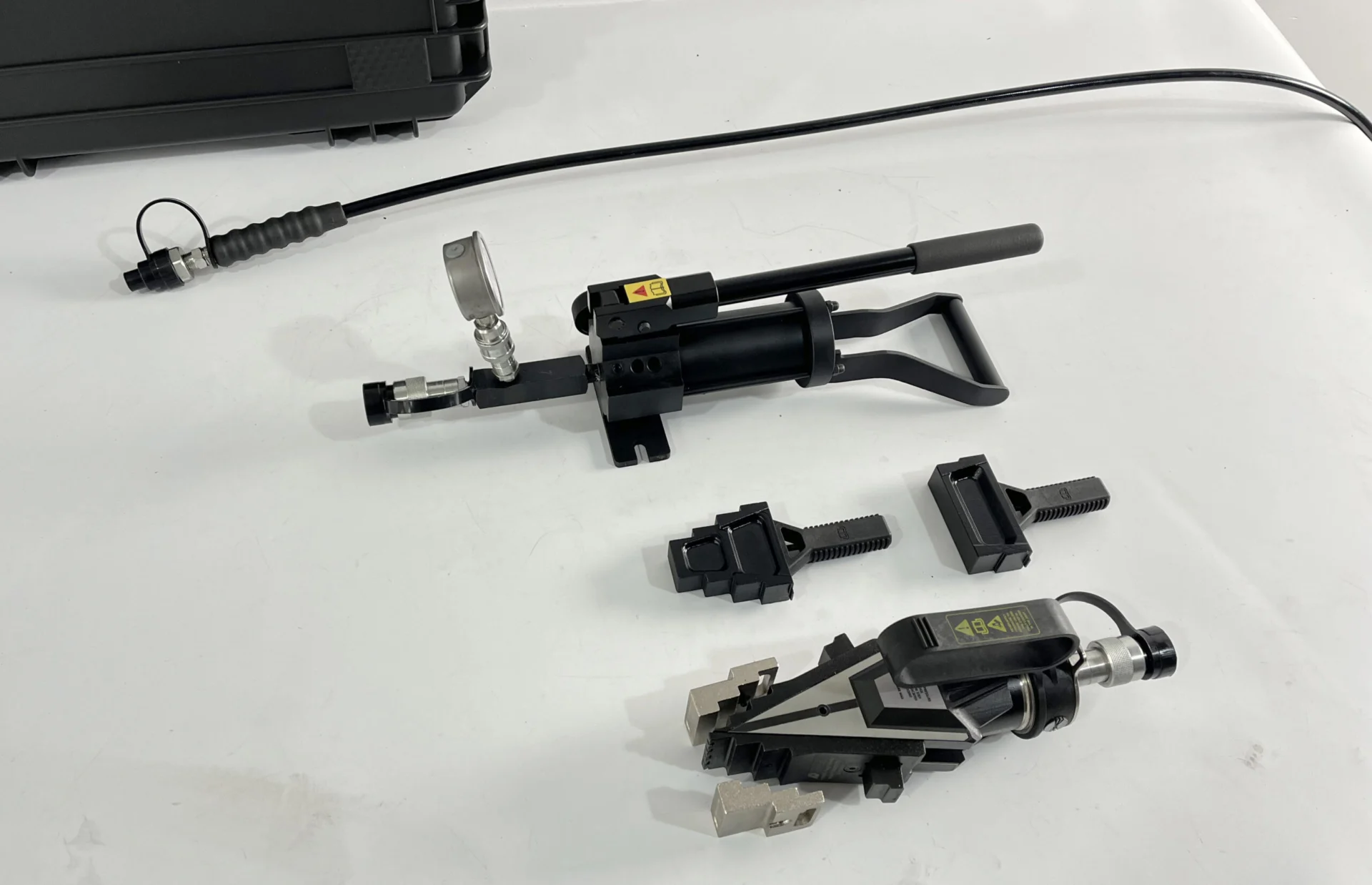

| FSW25TESK | 24 | 103,5 | 6 | STANDARD KIT (Including a Hand Pump ,1xFSW25TE) | 250 | Split Hydraulic Power | 28 |

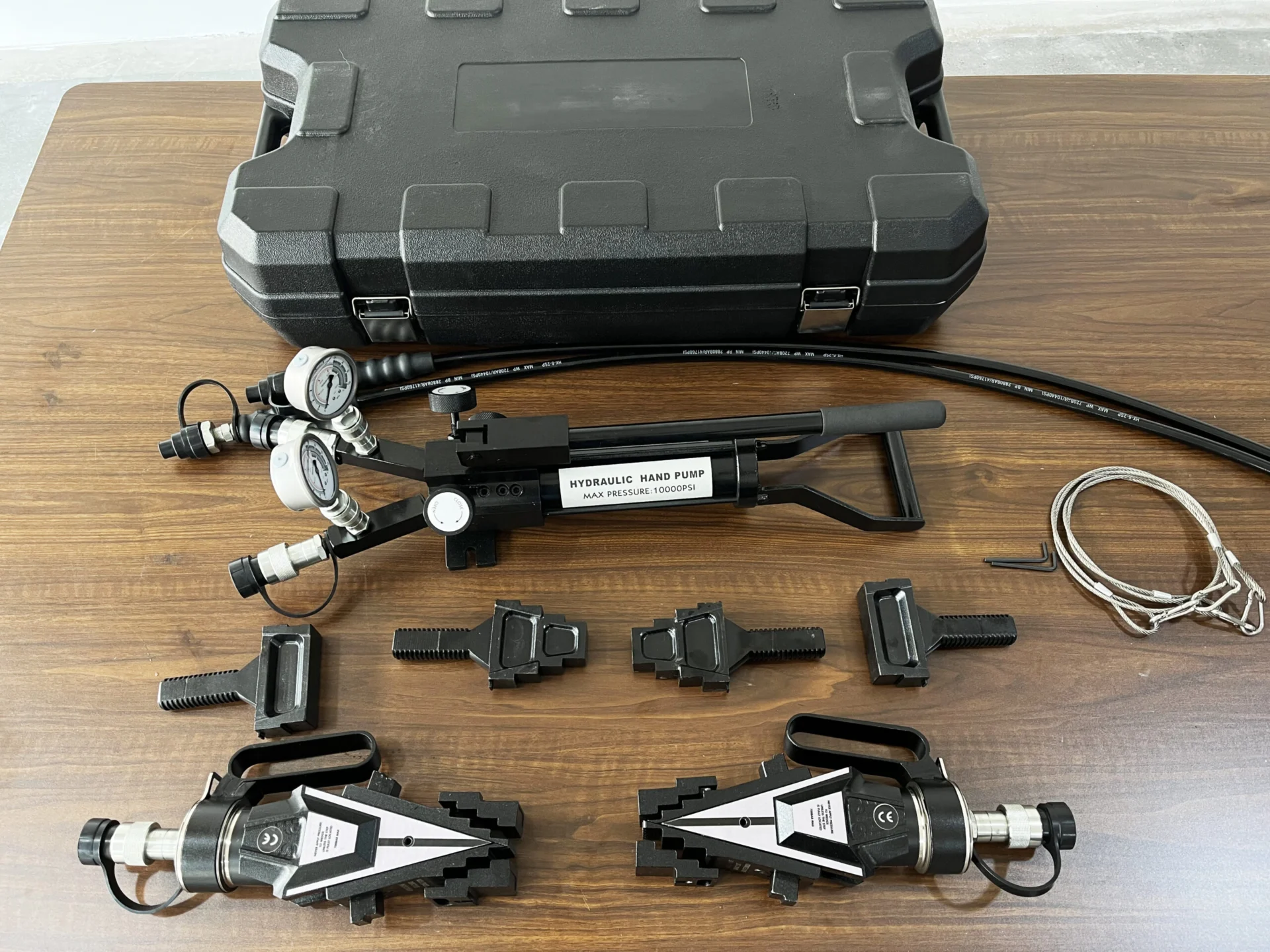

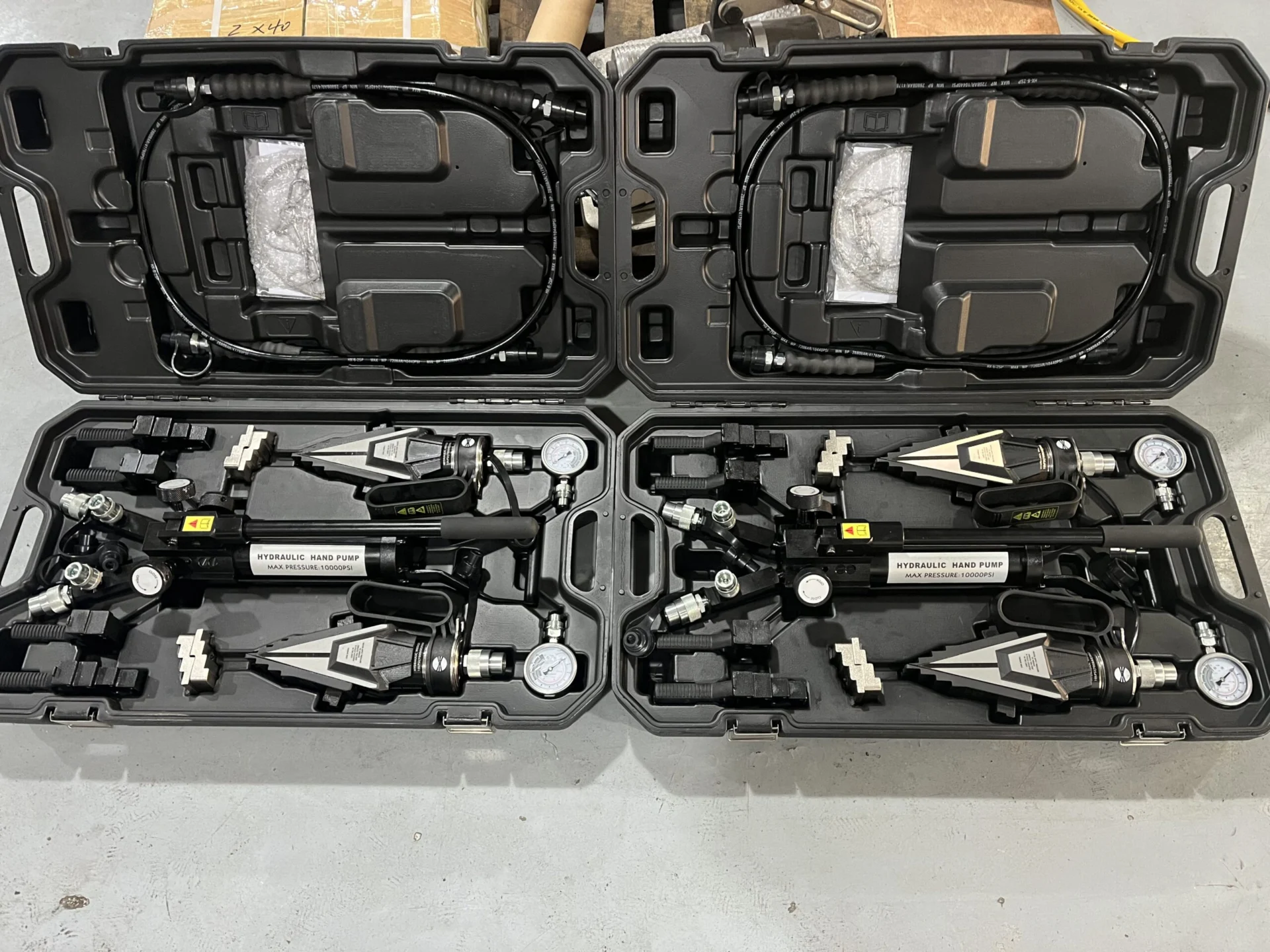

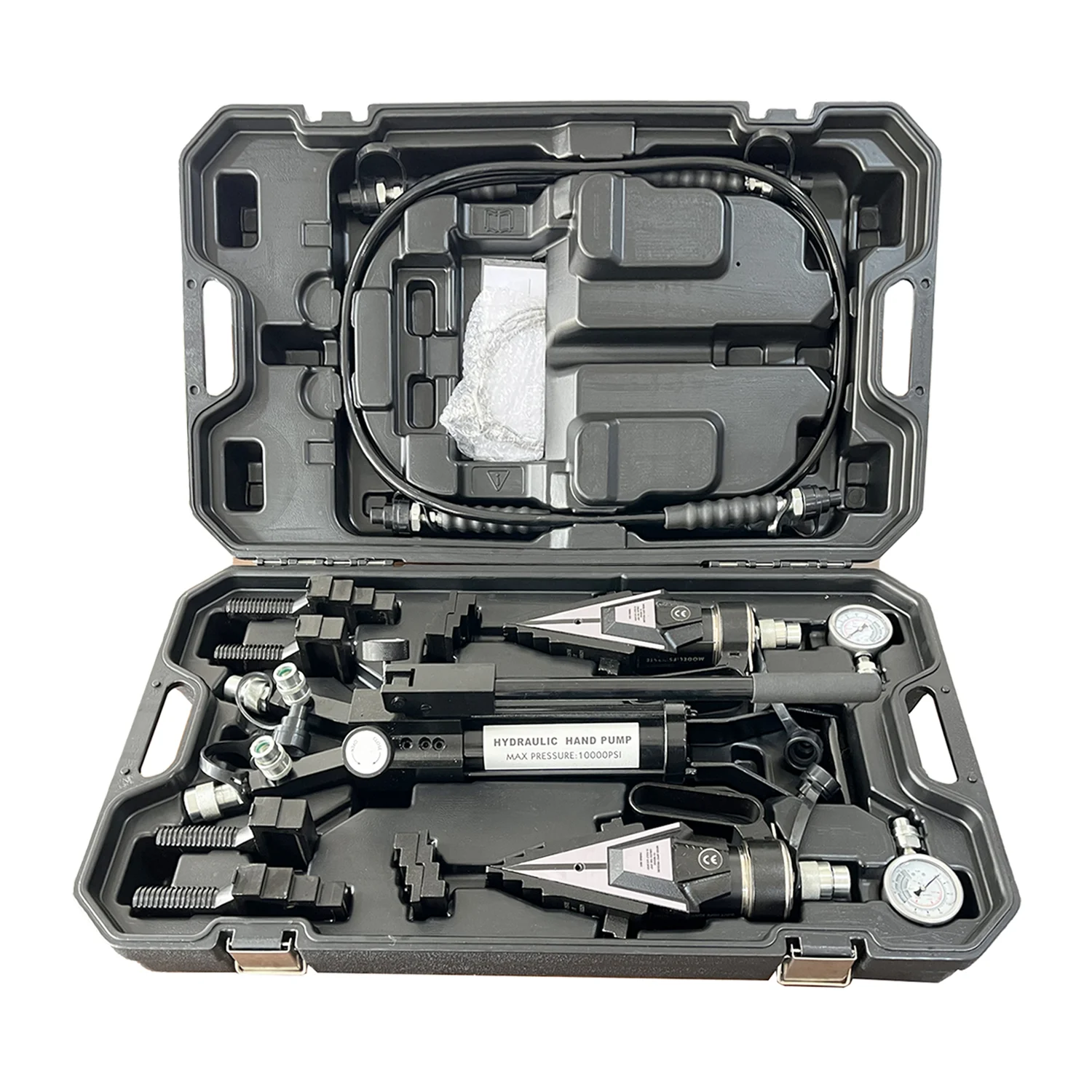

| FSW25TETK | 48 | 103,5 | 6 | MAXI KIT (Including a Hand Pump ,2 x FSW25TE) | 500 | Split Hydraulic Power | 37 |
