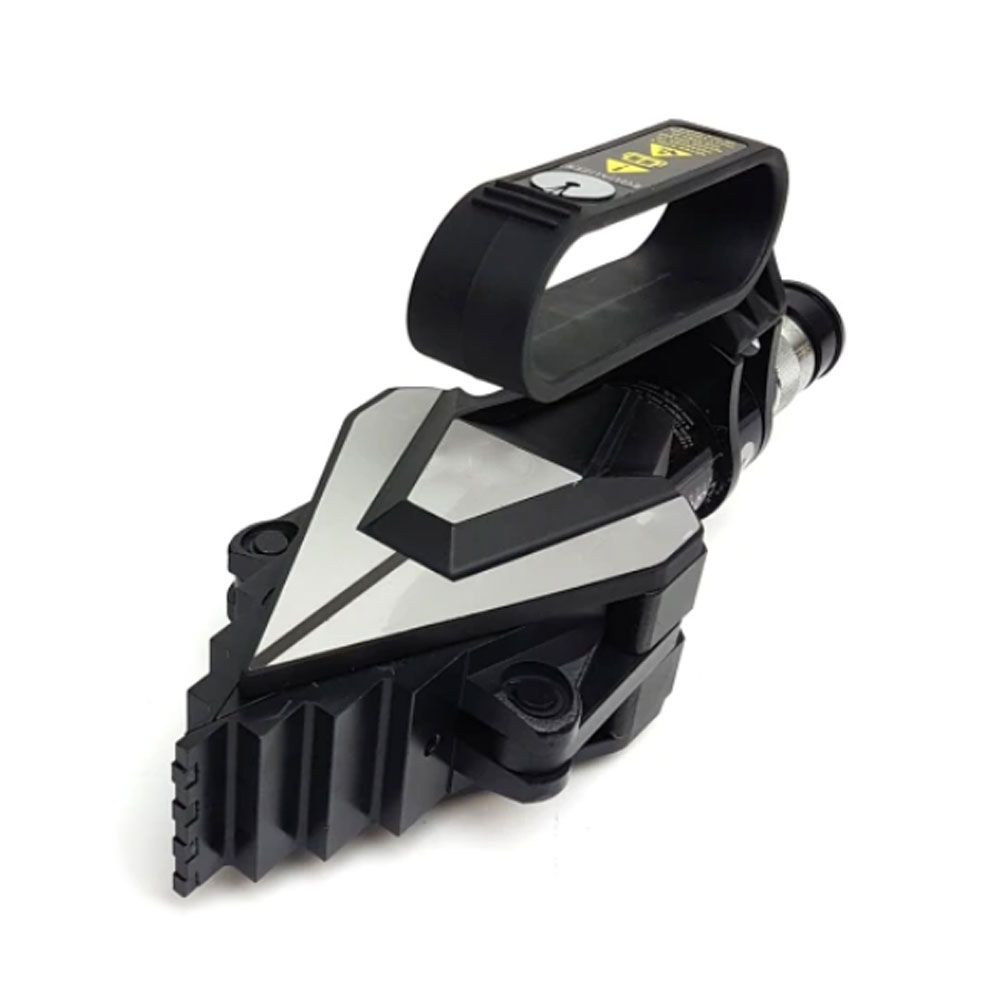

FSW5TE, 8.7 Ton, Split Hydraulic Flange Spreader

The FSW5TE is a 8.7-ton split type hydraulic spreader manufactured by Pullertop. It is designed to hydraulically spread flange joints with a minimum access gap of 4.0mm,flange plates can be opened up to 101mm range.

Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Flange Spreader

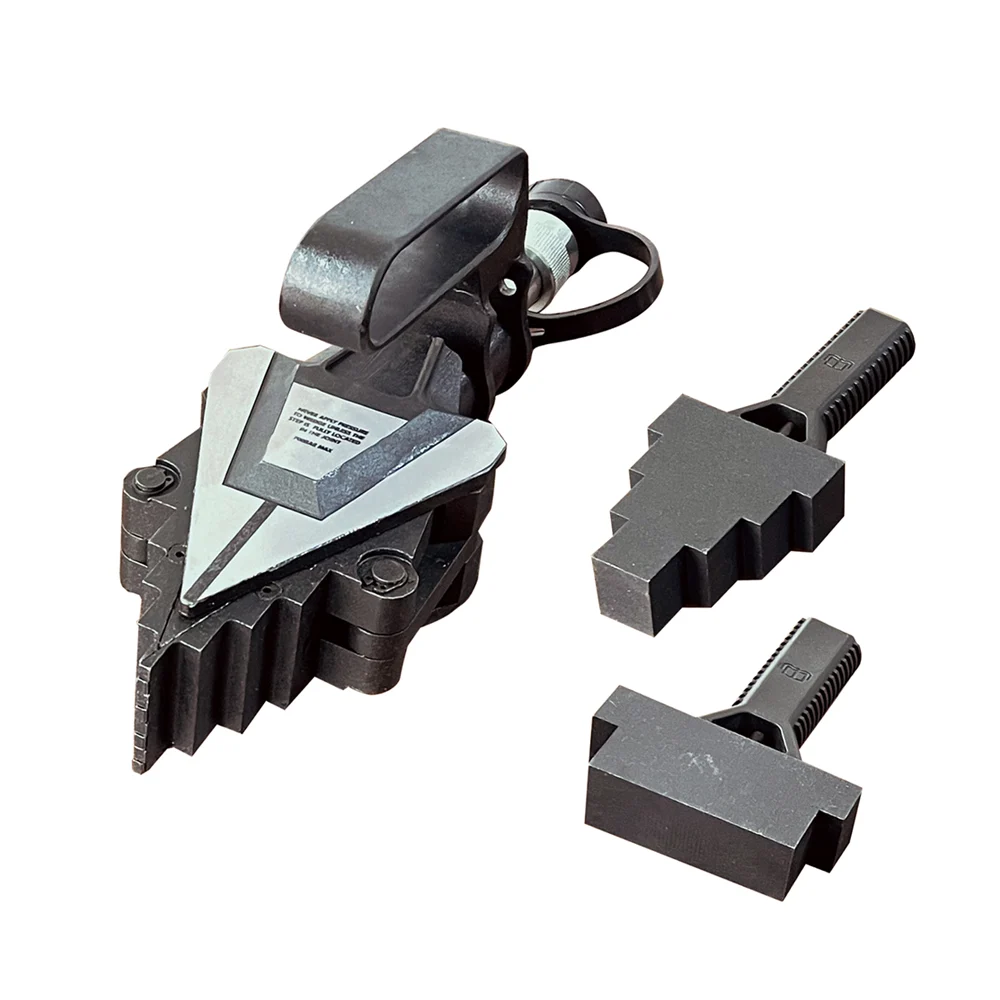

  • Set Includes
  • 1 x FSW5TE Flange Spreader Wedgehead
  • 1 x 10,000 psi Hydraulic Cylinder
  • 1 x Safety Block
  • 1 x Lanyard
  • Case dimensions (in) 22.8 x 13.4 x 7.1
  • User Features
  • Practical, portable and lightweight
  • Moulded plastic handle for comfort
  • Revolving handle to aid horizontal or vertical spreading
  • Removable handle for improved access
  • Safety Features
  • No finger pinch-points
  • Increased step depth on upper steps
  • Safety lanyard – 39 inches (1 m) length
  • Forged key components for strength and reliability
  • Maintenance Features
  • Rapid disassembly and assembly
  • Narrow jaw teeth – improved tool wear

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

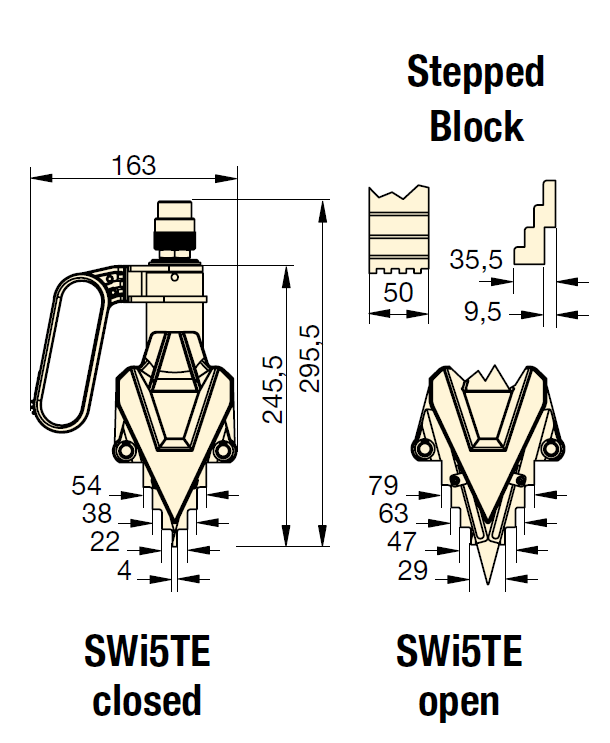

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 8.7
Maximum Spread (mm) 101
Tip Clearance (mm) 4
Jaw Width(mm) 50
Power Source External Hydraulic
Weight: 8.7
