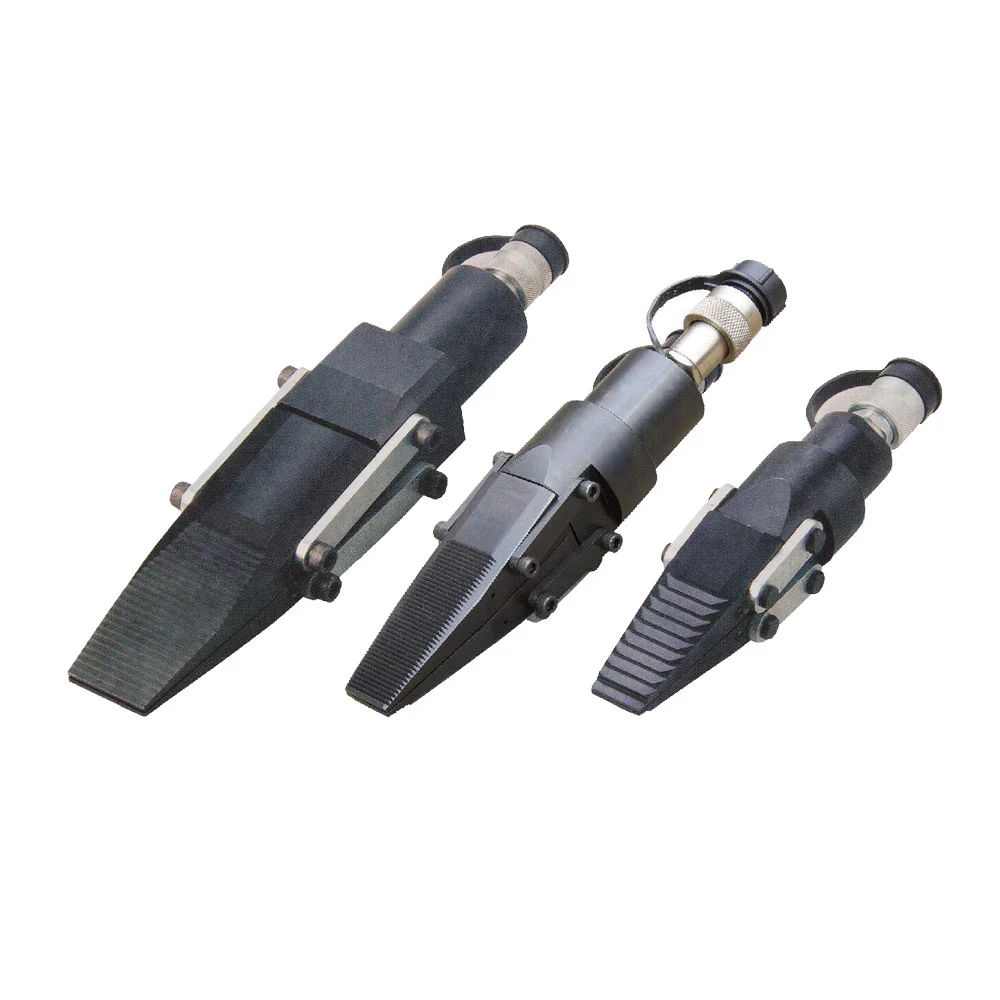

SP Series, Hydraulic Spreaders

Pullertop supplies full ranges of hydraulic flange spreaders, our flange spreader tools are normally used for separating flanges, widely being used in industrial applications such as pipeline maintenance, pipeline construction, testing and flange replacement, maintenance gaskets, pressure vessels, cylinder head opening, power plants, bearing disassembly, oil and electricity drilling, motor rotor disassembly, offshore platforms, jacking work, Shipbuilding, industrial equipment, horizontal movement of workpieces and so on. Tool selection is made on the basis of the access gap between the flange faces, the flange size, and the required scope of work.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Spreaders

  • Load from the vertical direction.
  • Lightweight and suitable for operation in limited space.
  • Apply gap 5-40mm.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

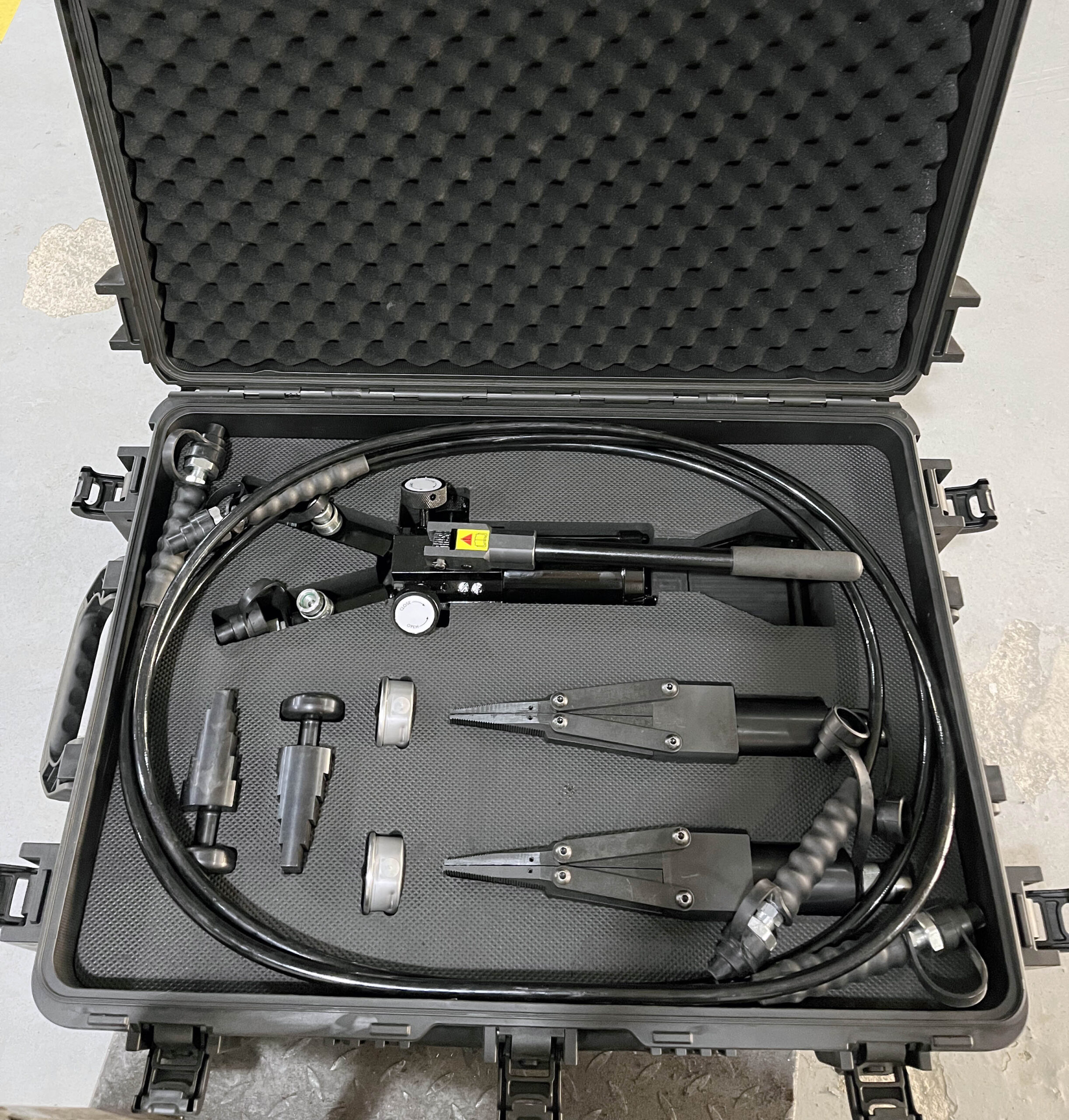

Image Gallery

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Spreading Force (ton) 15-25
Maximum Spread (mm) 16-25
Tip Clearance (mm) 6-8
Power Source Split Hydraulic Power
Stroke(mm) 25-65
Weight: 3.3-7.8

Series Comparison

Model Capacity(Ton) Max Spread(mm) Tip Clearance(mm) Stroke(mm) Weight (kg)
SP-15 15 16 6 25 3.3
SP-15L 15 16 6 25 3.3
SP-25 25 25 8 65 7.8
