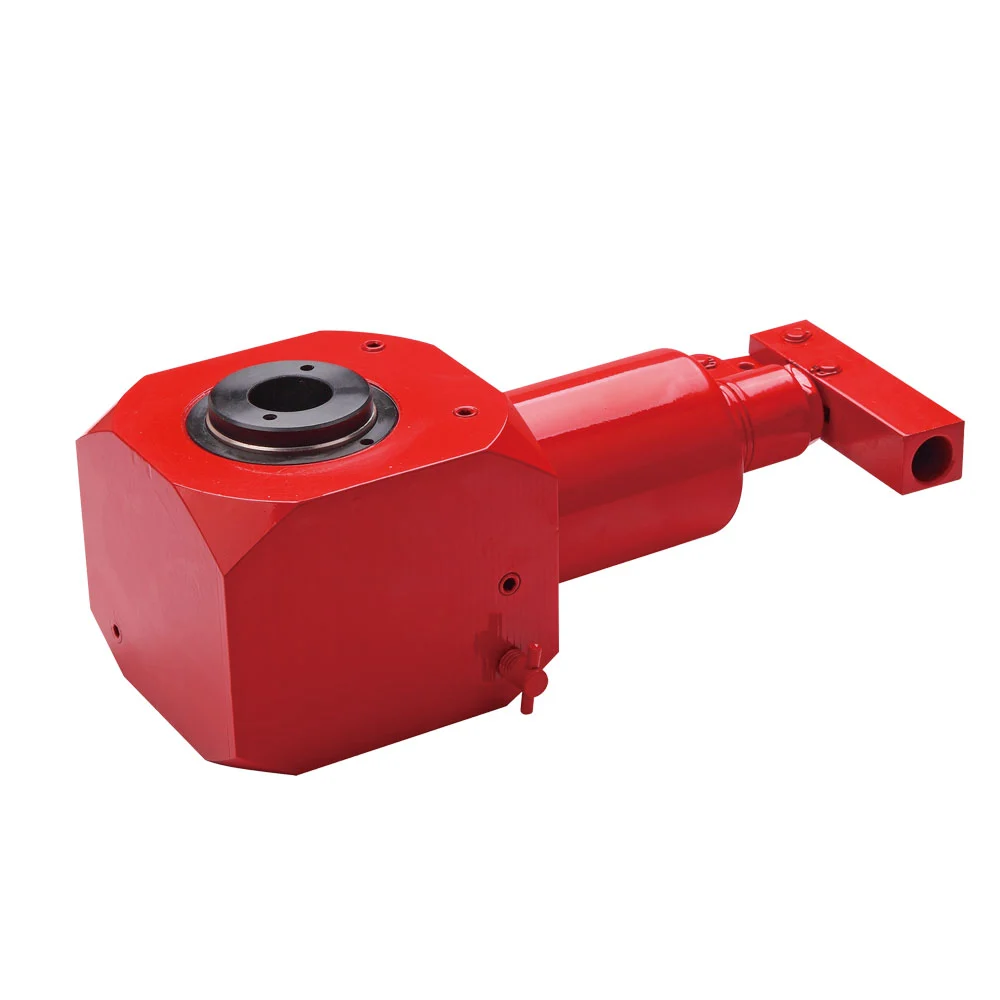

Hollow Plunger Hydraulic Bottle Jack

The JCH series hollow hydraulic jacks are suitable for use in tooling, maintenance, and tensioning applications, where a pulling force is required.

Download Catalog
Upload File

Product Description

Series: MBJ Series

Product Lines: Hydraulic Jacks

  • Lightweight, Spring return, easy to operate.
  • Low height compact design, suitable for lifting operation in confined spaces.
  • Manufactured from high-strength steel alloy, durable and low maintenance cost.
  • The pumping mechanism rotates through 360° providing maximum versatility in any application.
  • Hollow piston design for greater versatility.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Capacity 13-21 Ton
Collapsed Height 95-114mm
Stroke 41-45mm
Center Hole Dia 25-35mm
Weight 6.4-11.3Kg

Series Comparison

Model Number Capacity(Tons) Stroke(mm) Retracted Height(mm) Center Hole Dia(mm) Weight(Kg)
JCH13 13 41 95 25 6.5
JCH21 21 45 114 35 10
