Low Profile Hydraulic Bottle Jack

JCS series compact hydraulic jacks are ideal tools for lifting and positioning operations in narrow spaces,it comes with a lightweight design and the pumping handle can rotate 360°, providing maximum versatility in any application.

Download Catalog
Upload File

Product Description

Series: JCS Series

Product Lines: Hydraulic Jacks

  • Lightweight, Spring return, easy to operate.
  • Low height compact design, suitable for lifting operation in confined spaces.
  • Manufactured from high-strength steel alloy, durable and low maintenance cost.
  • The pumping mechanism rotates through 360° providing maximum versatility in any application.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Capacity 5-30 Ton
Collapsed Height 70-112mm
Stroke 8-45mm
Weight 2.6-12Kg

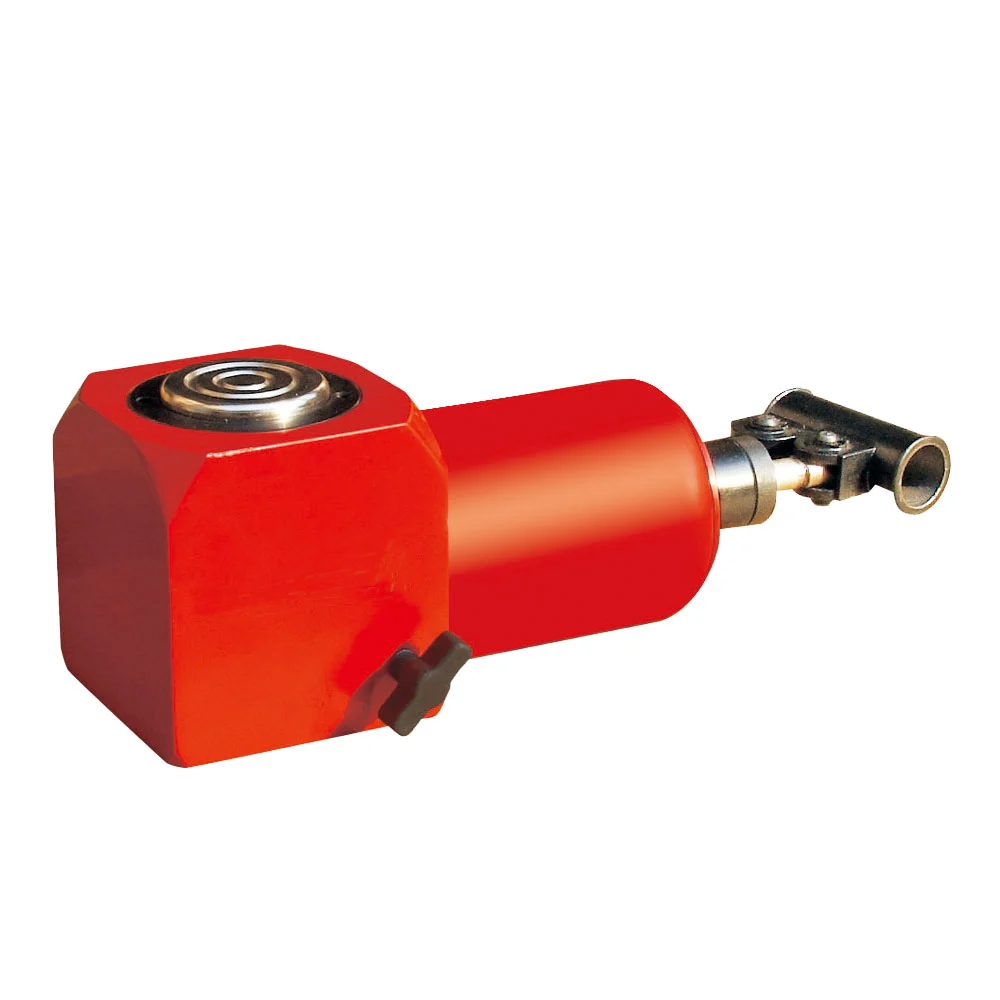

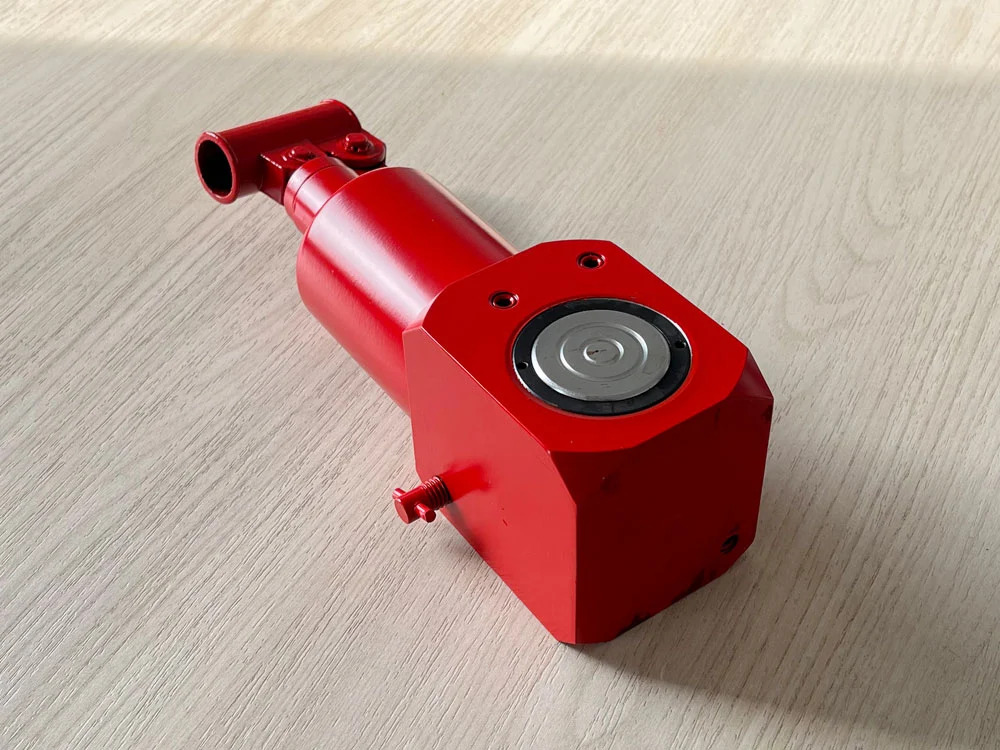

Product Picture

Series Comparison

Model Capacity(Ton) Stroke(mm) Collapsed Height(mm) Weight/Kg)
JCS05 5 8 70 2.9
JCS10 10 35 76 4.5
JCS20 20 41 102 10
JCS30 30 45 112 12
