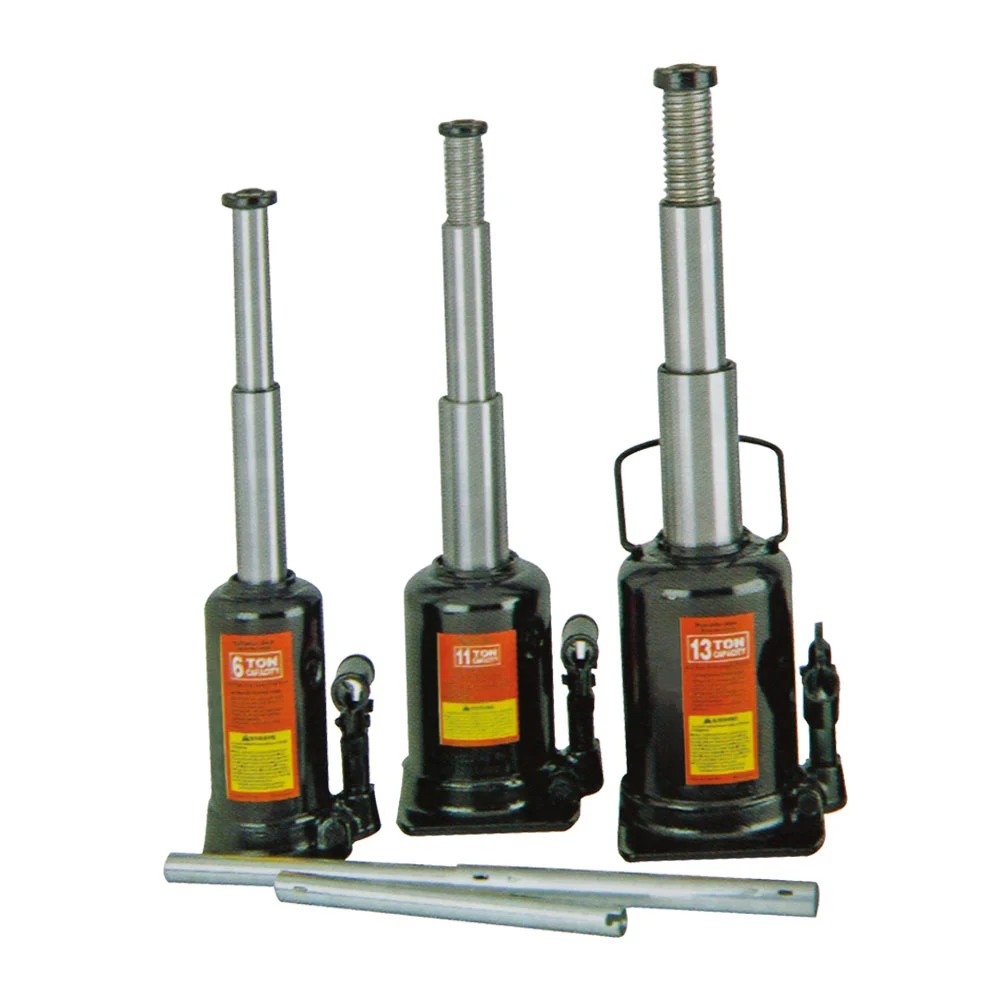

Multi-Stage/Telescopic Hydraulic Bottle Jack
MBJ series multistage hydraulic jacks come with a longer stroke than traditional hydraulic bottle jacks, the super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift, etc. In most applications, the user can place the jack once and complete the lift.
Product Description
Series: MBJ Series
Product Lines: Hydraulic Jacks
- Telescoping jacks offer all of the quality features and capabilities of the standard bottle jack line with a bonus. The super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift, etc. In most applications, the user can place the jack once and complete the lift.
- Our jacks all feature a unique beveled base that allows the jack to follow the load literally as it is raised, greatly reducing the side load of the piston.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
Capacity | 6-13 Ton |
Collapsed Height | 200-230mm |
Stroke | 254-305mm |
Weight | 6.4-11.3Kg |
Series Comparison
Model Number | Capacity(Tons) | Stroke(mm) | Retracted Height(mm) | Length of Screw Ext.(mm) | Height with Screw Ext.(mm) | No. Pump Strokes to Ext. Piston | Saddle Dia.(mm) | Base Size Beveled Base(mm) | Pump Handle Length(mm) |
---|---|---|---|---|---|---|---|---|---|
MBJ06 | 6 | 305 | 216 | * | 512 | 14 | 44 | 121X133 | 700 |
MBJ11 | 11 | 262 | 200 | 68 | 530 | 25 | 41 | 160X165 | 700 |
MBJ13 | 13 | 254 | 230 | 84 | 570 | 35 | 48 | 176X186 | 700 |
