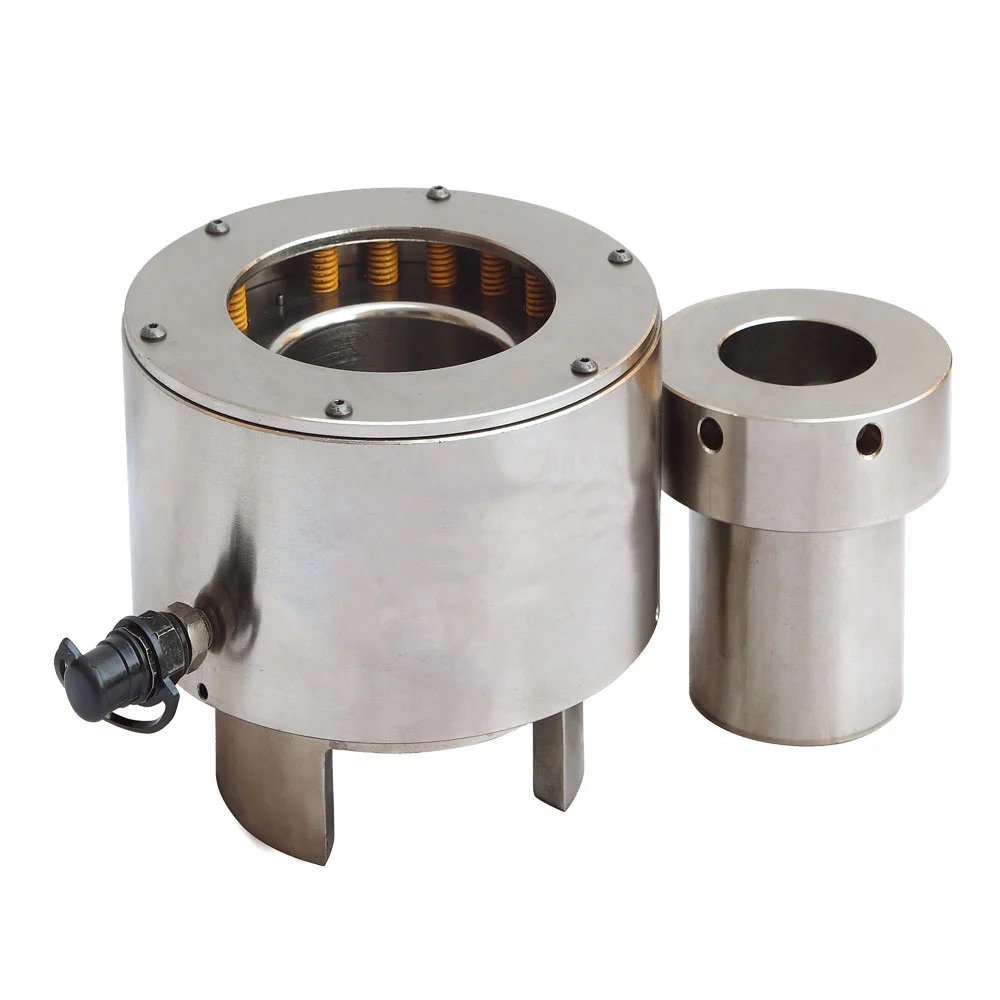

HTS Series, Hydraulic Bolt Tensioners

Pullertop specializes in the production of bolt tensioners of various specifications, with high precision, long life, and uniform and precise tensioning of bolts. Using high-strength alloy materials, reliable quality, and high precision, Pullertop is your preferred brand of bolt tensioners!

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Bolt Tensioners

Automatic spring return. There is over-stroke protection to ensure frequent use.

Protect for the stroke over the maximum value, this will reduce the possibility of a broken seal by incorrect operation.

Hold all the functions of other tensioners.

More function operation by one tensioner for many bolts.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

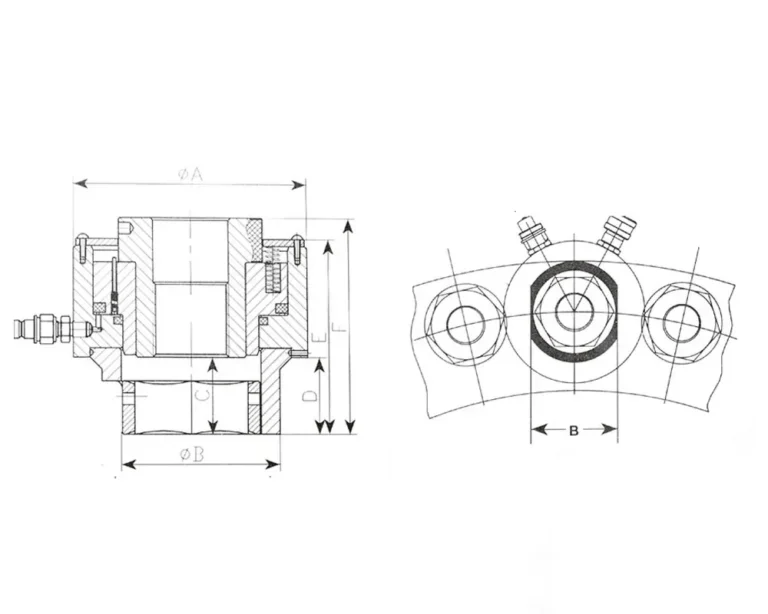

Dimension

Series Comparison

Model	Bolt/mm	Max Load/KN	A/mm	B/mm	C/mm	D/mm	E/mm	F/mm	Stroke/mm	Weight/Kg
HTS0	M20	307	109	55	23	25	111	128	8	5
HTS0	M22	307	109	60	25	27	113	130	8	5
HTS0	M24	307	109	66	27	29	115	132	8	5
HTS0	M27	307	109	72	30	32	118	135	8	5
HST1	M30	486	109	80	33	35	126	144	8	7
HST1	M33	486	109	85	36	38	129	147	8	7
HST1	M36	486	109	90	39	41	132	150	8	7
HST2	M33	814	132	85	36	44	135	150	8	10
HST2	M36	814	132	96	43	43	134	179	8	10
HST2	M39	814	132	98	42	50	141	156	8	10
HST2	M42	814	132	105	15	53	144	159	8	10
HTS3	M39	989	150	110	42	42	136	150	10	15
HTS3	M42	989	150	113	53	56	150	164	10	15
HTS3	M45	989	150	114	50	50	144	161	10	15
HTS3	M48	989	150	118	52	52	146	163	10	15
HTS4	M52	1413	174	132	55	56	154	174	10	20
HTS4	M56	1413	174	135	59	60	158	178	10	20
HTS5	M56	1649	198	135	59	60	161	179	12	25
HTS5	M60	1649	198	143	64	64	165	183	12	25
HTS5	M64	1649	198	150	68	68	169	187	12	25
HTS5	M68	1649	198	158	72	72	173	191	12	25
HTS6	M72	2131	222	165	76	76	184	207	12	35
HTS6	M76	2131	222	170	80	80	188	211	12	35
HTS7	M76	2544	252	170	80	80	194	221	12	50
HTS7	M80	2544	252	175	85	85	199	226	12	50
HTS7	M85	2544	252	190	76	85	199	226	12	50
HTS7	M90	2544	252	205	95	95	209	236	12	50
HTS8	M95	3101	282	215	100	100	214	243	12	65
HTS8	M100	3101	282	235	105	105	219	248	12	65
HTS9	M105	3792	318	240	110	110	224	254	12	85
HTS9	M110	3792	318	235	115	120	234	264	12	85
HTS9	M115	3792	318	260	120	120	243	264	12	85
HTS10	M115	4900	360	260	120	120	261	297	12	110
HTS10	M120	4900	360	270	125	125	266	302	12	110
HTS10	M125	4900	360	286	140	130	271	307	12	110
HTS11	M130	6255	408	285	135	135	276	312	12	130
HTS11	M135	6255	408	292	140	140	281	317	12	130
HTS11	M140	6255	408	300	145	145	286	322	12	130
HTS11	M145	6255	408	312	165	155	296	332	12	130
HTS12	M145	8423	456	312	150	150	301	337	12	150
HTS12	M150	8423	456	320	155	155	306	342	12	150
HTS12	M160	8423	456	340	160	165	316	352	12	150
