Hydraulic Grip Puller Set With Hand Pump

Hydraulic puller sets include detachable hydraulic cylinders and a choice of pump options, along with a gauge assembly and hose for safe monitoring of applied pulling forces.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Bearing Puller Set

Pullertop grip puller sets provide precise hydraulic control allowing fast, efficient and safe pulling

High quality, forged steel components provide superior reliability and service

Includes hydraulic set

Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

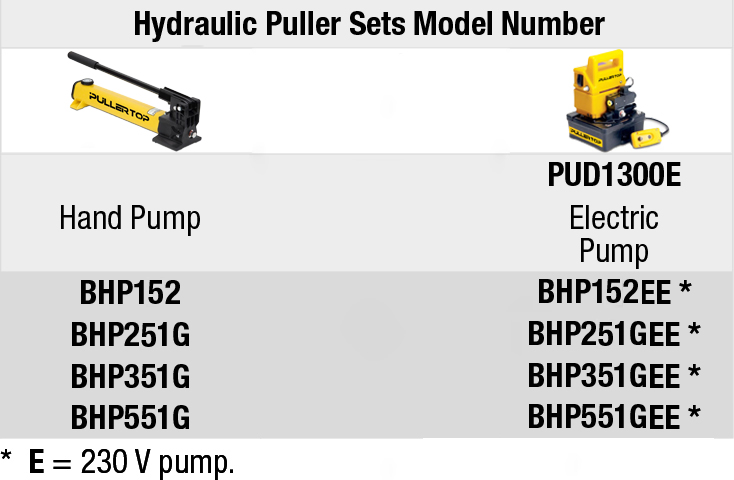

Series Comparison

Model	Capacity/Ton	Working Pressure/Mpa	Hand Pump	Cylinder	Hose	Gauge	Gauge Adapter	Grip Puller	Weight/Kg
BHP152	8	70	P142	RCH121	JH7818	GF120B	GA4	BHP1762	22
BHP251G	20	70	P392	RCH202	JH7818	GF813B	GA3	BHP252	56
BHP351G	30	70	P392	RCH302	JH7818	GF813B	GA3	BHP352	91
BHP551G	50	70	P80	RCH603	JH7818	GF813B	GA3	BHP552	160
