TMHP 10E Hydraulic Puller Kit

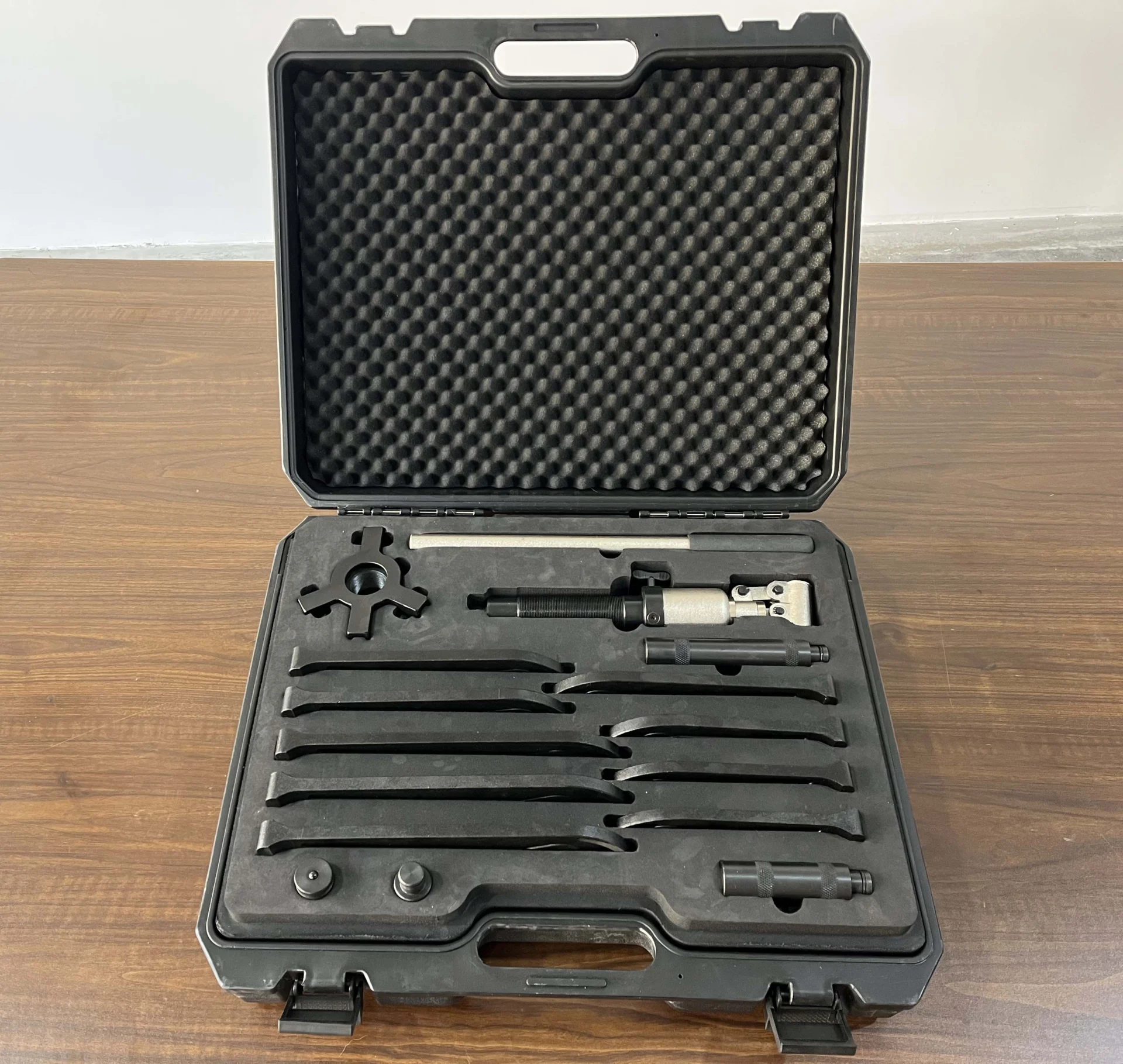

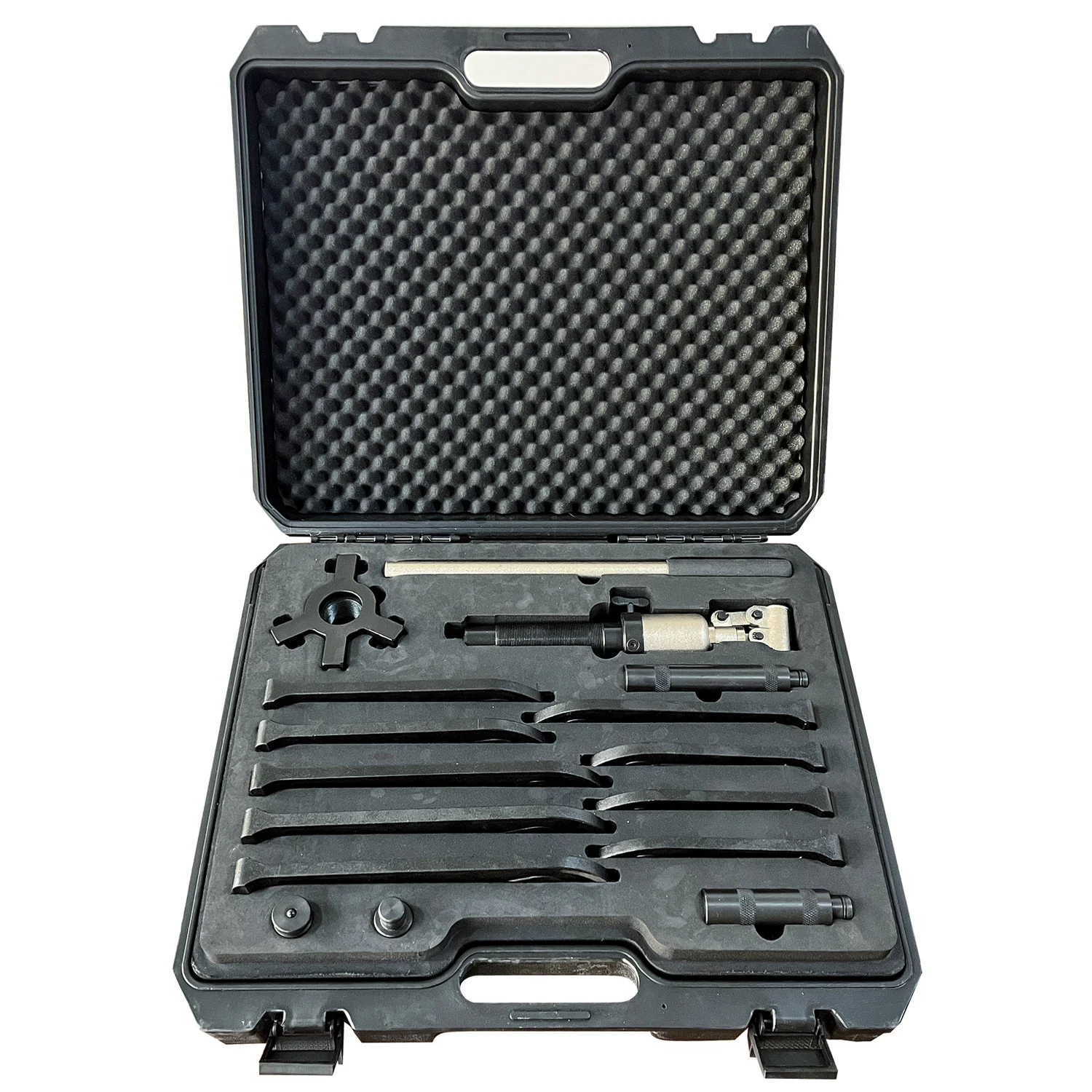

The PullerTop TMHP 10E jaw puller kit is equipped with a hydraulic spindle, which facilitates effortless bearing dismounting up to 100 kN . The versatile puller kit includes three different arm sizes and can be assembled as a two-arm puller or a three-arm puller depending on the space and demand of the application.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Pullers Sets

The 3 different arm sizes, with a maximum effective arm length of 200 mm , make the TMHP 10E suitable for use in a wide range of applications

The self-locking arms minimise the risk of the puller slipping from the application when under load

The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN

Long stroke of hydraulic spindle, 80 mm, facilitates dismounting in one operation

Extension pieces of the hydraulic spindle allow quick adaptation to pulling length

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Comparison

Model		TMHP 10E
Description		Advanced hydraulic puller kit
General	Contents	1 x arm-assembly stand
		3 × arms, 115 mm (4.5 in.)
		3 × arms, 160 mm (6.3 in.)
		3 × arms, 200 mm (7.8 in.)
		1 x hydraulic spindle TMHS 100
		3 × extension pieces for hydraulic spindle; 50, 100 and 150 mm
		1 x nosepiece with centre point for hydraulic spindle
	Maximum stroke	80 mm
	Nominal working force	100 kN
	Weight	15.8 kg
	Threading hydraulic cylinder	UN 1½” x 16 tpi
Jaw puller	Effective arms length, arms set 1 (TMHP10E-10)	115mm
	Width of grip, arms set 1	75-170 mm
	Claw height	8 mm
	Effective arms length, arms set 2 (TMHP10E-11)	160 mm
	Width of grip, arms set 2	80-250 mm
	Claw height	8 mm
	Effective arms length, arms set 3 (TMHP10E-12)	200 mm
	Width of grip, arms set 3	110-280 mm
	Claw height	8 mm
