TMHC 110E Hydraulic Puller Kit

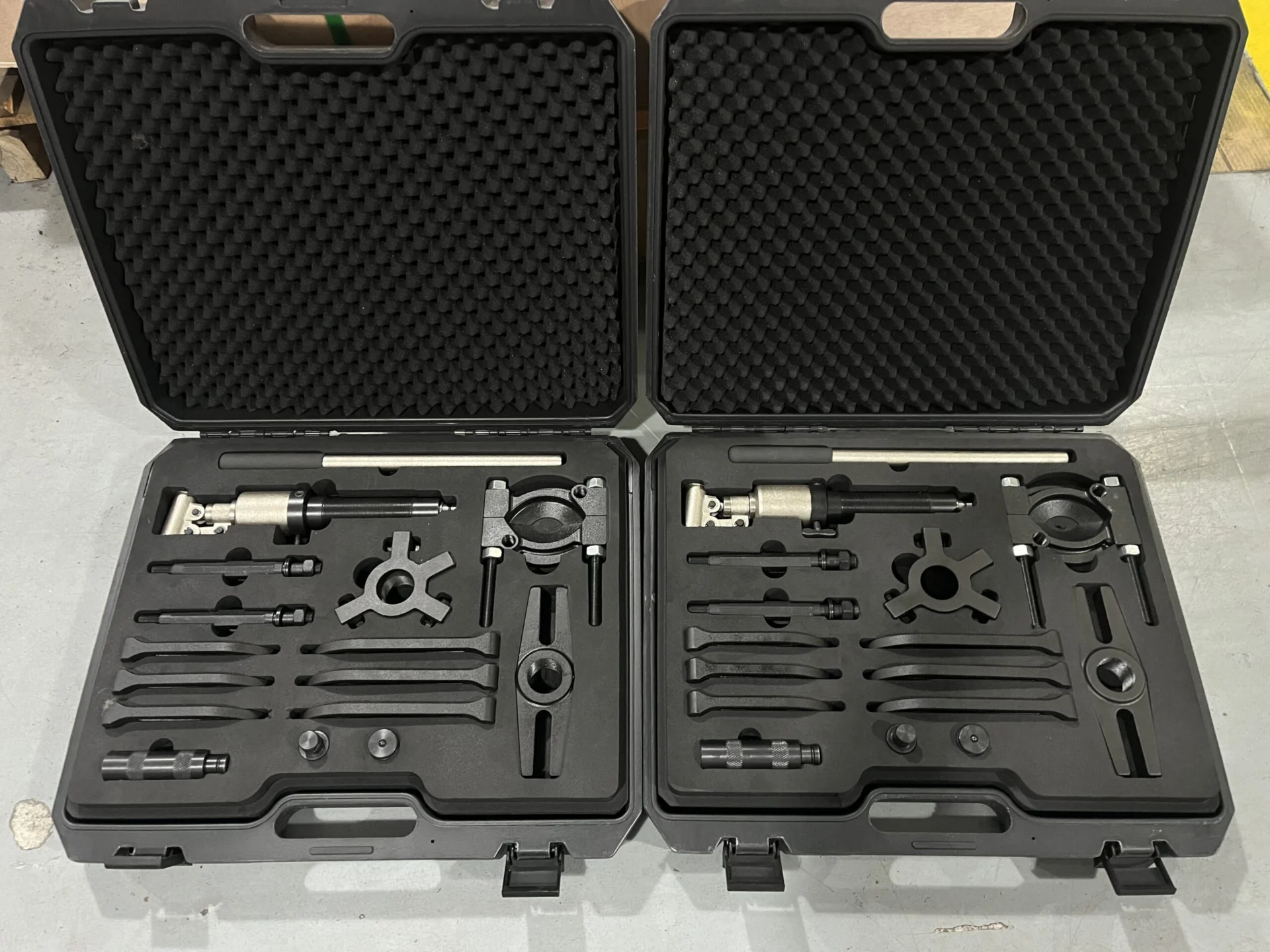

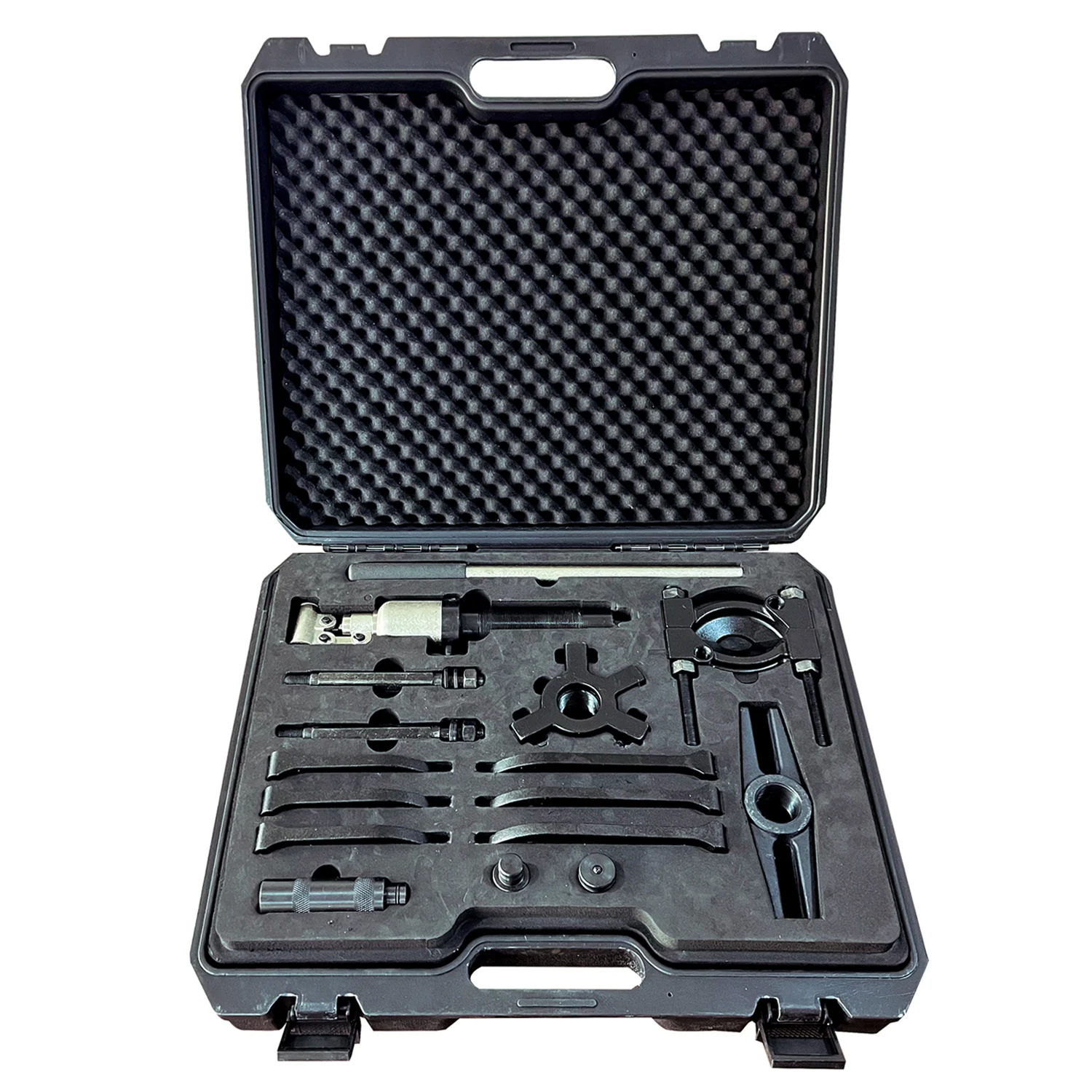

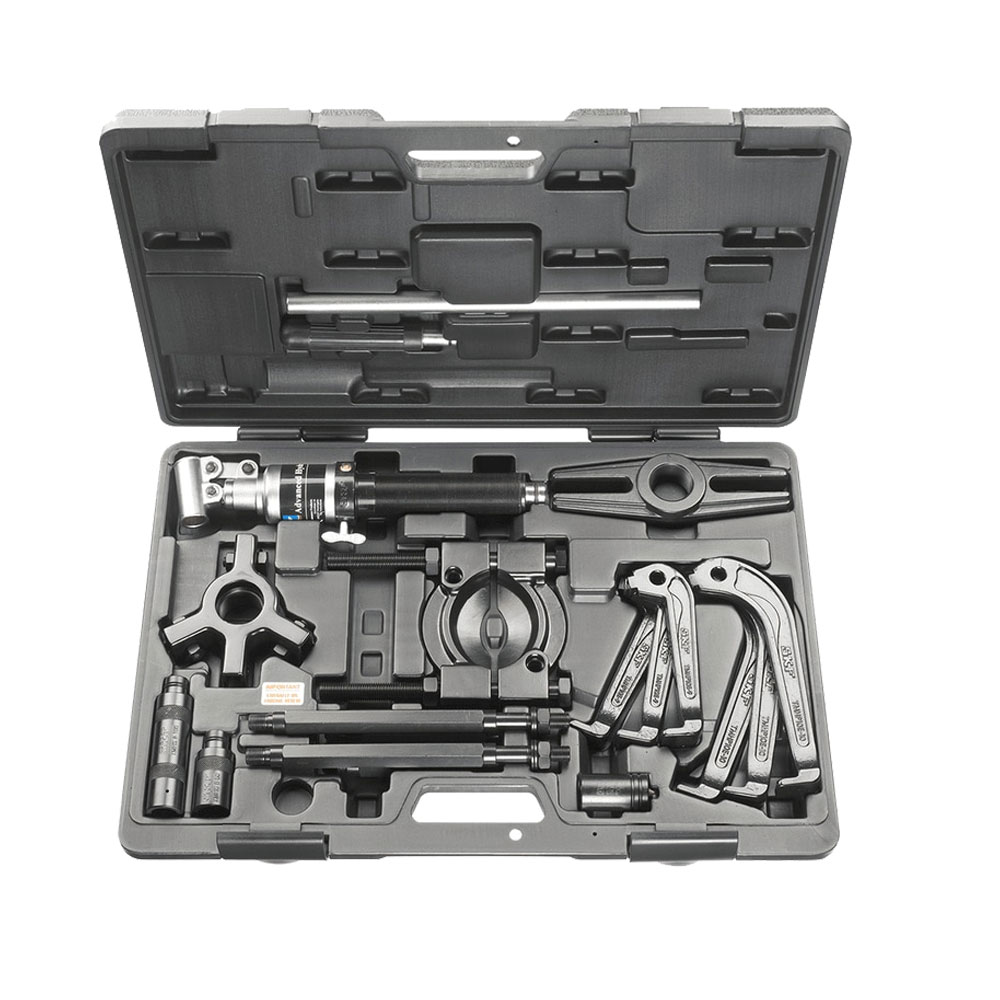

The Pullertop TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.
Product Description
Product Lines: Hydraulic Pullers Sets
- A versatile puller kit facilitates safe and easy dismounting in a variety of applications
- Hydraulic spindle facilitates easy and quick dismounting
- High load rating of 100 kN (11.2 US ton)
- The strong back puller includes two different arm lengths for a maximum reach of 120 mm (4.7 in.)
- The jaw puller can be assembled as a three-arm or two-arm puller depending on the space and demands of the application
- The firm grip of the strong back puller behind the bearing’s inner ring reduces the force required to dismount the bearing
- Supplied with extension rods to allow quick adaptation to pulling lengths up to 245 mm (9.6 in.)
- The spring-loaded center point of the hydraulic spindle allows easy puller centering minimizing the risk of shaft damage
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Comparison
| Designation | TMHC 110E | |
|---|---|---|
| Description | Advanced hydraulic puller kit | |
| General | Contents | 1 x arm-assembly stand |
| 3 x arms, set 1 (TMHP10E-9) | ||
| 3 x arms, set 2 (TMHP10E-10) | ||
| 1 x separator set | ||
| 1 x beam | ||
| 2 x main rods | ||
| 2 x extension rods, 125 mm (4.9 in) | ||
| 1 x hydraulic spindle TMHS 100 | ||
| 2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in) | ||
| 1 x nosepiece with centre point for hydraulic spindle | ||
| Maximum stroke | 80 mm (3.1 in) | |
| Nominal working force | 100 kN (11.2 US ton force) | |
| Weight | 13,5 kg (29.8 lb) | |
| Cycle life hydraulic cylinder | Minimum 5000 cycles up to 100 kN (11.2 US ton force) | |
| Threading hydraulic cylinder | UN 1½” x 16 tpi | |
| Safety valve setting hydraulic cylinder | 105 kN (11.8 US ton force) | |
| Carrying case dimensions | 580 x 410 x 70 mm (23 x 16 x 2.8 in) | |
| Jaw puller | Effective arms length, arms set 1 (TMHP10E-9) | 65 mm (2.5 in) |
| Width of grip, arms set 1 | 50-110 mm (2-4.3 in) | |
| Claw height | 8 mm (0.3 in) | |
| Effective arms length, arms set 2 (TMHP10E-10) | 115 mm (4.5 in) | |
| Width of grip, arms set 2 | 75-170 mm (2.9-6.7 in) | |
| Claw height | 8 mm (0.3 in) | |
| Strong back puller | Maximum reach | 250 mm (9.8 in) |
| Shaft diameter range | 20 – 100 mm (0.8 – 4 in) |
