TMMA Series,Mechanical jaw pullers

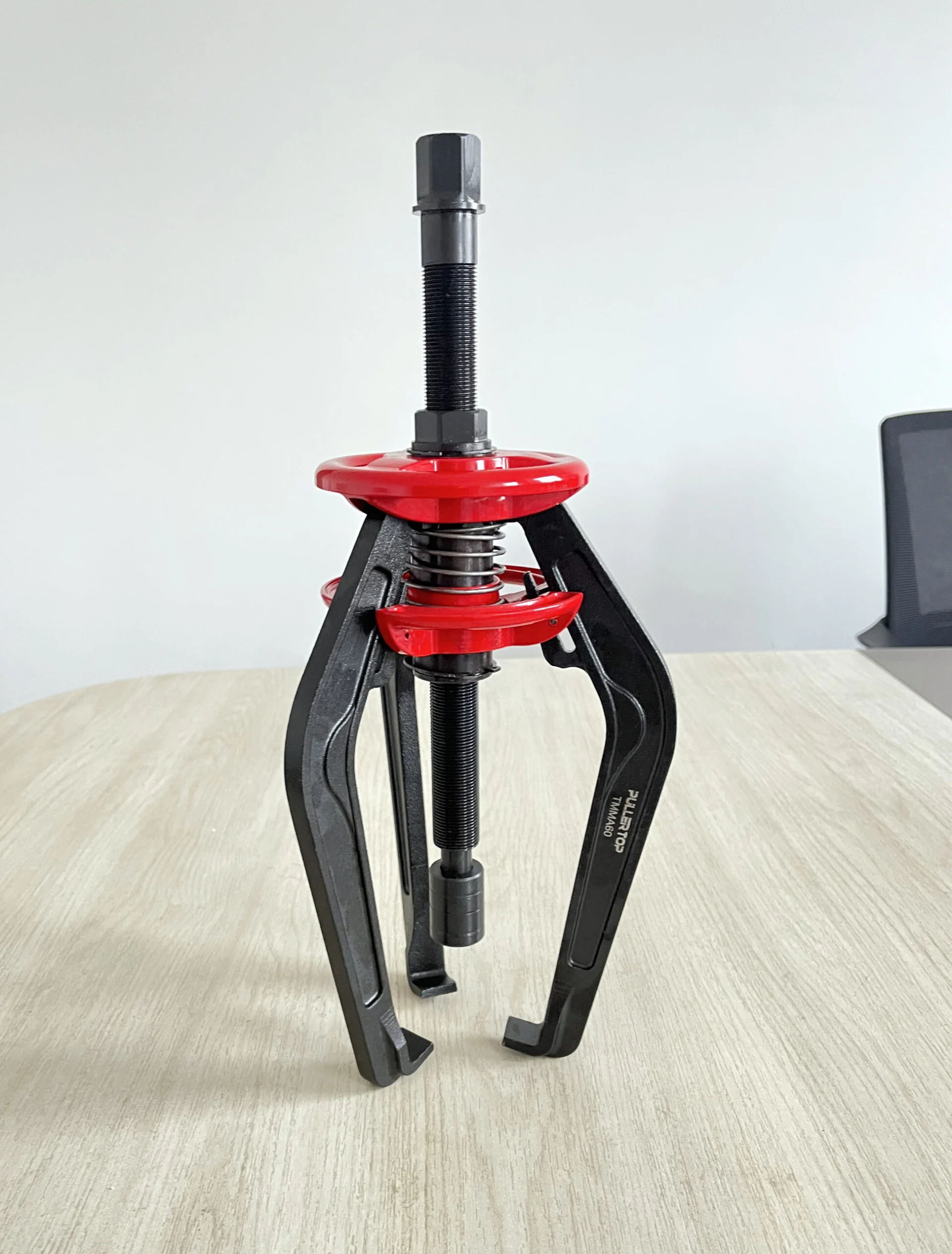

Equipped with spring-operated arms and a solid design, the PullertopTMMP series mechanical bearing puller is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

Download Catalog
Upload File

Product Description

Product Lines: Mechanical Puller

  • Sturdy design allows the dismounting of components even in the tightest application in a safe manner
  • The unique red ring spring-operated opening mechanism allows the puller to be placed behind the component with one movement of the hands
  • Self-locking arms help prevent the risk of the puller slipping under the load
  • Double hexagonal heads allow more accessible application of withdrawal force
  • Self-centering capability and nosepiece help to avoid damage to the shaft
  • Efficient use of time due to quick dismounting

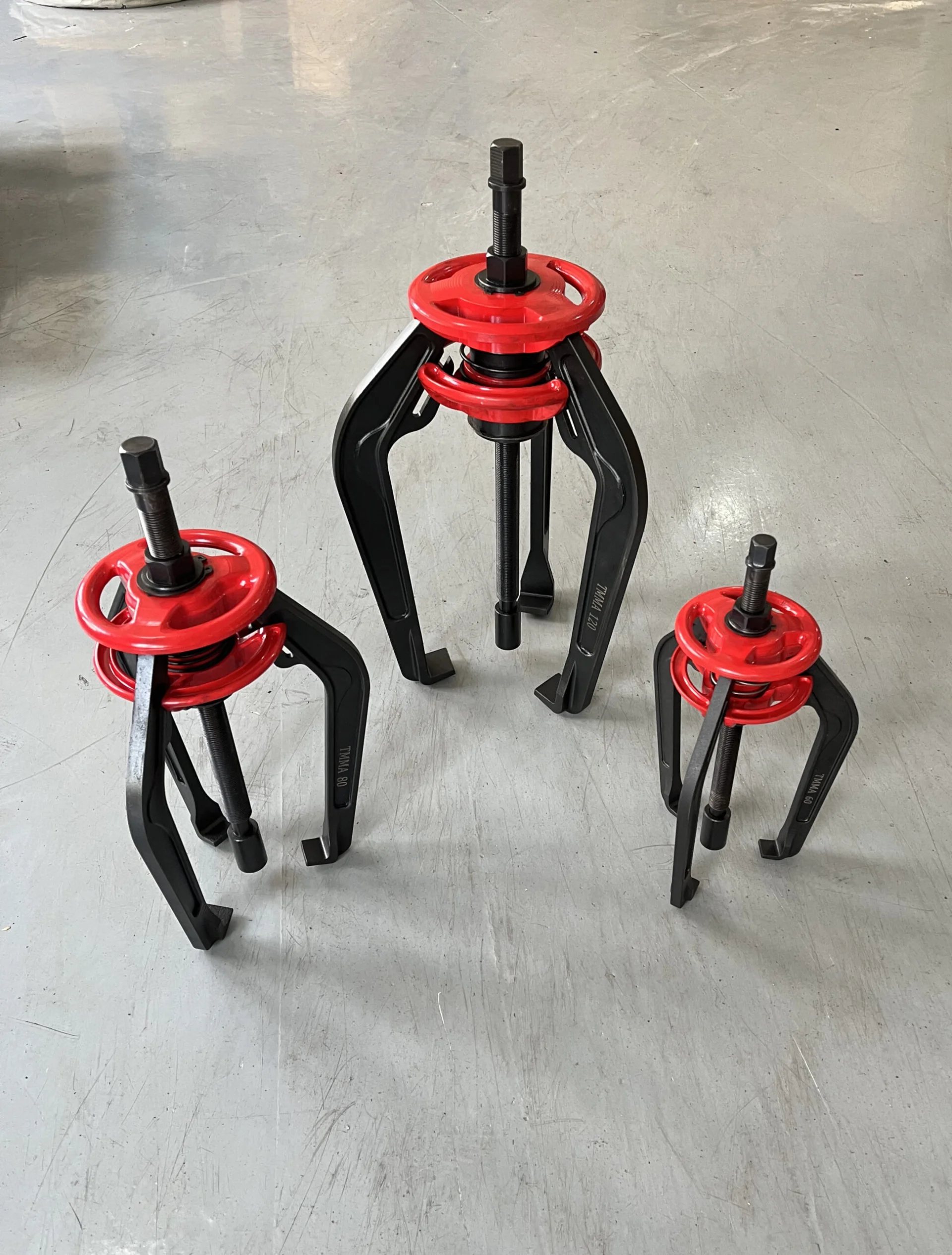

  • Available in three sizes with a withdrawal force of 60, 80, or 120 kN (6.7, 9.0, or 13.5 ton US), enabling easy selection
  • Hydraulic force generators available as an accessory for the 80 and 120 kN versions

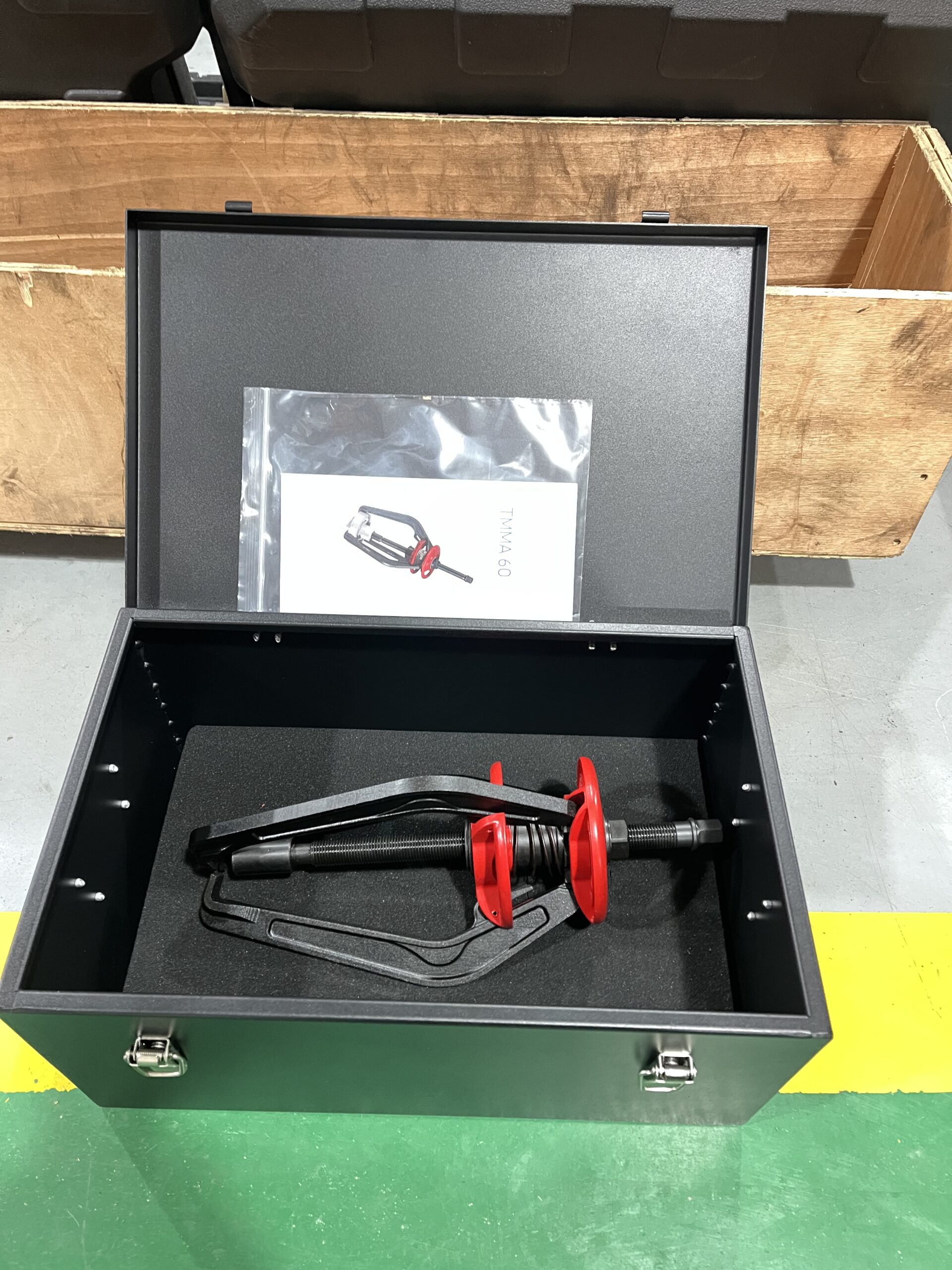

  • Supplied with a tube of puller spindle grease

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model Width of grip external, minimum Width of grip external, maximum Effective arm length Maximum withdrawal force Total weight Claw height Claw length Claw width Hexagon on puller or adapter Hexagon on mechanical spindle Hexagon on the mechanical spindle Diameter nose piece Adapter: possible to upgrade to hydraulic version ACCESSORIES
TMMA 60 36 mm 150 mm 150 mm 60 kN 4,0 kg 7,5 mm 15 mm 20 mm 27 mm 17 mm 105 Nm 24 mm no Puller protection blanket,Tri section pulling plate
TMMA 80 52 mm 200mm 200mm 80 kN 5.7 Kg 9,8 mm 18 mm 28 mm 30 mm 22 mm 175 Nm 26 mm yes Puller protection blanket,Hydraulic spindle,Tri section pulling plates
TMMA 120 75 mm 250 mm 250 mm 120 kN 10,6 kg 13,8 mm 24 mm 40 mm 32 mm 24 mm 265 Nm 28 mm yes Puller protection blanket,Hydraulic spindle,Tri section pulling plates
