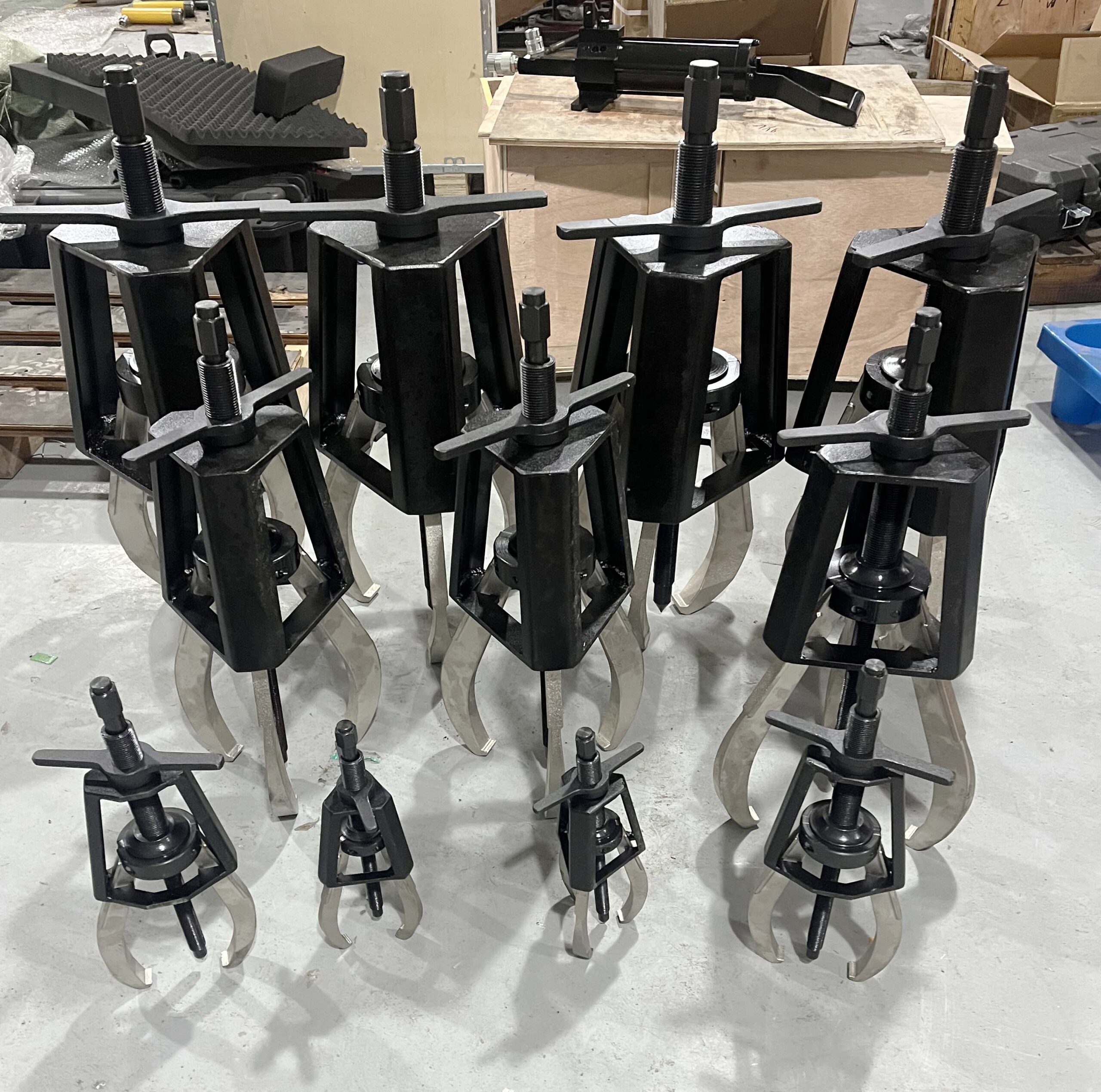

Safety Cage Mechanical Puller
Pullertop safety cage hydraulic pullers are more efficient than traditional pullers, as one person can do the job whereas traditional pullers often require two operators. The opening, closing, locking, and aligning of the jaws are all done automatically by simply turning the T-handle.
Product Description
Product Lines: Mechanical Puller
- ‘Safety Cage’ jaw retention system
- Roll threaded shafts for less effort when applying high torque
- More efficient pulling, as one man can do the job whereas manual pullers often require two operators
- Slim tapered jaws for better gripping in tight spots
- Available in 2 and 3-jaw design
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
| Model | Capacity(Ton) | Number of Jaws | Max Reach(mm) | Min. Spread(mm) | Max. Spread(mm) | Center Bolt Dia(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| EP-204 | 2 | 2 | 101 | 12 | 127 | 14 | 1.4 |
| EP-104 | 5 | 3 | 101 | 12 | 127 | 14 | 1.8 |
| EP-206 | 6 | 2 | 152 | 12 | 178 | 16 | 3.2 |
| EP-106 | 10 | 3 | 152 | 12 | 178 | 16 | 3.6 |
| EP-208 | 12 | 2 | 203 | 19 | 304 | 20 | 5.4 |
| EP-108 | 17 | 3 | 203 | 19 | 304 | 20 | 6.4 |
| EP-210 | 14 | 2 | 245 | 25 | 381 | 20 | 5.9 |
| EP-110 | 20 | 3 | 245 | 25 | 381 | 20 | 7.3 |
| EP-213 | 25 | 2 | 304 | 63 | 457 | 29 | 17.2 |
| EP-113 | 30 | 3 | 304 | 63 | 457 | 29 | 20 |
| EP-216 | 35 | 2 | 355 | 76 | 635 | 31 | 25.8 |
| EP-116 | 40 | 3 | 355 | 76 | 635 | 31 | 30.8 |
