TMMD 100, Deep groove ball bearing puller kit

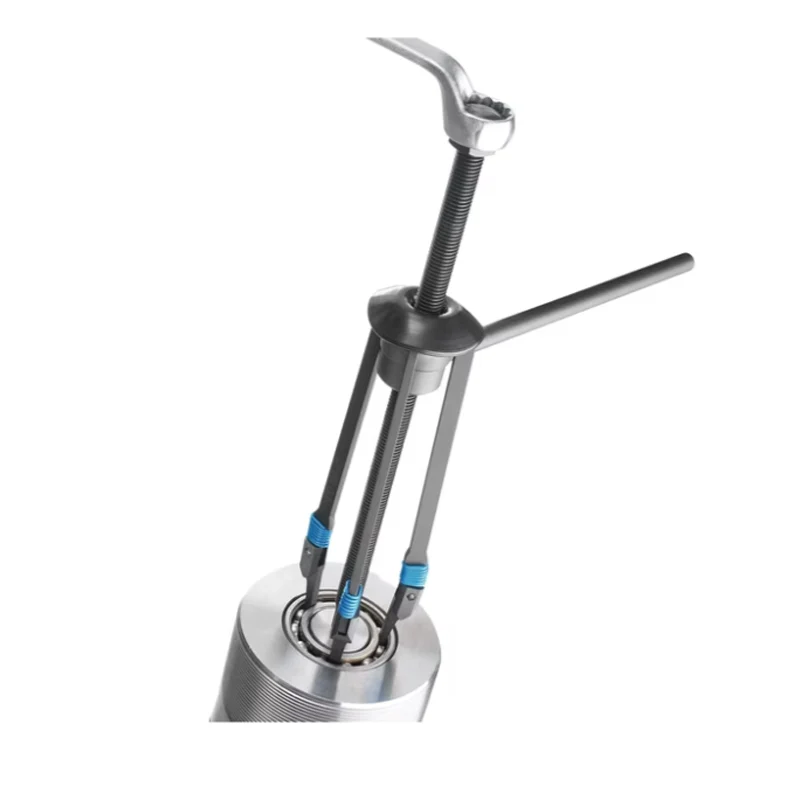

The puller is suitable for use in both blind housings and shaft applications. The PullerTop’s  TMMD 100 is suitable for dismounting up to 71 different deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in.).

Download Catalog
Upload File

Product Description

Product Lines: Mechanical Pullers

  • The claws are designed to precisely fit in the bearing’s raceway, providing a good grip, thereby allowing high dismounting forces
  • Each puller arm is fitted with a spring for easy installation
  • The claw has been designed to allow easy insertion
  • The hexagon head of the spindle is designed to prevent the spanner sliding down the spindle during dismounting
  • The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed

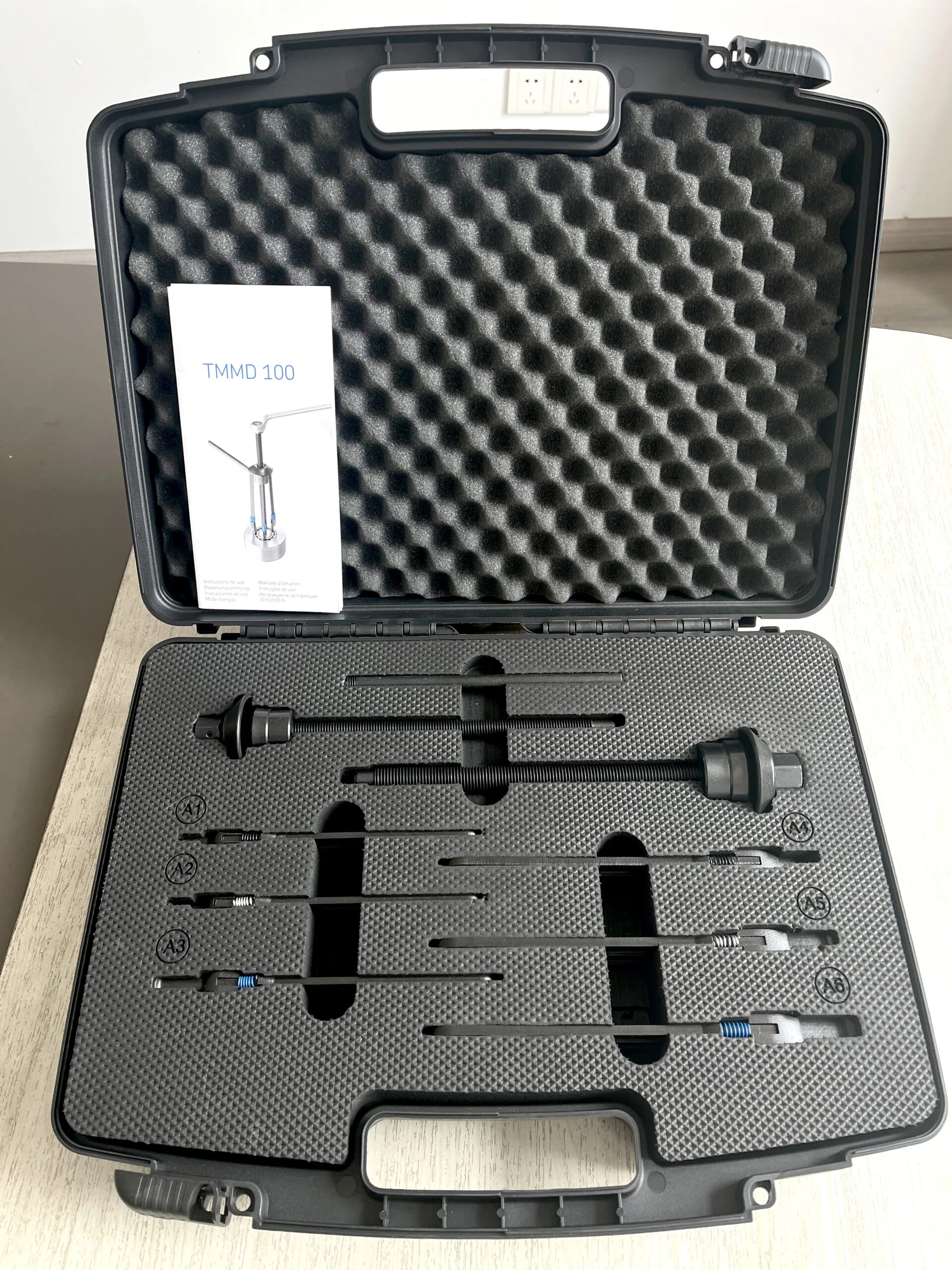

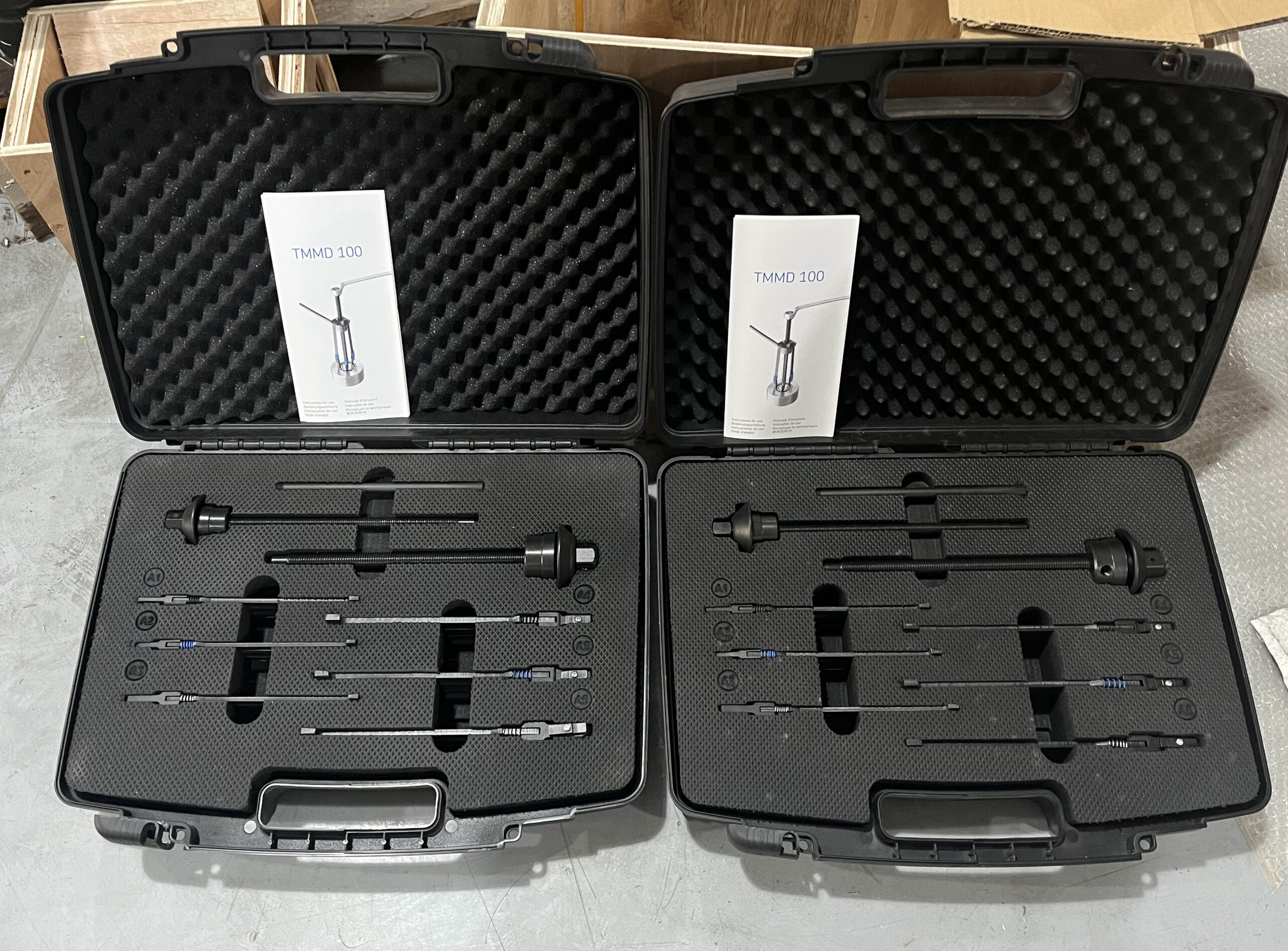

  • Supplied in a sturdy carrying case

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model No. Suitable Bearings/
Shaft diameter
TMMD 100 6000–6020 6200–6218 6300–6313 6403–6410 62/22, 62/28, 63/22, 63/28 16002, 16003, 16011 16100, 16101 3.8KG
10–100 mm 10–90 mm 10–65 mm 17–50 mm 22, 28, 22, 28 mm 15, 17, 55 mm 10, 12 mm
