TMMR F series,Reversible Jaw Puller

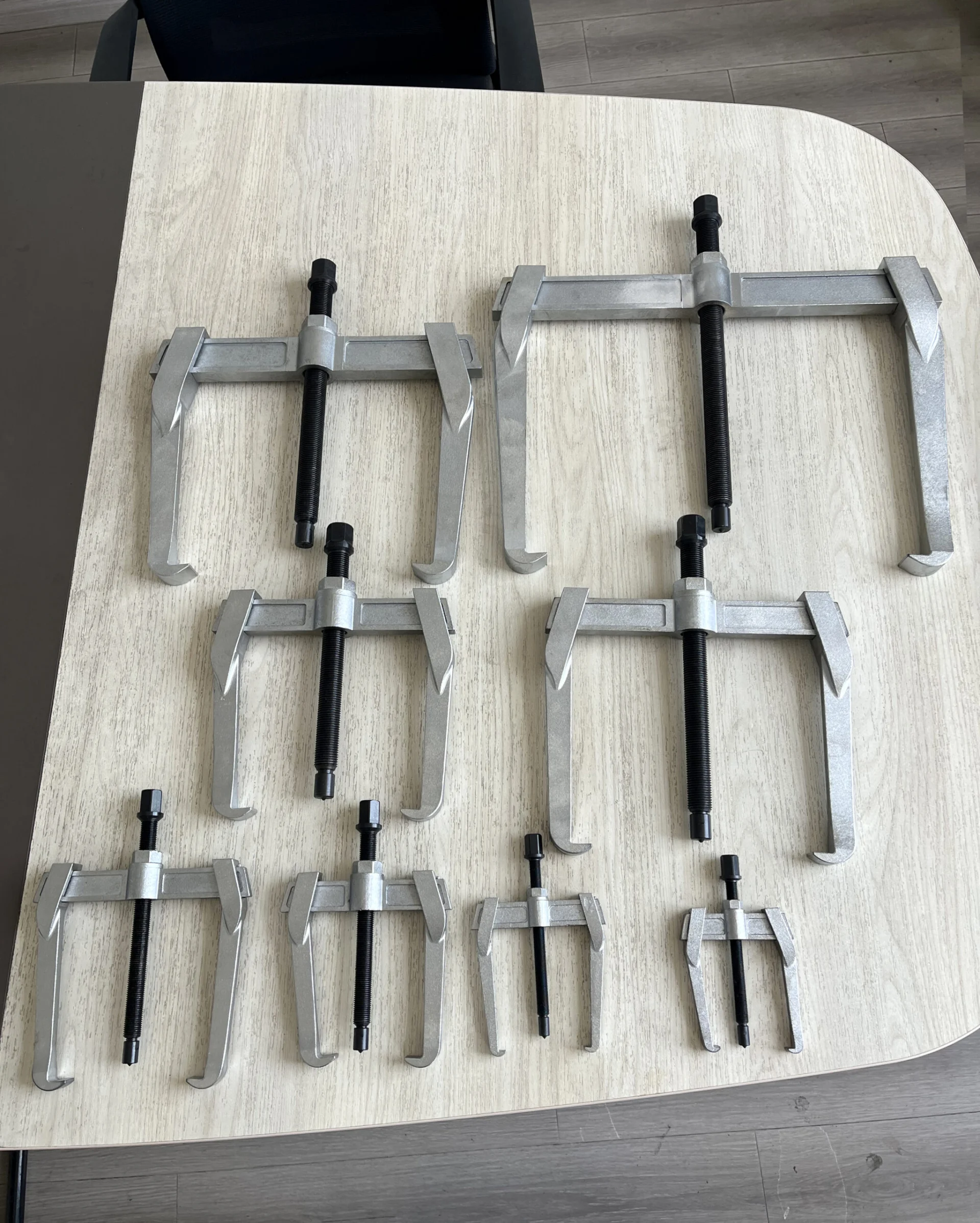

The multi-purpose PullerTop Reversible jaw pullers are suitable for internal and external pulling of bearings and other components. The standard range of eight pullers can accommodate a wide range of bearing and component sizes. The four largest TMMR..F pullers are also available with extra long arms as a standard option (TMMR ….XL). The extra long arms help to dismount bearings and components placed far from the shaft end and can be further extended by adding extension pieces.
Product Description
Product Lines: Mechanical Puller
- An essential and versatile tool for every workshop allows for external and internal pulling applications
- Hexagonal head on beam enables rotation of puller and bearing during dismounting, improving ease of use
- The extra long arm extension pieces, designed to be easy to fit and remove, can be used to further increase the effective arm length. Using extension pieces does not compromise the overall puller strength

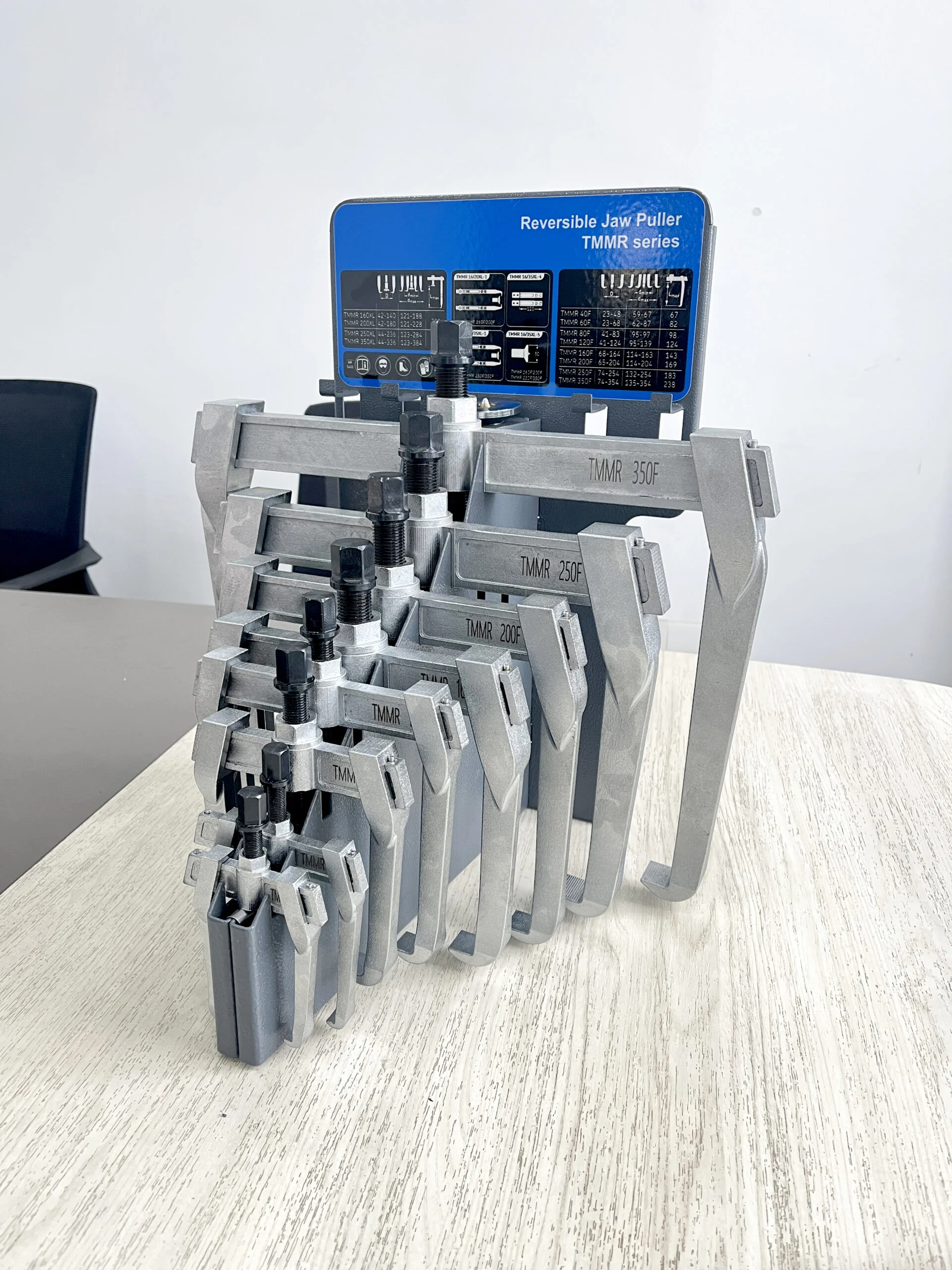

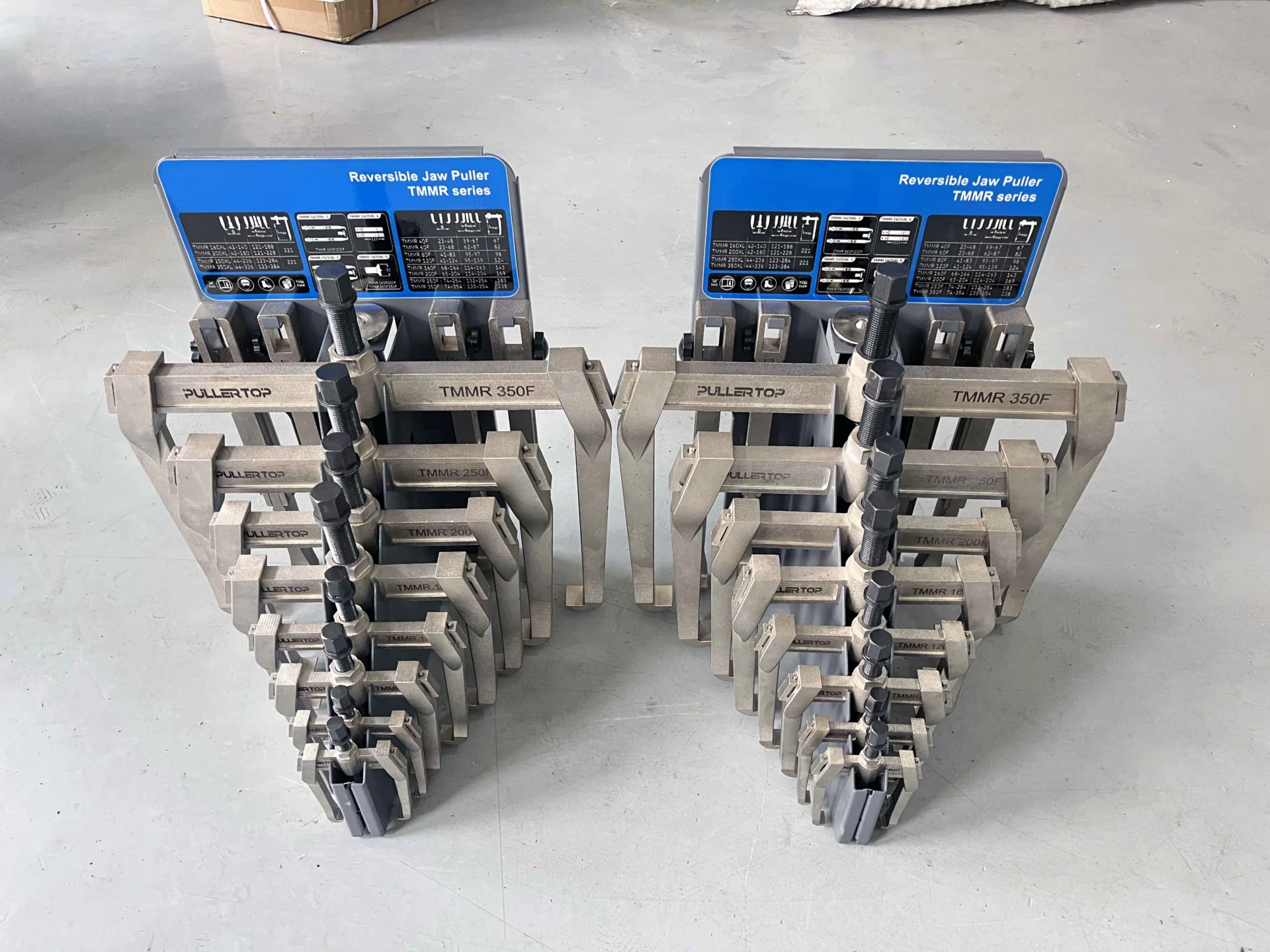

- The Reversible Jaw Pullers can also be supplied in three different sets, complete with a workshop stand
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
Model No. | Capacity(T) | Width of grip External pull(mm) |
Width of grip Internal pull(mm) |
Reach(mm) | Weight(Kg) |
---|---|---|---|---|---|
TMMR 40F | 1.7 | 23–48 | 59–67 | 67 | 0.3 |
TMMR 60F | 1.7 | 23–68 | 62–87 | 82 | 0.4 |
TMMR 80F | 4 | 41-83 | 95–97 | 98 | 1 |
TMMR 120F | 4 | 41–124 | 95–139 | 124 | 1.2 |
TMMR 160F | 5.6 | 68–164 | 114–163 | 143 | 2.3 |
TMMR 200F | 5.6 | 65–204 | 114–204 | 169 | 2.6 |
TMMR 250F | 6.7 | 74–254 | 132–254 | 183 | 4.4 |
TMMR 350F | 6.7 | 74-354 | 135-354 | 238 | 5.2 |
TMMR 160XL | 5 | 42-140 | 121-188 | 221 | 3.5 |
TMMR 200XL | 5 | 42-180 | 121-228 | 221 | 3.7 |
TMMR 250XL | 6 | 44-236 | 123-284 | 221 | 4.7 |
TMMR 300XL | 6 | 44–336 | 123–384 | 221 | 5.2 |
Order No. | TMMR 4F/SET | TMMR 8F/SET | TMMR 8XL/SET |
---|---|---|---|
TMMR 40F | – | √ | √ |
TMMR 60F | √ | √ | √ |
TMMR 80F | – | √ | √ |
TMMR 120F | √ | √ | √ |
TMMR 160F | √ | √ | √ |
TMMR 200F | – | √ | √ |
TMMR 250F | √ | √ | √ |
TMMR 350F | – | √ | √ |
TMMR 16/20XL-1 | – | – | √ |
TMMR 25/35XL-1 | – | – | √ |
TMMR 16/35XL-5 | – | √ | √ |
Accessories | Description | ||
TMMR 16/20XL-1 | Extra long arm set to convert TMMR 160F and TMMR 200F to XL version | ||
TMMR 25/35XL-1 | Extra long arm set to convert TMMR 250F and TMMR 350F to XL version | ||
TMMR 16/35XL-4 | Extension arms set for the TMMR.. XL | ||
TMMR 16/35XL-5 | Spring-loaded nose piece |
