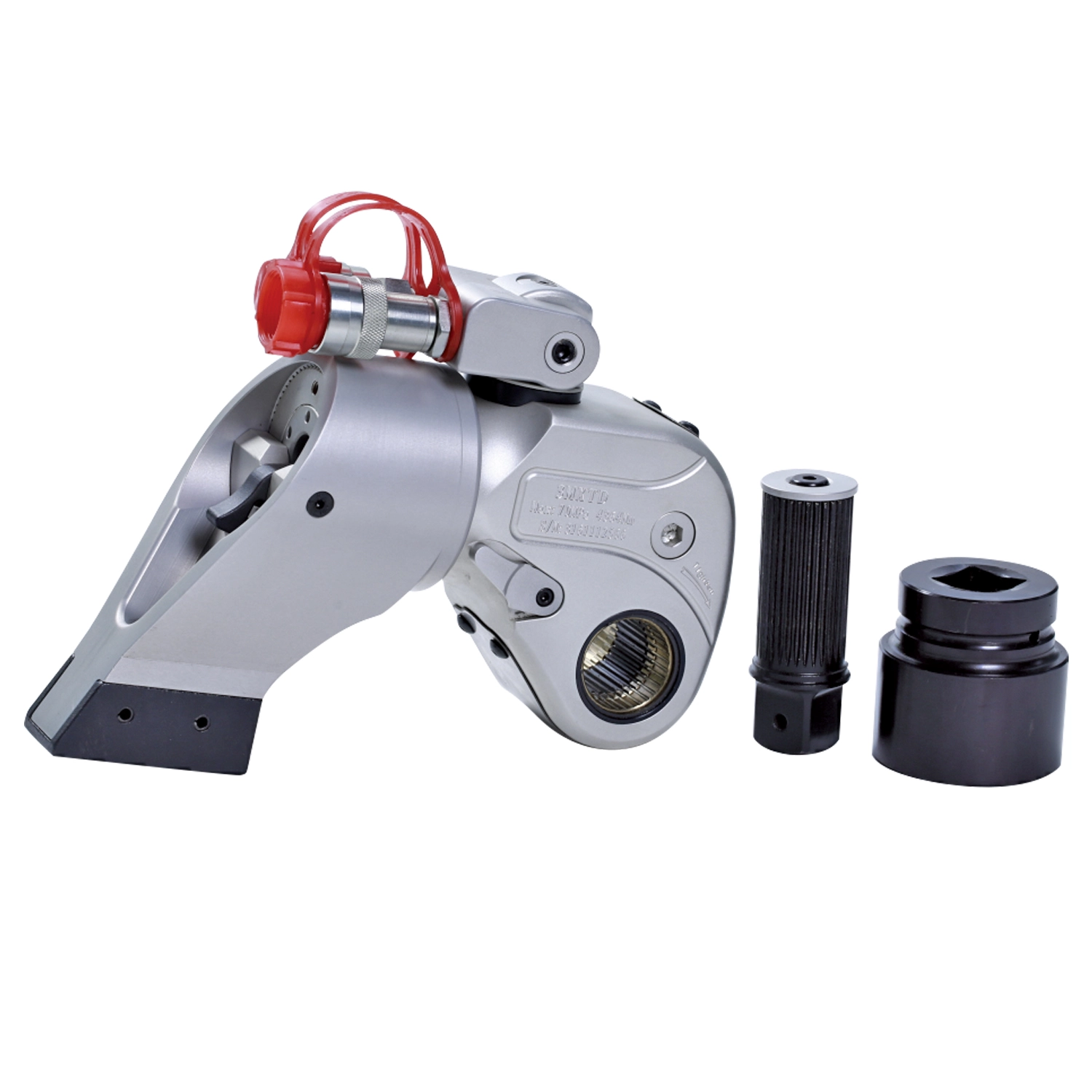

MXTD-Series Square Drive Torque Wrench
Pullertop MXTD series square drive hydraulic torque wrenches are made of high-strength Aluminum-Titan alloy, strong and durable. Our high torque hydraulic wrenches come with a max torque range of 48666 Nm for your selection.
Product Description
Product Lines: Hydraulic Torque Wrench
- Its raw material is advanced space material (Aluminum-Titanium alloy) and super high strengthened alloy steel.
The compact design intensifies the strength and toughness of the fuselage comprehensively. - The 360° swivel coupler can be freely operated, and
allow easy access in all position. - The trigger style lock can be pressed easily, and it may
situate the reaction arm of 360° trimming style on the
support freely. - A precise ratchet is adopted with accuracy±3%
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

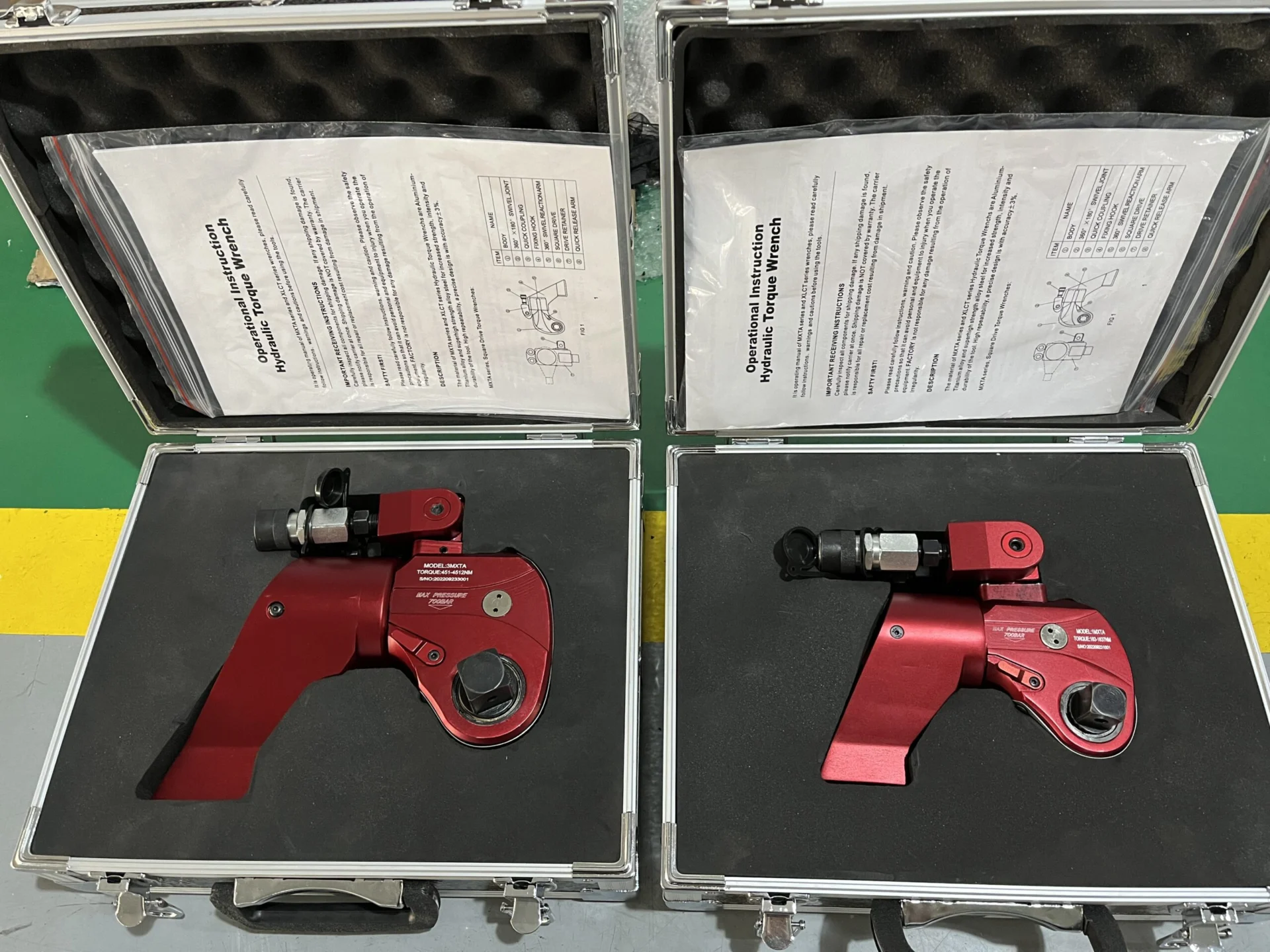

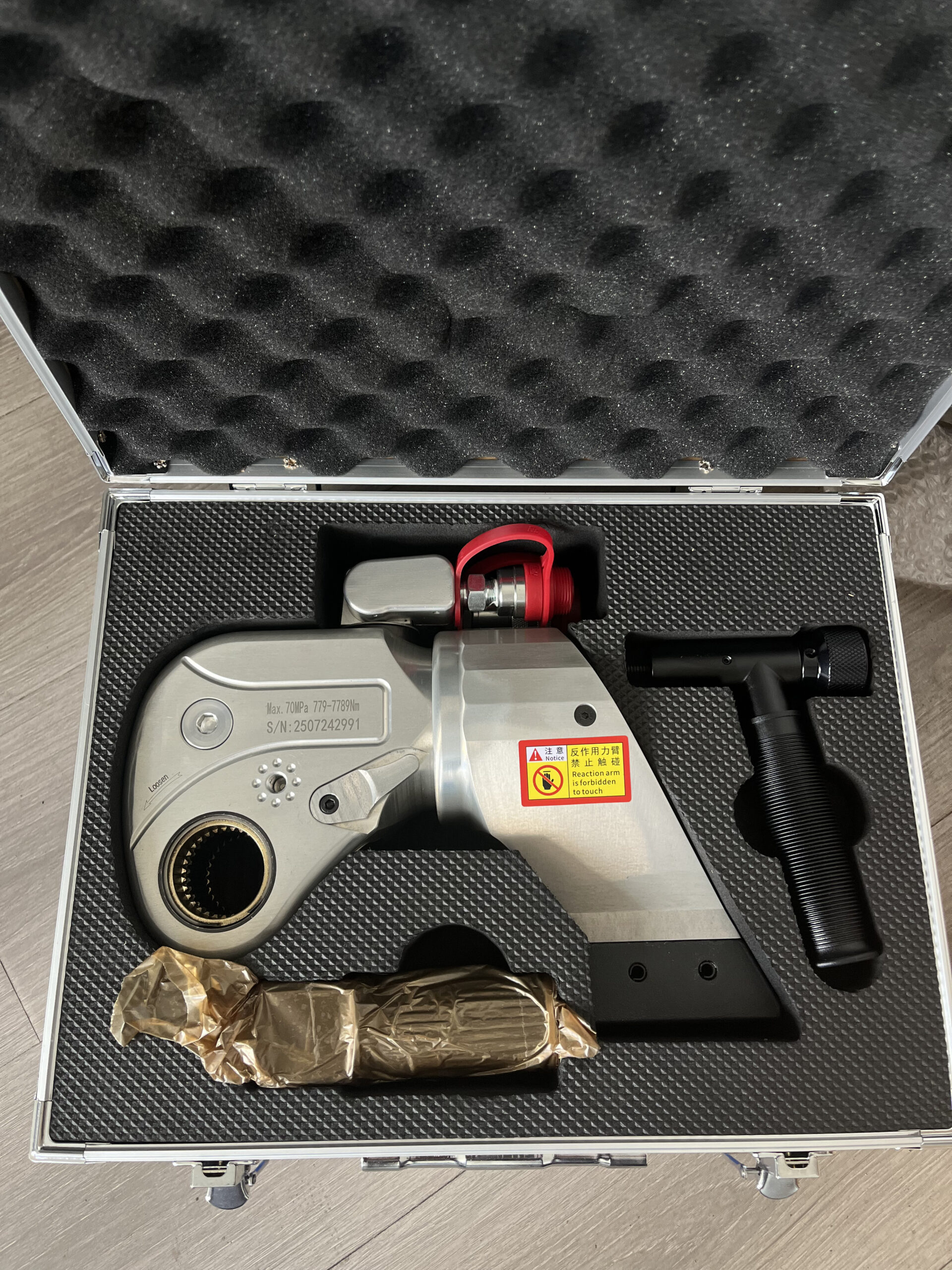

Image Gallery

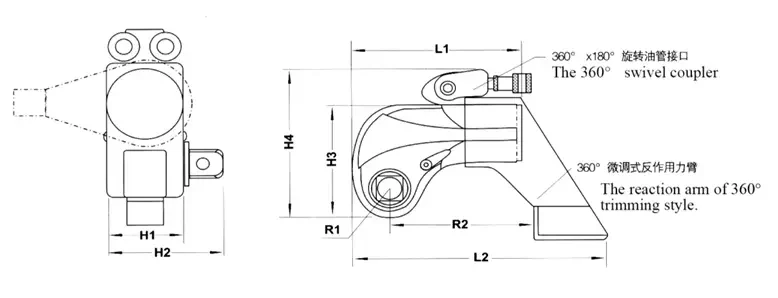

Dimesnion
Series Comparison
| Model No. | The range of torque (N.M) | Bolt Size Range(mm) | L1（mm) | L2（mm) | H1（mm) | H2（mm) | H3（mm) | H4（mm) | R1（mm) | R2（mm) | Square drive | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1MXTD | 185~1852 | 16~30 | 138 | 194 | 50 | 73 | 96 | 140 | 26 | 107 | 3/4″ | 2.7 |
| 2MXTD | 302~3017 | 24~36 | 147 | 213 | 60 | 87 | 111 | 157 | 29 | 112 | 1″ | 3.6 |
| 3MXTD | 436~4364 | 27~39 | 169 | 244 | 70 | 99 | 125 | 165 | 34 | 132 | 1″ | 4.8 |
| 5MXTD | 779~7789 | 33~45 | 207 | 296 | 80 | 124 | 152 | 193 | 40 | 162 | 1-1/2″ | 8.8 |
| 8MXTD | 1072~10715 | 36~48 | 226 | 326 | 90 | 133 | 170 | 211 | 46 | 178 | 1-1/2″ | 12 |
| 10MXTD | 1553~15528 | 42~60 | 250 | 366 | 100 | 143 | 186 | 227 | 50 | 199 | 1-1/2″ | 14.5 |
| 15MXTD | 2050~20501 | 45~64 | 281 | 402 | 112 | 165 | 208 | 249 | 56 | 218 | 2″,2-1/2″ | 19 |
| 20MXTD | 2617~26171 | 48~68 | 304 | 442 | 120 | 183 | 226 | 267 | 60 | 240 | 2-1/2″ | 25 |
| 25MXTD | 3493~34928 | 56~76 | 331 | 483 | 138 | 202 | 250 | 291 | 66 | 260 | 2-1/2″ | 37.5 |
| 35MXTD | 4963~49627 | 60~85 | 390 | 558 | 150 | 219 | 282 | 323 | 77 | 298 | 2-1/2″ | 42 |
| 45MXTD | 6139~61386 | 64~90 | 397 | 570 | 163 | 226 | 295 | 360 | 79 | 303 | 2-1/2″ | 49 |
| 50MXTD | 7032~70315 | 68~95 | 418 | 586 | 166 | 236 | 300 | 366 | 82 | 325 | 3″ | 58 |
| 65MXTD | 8451~84512 | 72~100 | 471 | 660 | 182 | 263 | 348 | 407 | 95 | 345 | 3″ | 66 |
| 75MXTD | 10512~105120 | 76~110 | 507 | 729 | 190 | 291 | 392 | 447 | 108 | 380 | 3-1/2″ | 81 |
| 95MXTD | 14085~140848 | 85~120 | 520 | 758 | 210 | 307 | 415 | 473 | 115 | 400 | 4″ | 155 |
