Product Description

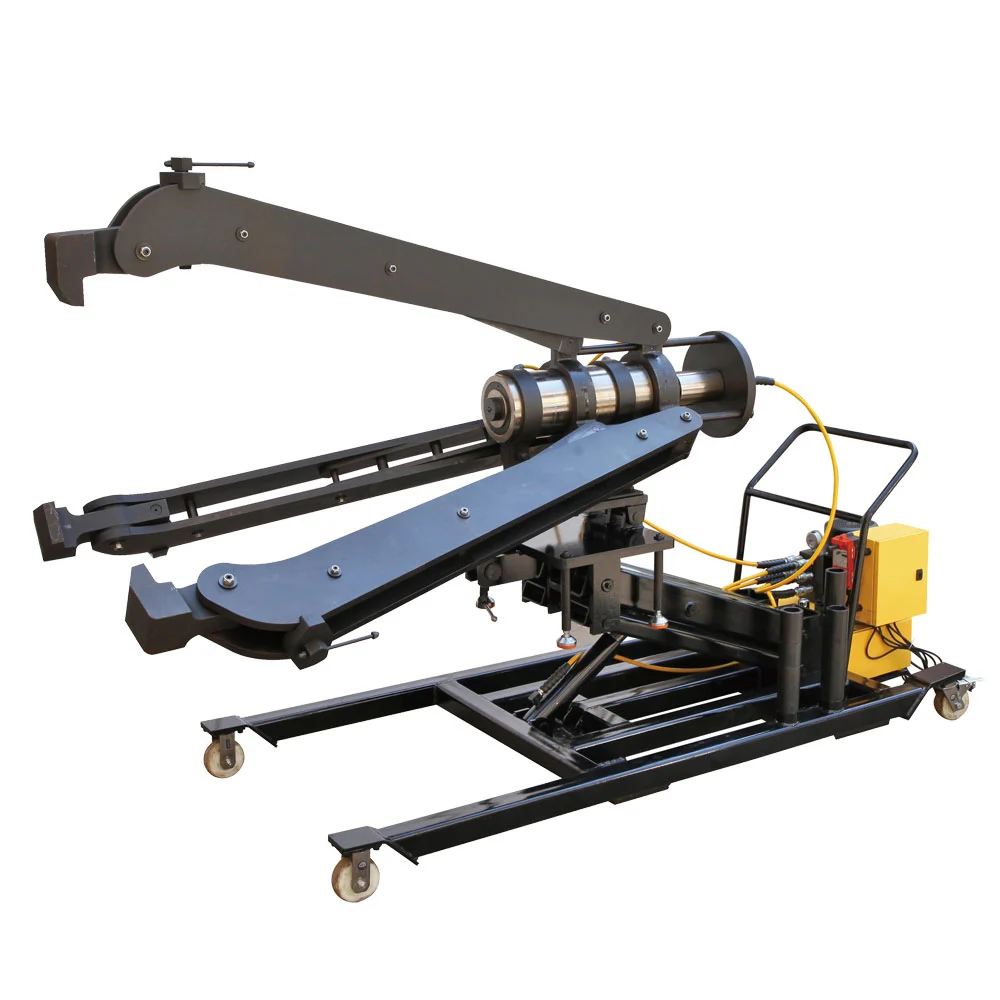

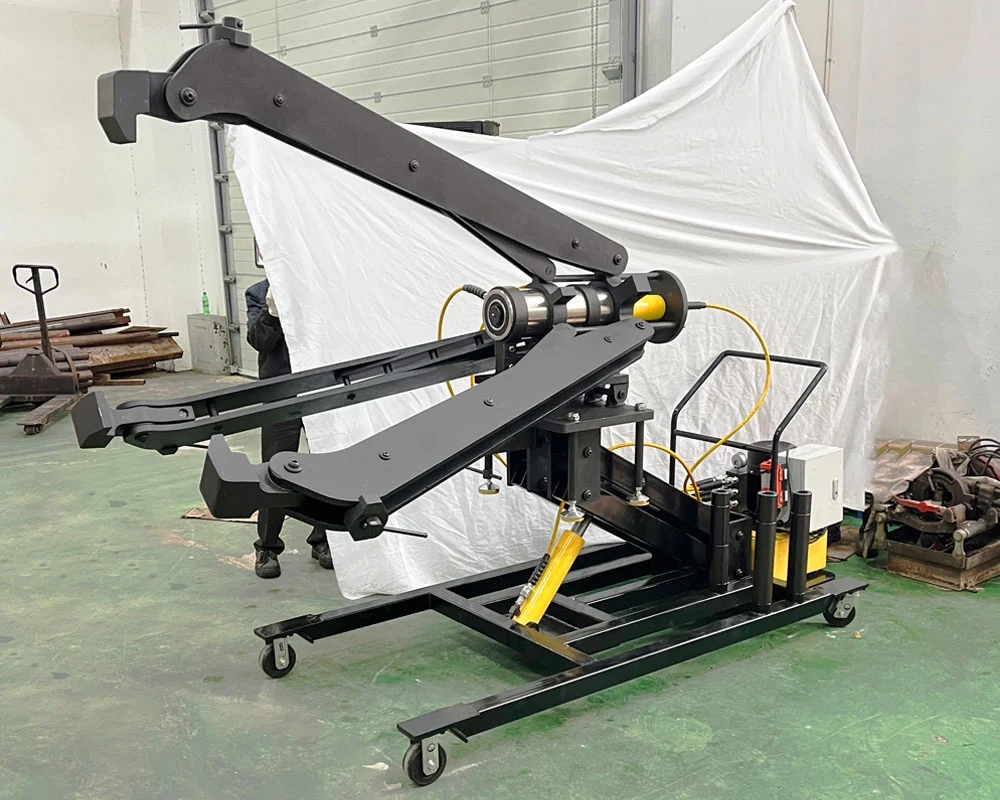

Product Lines: Trolley Mounted Hydraulic Puller
- The hydraulic trolley-mounted pullers are hydraulically operated to achieve the vertical height adjustment of the puller, the extension of the jaws, and the pull-out of the workpiece.
- Wireless remote control for puller lifting/lowering, jaw opening/closing, cylinder extension/retraction, electric pump working/off
- The puller is self-centering, the arm slides inward or outward simultaneously, easy to maneuver and adjust in height.
- The jaw is made of forged high-strength steel alloy. The tighter the force, the harder the jaw grip.
- The integral safety release valve prevents overloading and ensures that you will never exceed the max working capacity.
- One person can do the job efficiently and save time.
- High-quality 360-degree rotation wheels for easy transportation
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
| Model | Capacity(Ton) | Min. Spread(mm) | Max. Spread(mm) | Min. Reach(mm) | Max. Reach(mm) | Center Height Adjustment(mm) | Stroke(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| 14MDMP100 | 100 | 300 | 1500 | 950 | 1200 | 820-1320 | 270 | 1100 |
| 14MDMP150 | 150 | 330 | 1650 | 965 | 1150 | 830-1330 | 300 | 1350 |
| 14MDMP200 | 200 | 380 | 2000 | 980 | 1250 | 850-1350 | 300 | 1700 |
