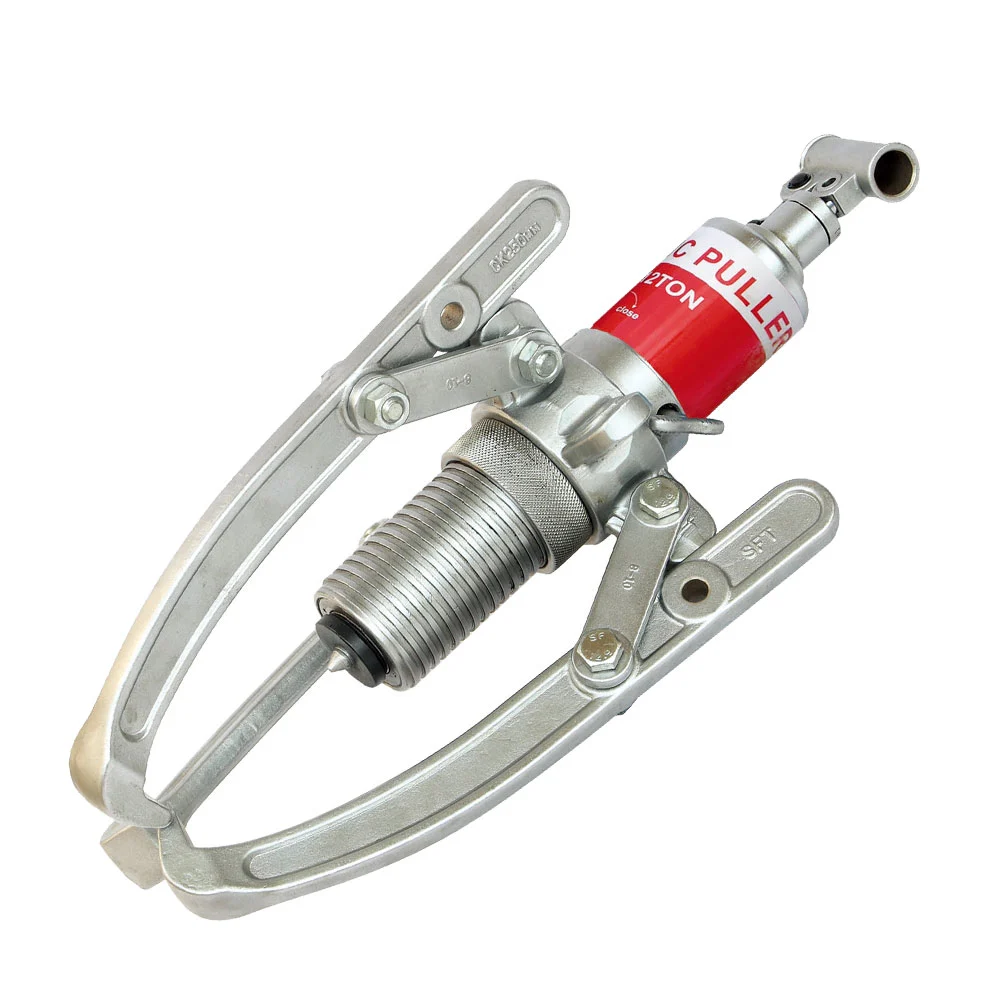

4-15 Ton Integral Hydraulic Puller

Pullertop integral hydraulic pullers come with a built-in hydraulic hand pump, with no need for an extra hand pump and hydraulic hoses set up. Our integral pullers’ capacity range from 4 tons to 15 tons and are portable tools for bearing removal applications

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Pullers

  • Self-contained hydraulic puller, extra hand pump, hydraulic hose, and coupler are not required, are easy to use, and allow operation by one person.
  • 2/3 jaws combination puller head as jaws can be installed with 2 or 3 jaws as a changeable type against the limited space
  • Jaws proceed with forging made parts and special treatment for providing the best strength and long life use
  • 360˚ rotary handle swivel sleeves allow pumping in all directions
  • A unique safety valve designed to reduce the risk of the puller overload by limiting the applied force
  • A complete hydraulic puller allows effortless generation of force and dismounting
  • The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

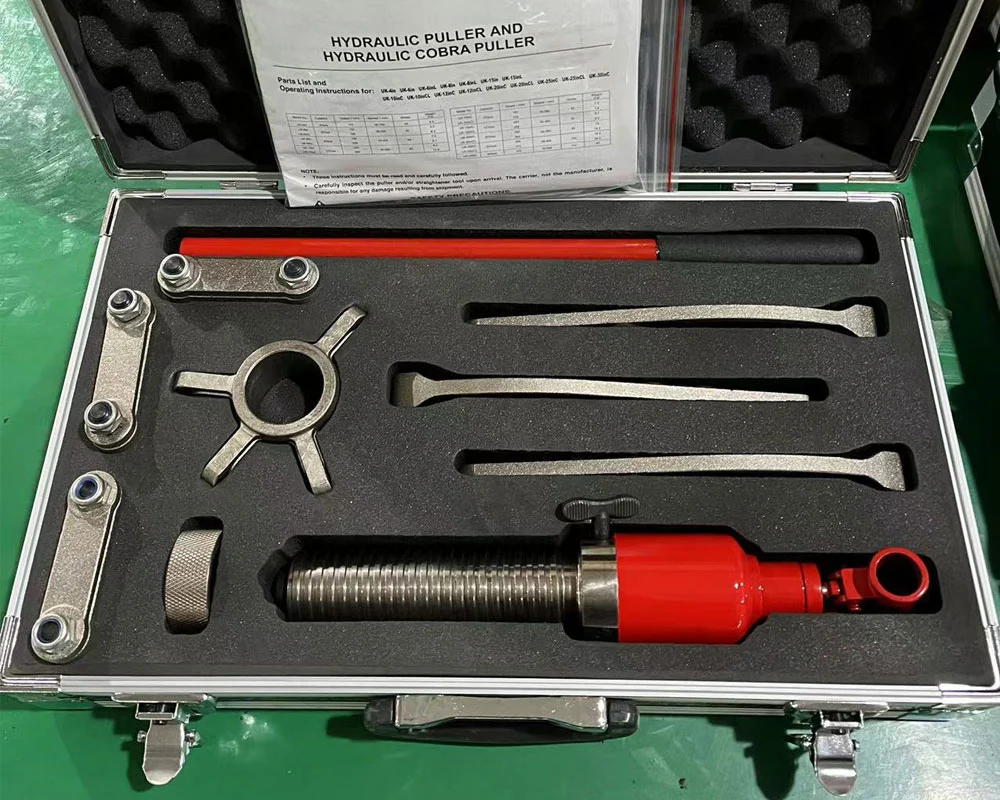

Image Gallery

Series Comparison

Model Capacity/Ton Reach/mm Spread/mm Stroke/mm Weight/Kg
UK-4IN 4 165 30-22/260 55-105 5.5
UK-6IN 6 165 30-200/260 82-130 5.9
UK-6INL 6 195 30-200/300 82-180 7
UK-6INB 6 165/195 30-200/300 82-180 8.4
UK-8IN 8 210 30-250/355 82-160 8
UK-8INL 8 240 30-300/380 82-240 9
UK-8INB 8 210/240 30-300/380 82-240 11.5
UK-15IN 15 240 50-280/380 82-180 10
UK-15INL 15 320 50-350/410 82-280 14
UK-15INB 15 240/320 50-350/410 82-280 18

L:Long jaws B: Long & Short jaws
