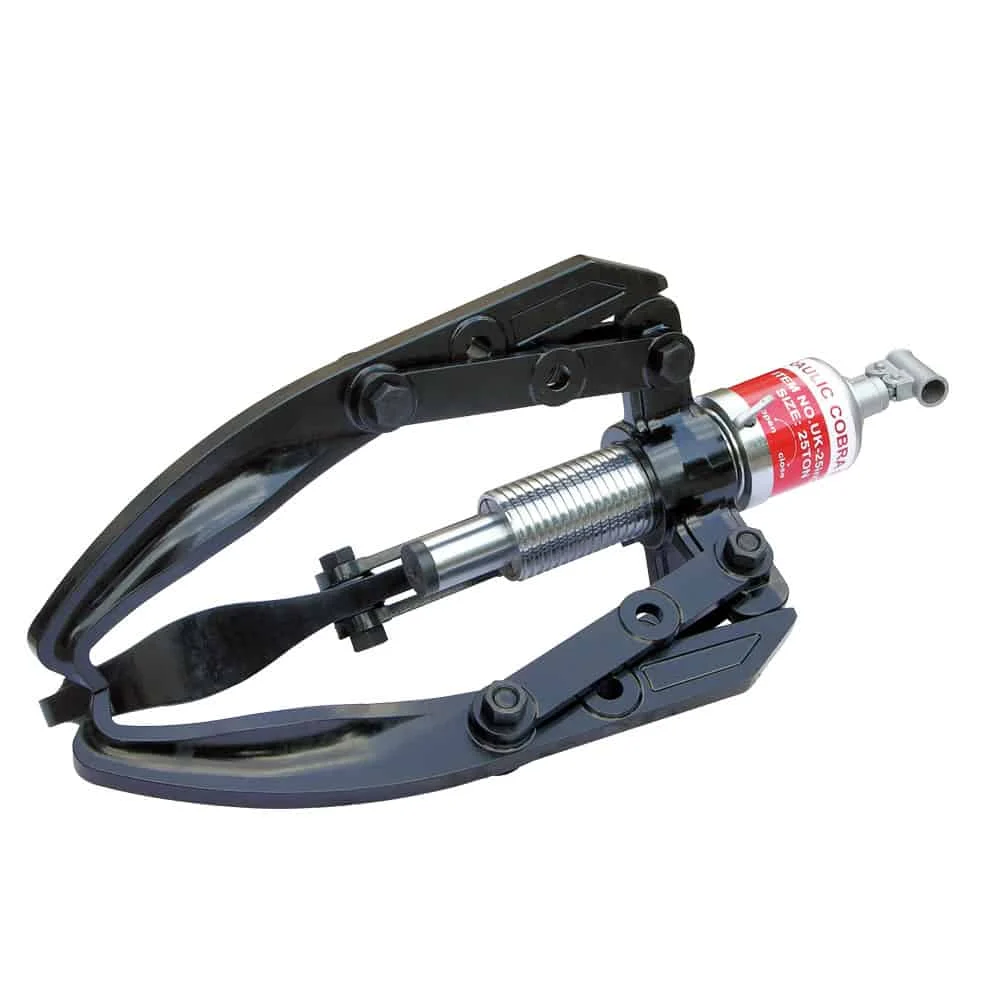

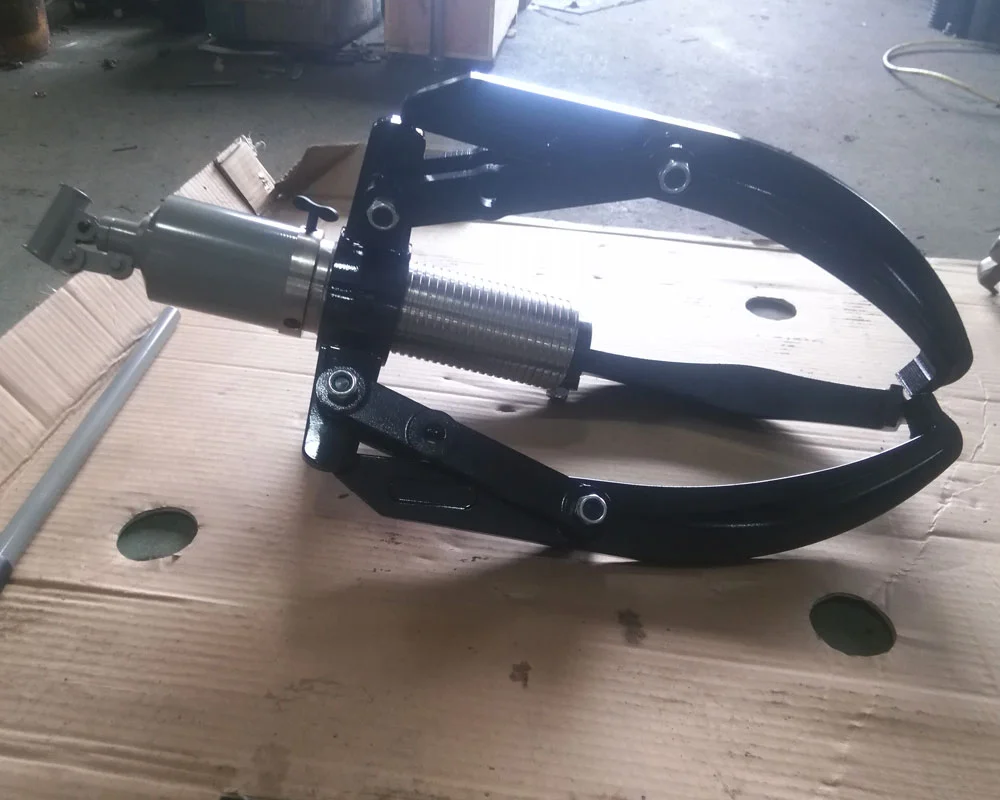

Integral Hydraulic Cobra Puller
Pullertop integral hydraulic pullers come with a built-in hydraulic hand pump, with no need for an extra hand pump and hydraulic hoses set up.
Product Description
Product Lines: Integral Hydraulic Bearing Puller
• Jaw and jaw frame are made of high-strength forged alloy steel, cobra-shaped jaw, lifetime warranty
• There are 10, 12, 20, and 30 tons of different output tonnage to choose from
• Unique internal pressure relief valve design to protect the life of the hydraulic cylinder
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
L: Long Jaws; B: Long and short jaws; C: lifetime warranty jaws.
| Model | Capacity(Ton) | Reach(mm) | Spread(mm) | Stroke(mm) | Weight(Kg) |
|---|---|---|---|---|---|
| UK-10inC | 10 | 195 | 30-250/310 | 82-130 | 7.5 |
| UK-10inCL | 10 | 250 | 30-280/340 | 82-180 | 10 |
| UK-10inCB | 10 | 195/250 | 30-280/340 | 82-180 | 11 |
| UK-12inC | 12 | 240 | 30-300/370 | 82-160 | 9.7 |
| UK-12inCL | 12 | 280 | 30-330/400 | 82-240 | 11.5 |
| UK-12inCB | 12 | 240/280 | 30-330/400 | 82-240 | 13 |
| UK-20inC | 20 | 275 | 50-360/430 | 82-180 | 14 |
| UK-20inCL | 20 | 330 | 50-380/450 | 82-280 | 16 |
| UK-20inCB | 20 | 275/330 | 50-380/450 | 82-280 | 23 |
| UK-25inC | 25 | 315 | 50-410/480 | 110-220 | 22 |
| UK-25inCL | 25 | 380 | 50-440/540 | 110-330 | 26 |
| UK-25inCB | 25 | 315/380 | 50-440/540 | 110-330 | 34 |
| UK-30inC | 30 | 405 | 100-540/610 | 110-260 | 35 |
