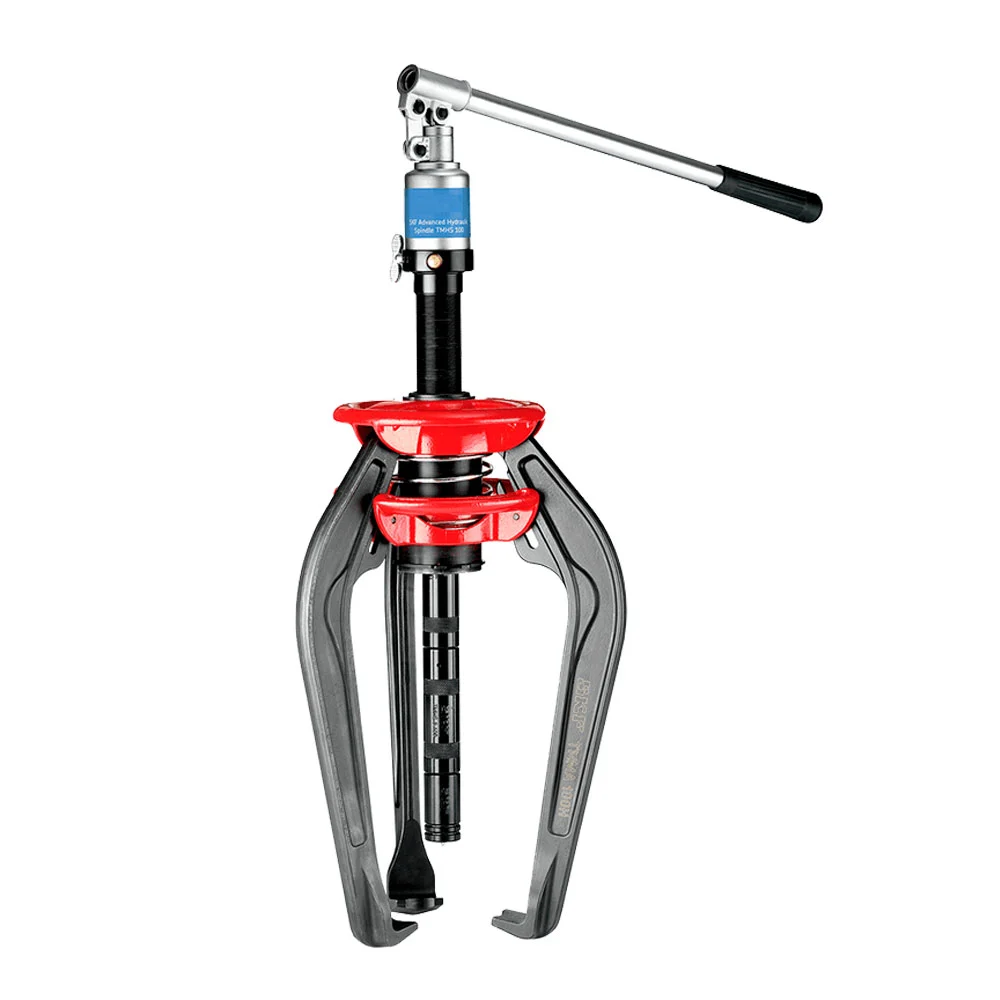

TMMA-Series,Integral Hydraulic Puller

Pullertop integral hydraulic pullers come with a built-in hydraulic hand pump, with no need for an extra hand pump and hydraulic hoses set up.

Download Catalog
Upload File

Product Description

Series: TMMA Series

  • Self-contained Integral hydraulic puller, extra hand pump, hydraulic hose, and coupler are not required, are easy to use, and allow operation by one person.
  • Jaws proceed with forging made parts and special treatment for providing the best strength and long life use
  • Safety valve prevents spindles and pullers from being overloaded if excessive force is applied
  • A complete hydraulic puller allows effortless generation of force and dismounting
  • The spring-loaded center point of the hydraulic spindle allows easy centering of the puller on the shaft

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model Capacity(Ton) Min. Spread(mm) Max. Spread(mm) Reach(mm) Stroke(mm) Weight(Kg)
TMMA75H 8 52 200 200 75 7.6
TMMA100H 10 75 250 250 80 13.2
