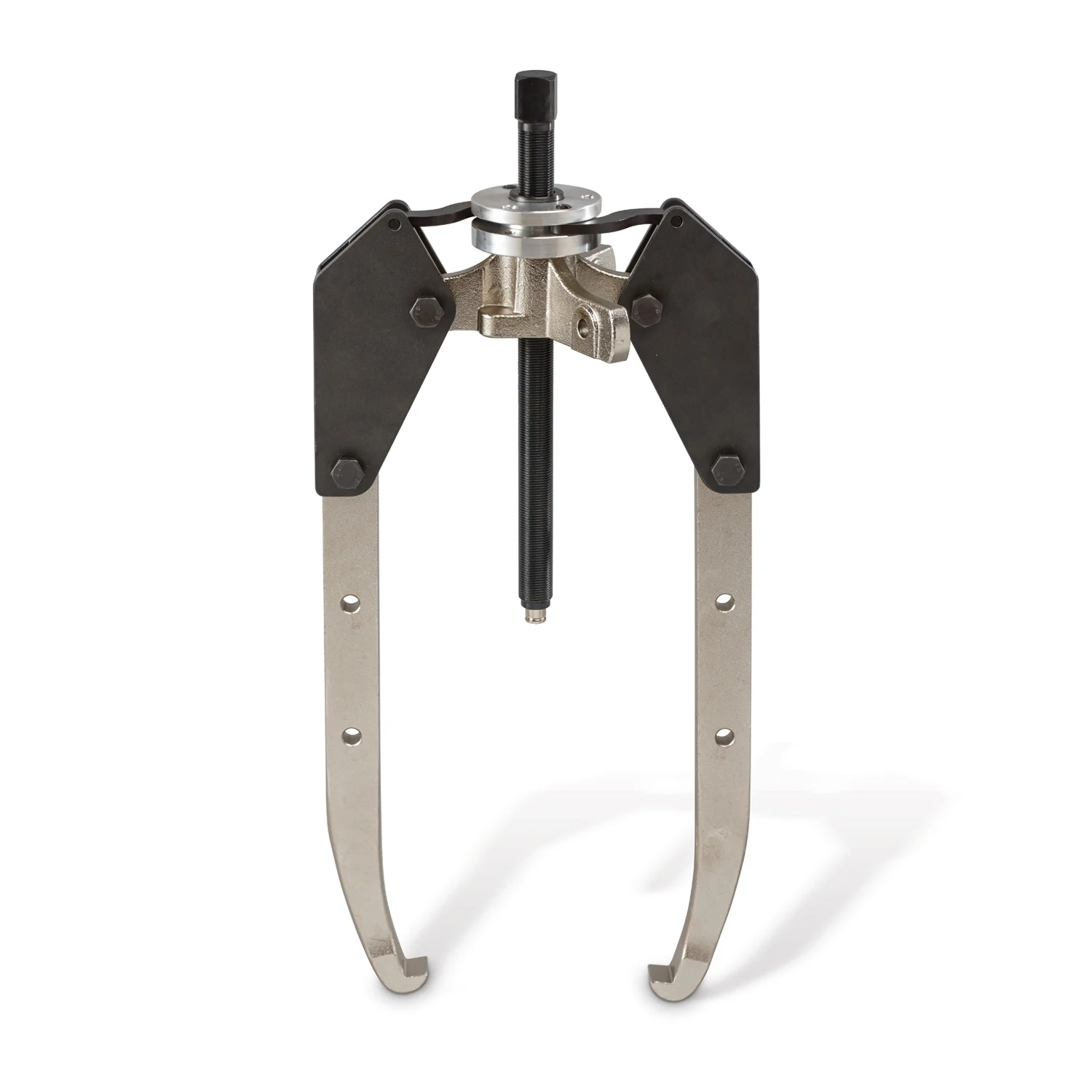

SGM-Series,Mechanical Sync Grip Puller
Pullertop Hydraulic pullers are more efficient than traditional pullers, as one person can do the job whereas traditional pullers often require two operators. The opening, closing, locking, and aligning of the jaws are all done automatically by simply turning the T-handle.
Product Description
Product Lines: Mechanical Puller
- Sync Grip mechanism synchronizes movement of all jaws for simultaneous engagement, helping to prevent misalignment for safe and easy use
- Threaded spindle and jaw indexes provide adjustable reach
- Three-jaw configuration for even load distribution，two-jaw configuration for confined access applications available
- Do not exceed 50% of the rated puller capacity when using two jaw configurations
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
| Model No. | Capacity（T） | Max.reach（mm） | Max. spread（mm） | Weight(kg) | Optional Long Jaw Sets (3 jaws) Model Number |
Max.reach（mm） | Max. spread（mm） | |
| SGM 01 * | 1 | 105 | 110 | 0.8 | / | / | / | |
| SGM 04 * | 4 | 185 | 175 | 2 | / | / | / | |
| SGM 07 * | 7 | 225 | 240 | 6.5 | / | / | / | |
| SGM 10 * | 10 | 410 | 350 | 14.5 | SG1002K | 490 | 405 | |
| SGM 20 * | 20 | 600 | 680 | 55.5 | SG3002K | 640 | 720 |
