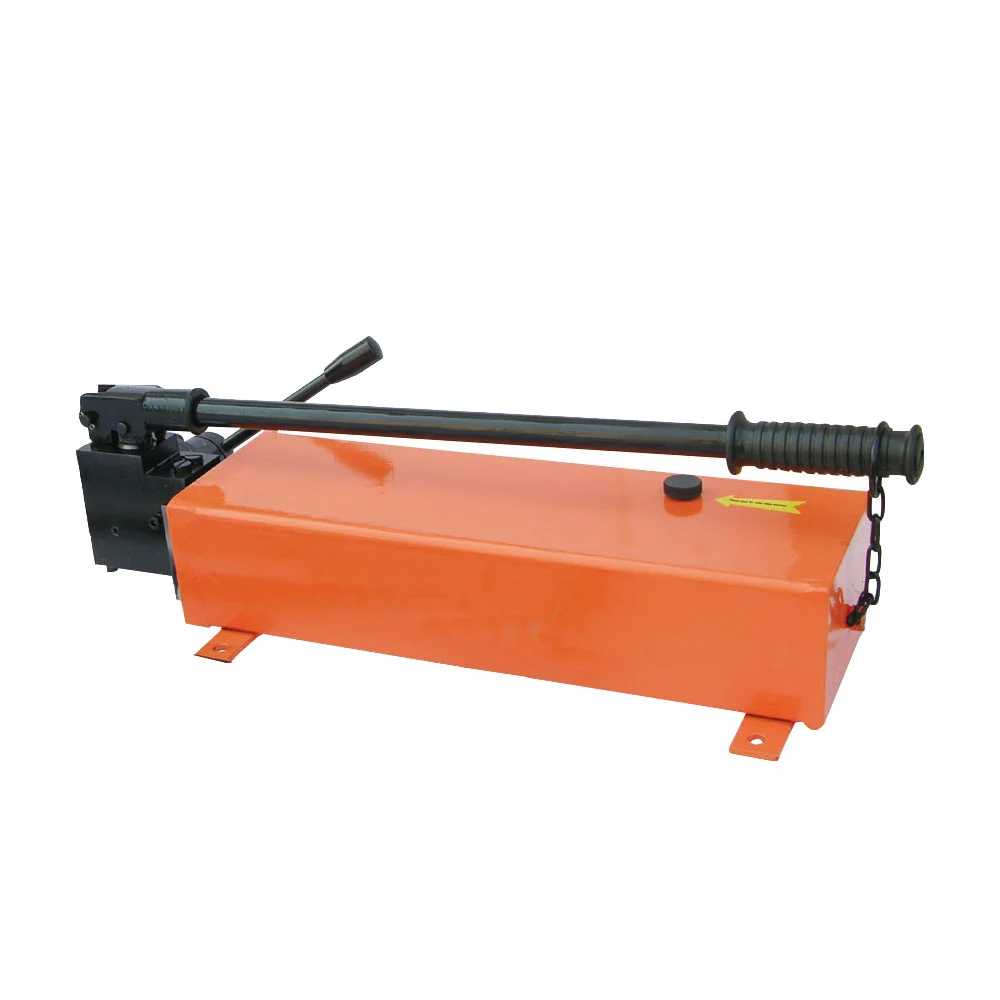

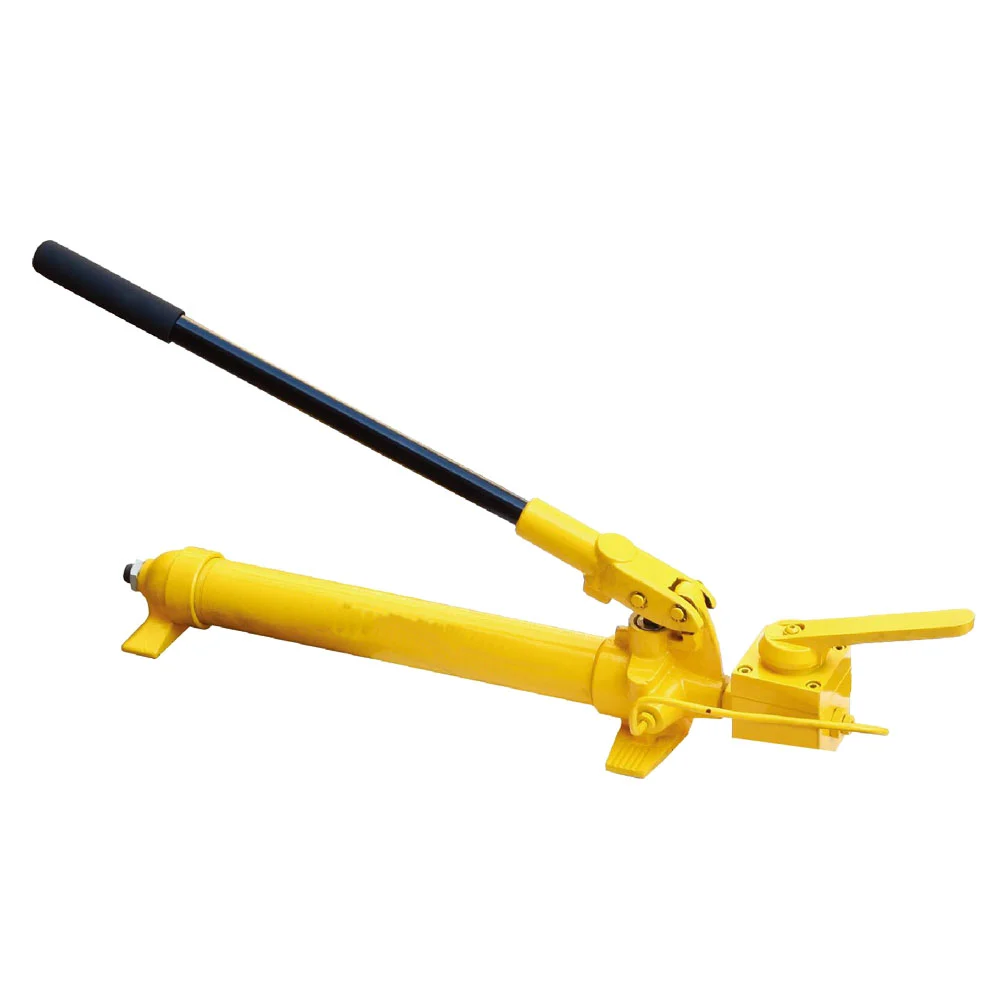

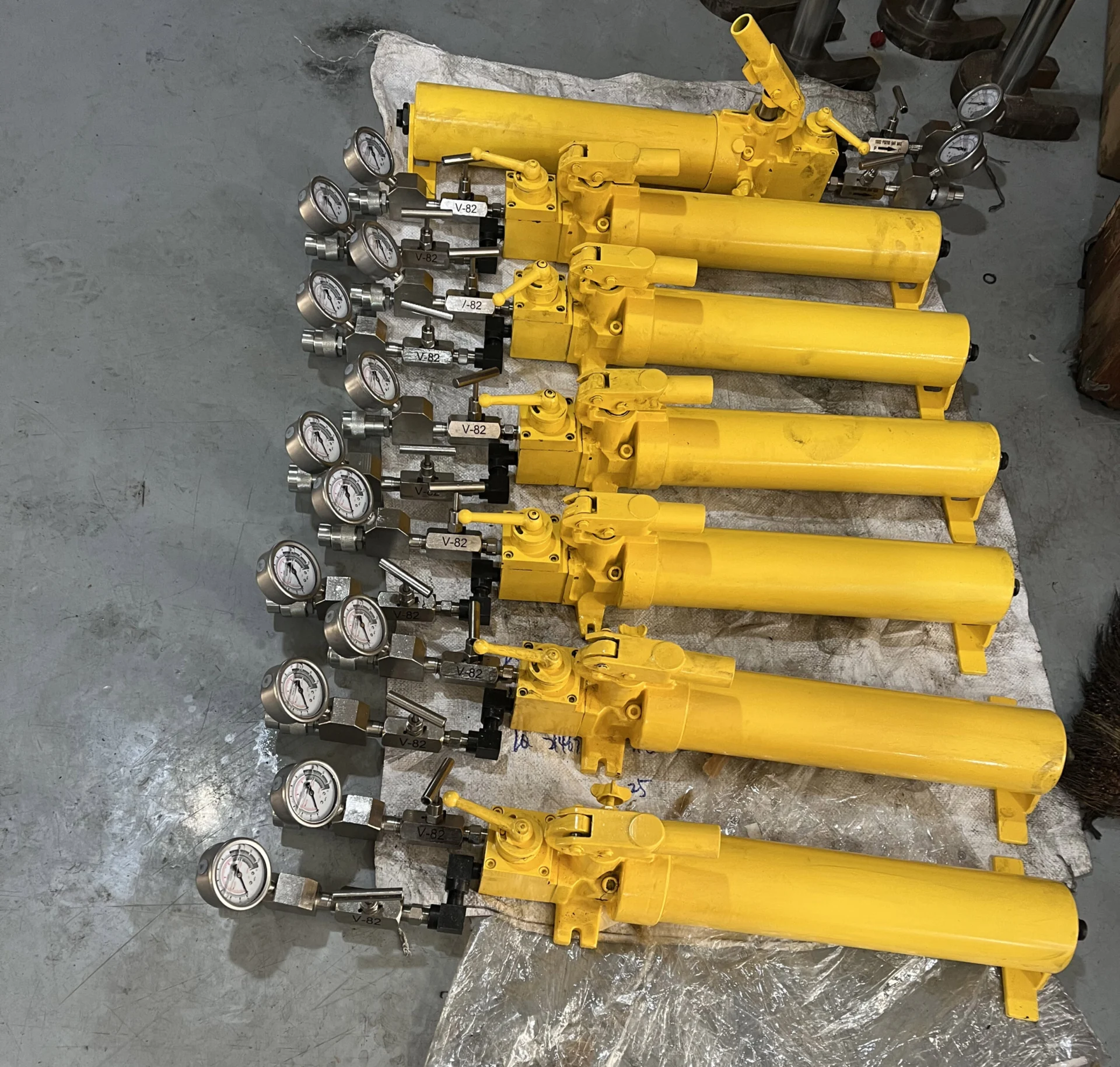

Double Acting Hydraulic Hand Pump

Pullertop double acting hydraulic pump series are high-pressure two-speed hydraulic hand pumps designed for portability, durability, safety, and ease of use. A large selection of heavy-duty steel-made portable lightweight hydraulic hand pumps makes it easy to find the most effective compact high-pressure pump.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: P Series

Product Lines: Hydraulic Hand Pump

Rugged all metal construction for strength and durability that won’t burn through in welding environments

Heavy-duty, formed metal handle provides rigidity, and reduces operator fatigue with grip.

Convenient oil fill ports.

The fill cap seal acts as a safety valve to prevent overpressurizing the reservoir.

For operation of double-acting cylinders.

Large oil capacity to power a wide range of hydraulic tools.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Oil Capacity:	2200-10000cm3
Pump Type:	Two Speed
Maximum Operating Pressure :	70Mpa(10,000PSI)
Weight:	15-30Kg

Series Comparison

Model	Usable Oil Capacity/cm3	Pump Type	First Stage Pressure/bar	Second Stage Pressure/bar	Max handles Force/Kg	Oil Displacement Per Stroke 1st Stage (cm3)	Oil Displacement Per Stroke 2nd Stage (cm3)	Piston Stroke	Weight/Kg
P804D	4000	Two-speed	13	700	47	16.2	2.46	25.4	24
P806D	6000	Two-speed	13	700	47	16.2	2.46	25.4	25
P808D	8000	Two-speed	13	700	47	16.2	2.46	25.4	27
P1010D	10000	Two-speed	13	700	47	16.2	2.46	25.4	30
P77D	2200	Two-speed	25	700	47	16.2	2.46	25.4	15
P84	2200	Two-speed	25	700	47	16.2	2.46	25.4	19
