Hydraulic Sealed Hand Pump

The pump is designed with hazard reduction, safety and ease of use in mind. It can be used to operate any 10,000 psi (700 bar) rated hydraulic equipment and can be used in any orientation .

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: HP Series

Product Lines: Hydraulic Sealed Hand Pump

The pump is designed with hazard reduction, safety and ease of use in mind. It can be used to operate any 10,000 psi (700 bar) rated hydraulic equipment and can be used in any orientation .

There are single-acting,single-Port、 single-acting，double-Port and double-acting multiple operating modes and hydraulic oil capacities to choose from.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

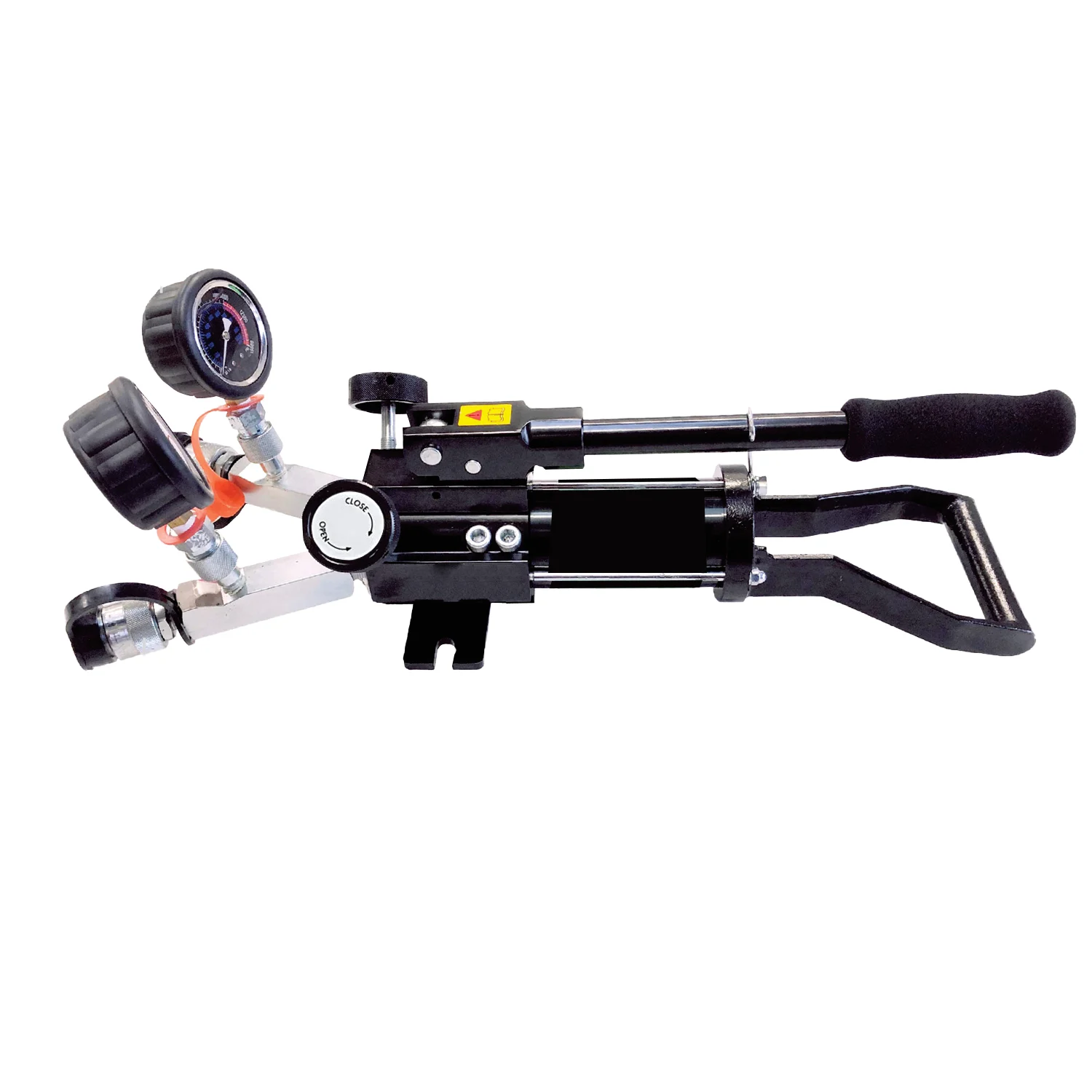

Product Picture

Series Specifications

Oil Capacity:	350-1000cm3
Pump Type:	Two-Speed,Single Port/Twin Port,Single-Acting/Double-Acting
Maximum Operating Pressure :	70Mpa(10,000PSI)
Weight:	5.5-10Kg

Series Comparison

Model No.	Usable Oil Capacity(cm3)	Pump Type	First Stage Pressure/bar	Second Stage Pressure/bar	Oil Displacement Per Stroke 1st Stage (cm3)	Oil Displacement Per Stroke 2nd Stage (cm3)	Handle Effort(kg)	Piston Stroke(mm)	Weight(Kg)
HP350S	350	Two-Speed,Single Port	13.8	700	3.62	0.77	33	18	5.5
HP350D	350	Two-Speed,Twin Port	13.8	700	3.62	0.77	33	18	8
HP350SD	350	Two-Speed, Twin Port, Double-Acting	13.8	700	3.62	0.77	33	18	6.5
HP550S	550	Two-Speed,Single Port	13.8	700	3.62	0.77	25	18	6.5

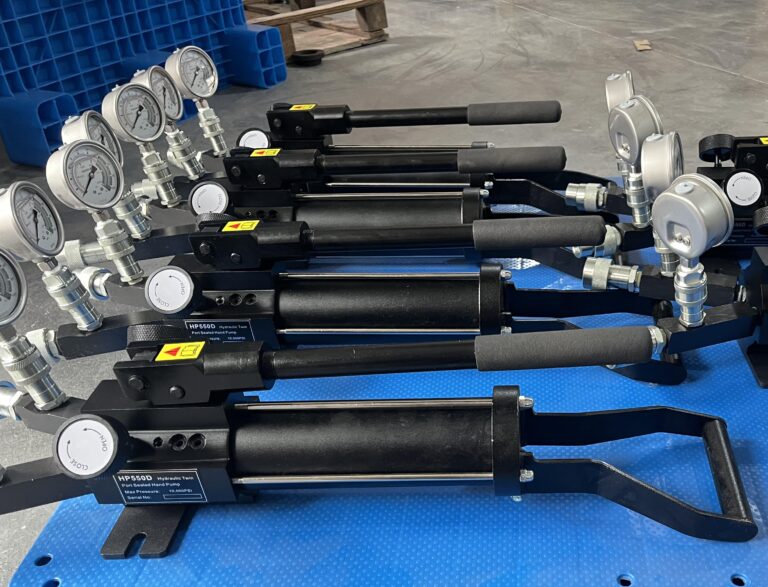

HP550D	550	Two-Speed,Twin Port	13.8	700	3.62	0.77	25	18	8.5
HP550SD	550	Two-Speed, Twin Port, Double-Acting	13.8	700	3.62	0.77	25	18	7.5
HP1000S	1000	Two-Speed,Single Port	13.8	700	3.62	0.77	21	18	8
HP1000D	1000	Two-Speed,Twin Port	13.8	700	3.62	0.77	21	18	10
HP1000SD	1000	Two-Speed, Twin Port, Double-Acting	13.8	700	3.62	0.77	21	18	9
