Light Weight Hydraulic Hand Pumps

Pullertop lightweight hand pumps come with a compact design and lightweight construction for easy carrying. Two-speed lightweight hand pump models offer reduced handle strokes and lower handle effort to minimize operator fatigue.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: P Series

Product Lines: Light Weight Hand Pumps

Lightweight and compact design

Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance

Two-speed operation on most models reduces handle strokes by as much as 78% over single-speed pumps

Lower handle effort to minimize operator fatigue

Handle lock and lightweight construction for easy carrying

Large oil capacities to power a wide range of cylinders or tools

Non-conductive fiberglass handle for operator safety

Internal pressure relief valve for overload protection

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

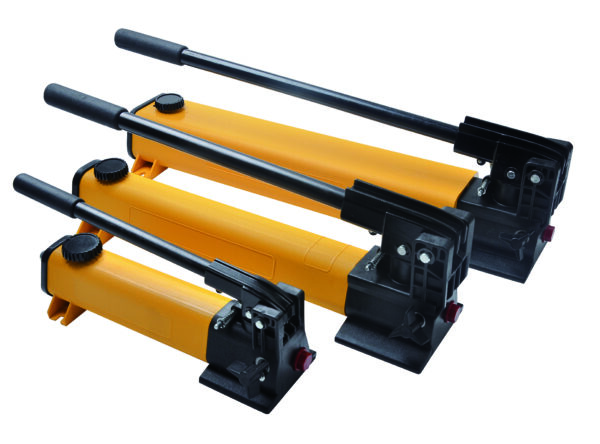

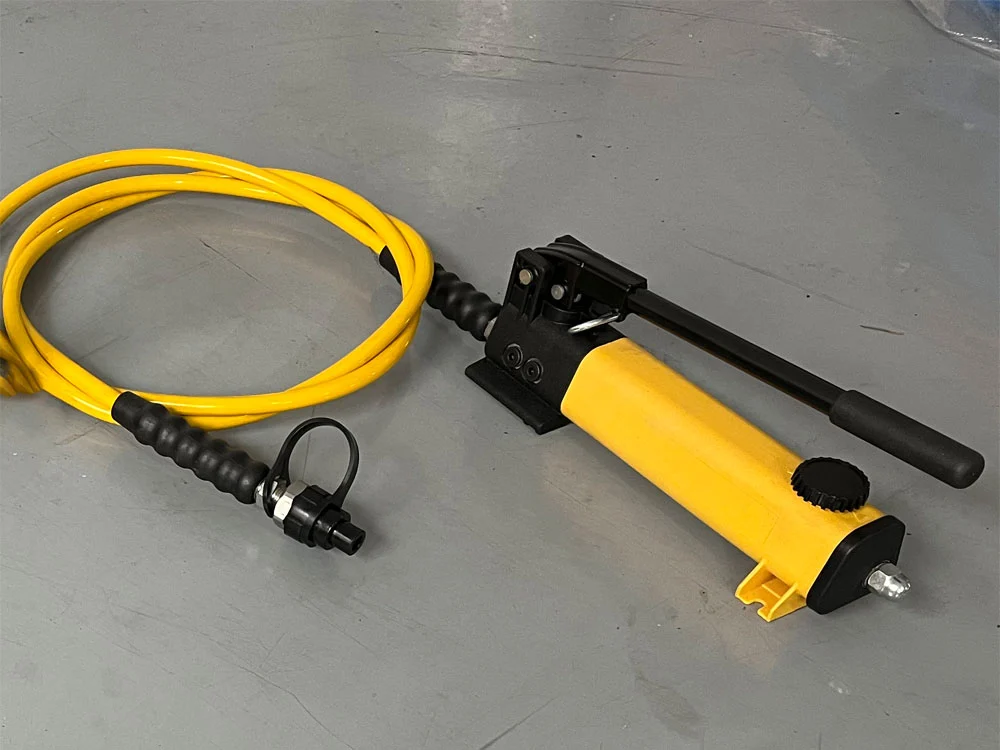

Product Picture

Series Specifications

Oil Capacity:	327-901cm3
Pump Type:	Single Speed/Two Speed
Maximum Operating Pressure :	70Mpa(10,000PSI)
Weight:	2.4-64Kg

Series Comparison

Model	Usable Oil Capacity/cm3	Pump Type	First Stage Pressure/bar	Second Stage Pressure/bar	Oil Displacement Per Stroke 1st Stage (cm3)	Oil Displacement Per Stroke 2nd Stage (cm3)	Max Handle Force/Kg	Piston Stroke	Weight/Kg
P141	327	Single-speed	*	700	*	0.9	32.7	12.7	2.4
P391	901	Single-speed	*	700	*	2.47	38.6	25.4	4.1
P142	327	Two-speed	13	700	3.62	0.9	35.4	12.7	2.4
P392	901	Two-speed	14	700	11.26	2.47	42	25.4	4.1
P802	2540	Two-speed	27	700	39.33	2.47	43.1	25.4	8.2
P842	2540	Two-speed	27	700	39.33	2.47	43.1	25.4	12
