Product Description

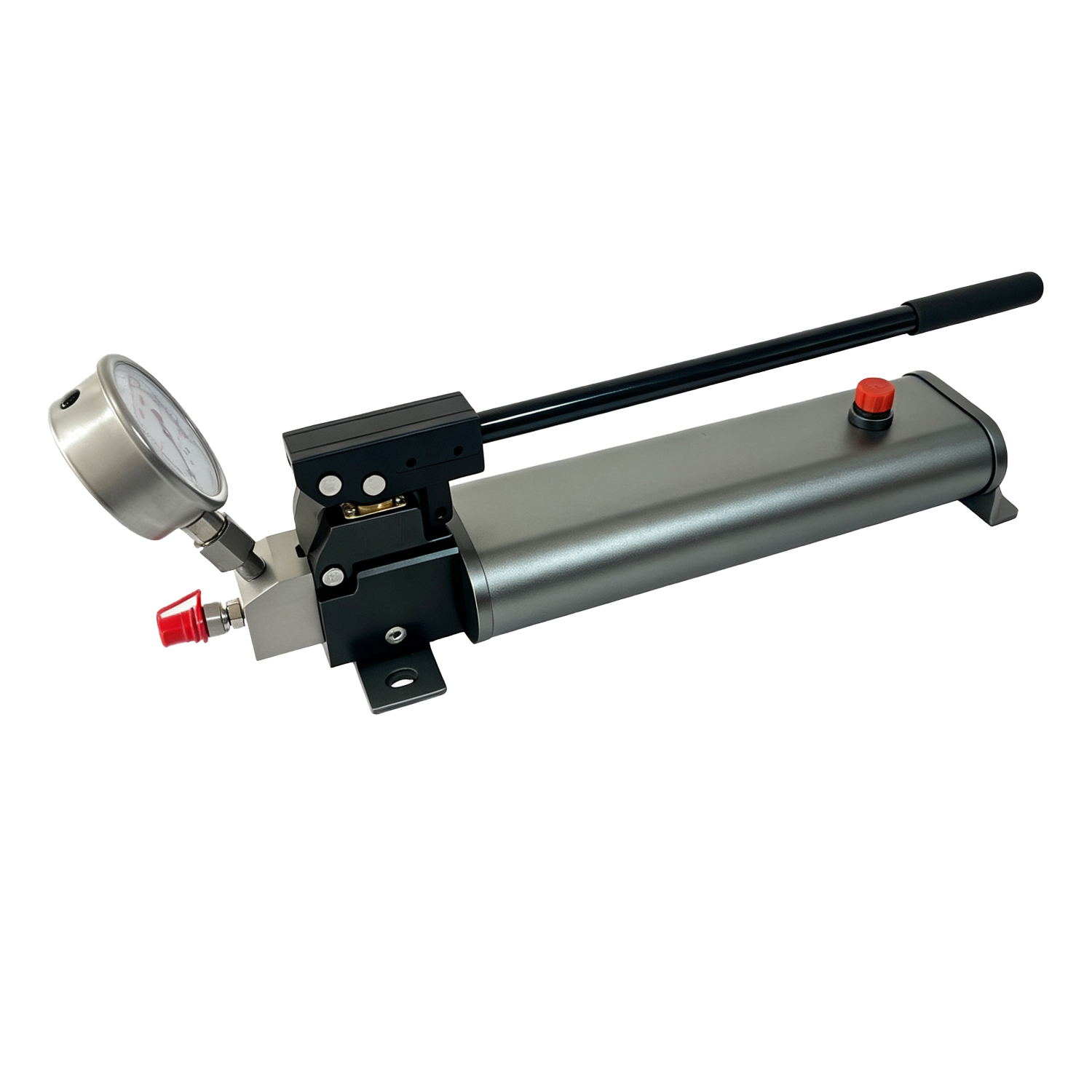

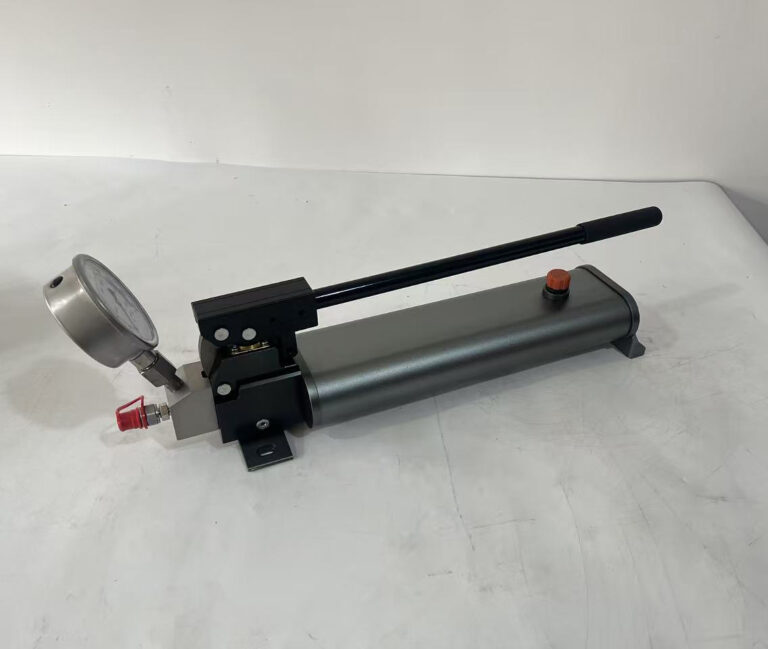

Product Lines: Hydraulic Hand Pump
- Aerospace grade aluminum titanium alloy material makes it light weight, high strength and portable;
- Two stage design with high flow and high pressure. Pressure can be set arbitrarily;
- Special oil tank cover design makes the oil tank has the good sealing property or air permeability, which can make air pressure keep balance inside and outside of the oil tank;
- Large oil capacity to power a wide range of hydraulic tools.
- Working pressure from 1500bar to 2800bar
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Specifications
| Oil Capacity: | 2500-3800cm3 |
| Pump Type: | Two Speed |
| Maximum Operating Pressure : | 150-280Mpa |
| Weight: | 10-12Kg |
Series Comparison
| Model No. | Max Pressurre （Mpa） | Usable Oil Capacity(cm³) | Pump Type | Pressure Rating（bar） | Oil Displacement Per Stroke(cm³) | Handle Effort(kg) | Piston Stroke(mm) | Weight(Kg) | ||
| LP | HP | LP | HP | |||||||
| 15P250 | 150 | 2500 | Two-Speed | 30 | 1600 | 17.9 | 1.27 | 50.5 | 25.4 | 10 |
| 28P250 | 280 | 2500 | Two-Speed | 30 | 2800 | 17.9 | 0.71 | 50 | 25.4 | 10 |
| 15P380 | 150 | 3800 | Two-Speed | 30 | 1600 | 17.9 | 1.27 | 50.5 | 25.4 | 12 |
| 28P380 | 280 | 3800 | Two-Speed | 30 | 2800 | 17.9 | 0.71 | 50 | 25.4 | 12 |
