Aluminum High Pressure Hydraulic Hand Pump

High-Pressure Aluminum Hydraulic Hand Pump

Pullertop offers a high-pressure manual hydraulic pumps product line with a wide range of max working pressure:70Mpa,100Mpa,150Mpa,200Mpa, and 280Mpa. The high-pressure hand pumps are made of high-strength aluminum alloy materials, which give the pump good durability, and anti-corrosion ability while being lightweight.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: P Series

Product Lines: Hydraulic Hand Pump

Made of high-strength aluminum alloy material, lightweight and anti-corrosion

Heavy-duty, formed metal handle provides rigidity, and reduces operator fatigue with grip.

Convenient oil fill ports.

The fill cap seal acts as a safety valve to prevent overpressurizing the reservoir.

Max working pressure up to 2800bar

Large oil capacity to power a wide range of hydraulic tools.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

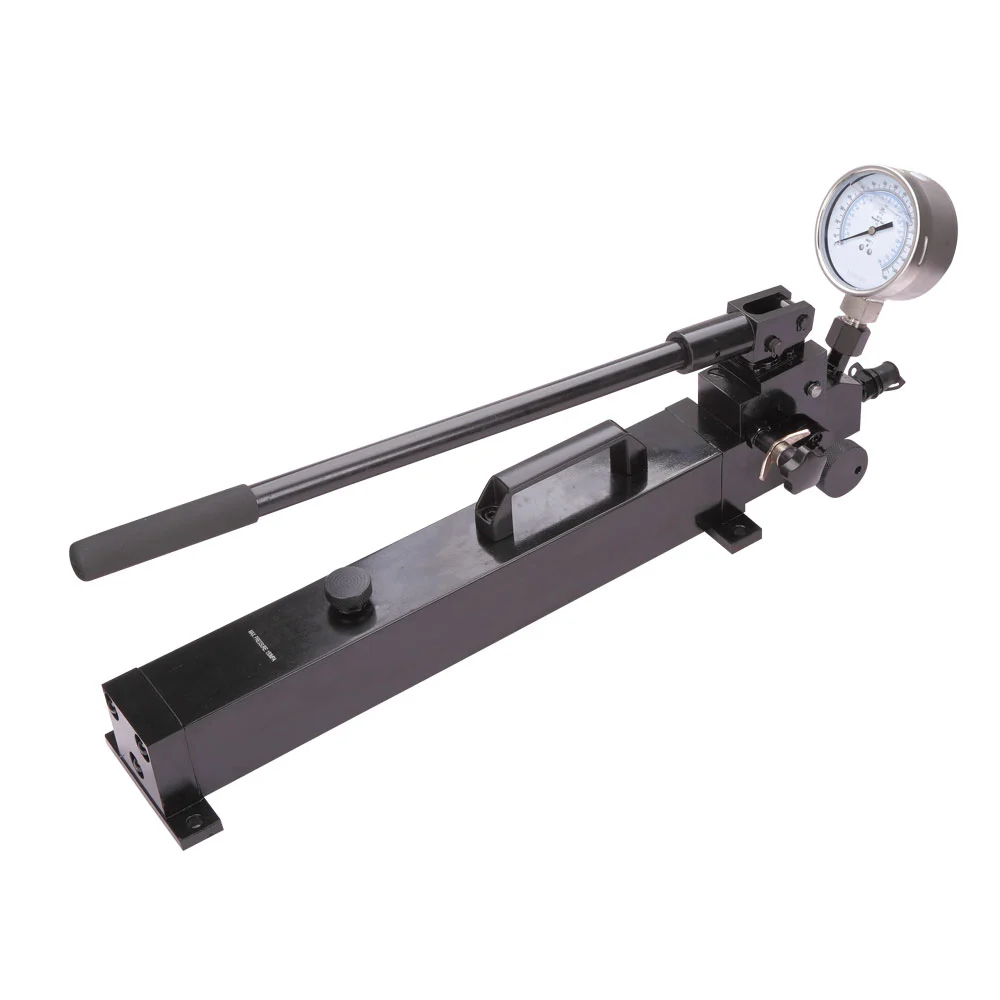

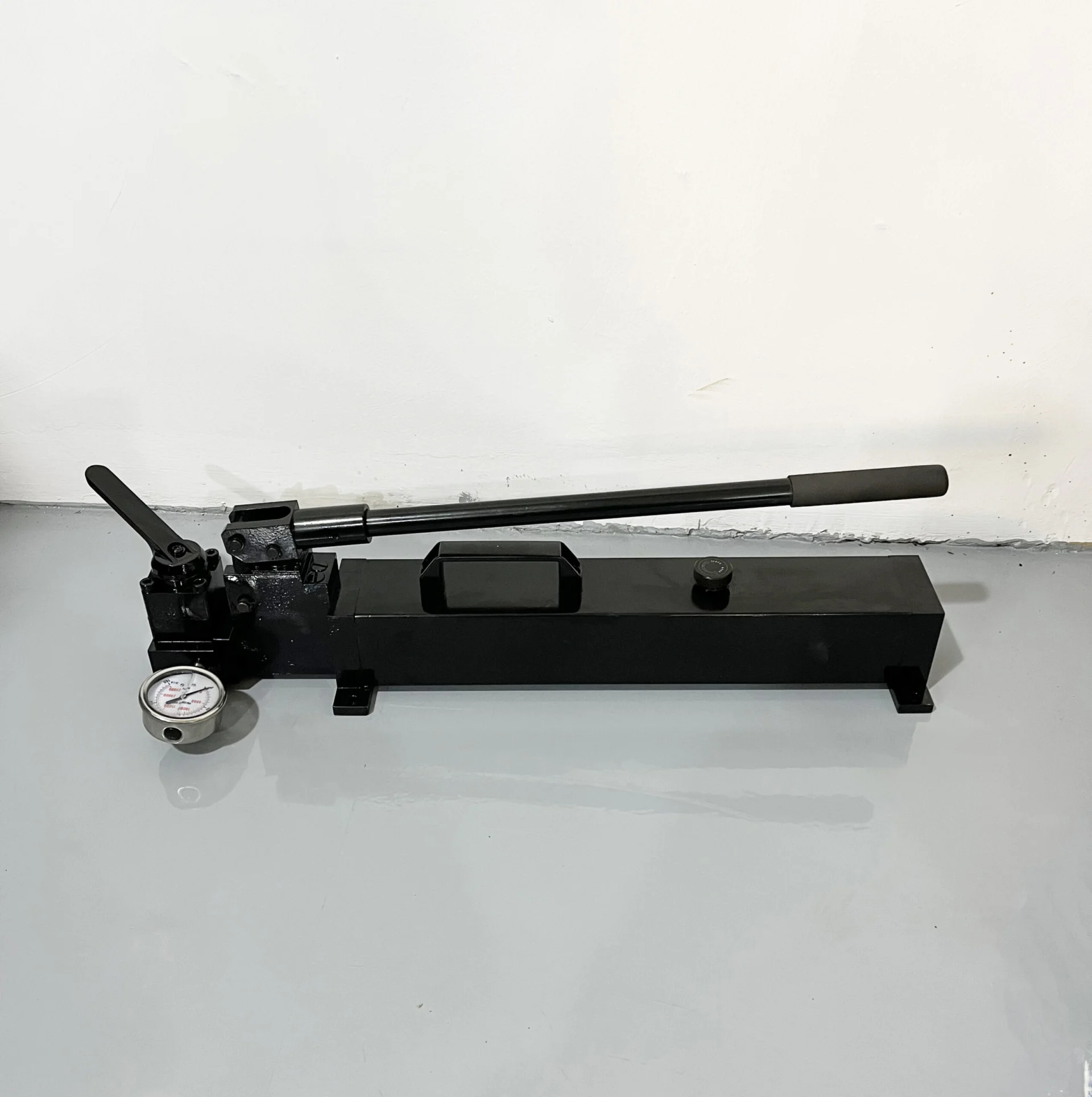

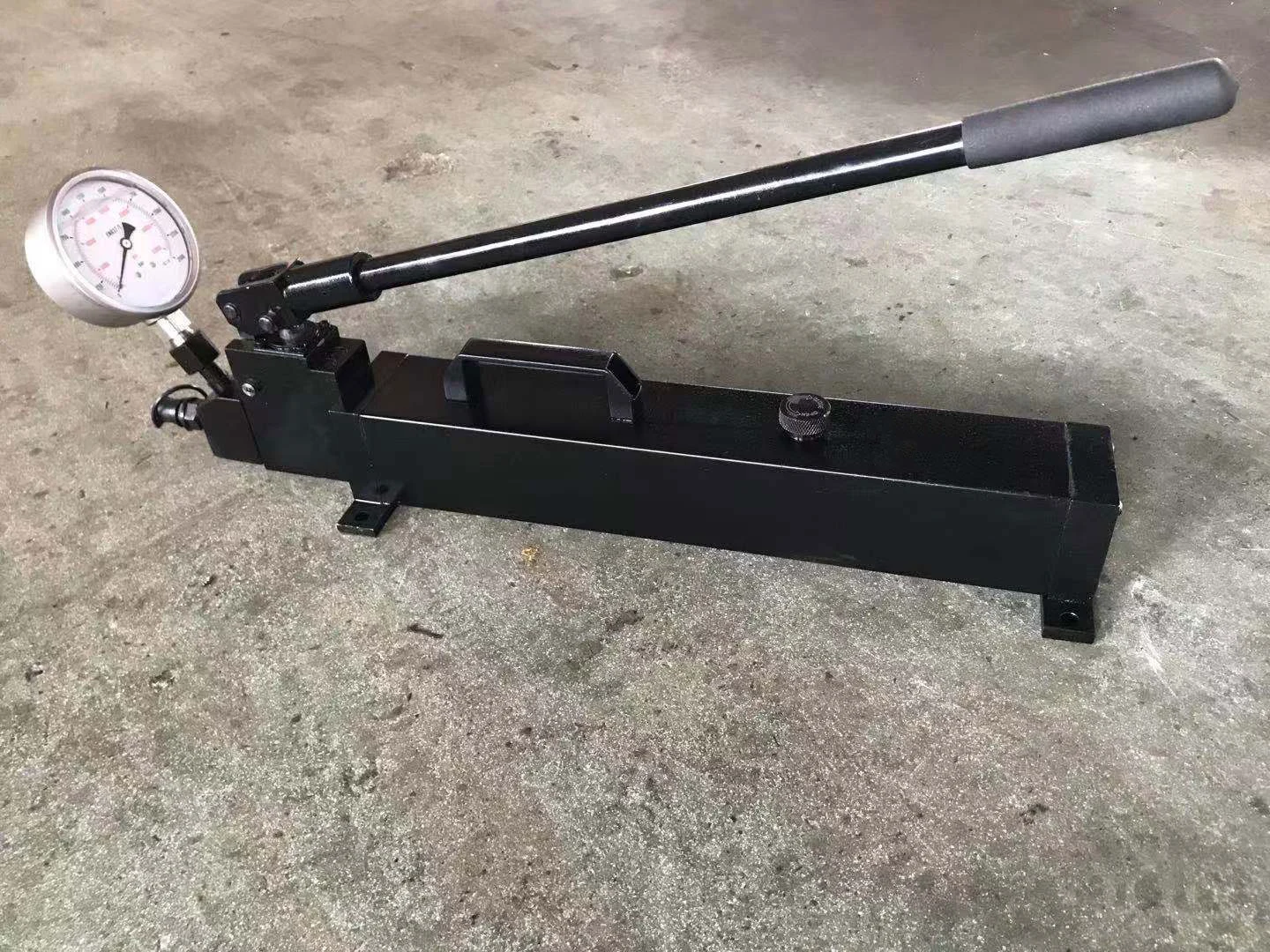

High-Pressure Aluminum Hydraulic Hand Pump

Series Specifications

Oil Capacity:	1440-3240cm3
Pump Type:	Two Speed
Maximum Operating Pressure :	70-280Mpa
Weight:	7.5-12Kg

Series Comparison

Model	Usable Oil Capacity/cm3	Pump Type	First Stage Pressure/bar	Second Stage Pressure/bar	Max handles Force/Kg	Oil Displacement Per Stroke 1st Stage (cm3)	Oil Displacement Per Stroke 2nd Stage (cm3)	Piston Stroke	Weight/Kg
7P392	1440	Two-speed	25	700	30	32	2.5	25.4	7.5
7P160	3240	Two-speed	25	700	30	32	2.5	25.4	12
10P392	1440	Two-speed	15	1000	35	32	2.5	25.4	7.5
15P392	1440	Two-speed	15	1500	35	32	2.5	25.4	7.5
20P392	1440	Two-speed	15	2000	40	32	2.5	25.4	7.5
28P392	1440	Two-speed	20	2800	45	32	2.5	25.4	7.5
