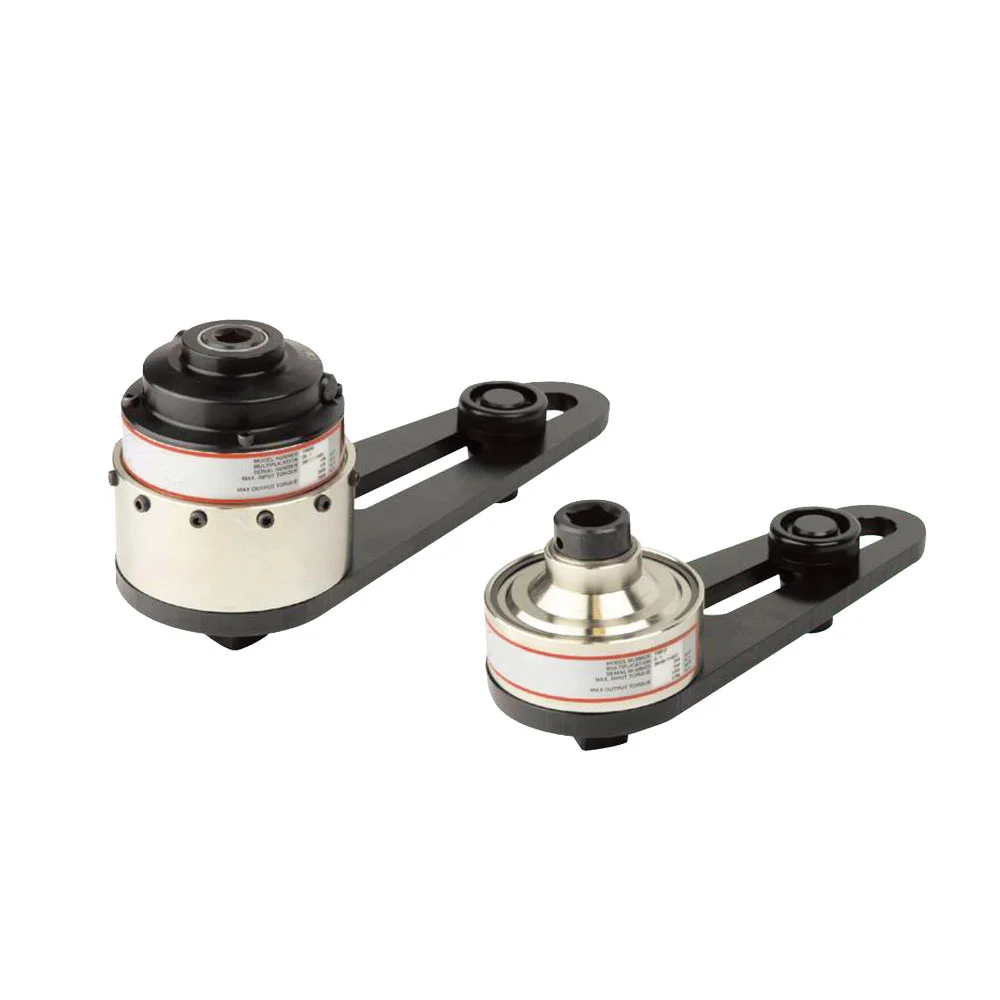

HT1,HT2,HT5,HT6 Series, Torque Multipliers

Pullertop manufactures and supplies a broad range of torque multipliers with various output torques. Our torque multipliers provides accurate, efficient torque multiplication for make-up or breakout of joint fasteners.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Torque Multipliers

  • A variety of reaction styles are available for maximum versatility.
  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication is guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Anti Wind-Up Ratchet available on models of 25:1 ratio and above.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

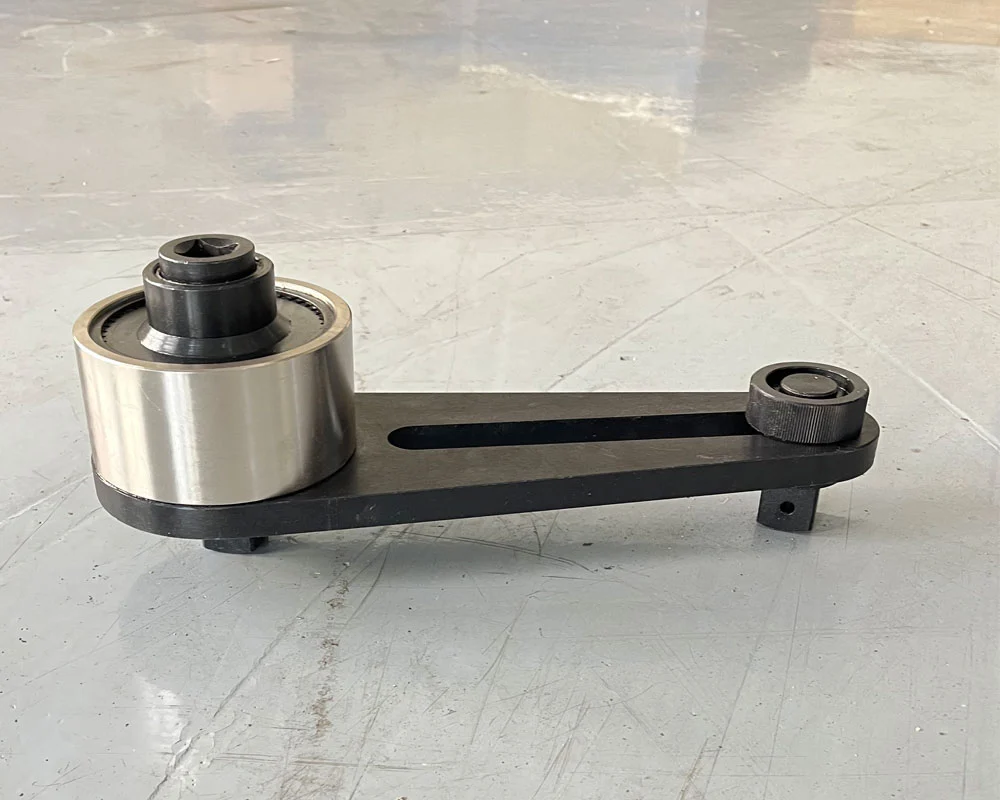

Image Gallery

Dimension

HT1,HT2,HT5,HT6 Series, Torque Multipliers

Series Comparison

Model Torque Range(Nm) Torque Range(lbf.ft) Torque Ratio Input Square Drive Output Square Drive Dimension A(mm) Dimension B(mm) Min Dimension C(mm) Max Dimension C(mm) Body Weight(Kg) Reaction Arm Weight(Kg)
HT1 1700 1250 5:01 1/2” 3/4” 108 106 83 217 3 2.2
HT2/5 1700 1250 5:01 3/4” 1” 108 126 83 217 3 2.2
HT2/25 1700 1250 25:01:00 1/2” 1” 119 141.5 83 264 5.6 2.2
HT5/5 3400 2500 5:01 3/4” 1” 108 142.1 86 264 4.7 2.5
HT5/25 3400 2500 25:01:00 1/2” 1” 119 167.6 86 264 7.5 2.5
HT6 3400 2500 5:01 3/4” 1 1/2” 119 144.7 86 264 4.7 2.5
HT6/25 3400 2500 25:01:00 1/2” 1 1/2” 119 172 86 264 7.5 2.5
