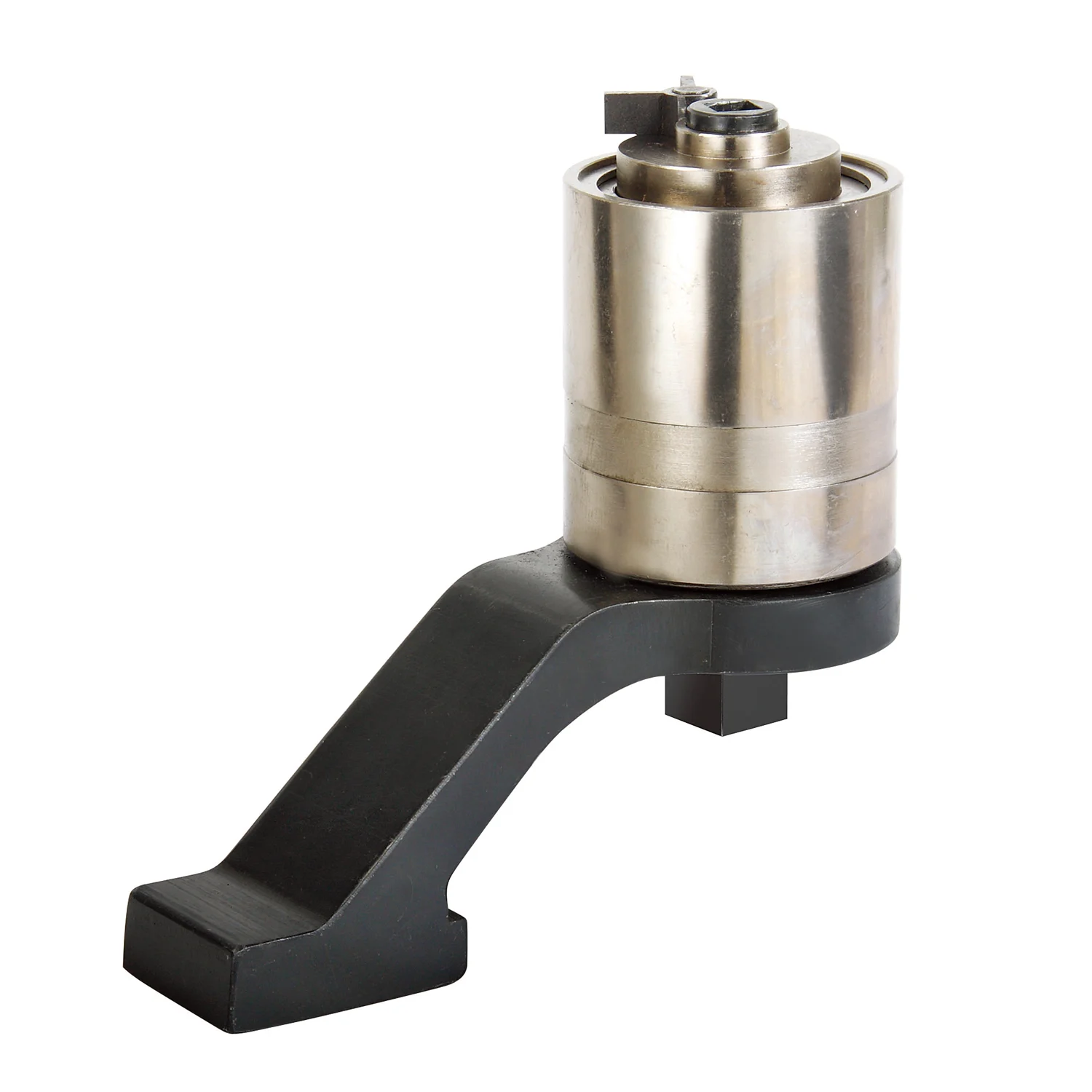

MDS-Series,Torque Multipliers
Pullertop manufactures and supplies a broad range of torque multipliers with various output torques. Our torque multipliers provides accurate, efficient torque multiplication for make-up or breakout of joint fasteners.
Product Description
Product Lines: Torque Multipliers
- Ideal for nut demolition application in confined space., light weight and easy handling planetary gear train
- multiplies torque output;
- Reaction foot can adjust to replace all types of impact sockets in 360°;
- Applicable to a variety of large-diameter bolt nut;
- Customized orders are welcome according to individual requirements;;
- Such as, the smallest diameter of the tools, the largest output torque, and reaction foot;
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

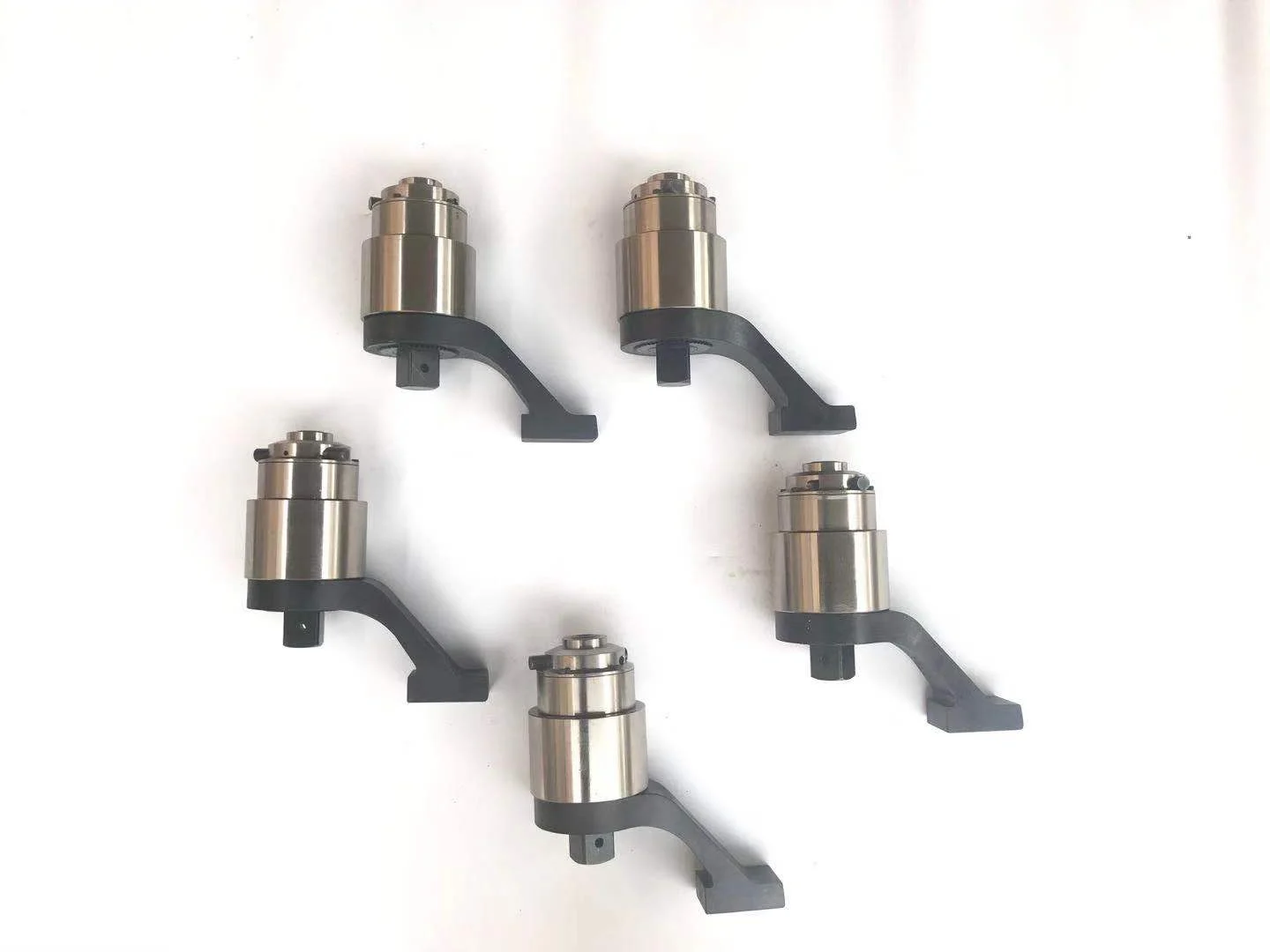

Image Gallery
Series Comparison
| Model No. | Torque range(Nm) | For nut size | Bolt Available(mm) | Torque Ratio | Draft In | Draft Out | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MDS-15 | 1500 | 30-46 | M20-M30 | 5:1 | 1/2″ | 1″ | 2.6 |
| MDS-20 | 2000 | 32-55 | M22-M36 | 16:1 | 1/2″ | 1″ | 3.9 |
| MDS-35 | 3500 | 46-70 | M30-M45 | 18:1 | 1/2″ | 1″ | 5.5 |
| MDS-42 | 4200 | 50-75 | M33-M48 | 20:1 | 1/2″ | 1 1/2″ | 6 |
| MDS-55 | 5500 | 55-80 | M36-M52 | 22:1 | 1/2″ | 1 1/2″ | 7.5 |
| MDS-75 | 7500 | 65-90 | M42-M60 | 26:1 | 1/2″ | 1 1/2″ | 10 |
| MDS-100 | 10000 | 80-105 | M52-M72 | 60:1 | 1/2″ | 1 1/2″ | 17 |
| MDS-150 | 15000 | 90-115 | M60-M80 | 75:1 | 1/2″ | 2″ | 25 |
| MDS-200 | 20000 | 105-135 | M72-M95 | 90:1 | 1/2″ | 2″ | 31 |
