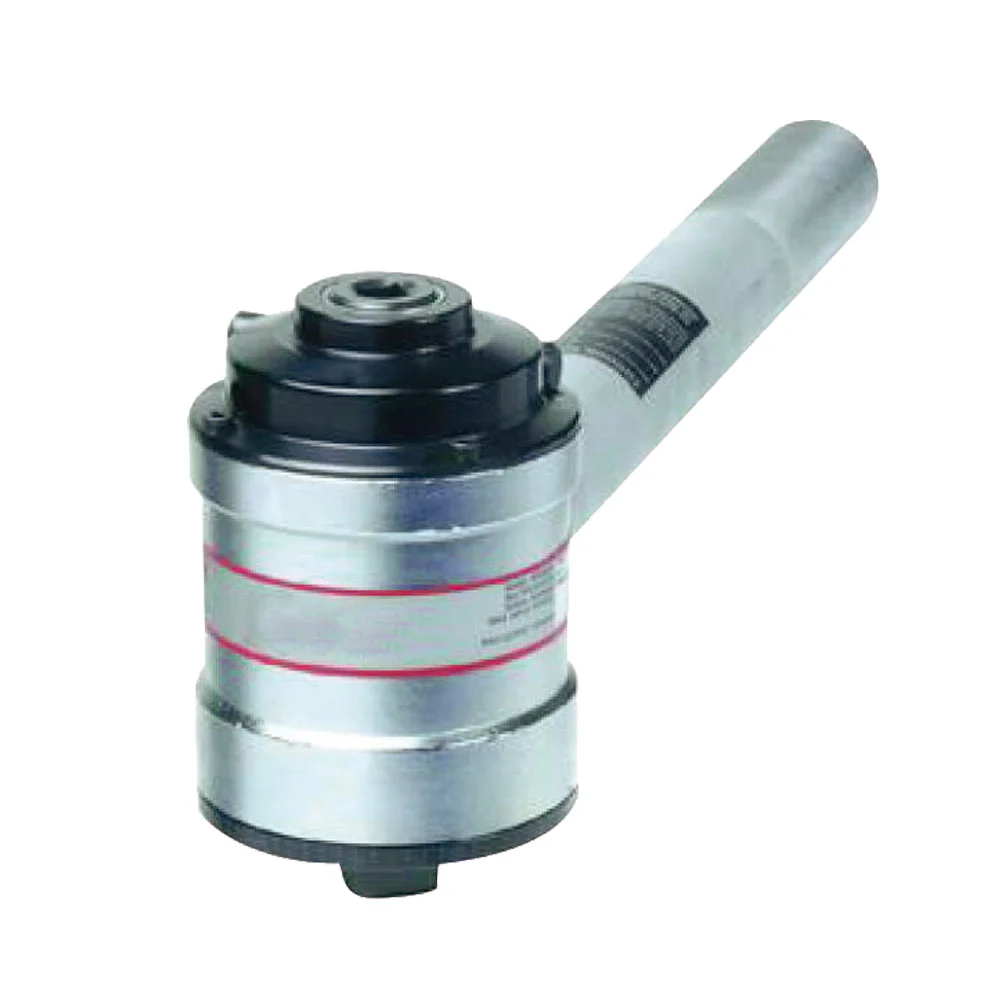

HT4 Series, Torque Multipliers
Pullertop manufactures and supplies a broad range of torque multipliers with various output torques. Our torque multipliers provides accurate, efficient torque multiplication for make-up or breakout of joint fasteners.
Product Description
Product Lines: Torque Multipliers
- High gear ratio, only need to use a small torque wrench to operate
- Repeatability accuracy better than ±4%
- Anti-rebound safety device (AWUR), is safer and more convenient to operate
- Rugged construction, easy maintenance, and long service life
- Angle protractor for easy viewing of tightening torque and angle
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

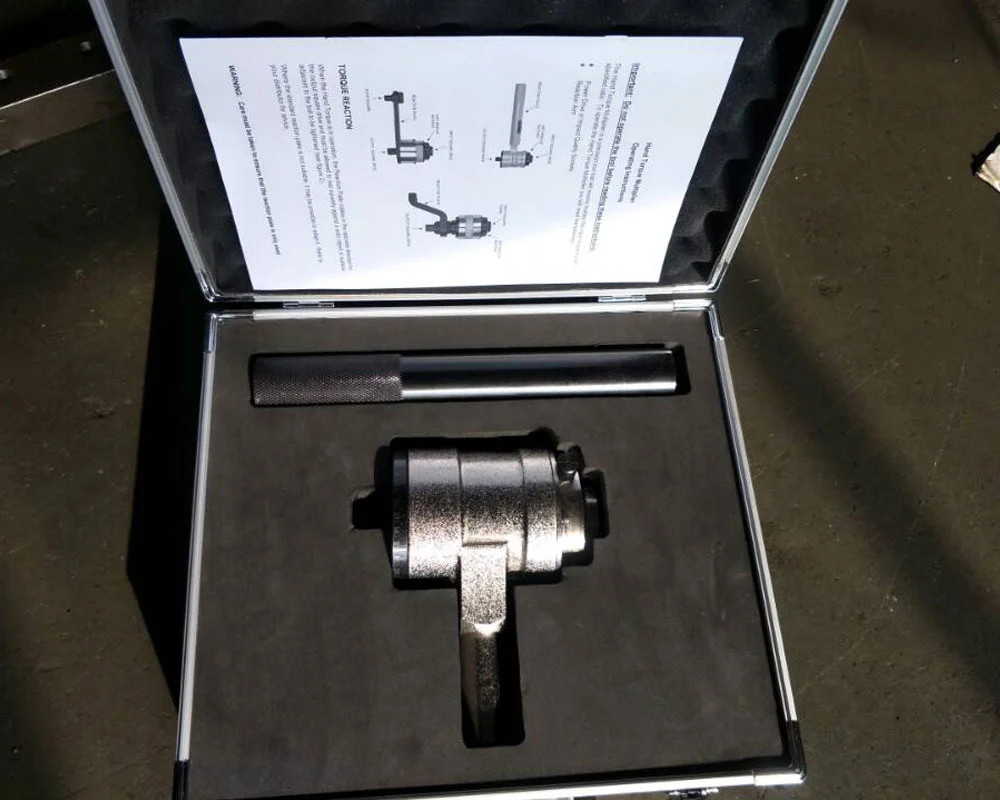

Image Gallery

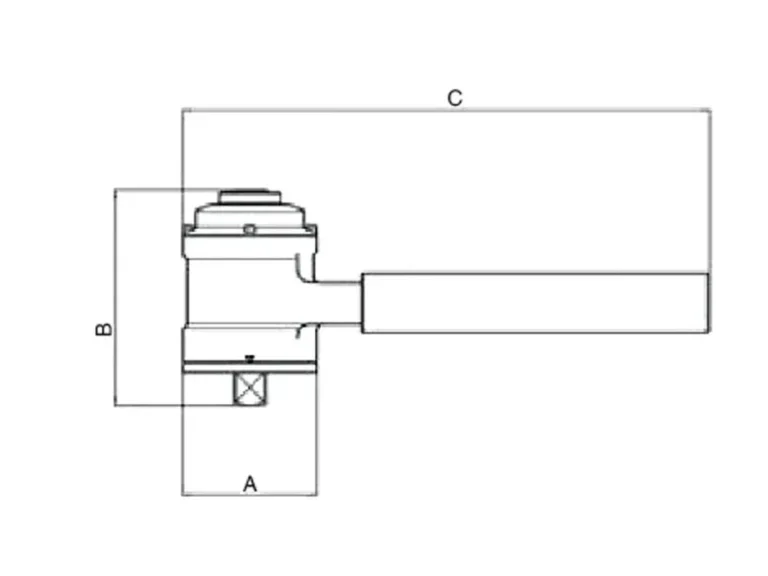

Dimension
Series Comparison
| Model | Torque Range(Nm) | Torque Range(lbf.ft) | Torque Ratio | Input Square Drive | Output Square Drive | Dimension A(mm) | Dimension B(mm) | Dimension C(mm) | Body Weight(Kg) | Reaction Arm Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| HT4-3000 | 3000 | 2200 | 15.5:1 | 1/2” | 1” | 108 | 156 | 450 | 6.1 | 1.9 |
| HT4-4500 | 4500 | 3300 | 26:01:00 | 1/2” | 1” | 108 | 173 | 450 | 7 | 1.9 |
