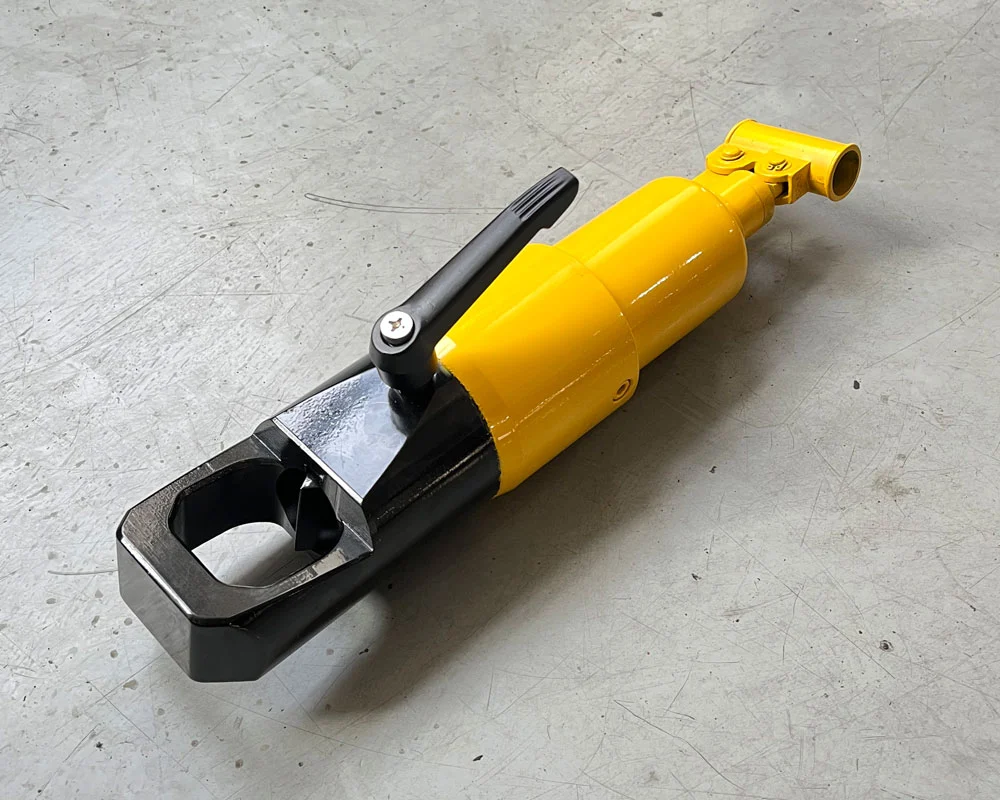

Integral Hydraulic Nut Splitters

Pullertop hydraulic nut splitters are a simple, fast, safe, and efficient tool to remove the bolt and nut. In the open-air high temperature or corrosive environment, the bolt is usually bitten by rust and damaged by smashing, It is very difficult to remove them In the past. With the help of our hydraulic bolt cutters, engineers are able to remove nuts ranging from M6 to M90 easily under different work conditions.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Nut Splitters

All models have an angled body design to provide the necessary clearance on flanges and flat surfaces.

All models incorporate an integral hydraulic pump with multi-positional lever for even greater versatility.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Capacity Class:	15-35Ton
Hexagon Nut:	24-50mm
Bolt Range:	M16-M33
Maximum Operating Pressure :	700Bar
Weight:	5.8-13.6Kg

Series Comparison

Model	Capacity/Ton	Bolt Range	Hexagon Nut/mm	Weight/Kg
HNS104	15	M16-22	24-32	5.8
HNS110	20	M22-27	32-41	7.9
HNS200	35	M27-33	41-50	13.6

Product Description

Product Lines: Hydraulic Nut Splitters

All models have an angled body design to provide the necessary clearance on flanges and flat surfaces.
All models incorporate an integral hydraulic pump with multi-positional lever for even greater versatility.

Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Specifications

Capacity Class:	15-35Ton
Hexagon Nut:	24-50mm
Bolt Range:	M16-M33
Maximum Operating Pressure :	700Bar
Weight:	5.8-13.6Kg
