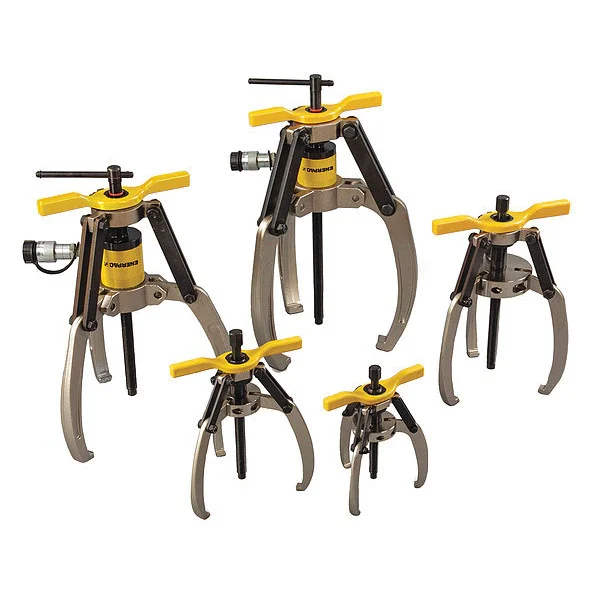

LGH-Series,Hydraulic Lock-Grip Puller

LGH-Series Pullers provide the same safety and ease of use as their mechanical counterparts, with the pulling force applied by a standard 10,150 psi hydraulic cylinder.Hydraulically applied pulling force increases pulling capacity, reducing operator fatigue.

PRICE ON REQUEST
Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Bearing Puller

  • Turning the puller handle locks the jaws onto the application, allowing the desired object to be pulled free when the spindle is turned.
  • Lock-on jaws offer a secure grip for safe and easy operation
  • Synchronous jaw movement enables entire pulling job to be performed by a single operator
  • LGH-Series Pullers MUST be used with a point protector if the shaft end does not contain a drilled center hole. One point protector is included with every puller.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model No. Number of Jaws Max. Reach(mm) Spread(mm) Capacity US( ton) Weight(Kg)
LGH210 2 215 84-300 10 10
LGH310 3 215 84-300 10 13
LGH214 2 260 125-380 14 14

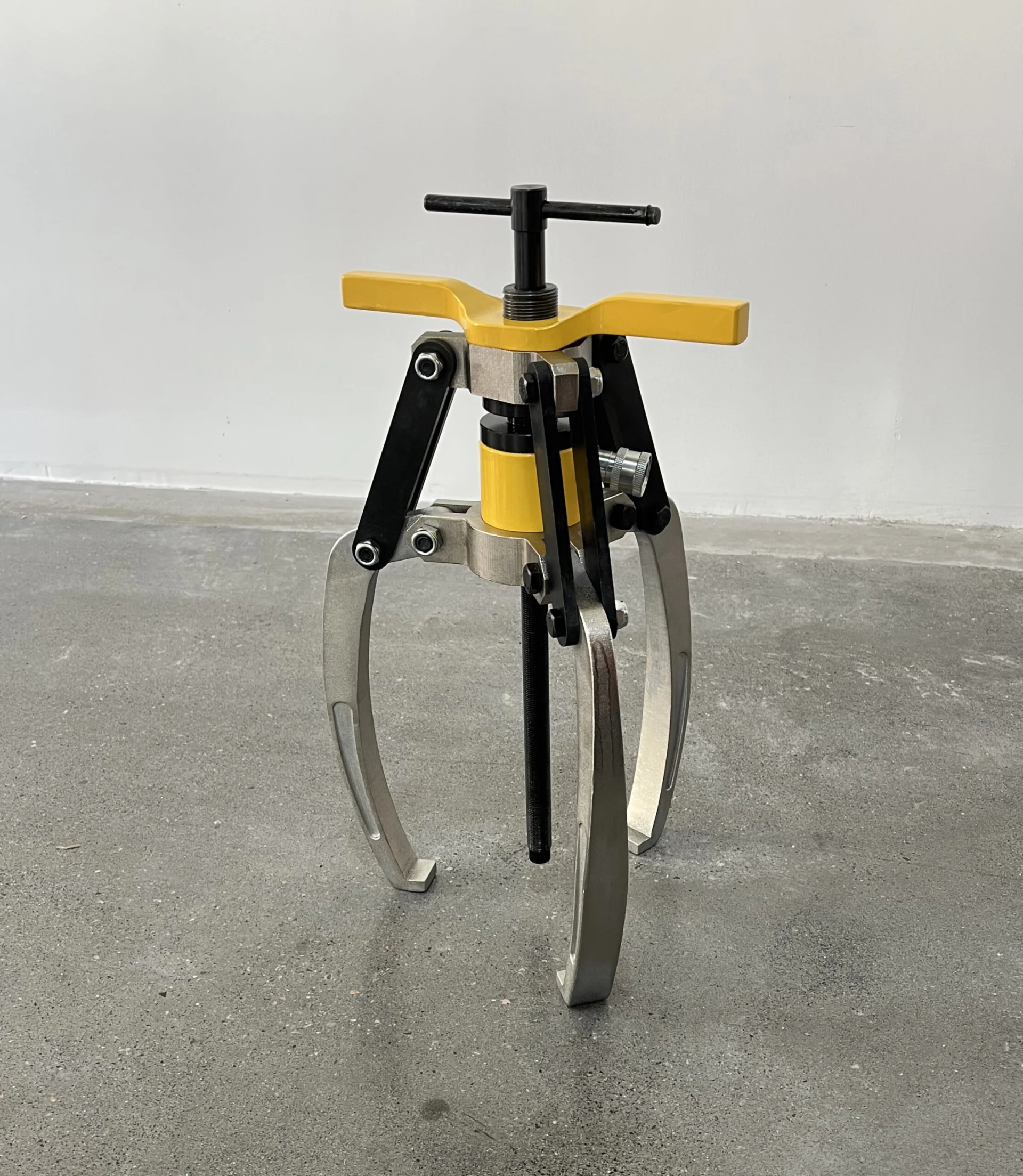

LGH314 3 260 125-380 14 18
LGH224 2 336 165-480 24 37
LGH324 3 336 165-480 24 47
LGH253 2 408 230-660 53 111
LGH364 3 408 230-660 64 139
