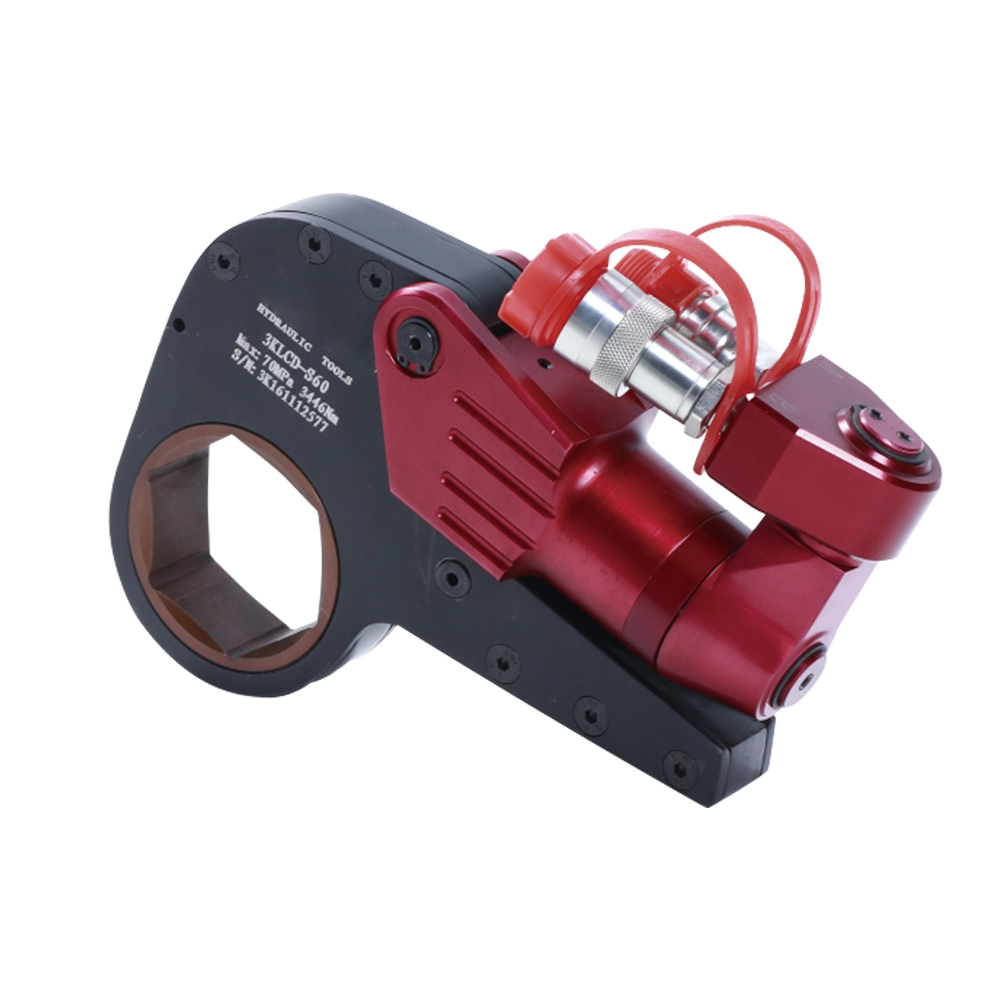

KLCD series,Low Profile Hydraulic Torque Wrench

Pullertop low profile hollow hydraulic torque wrenches are made of high-strength Aluminum-Titan alloy, strong and durable. Our high torque hydraulic wrenches come with a max torque range of 89996 Nm for your selection.

Upload File

Product Description

Product Lines: Hydraulic Torque Wrench

  • Use advanced Aluminum-Tianium alloy space material,high strength and light weight.
  • 360° multi-positional swivel quick release couplings.
  • Compact drive unit design,one drive unit can work with multiple ratchet links.
  • Includsive cassette design for maxiumin safety.
  • Light,slim,short,small but big torsion makes it for for various awkward positions.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

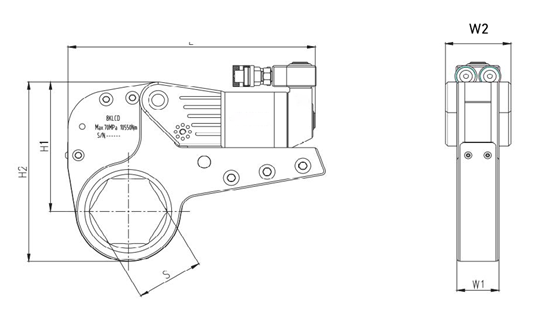

Dimesnion

Drive Unit Specification

Model No. 3KLCD 4KLCD 8KLCD 14KLCD 18KLCD 20KLCD 30KLCD 40KLCD 45KLCD 65KLCD
The range of torque (N.M) 345~3446 546~5458 1055~10550 1848~18484 2481~24814 2909~29089 4231~42311 5209~52088 6285~62851 9000~89996
Ratchet Link Size Range(S) 36-60 46-80  46-105 70-115    85-120  90-130  90-145 120-145 130-155    135-180
Weight of Power Head (Kg) 0.8 1.9 4.2 6.8 8 10.5 12.7 15.2 16.3 23
Weight of Ratchet Link (Kg) 1.7 3.6 7.6 12.2 19.3 22.3 32.3 47.5 58.7 75
   L (mm) 218 266 324 382 404 427 479 479 486 514
H1(mm) 118 139 171 205 229 240 268 285 311 336
H2(mm) 156 167 198 231 255 265 289 302 352 375
W1(mm) 32 42 53 64 68 70 85 98 105 117
W2(mm) 50 66 83 99 105 110 132 148 160 177
R(mm) 31-46 42-62 58-78 67-87 73-93 77-102 83-128 101-130 / /

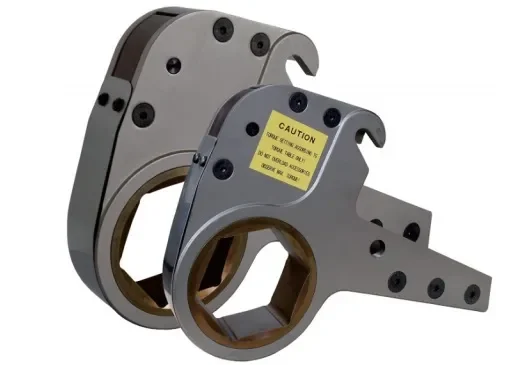

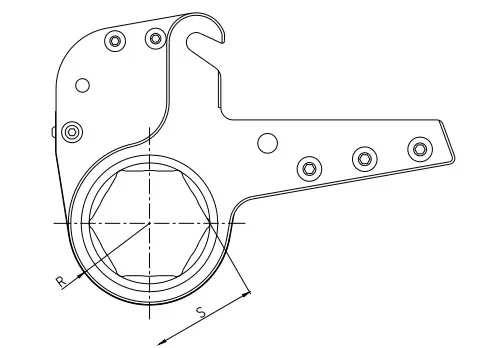

Operation Radius of KLCD series

Wrench model Cassette model Bolt size AF(mm) Radius(mm) Wrench model Cassette model Bolt size AF(mm) Radius(mm)
3KLCD 3KLCD-36 M24 S36 31 18KLCD 18KLCD-85 M56 S85 73
3KLCD-41 M27 S41 34 18KLCD-90 M60 S90 75
3KLCD-46 M30 S46 37 18KLCD-95 M64 S95 77
3KLCD-50 M33 S50 40 18KLCD-100 M68 S100 77
3KLCD-55 M36 S55 43 18KLCD-105 M72 S105 83
3KLCD-60 M39 S60 46 18KLCD-110 M76 S110 83
4KLCD 4KLCD-46 M30 S46 42 18KLCD-115 M80 S115 88
4KLCD-50 M33 S50 44 18KLCD-120 M85 S120 93
4KLCD-55 M36 S55 46 20KLCD 20KLCD-90 M60 S90 77
4KLCD-60 M39 S60 50 20KLCD-95 M64 S95 80
4KLCD-65 M42 S65 53 20KLCD-100 M68 S100 80
4KLCD-70 M45 S70 56 20KLCD-105 M72 S105 85
4KLCD-75 M48 S75 59 20KLCD-110 M76 S110 85
4KLCD-80 M52 S80 62 20KLCD-115 M80 S115 90
8KLCD 8KLCD-70 M45 S70 58 20KLCD-120 M85 S120 95
8KLCD-75 M48 S75 60 20KLCD-130 M90 S130 102
8KLCD-80 M52 S80 63 30KLCD 30KLCD-95 M64 S95 83
8KLCD-85 M56 S85 65 30KLCD-100 M68 S100 83
8KLCD-90 M60 S90 68 30KLCD-105 M72 S105 89
8KLCD-95 M64 S95 71 30KLCD-110 M76 S110 89
8KLCD-100 M68 S100 75 30KLCD-115 M80 S115 94
8KLCD-105 M72 S105 78 30KLCD-120 M85 S120 98
14KLCD 14KLCD-80 M52 S80 67 30KLCD-130 M90 S130 104
14KLCD-85 M56 S85 69 30KLCD-145 M100 S145 114
14KLCD-90 M60 S90 72 30KLCD-150 M105 S150 116
14KLCD-95 M64 S95 76 30KLCD-155 M110 S155 116
14KLCD-100 M68 S100 78 30KLCD-165 M115 S165 128
14KLCD-105 M72 S105 81
14KLCD-110 M76 S110 85
14KLCD-115 M80 S115 87
