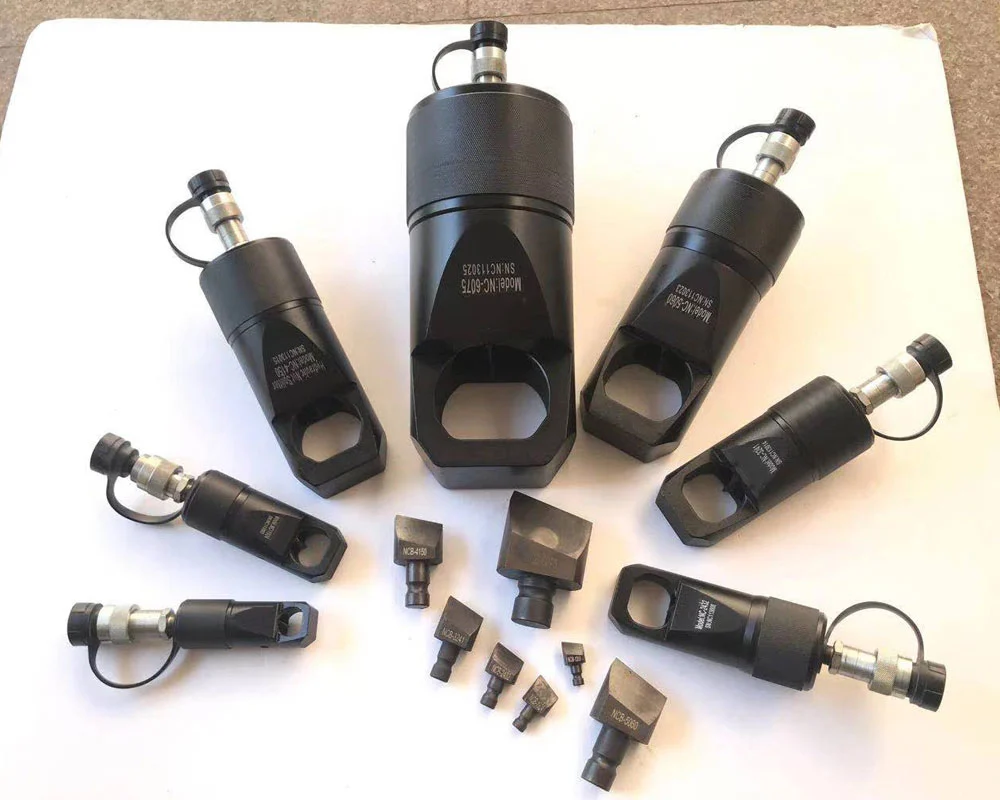

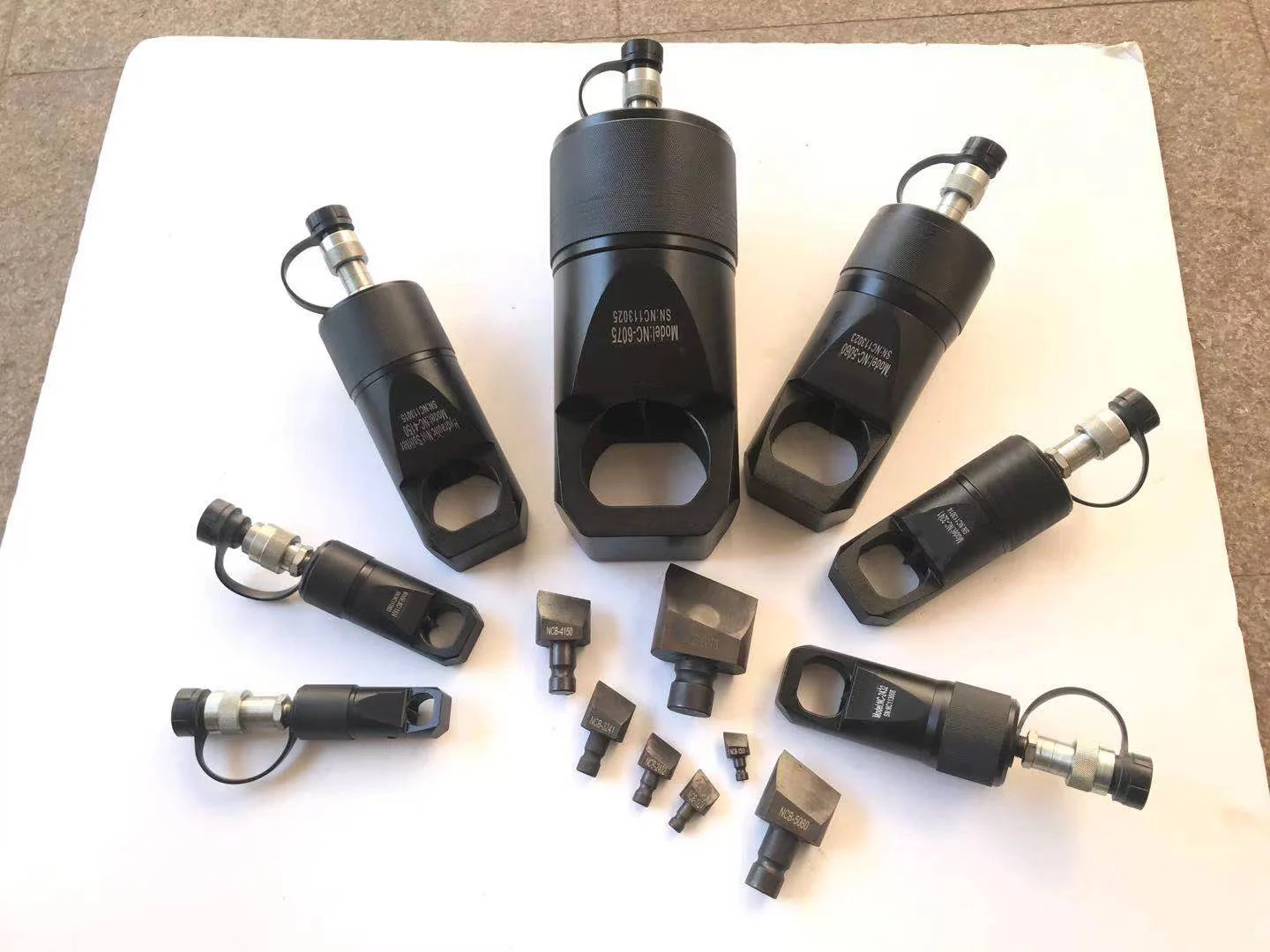

NC Series,M6-M48 Hydraulic Nut Splitters
Pullertop hydraulic nut splitters are a simple, fast, safe, and efficient tool to remove the bolt and nut. In the open-air high temperature or corrosive environment, the bolt is usually bitten by rust and damaged by smashing, It is very difficult to remove them In the past. With the help of our hydraulic bolt cutters, engineers are able to remove nuts ranging from M6 to M90 easily under different work conditions.
Product Description
Product Lines: Hydraulic Nut Splitters
- Compact and ergonomic design, easy to use
- Unit angled head design
- Single-acting spring return hydraulic cylinder
- The heavy-duty blades can be sharpened again
- Nut splitter includes blade, screw, wrench, etc.
- Can be used in applications: truck repair, pipe maintenance, tank cleaning, petrochemical, steel construction, mining, etc.

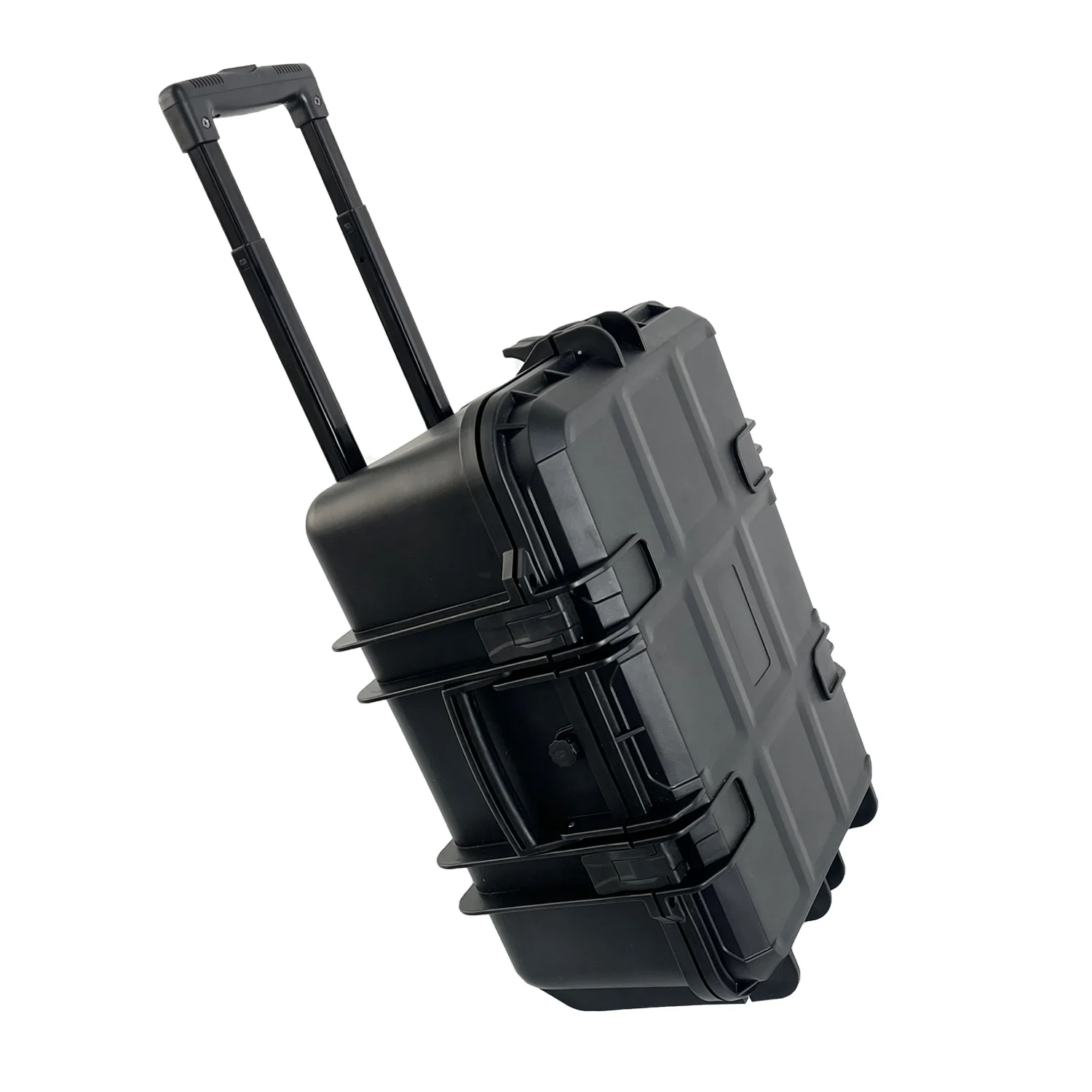

- NC-6075 is equipped with a protective box with rollers
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Specifications
| Oil Capacity: | 15-492cm3 |
| Capacity Class: | 5-90Ton |
| Hexagon Nut: | 10-75mm |
| Bolt Range: | M6-M48 |
| Maximum Operating Pressure : | 700Bar |
| Weight: | 1.2-34.1Kg |
Series Comparison
| Model | Capacity/Ton | Oil Capacity/cm3 | Bolt Range | Hexagon Nut/mm | Replacement Blade No. | Weight/Kg |
|---|---|---|---|---|---|---|
| NC-1319 | 5 | 15 | M6-M12 | 10~19 | NCB-1319 | 1.2 |
| NC-1924 | 10 | 20 | M12-M16 | 19~24 | NCB-1924 | 2 |
| NC-2432 | 15 | 60 | M16-M22 | 24~32 | NCB-2432 | 3 |
| NC-3241 | 20 | 80 | M22-M27 | 32~41 | NCB-3241 | 4.4 |
| NC-4150 | 35 | 155 | M27-M33 | 41~50 | NCB-4150 | 8.2 |
| NC-5060 | 50 | 240 | M33-M39 | 50~60 | NCB-5060 | 11.8 |
| NC-6075 | 90 | 492 | M39-M48 | 60~75 | NCB-6075 | 34.1 |
