Product Description
Series: P Series
Product Lines: Light Weight Hand Pumps
- Lightweight and compact design
- Lower handle effort to minimize operator fatigue
- The two-speed operation can reduce the work intensity of the operator
- Equipped with an external pressure relief valve, it can be used to operate a single-acting hydraulic cylinder
- The internal safety valve is equipped to protect the pump from overloading
- The oil capacity is big enough to match a wide range of hydraulic tools
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

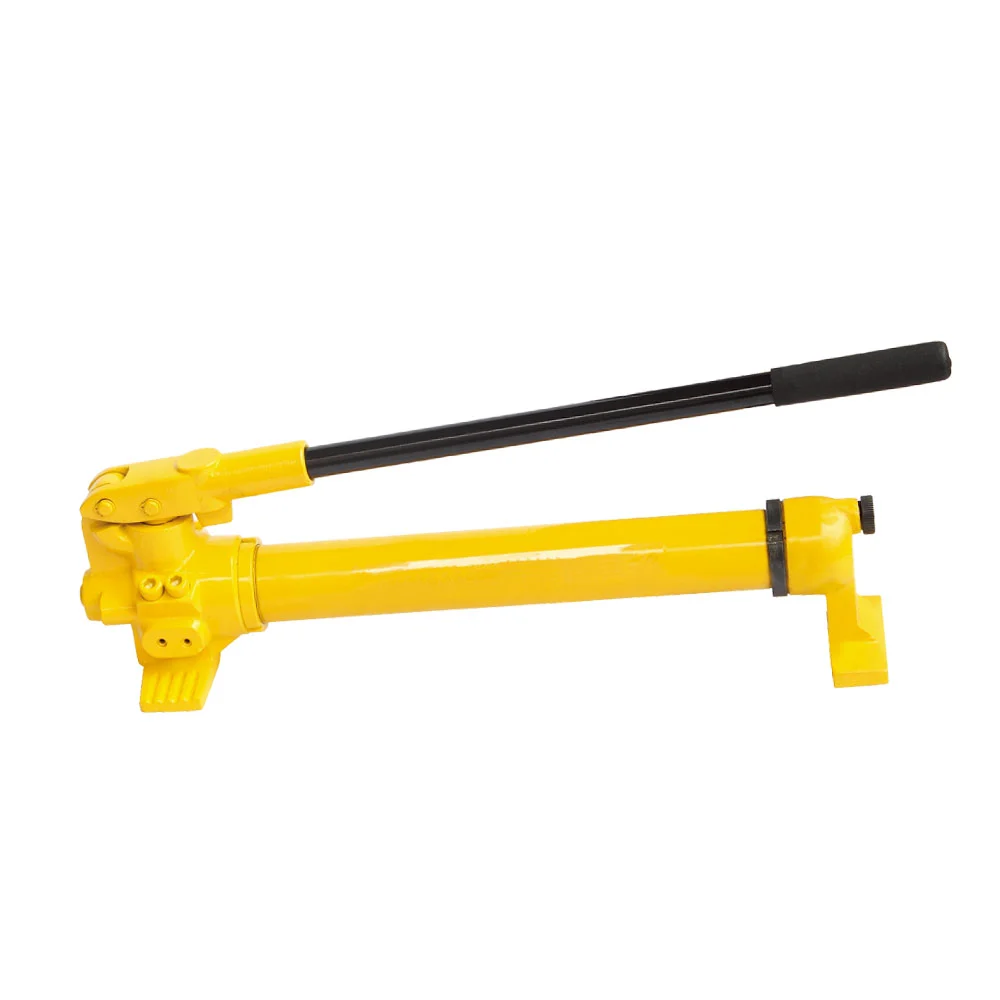

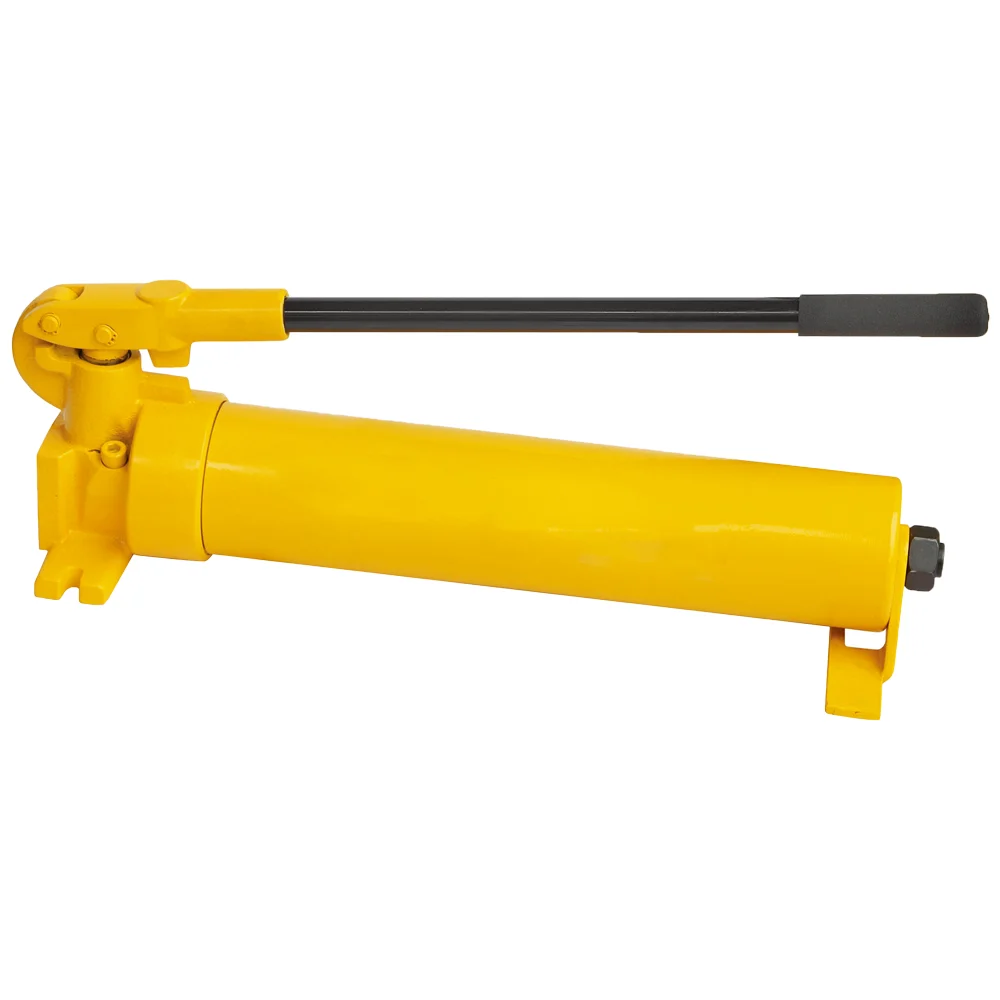

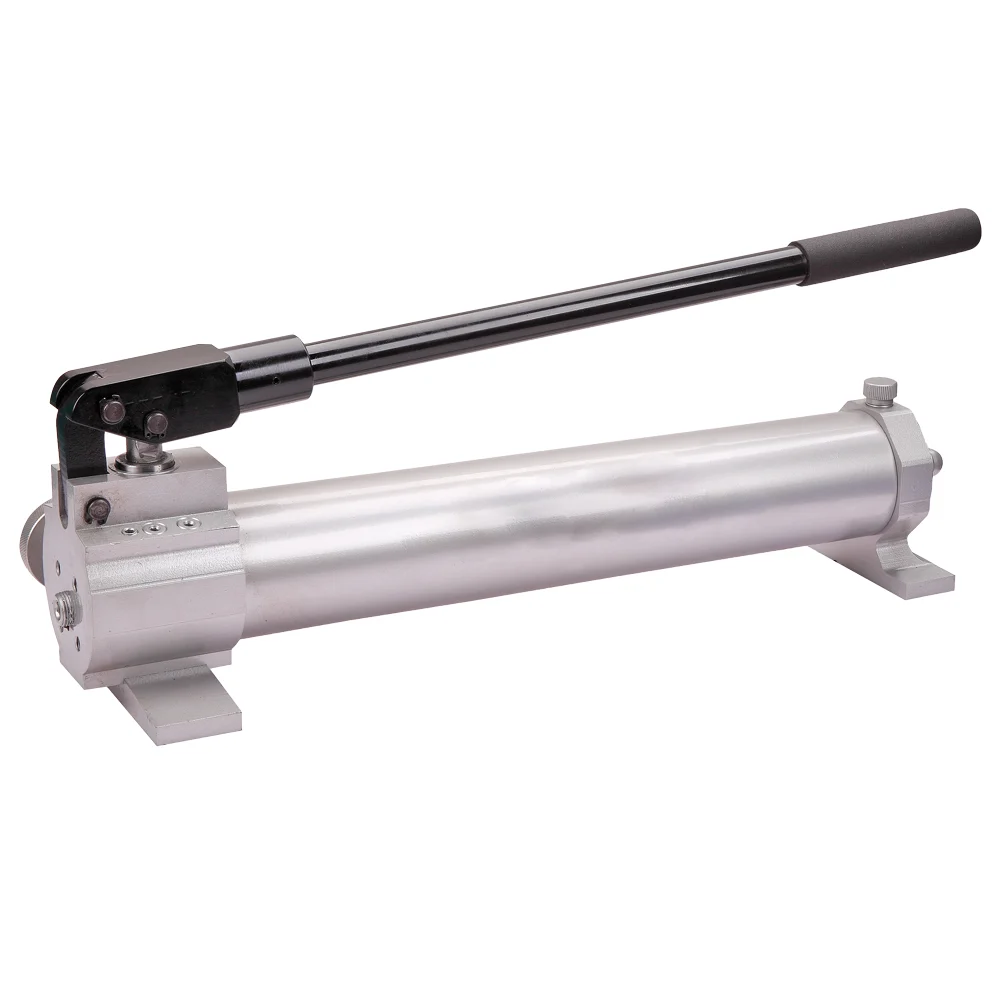

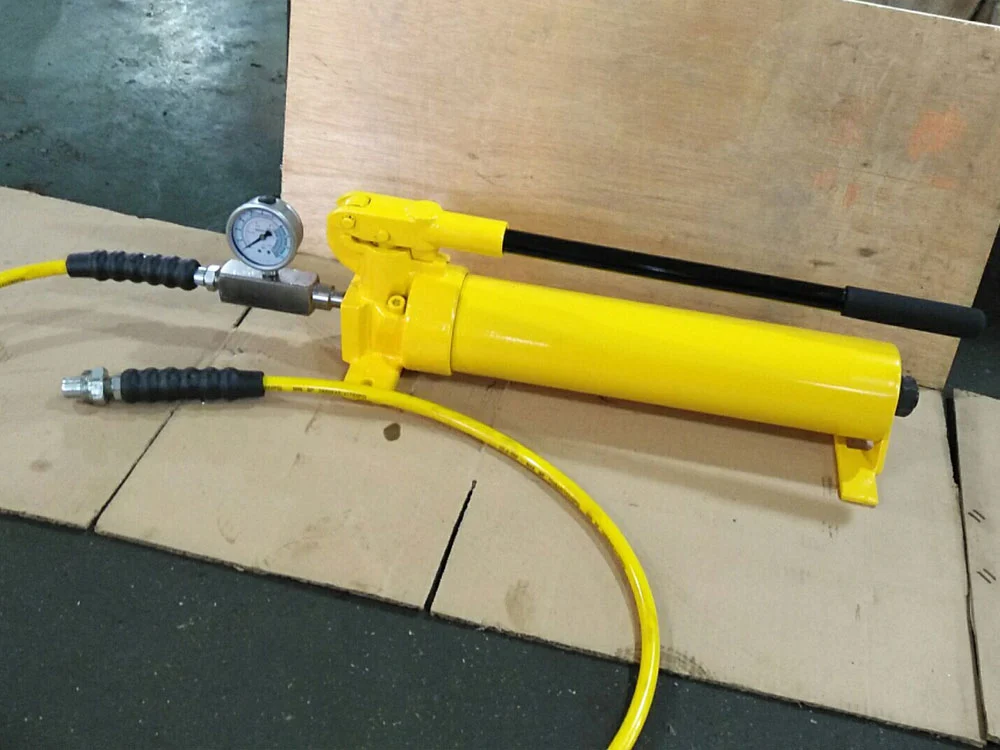

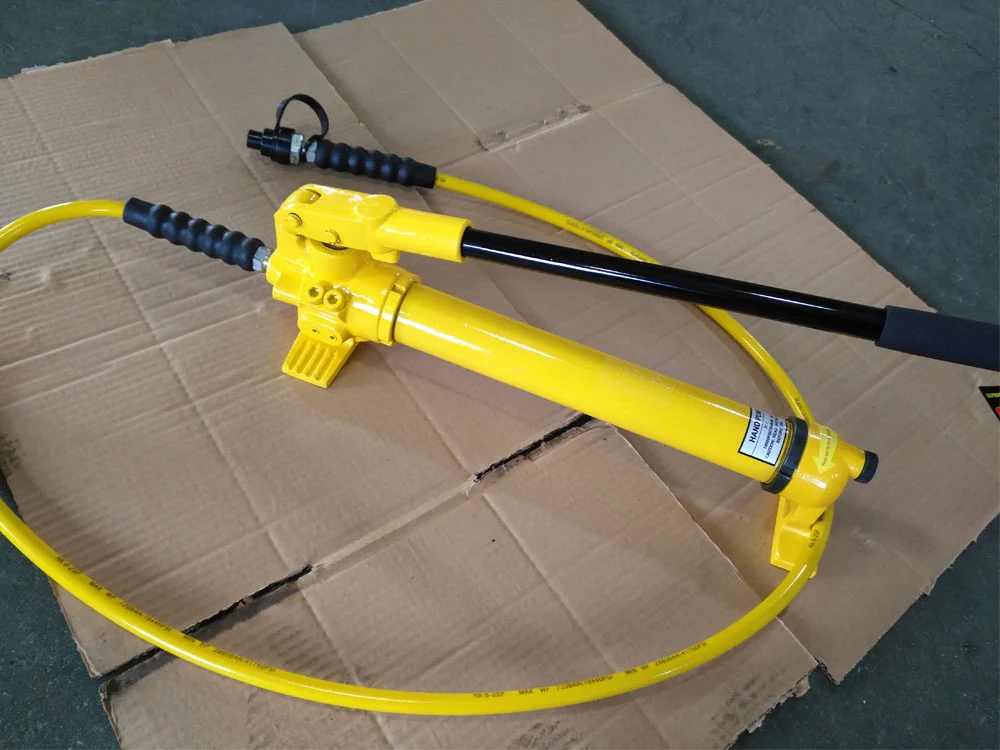

Product Picture
Series Specifications
| Oil Capacity: | 770-4080cm3 |
| Pump Type: | Single Acting, Two Speed |
| Maximum Operating Pressure : | 70Mpa(10,000PSI) |
| Weight: | 6-20Kg |
Series Comparison
| Model | Usable Oil Capacity/cm3 | Pump Type | First Stage Pressure/bar | Second Stage Pressure/bar | Max handles Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Piston Stroke | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|
| P77 | 770 | Two-speed | 14 | 700 | 43 | 16 | 2.41 | 25.4 | 6.8 |
| P80 | 2200 | Two-speed | 25 | 700 | 47 | 16.22 | 2.46 | 25.4 | 15 |
| P801 | 4080 | Two-speed | 25 | 700 | 47 | 16.22 | 2.46 | 25.4 | 20 |
| AP1500 | 1500 | Two-speed | 14 | 700 | 45 | 12.5 | 2.8 | 25.4 | 6 |
| AP3000 | 3000 | Two-speed | 14 | 700 | 45 | 12.5 | 2.8 | 25.4 | 10 |
