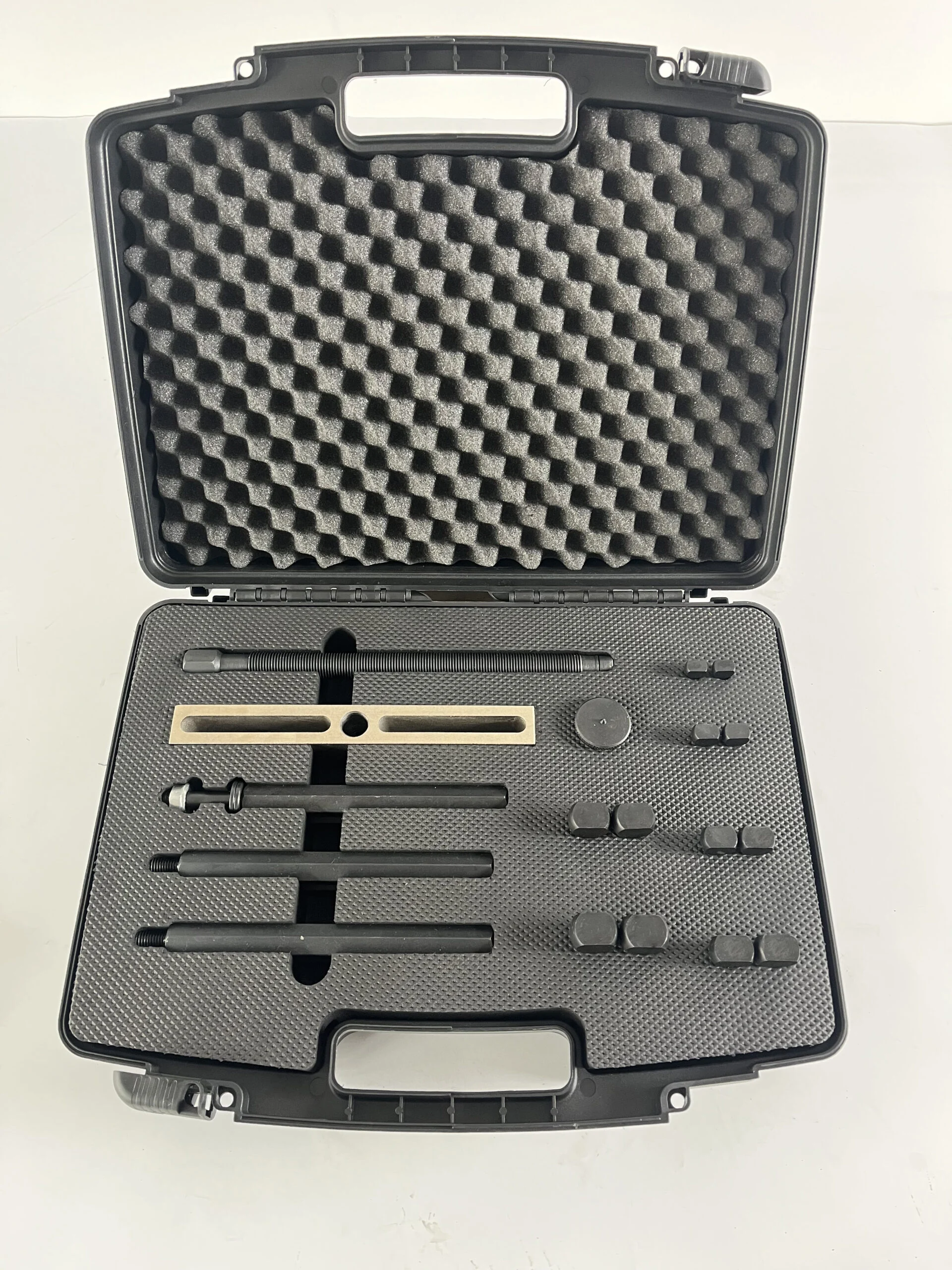

TMBP 20E, Blind housing bearing puller kit

Supplied in a sturdy carrying case, the PullerTop TMBP 20E is an adapter type puller kit for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Mechanical Pullers

Allows a wide of range of deep groove ball bearings to be dismounted

Ball adapters designed for a long service life

Nose piece helps minimise damage to shaft, and improves puller stability

Long reach by using extension rods

Supplied in handy toolcase

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model No.	Suitable Bearings					Weight(Kg)
Model No.	60.. Series	62.. Series	63.. Series	64.. Series	160… Series	Weight(Kg)
TMBP 20E	6021–6032	6213–6230	6309–6320	6406–6418	16026–16032	6.5
