Product Description
Series: P Series
Product Lines: Hydraulic Sealed Hand Pump
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

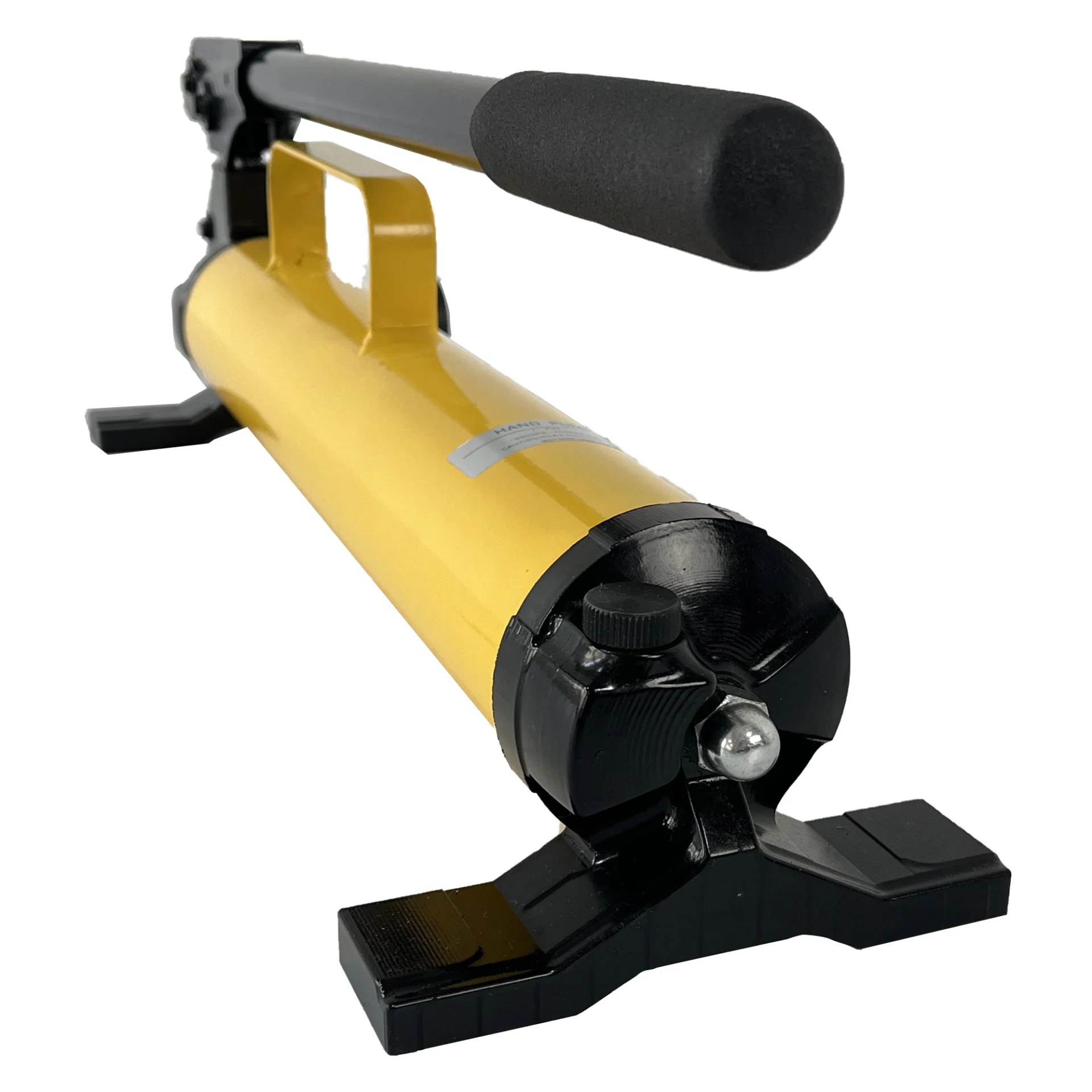

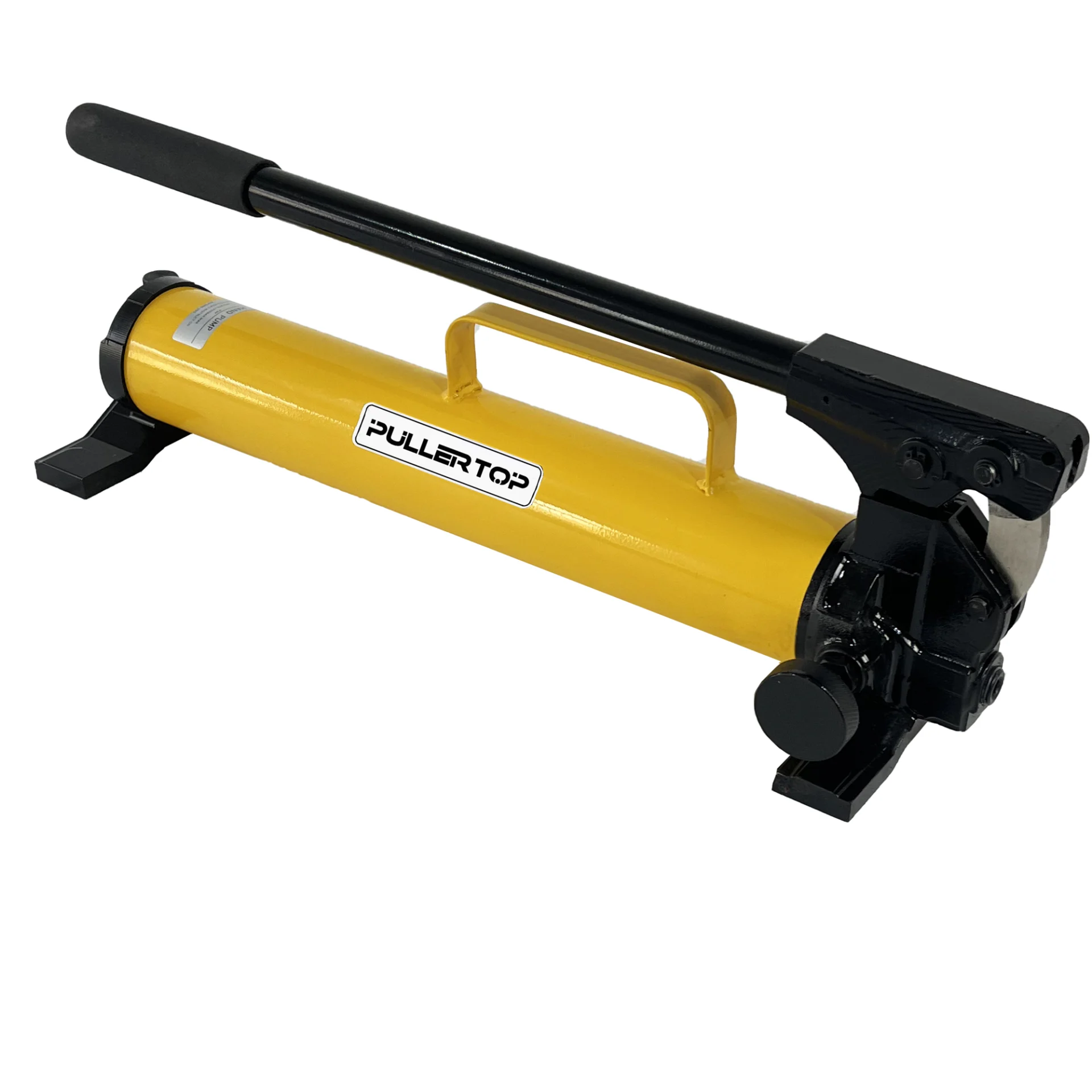

Product Picture
Series Specifications
| Oil Capacity: | 672cm3 |
| Pump Type: | Single-speed |
| Maximum Operating Pressure : | 70Mpa(10,000PSI) |
| Weight: | 7Kg |
Series Comparison
| Model No. | Usable Oil Capacity(cm3) | Pump Type | Pressure Rating（bar） | Oil Displacement Per Stroke(cm³) | Handle Effort(kg) | Piston Stroke(mm) | Weight(Kg) | ||
| LP | HP | LP | HP | ||||||
| P39 | 672 | Single-Speed | 0 | 700 | 0 | 2.46 | 39 | 25.4 | 7 |
