Product Description

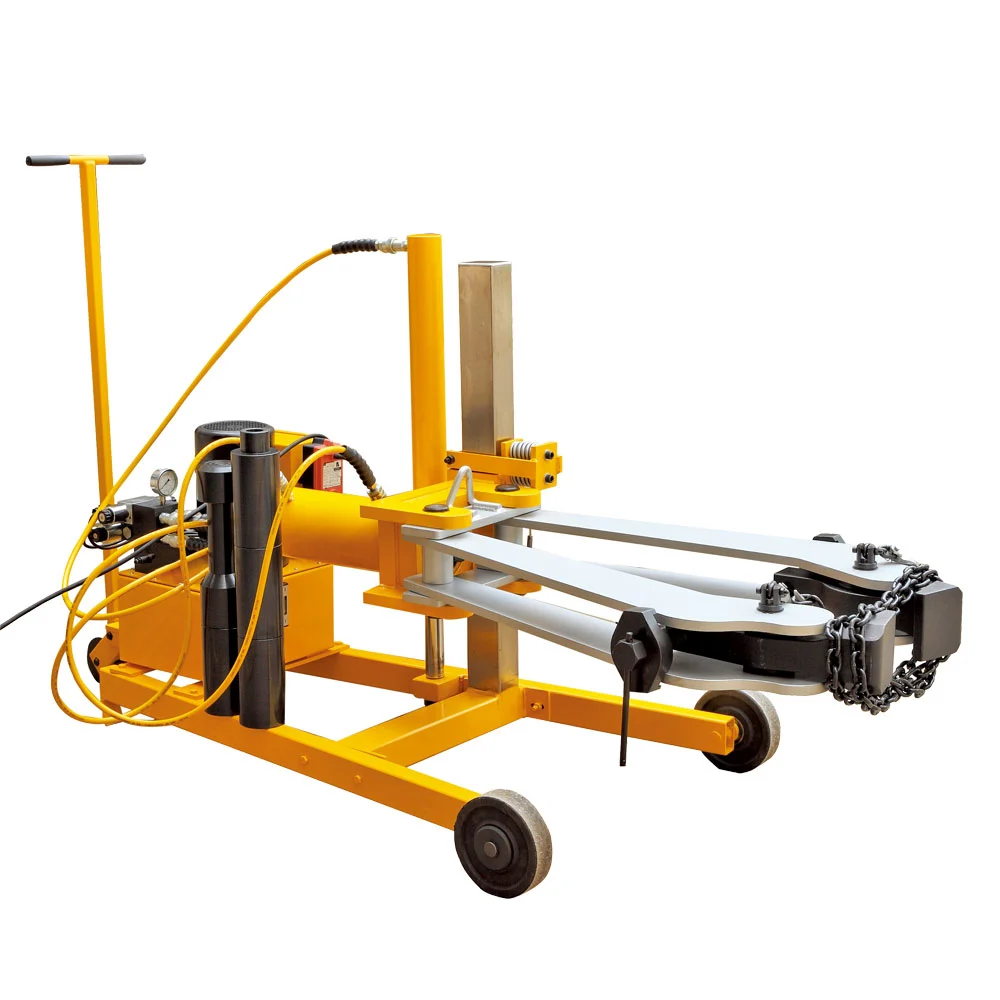

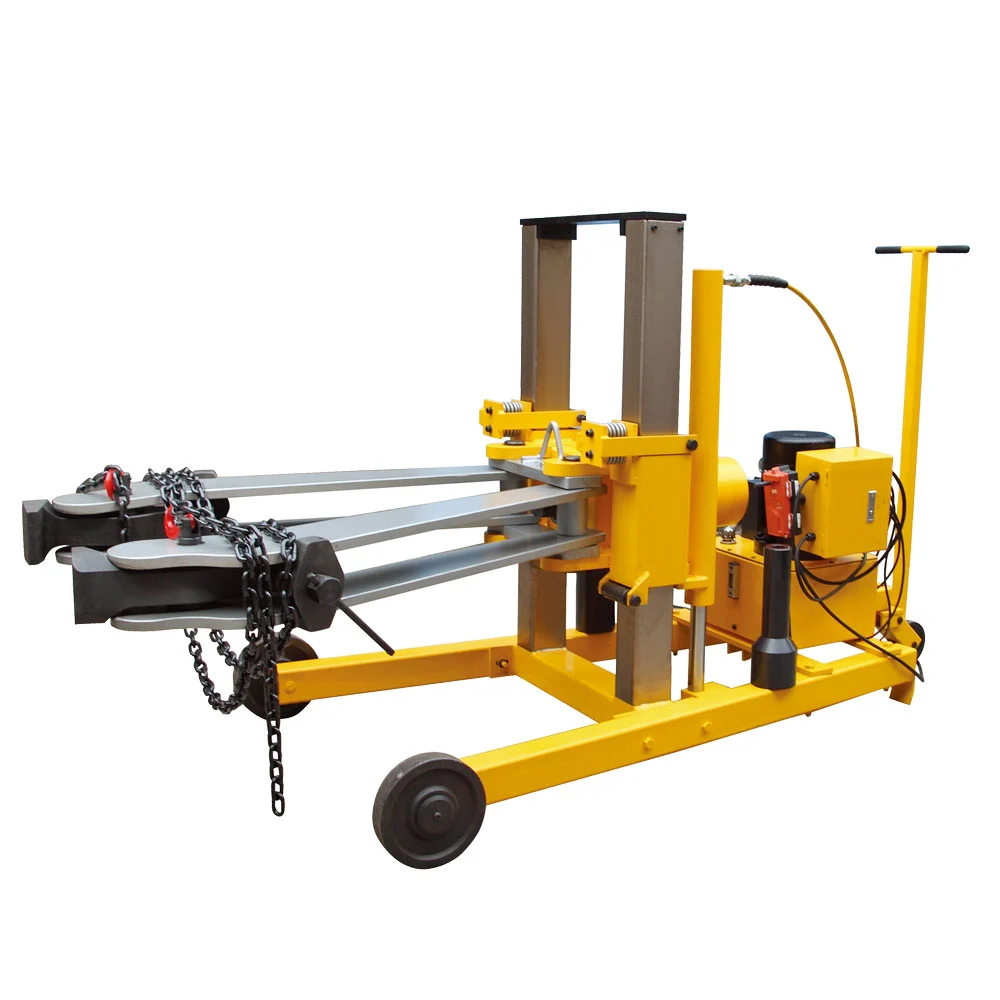

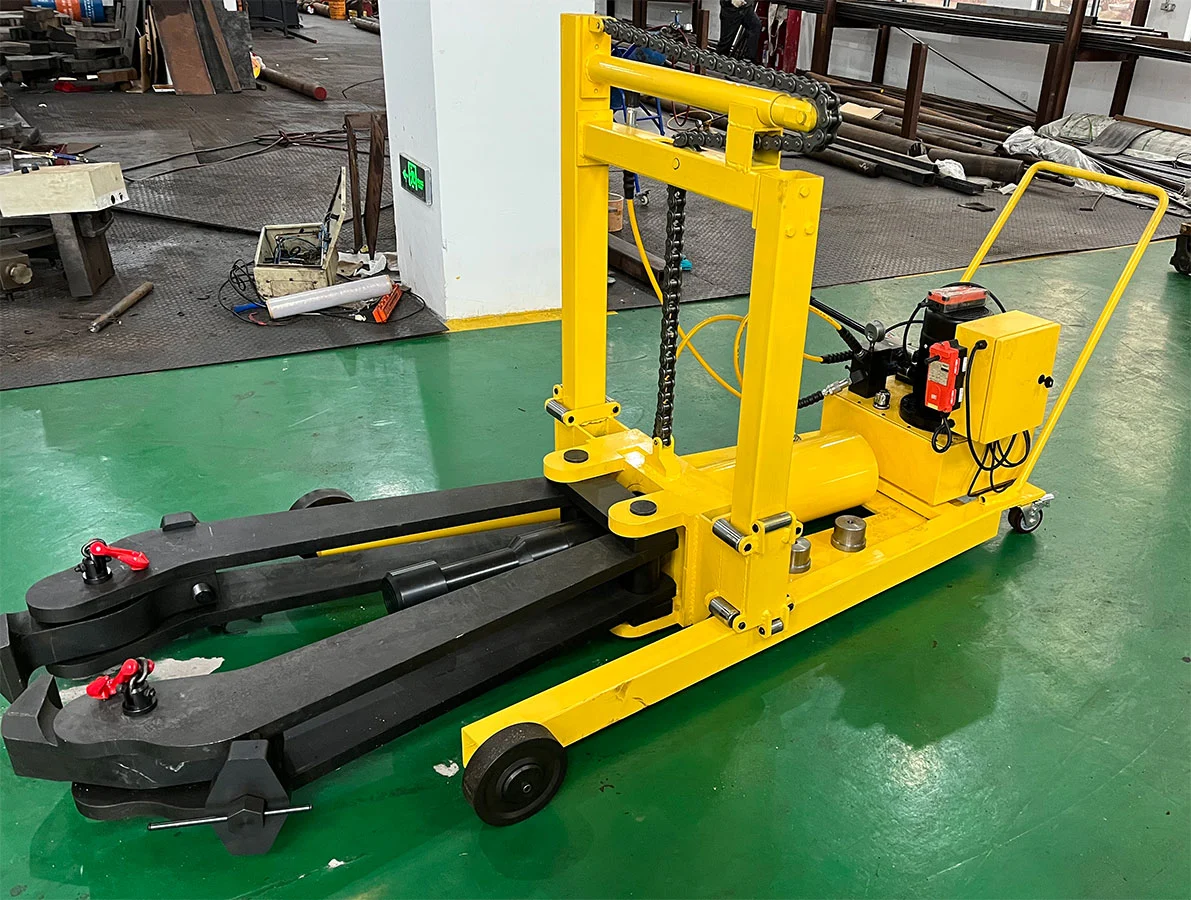

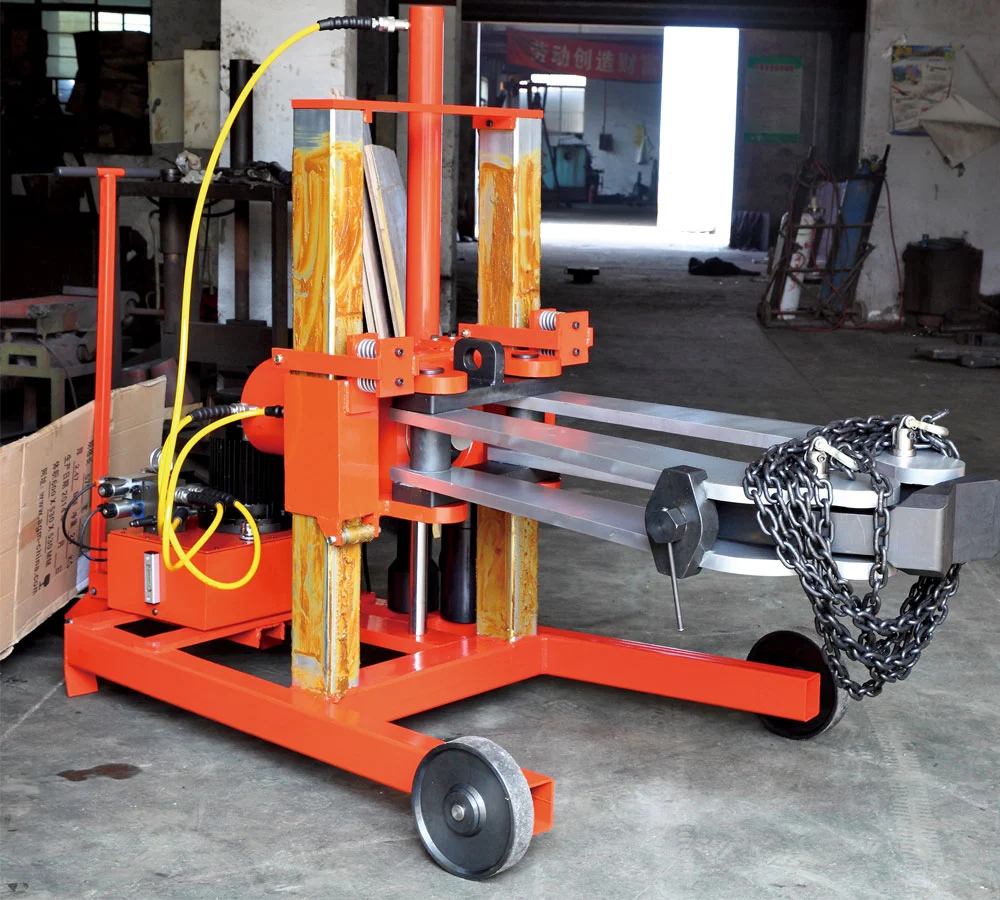

Product Lines: Trolley Mounted Hydraulic Puller
- Double-acting hydraulic design.
- Use for dismounting large shafts and bearings.
- Available in 2 jaws designs.
- It is equipped with a hydraulic lifting and lowering system for easy operation.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Comparison
| Model | Capacity(Ton) | Min. Spread(mm) | Max. Spread(mm) | Min. Reach(mm) | Max. Reach(mm) | Center Height Adjustment(mm) | Stroke(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| LA25100 | 100 | 380 | 1220 | 863 | 1066 | 305-915 | 250 | 520 |
| LA2560 | 60 | 140 | 1000 | 650 | 790 | 305-915 | 250 | 700 |
| LA25200 | 200 | 450 | 1450 | 995 | 1200 | 450-1050 | 280 | 1000 |
