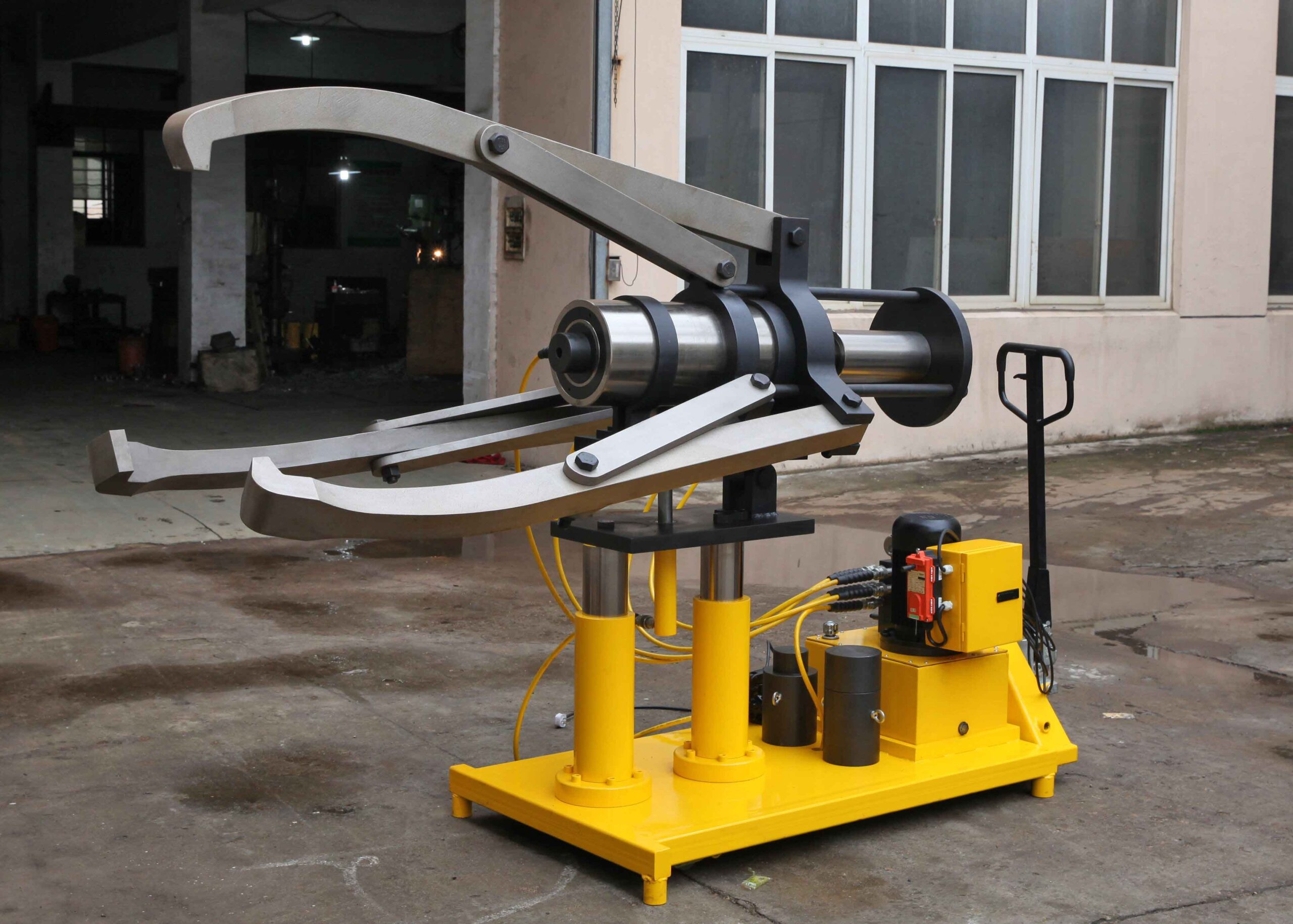

100-630 Ton Trolley Mounted Hydraulic Puller

Pullertop manufactures and supplies a broad range of trolley-mounted hydraulic pullers. Our universal pullers are available in different sizes, designs, and capacities.Pullertop hydraulic pullers are made of high-strength forged steel alloys, and provide our customers with years of trouble-free operation, even in the harshest environments.

Upload File

Product Description

Product Lines: Trolley Mounted Hydraulic Puller

  • Double-acting hydraulic design.
  • Use for dismounting large shafts and bearings.
  • Available in 2 and 3-jaw designs.
  • It is equipped with a hydraulic lifting and lowering system for easy operation.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

Model Capacity(Ton) Min. Spread(mm) Max. Spread(mm) Max. Reach(mm) Min. Reach(mm) Center Height Adjustment(mm) Stroke(mm) Weight(Kg)
14AMP100 100 200 1000 450 375 830-1230 200 720
14AMP200 200 300 1500 680 550 1030-1510 250 1300
14AMP300 300 400 1800 980 750 1150-1615 300 1820
14AMP500 500 500 2000 1050 920 1200-1665 350 2100
14AMP630 630 500 2000 1250 1000 1300-1760 350 2500

Product Description

Product Lines: Trolley Mounted Hydraulic Puller

  • Double-acting hydraulic design.
  • Use for dismounting large shafts and bearings.
  • Available in 2 and 3-jaw designs.
  • It is equipped with a hydraulic lifting and lowering system for easy operation.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Image Gallery

Series Comparison

ModelCapacity(Ton)Min. Spread(mm)Max. Spread(mm)Max. Reach(mm)Min. Reach(mm)Center Height Adjustment(mm)Stroke(mm)Weight(Kg)
14AMP1001002001000450375830-1230200720
14AMP20020030015006805501030-15102501300
14AMP30030040018009807501150-16153001820
14AMP500500500200010509201200-16653502100
14AMP6306305002000125010001300-17603502500
