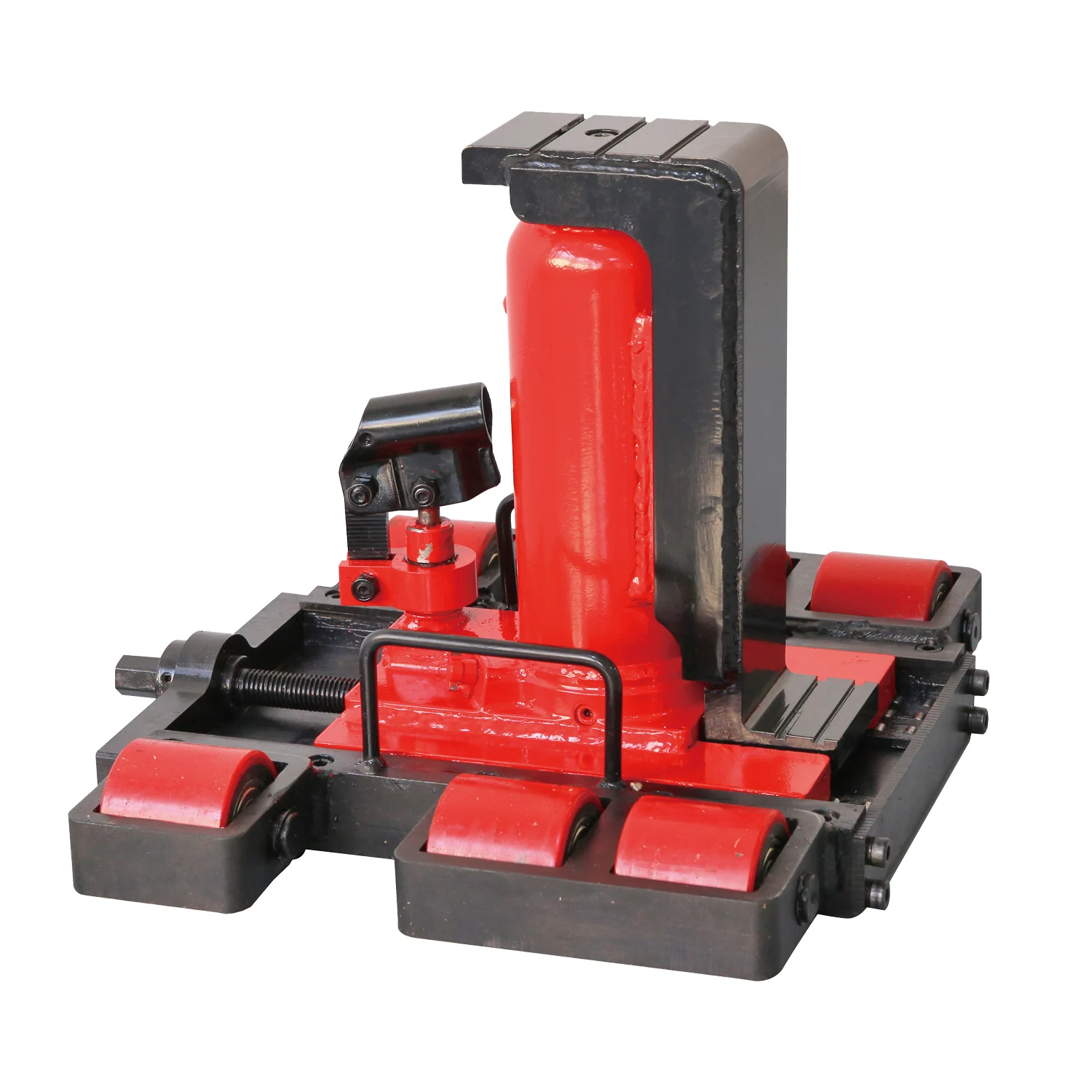

Moveable Hydraulic Toe Jack With Wheels

It is a kind of toe jack that allows fine adjustment of the front, back, left, and right with a heavy object placed on the toe, widely used for assembling during the installation of heavy machinery such as printing machines and semiconductor manufacturing equipment.

Upload File

Product Description

Series: FR Series

Product Lines: Hydraulic Toe Jacks

  • It enables forward/backward, up and down, and left and right position adjustment while keeping the heavy load in a jacked position.
  • This model consists of an F-series jack and wheels made of urethane, enabling fine position adjustment in three directions, forward/backward, left/right, and up/down while keeping the load in a jacked position.
  • It enables fine position adjustment of forward/backward, up/down, and left/right within the range of 100mm.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

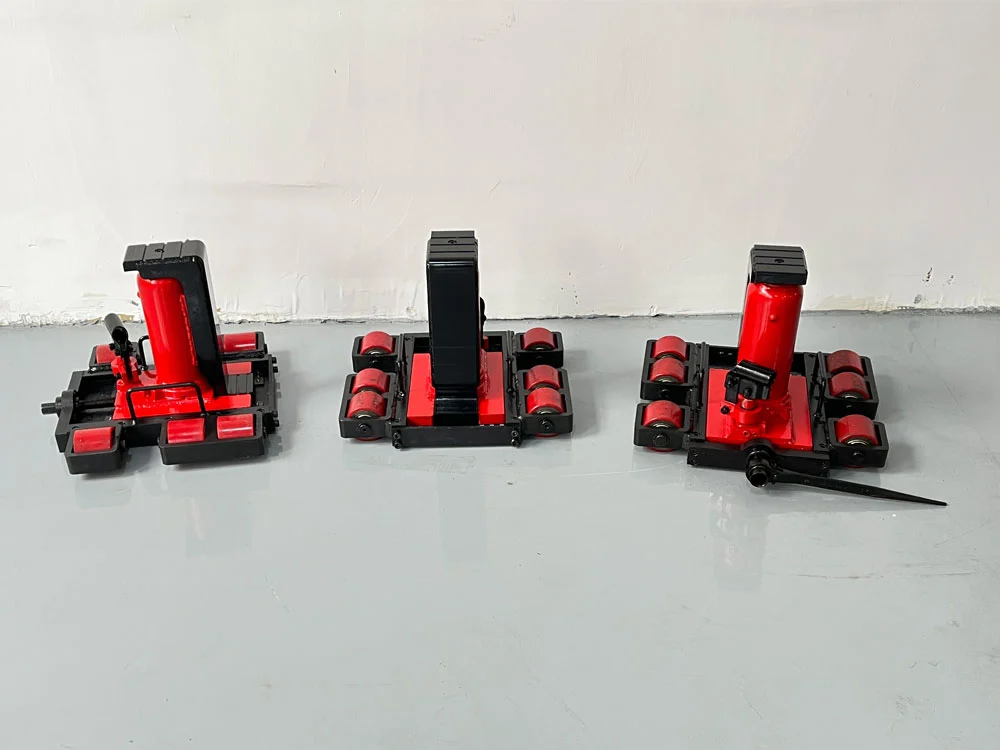

Product Picture

Series Specifications

Capacity: 3-5 Ton
Min. Toe Height: 50-53mm
Stroke: 62-63mm
Table Slide Range: 100mm

Series Comparison

Model No. Head Capacity(Ton) Toe Capacity(Ton) Stroke(mm) Slide width(mm) Toe Size:
lengthXwidth(mm)
Min. H(mm) Base Size:
lengthXwidth(mm)
Body height(mm) Weight(Kg)
FR-60TL / 3 62 100 80 x 65 50 422 x 345 211 28
FR-100TL / 5 63 100 75 x 75 53 443 x 375 252 39
