Rail Hydraulic Toe Jack
It is a kind of toe jack that is suitable for moving large loads through tight spaces.
Product Description
Series: V Series
Product Lines: Hydraulic Toe Jacks
- There is a precision guide design between the slider and the outer frame to ensure the accuracy of the lifting movement and improve the service life.
- Rotatable support feet to prevent unbalanced load.
- Quick couplings ensure quick connection to external hydraulic systems.
- A retractable pump drawbar allows the equipment to be moved without bending over.
- Sturdy rubber wheels make the hoist easy to move.
- There is a precision guide design between the slider and the outer frame to ensure the accuracy of the lifting movement and improve the service life.
- Rotatable support feet to prevent unbalanced load.
- Quick couplings ensure quick connection to external hydraulic systems.
- A retractable pump drawbar allows the equipment to be moved without bending over.
- Sturdy rubber wheels make the hoist easy to move.
- The pump handle can be rotated 180°, suitable for narrow spaces
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

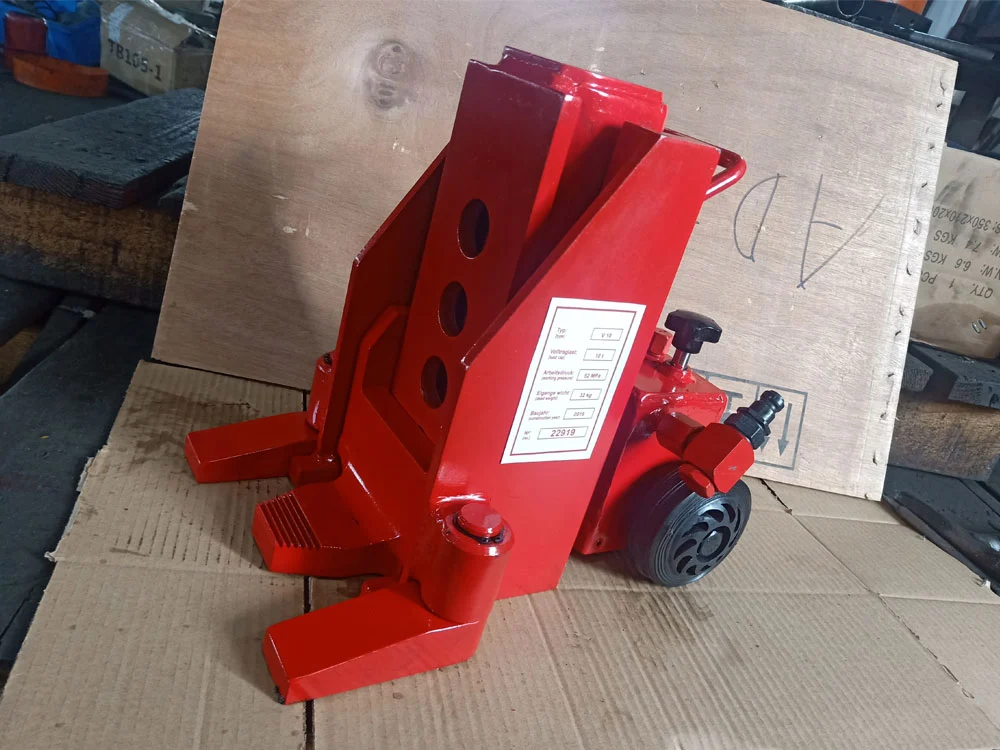

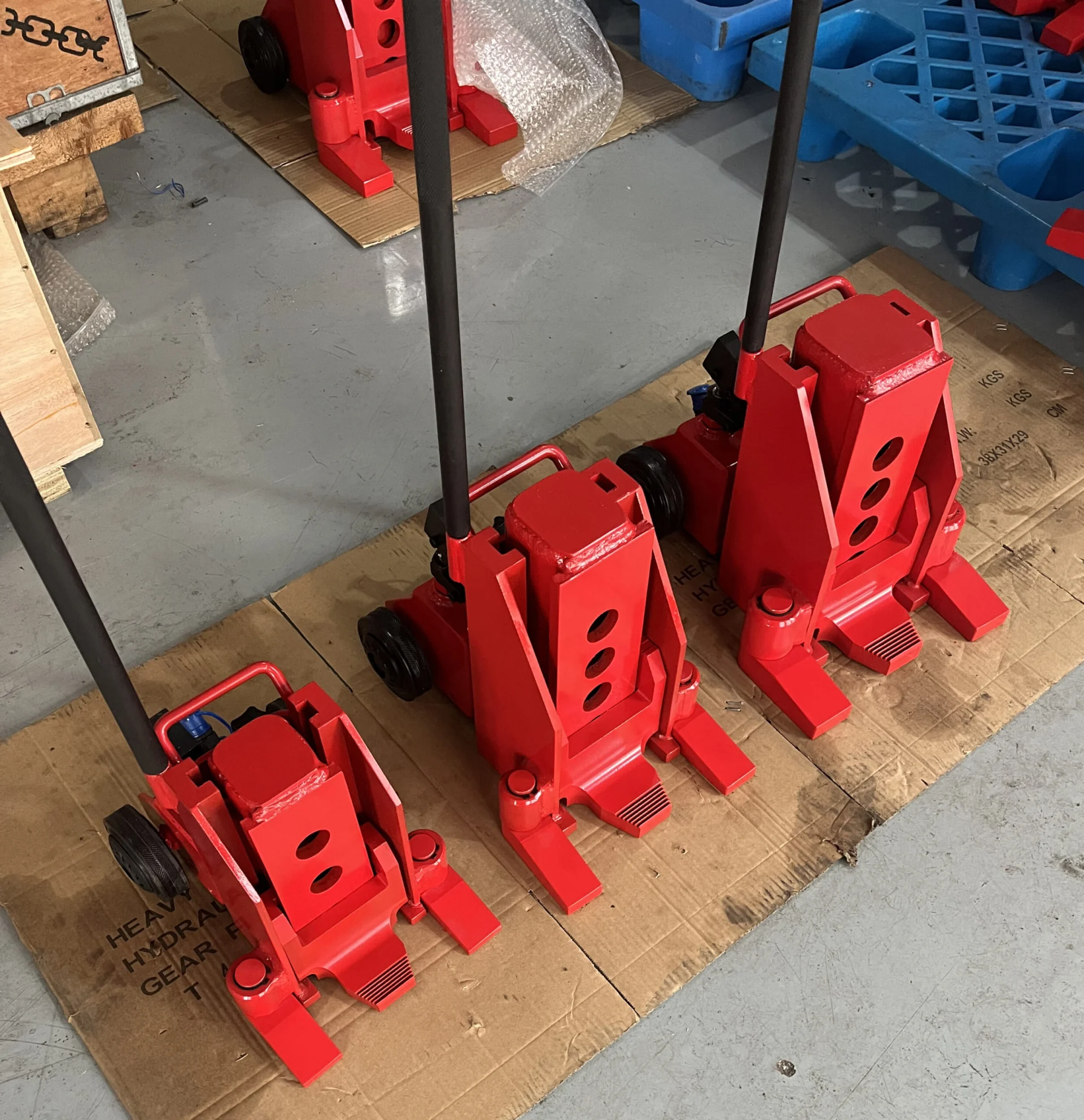

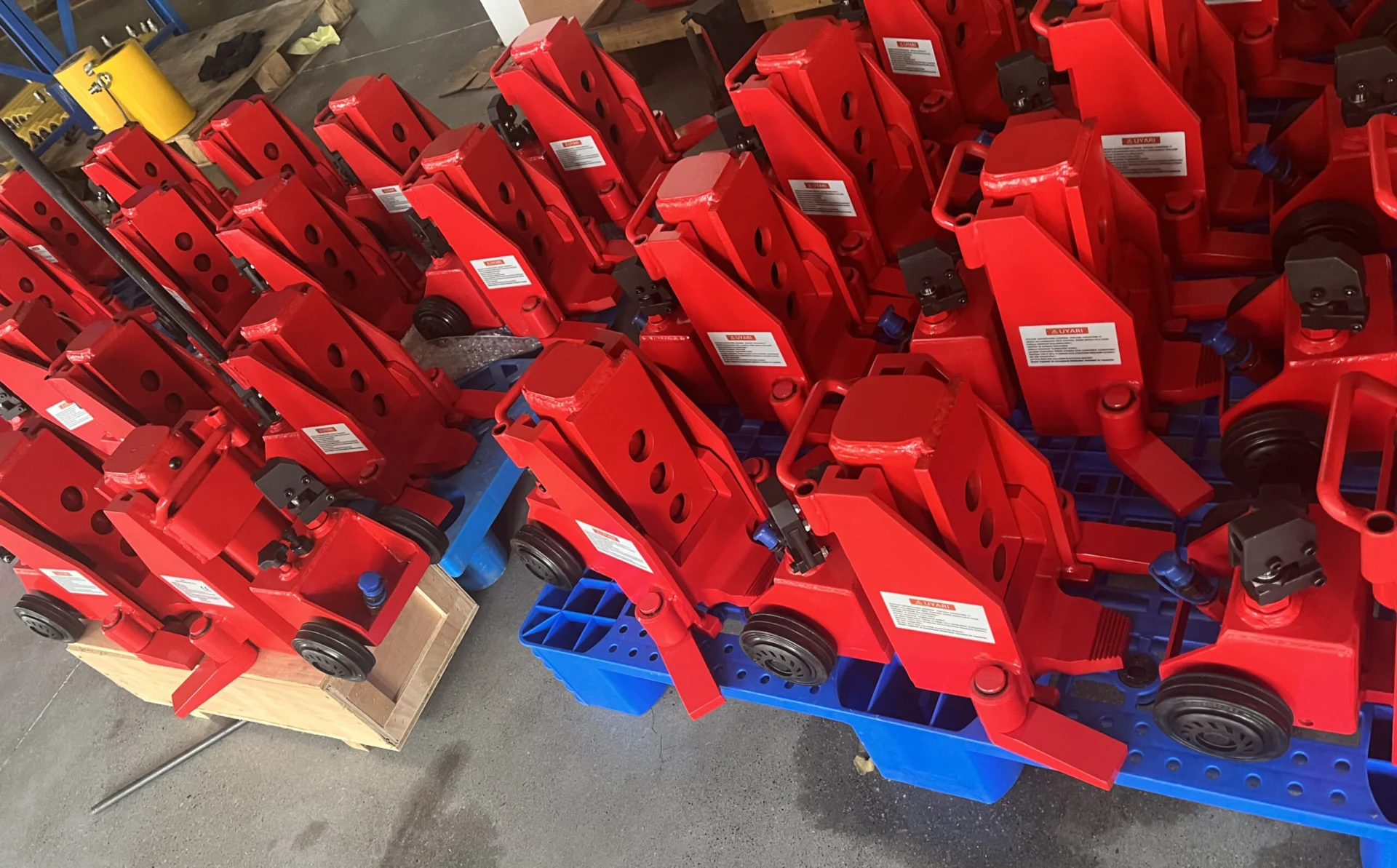

Product Picture
Series Specifications
| Capacity: | 5-15 Ton |
| Min. Toe Height: | 15-40mm |
| Max. Toe Height: | 145-170mm |
| Collapsed Height: | 255-325mm |
| Stroke: | 140-160mm |
| Weight: | 21-72Kg |
Series Comparison
| Model Number | Capacity(Tons) | Min. Toe Height(mm) | Max. Toe Height(mm） | Collapsed Height（mm) | Stroke(mm) | Lift Toe Positions | Top Plate LxW(mm) | Dimensions LxW(mm) | Weight: |
|---|---|---|---|---|---|---|---|---|---|
| V5 | 5 | 15 | 145 | 255 | 140 | 3 | 68X60 | 260X210 | 21 |
| V10 | 10 | 20 | 175 | 310 | 160 | 4 | 80X72 | 320X240 | 32 |
| V15 | 15 | 25 | 175 | 310 | 160 | 4 | 95X88 | 353X278 | 46 |
| V20 | 20 | 40 | 170 | 325 | 160 | 3 | 120X110 | 455X330 | 72 |
