Hydraulic Toe Jack

It is a kind of toe jack that is suitable for moving large loads through tight spaces.

Download Catalog
Upload File

Product Description

Series: ML Series

Product Lines: Hydraulic Toe Jacks

  • For lifting heavy equipment with minimum available access. Separate hydraulic pump enhances safety.
  • Precision guided to reduce friction and isolate cylinder from side-loads. Two support feet
    provide extra stability. Includes Rc-Series cylinder.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

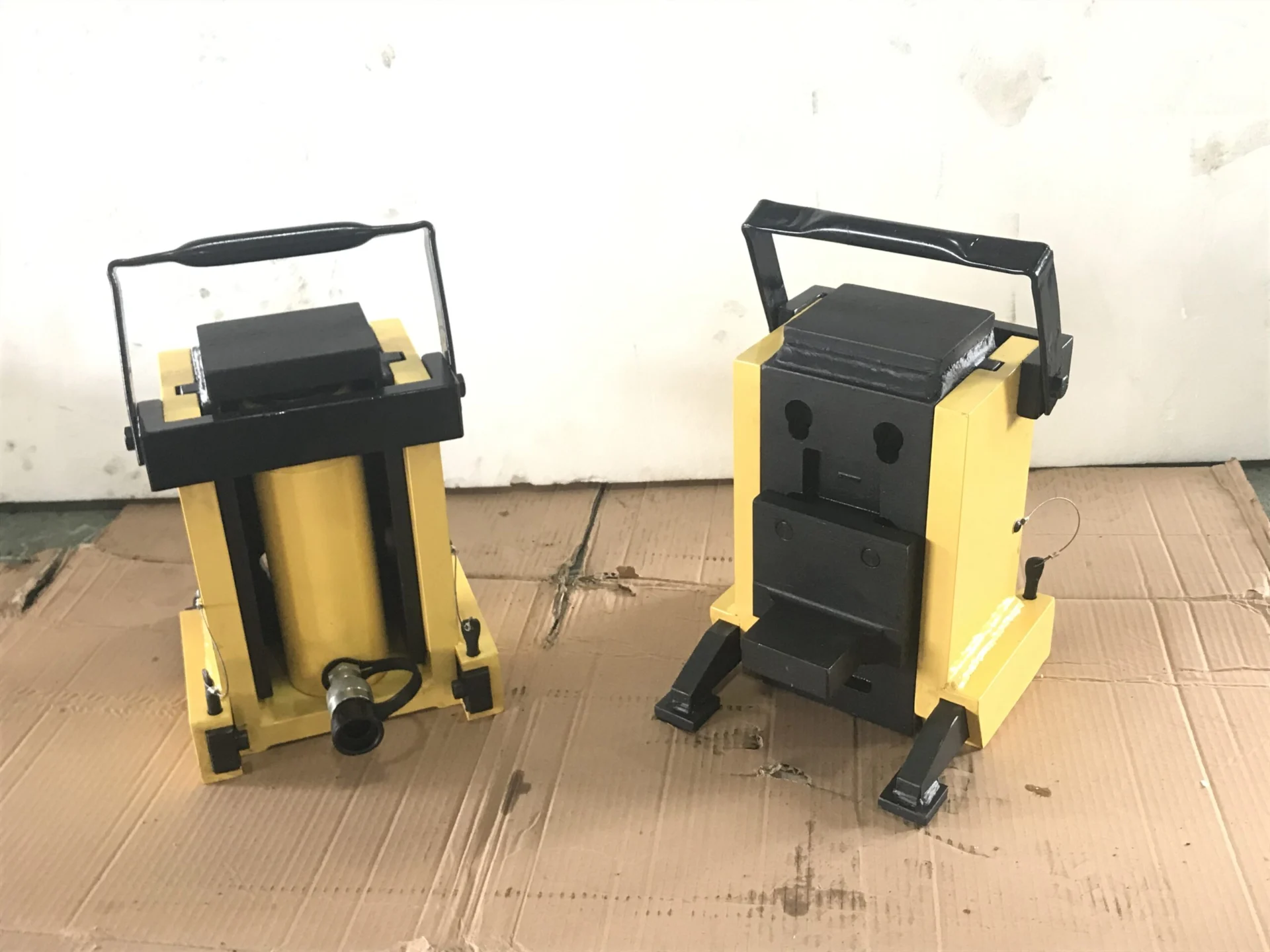

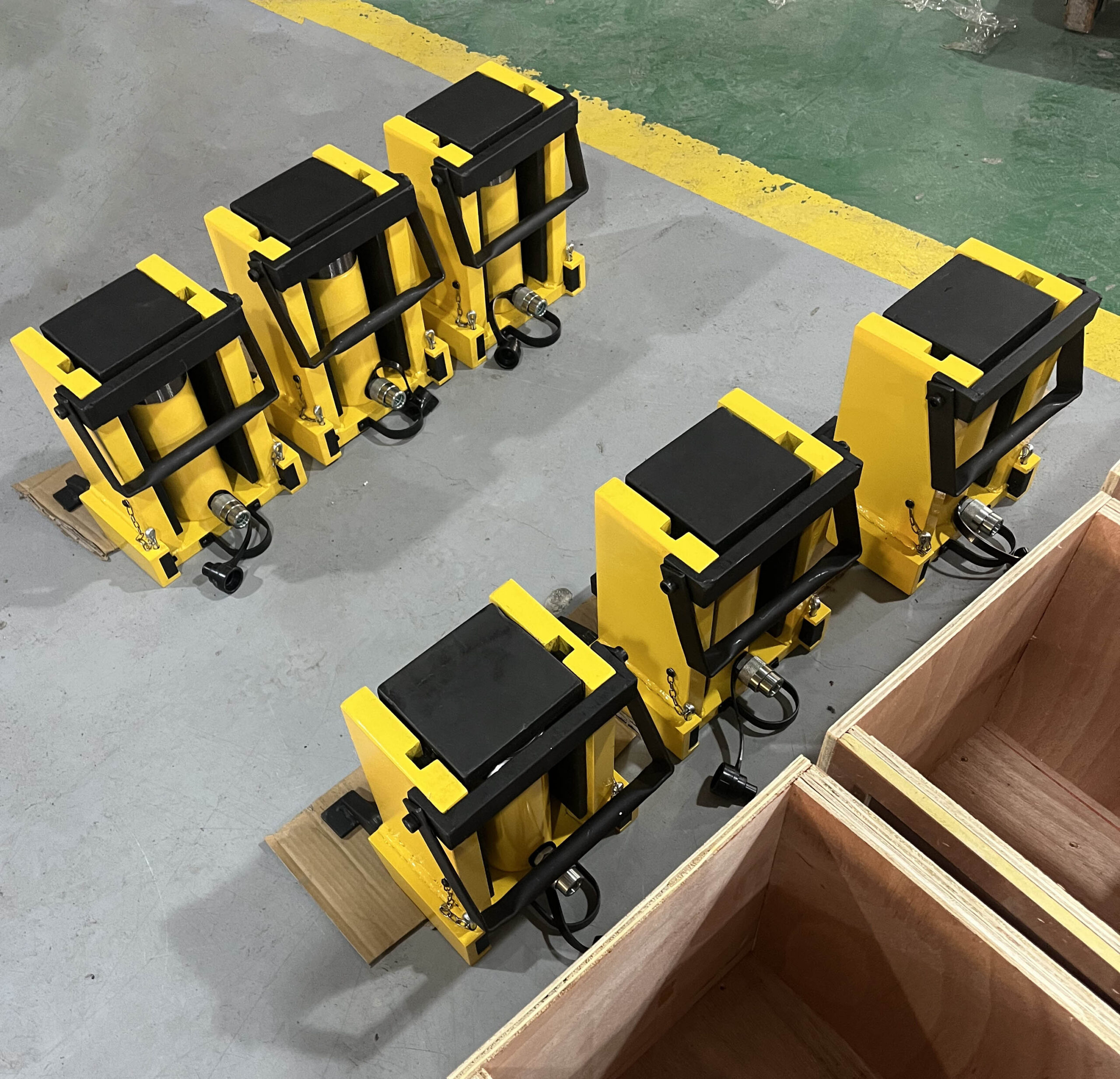

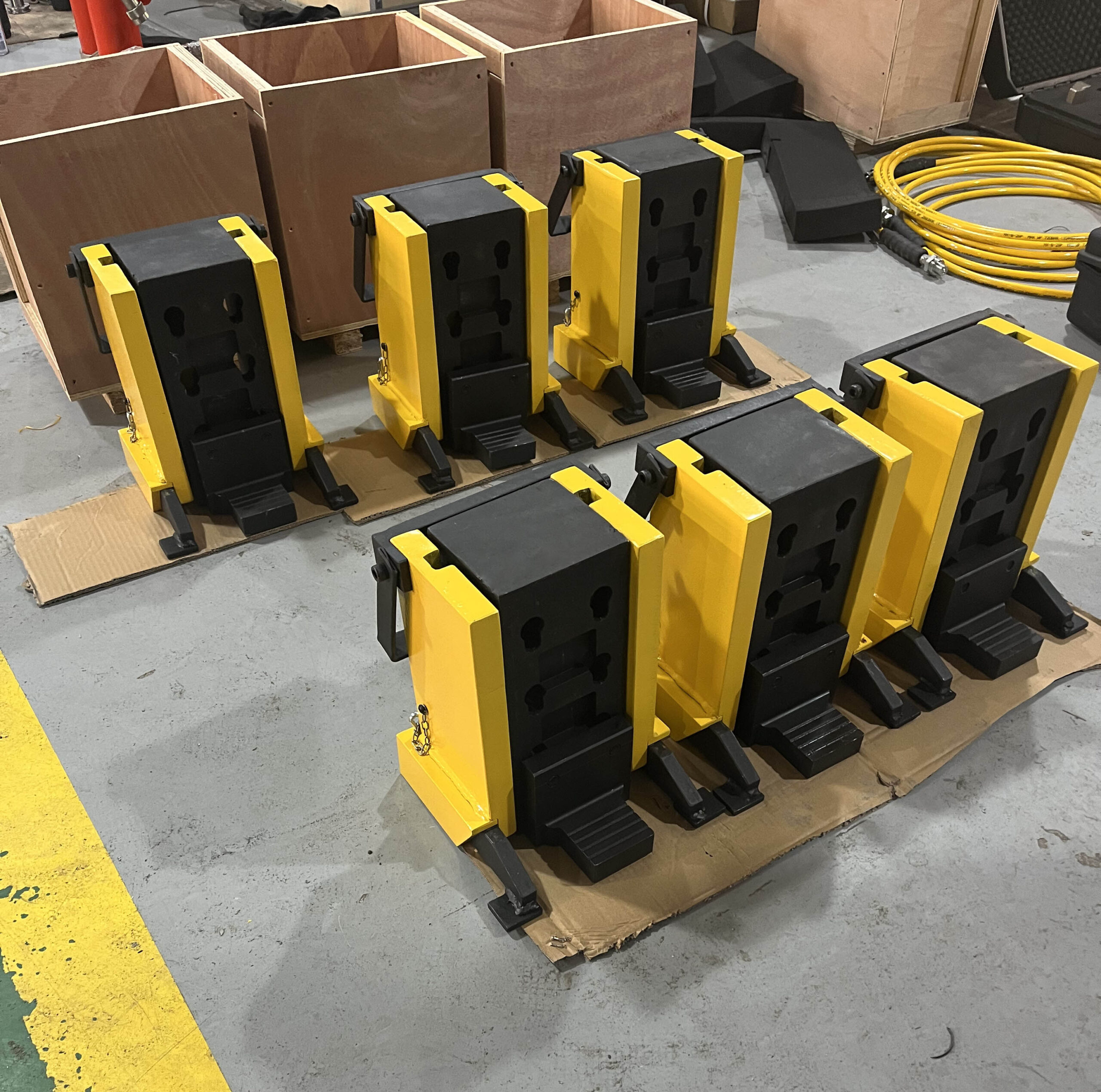

Image Gallery

Series Specifications

Capacity: 8.5-20 Ton
Min. Toe Height: 20-30mm
Max. Toe Height: 156-187mm
Collapsed Height: 294-320mm
Stroke: 136-157mm
Weight: 21-45Kg

Series Comparison

Model Number Head Capacity(T) Min.Height
Collapsed Height(mm) Weight(Kg)
ML8.5 8.5 20 136 294 27
ML20 20 30 157 320 45
