Product Description
Series: TJP Series
Product Lines: Hydraulic Toe Jacks
- Robust and lightweight aluminium construction (80 kg) – a lighter
alternative to bulky, heavy steel jacks. - Foldable side legs and and long removable handle make it easy to
manoeuvre into tight spaces. - Extra stroke height enables faster placement of machine skates or
- Lifting eyes and optional side handles enable precise positioning
once in place. - Solid rubber wheels for smooth transport across varying terrain.
- Adjustable 3-position tilting toe enables lifting from varying load
angles up to 5º, and tight access points. - Hydraulic power supplied by a remote pump allows operators to
work from a safer, more ergonomic position, reducing strain and the
risk of injury. - Single-acting cylinder RAC308 with 200mm stroke included with CR400 female coupler.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

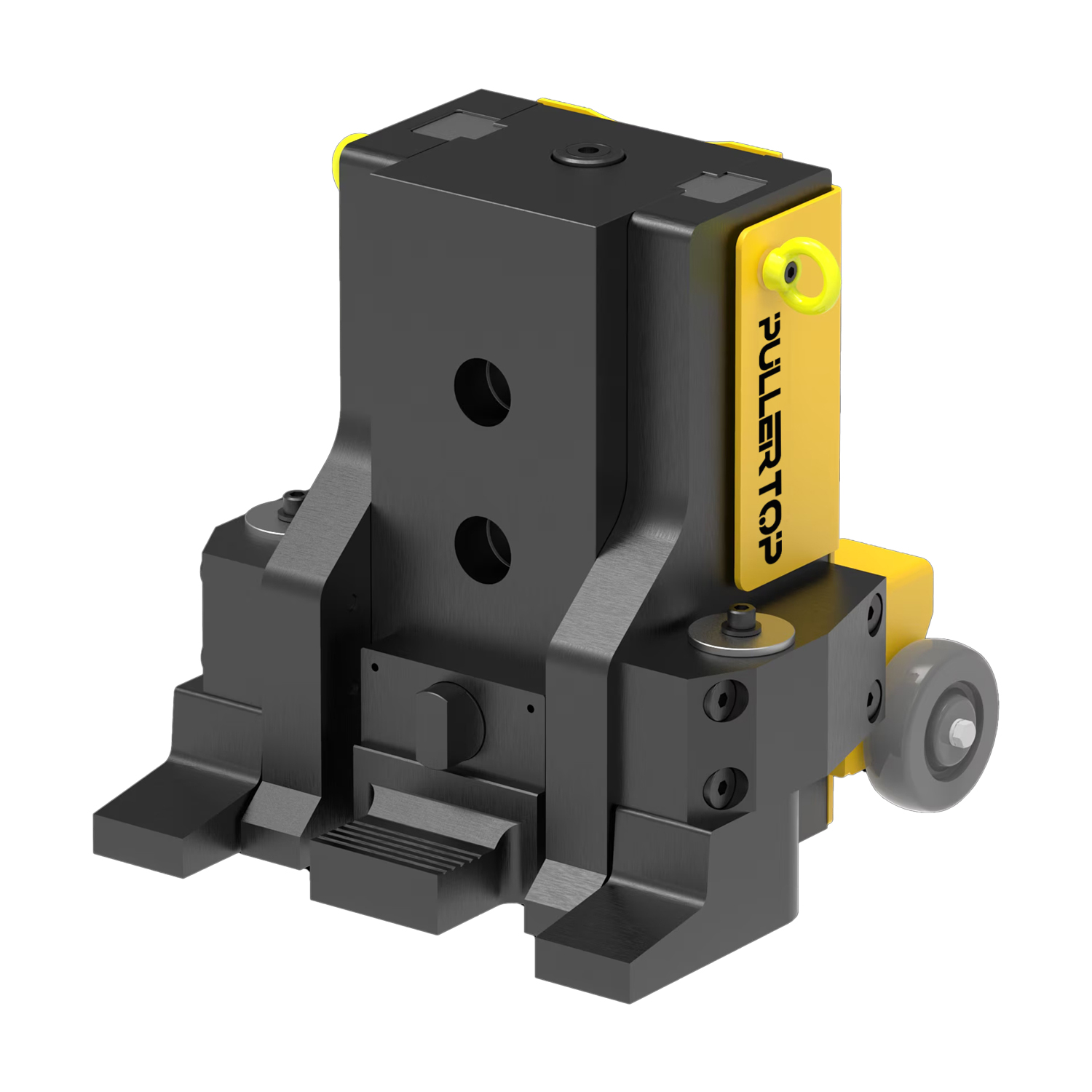

Image Gallery

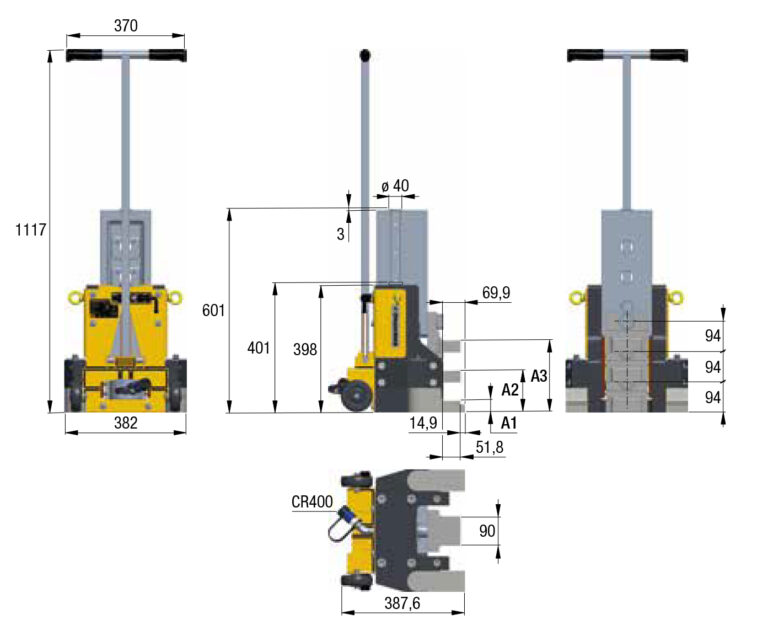

Dimension
Series Comparison
| Model No. | Head Capacity（T） | Toe Capacity（T） | Toe Height Positions(mm) | Collapsed Height(mm) | Stroke（mm） | Cylinder Effective Area(cm2) | Oil Capacity（cm³） | Weight(Kg) | ||
| Min.A1 | Central A2 | Max. A3 | ||||||||
| TJP308 | 30 | 24 | 37 | 131 | 225 | 401 | 200 | 38.5 | 884 | 80 |
