Product Description
Series: JH G plus EX Series
Product Lines: Hydraulic Toe Jacks
- Integrated spring return retracts piston automatically on JH 10 up to JH 30 G plus Ex.
- lide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better
force distribution, less friction and reduced wear compared to conventional jacks - Reduced maintenance costs due to removable stroke unit and easy to change slide shoes.
- Extremely lightweight with high performance due to the use of high-quality material and innovative design.
- Continuous adjustment to the load due to swiveling safety toe.Secure stableness in every situation even in lifted position.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

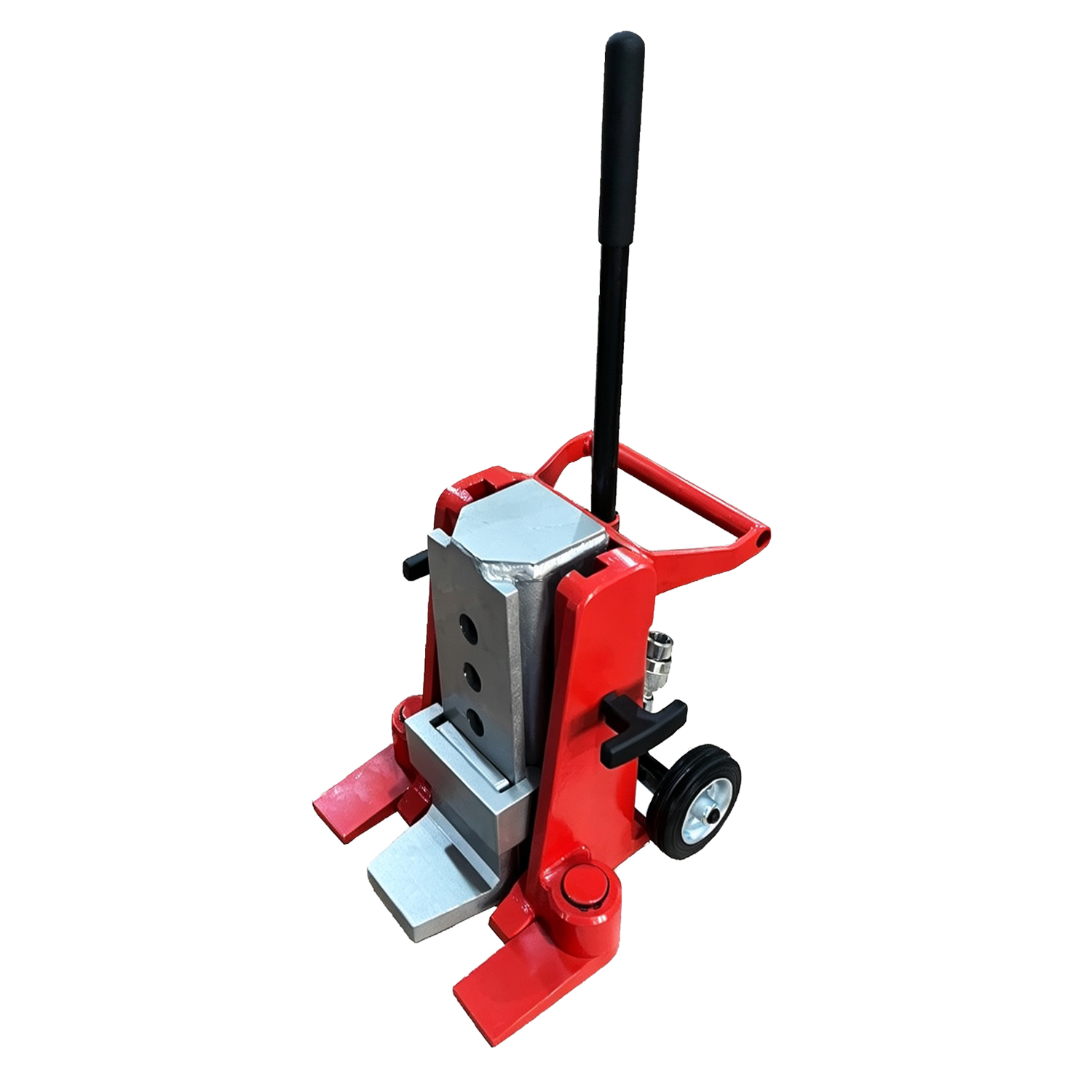

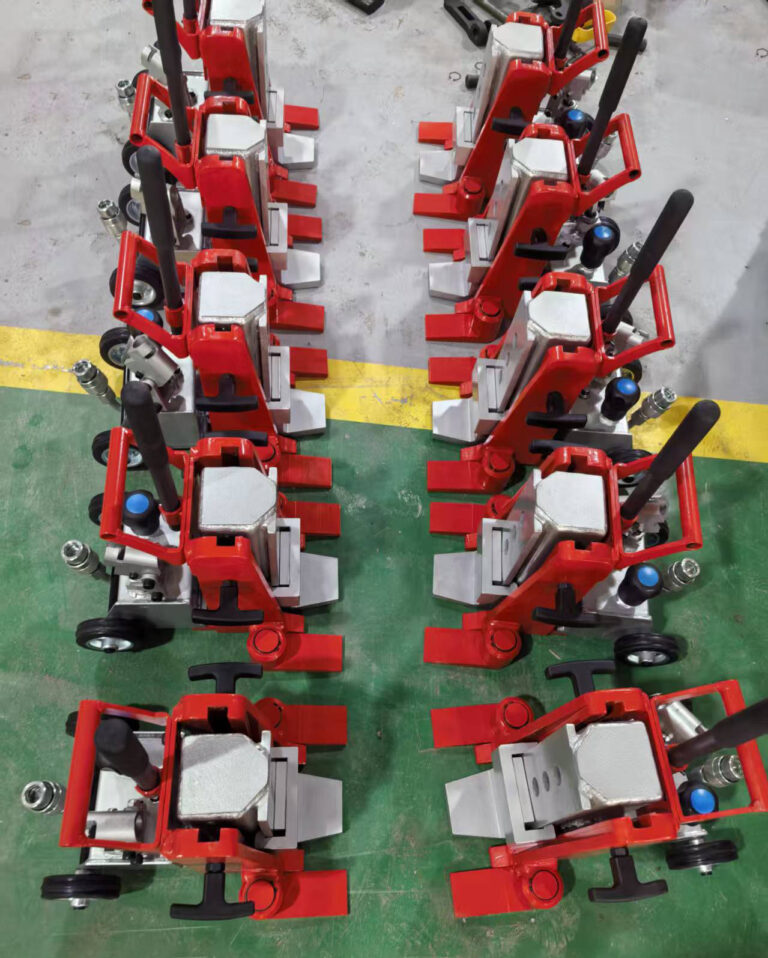

Product Picture
Series Specifications
| Capacity: | 10-30 Ton |
| Min. Toe Height: | 15-20mm |
| Max. Toe Height: | 180-304mm |
| Collapsed Height: | 275-420mm |
| Stroke: | 150-200mm |
| Weight: | 29-95Kg |
Dimension
Series Comparison
| Model No. | Capacity（T） | Lifting.H（mm） | Min. Lift Toe Height h1（mm) | Max. Lift Toe Height h2（mm) | Length Feet in Front L2（mm) | Width B（mm) | Top Plate Height H1（mm) | Toe Width Front Lb（mm) | Lift Toe Adjustment V（mm) | Toe Depth nL（mm) | Oil Capacity (L) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JH 10 G Plus EX | 10 | 150 | 15 | 180 | 270 | 247 | 275 | 60 | 5X41 | 55 | 0.3 | 29 |
| JH 15 G Plus EX | 15 | 175 | 20 | 205 | 340 | 300 | 310 | 80 | 5X46 | 64 | 0.5 | 42 |
| JH 20 G Plus EX | 20 | 190 | 20 | 225 | 360 | 322 | 340 | 80 | 5X51 | 64 | 0.73 | 55 |
| JH 30 G Plus EX | 20 | 200 | 20 | 304 | 380 | 375 | 420 | 80 | 5X71 | 64 | 1.3 | 95 |
