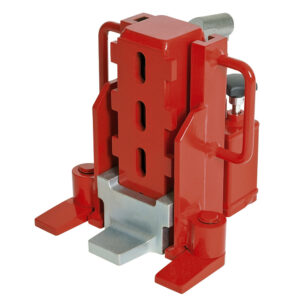

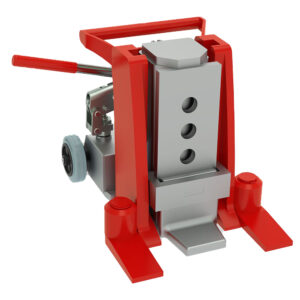

Low Profile Hydraulic Toe Jack

Pullertop HJ series hydraulic toe jacks are ideal for applications such as jacking, adjusting, and repairing objects.

Download Catalog
Upload File

Product Description

Series: HJ Series

Product Lines: Toe Jacks

  • Compact, lightweight & versatile.
  • This toe jack comes with dual lifting points and can lift from both the toe and the top.
  • The base and the lifting arm device can be rotated independently, making the jack suitable for narrow spaces.
  • Hydraulic hand operated. The pump handle is removable.
  • Housing revolves 360-degree lowering speed can be accurately adjusted and protected against overloading.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Capacity: 5-25 Ton
Min. Toe Height: 25-58mm
Stroke: 205-230mm
Weight: 27-102Kg

Series Comparison

Model Number Capacity(Tons) Stroke(mm) Min. Toe Height(mm) Lifting Range Of Foot(mm) Lifting Range Of Head(mm) Weight(Kg)
HJ05 5 205 25 25-230 368-573 27
HJ10 10 230 30 30-260 420-650 39
HJ25 25 215 58 58-273 505-720 102
