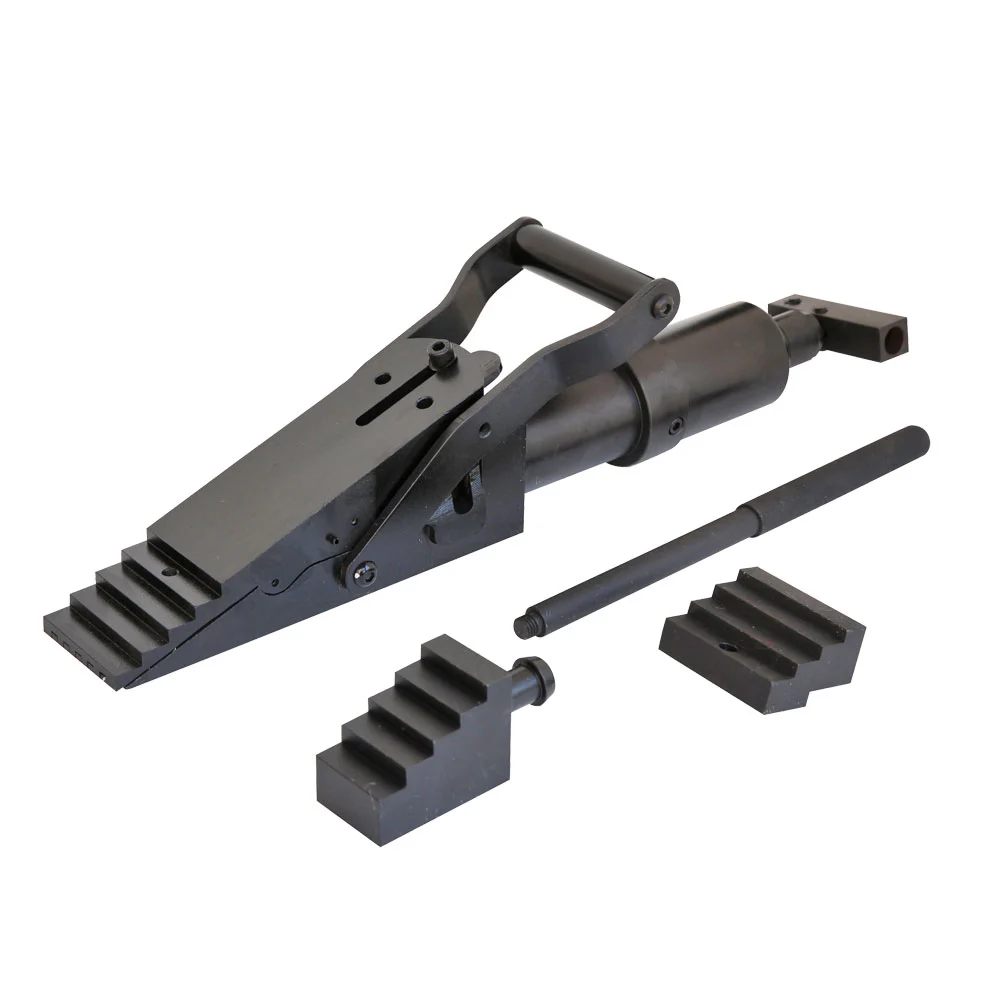

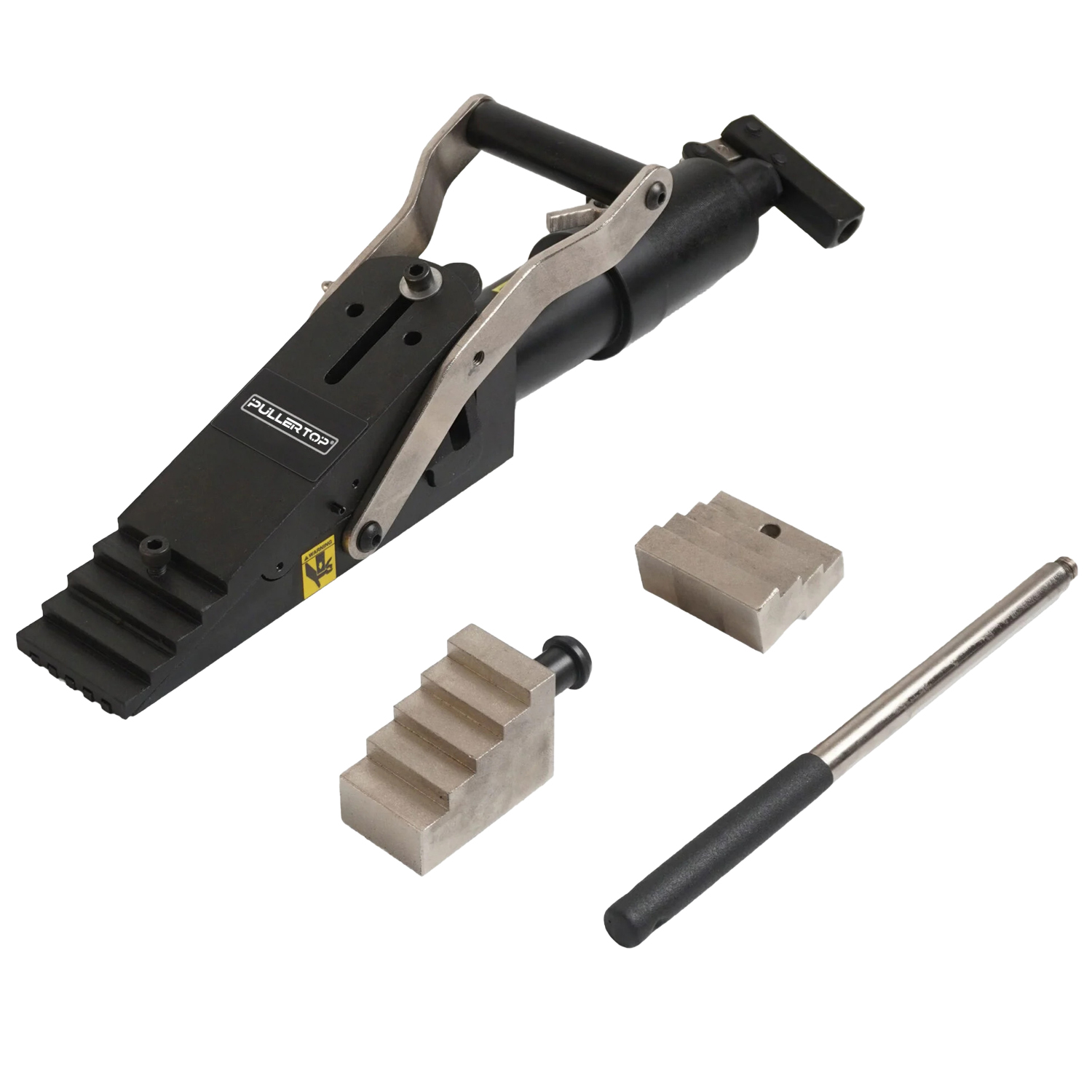

LW-18,Integral Hydraulic Wedge Spreader

The LW18 integral vertical lifting wedge has a built-in hydraulic pump,allowing the tool to be used in confined areas.The sealed integral hydraulic pump design allows the tool to be used either above or below water.

Download Catalog
Upload File

Product Description

Product Lines: Hydraulic Spreaders

  • Integral Vertical Lifting Wedge
  • Requires very small access gap of 10mm
  • Each step can spread under full load
  • Includes safety block SB2
  • Single acting, spring return

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

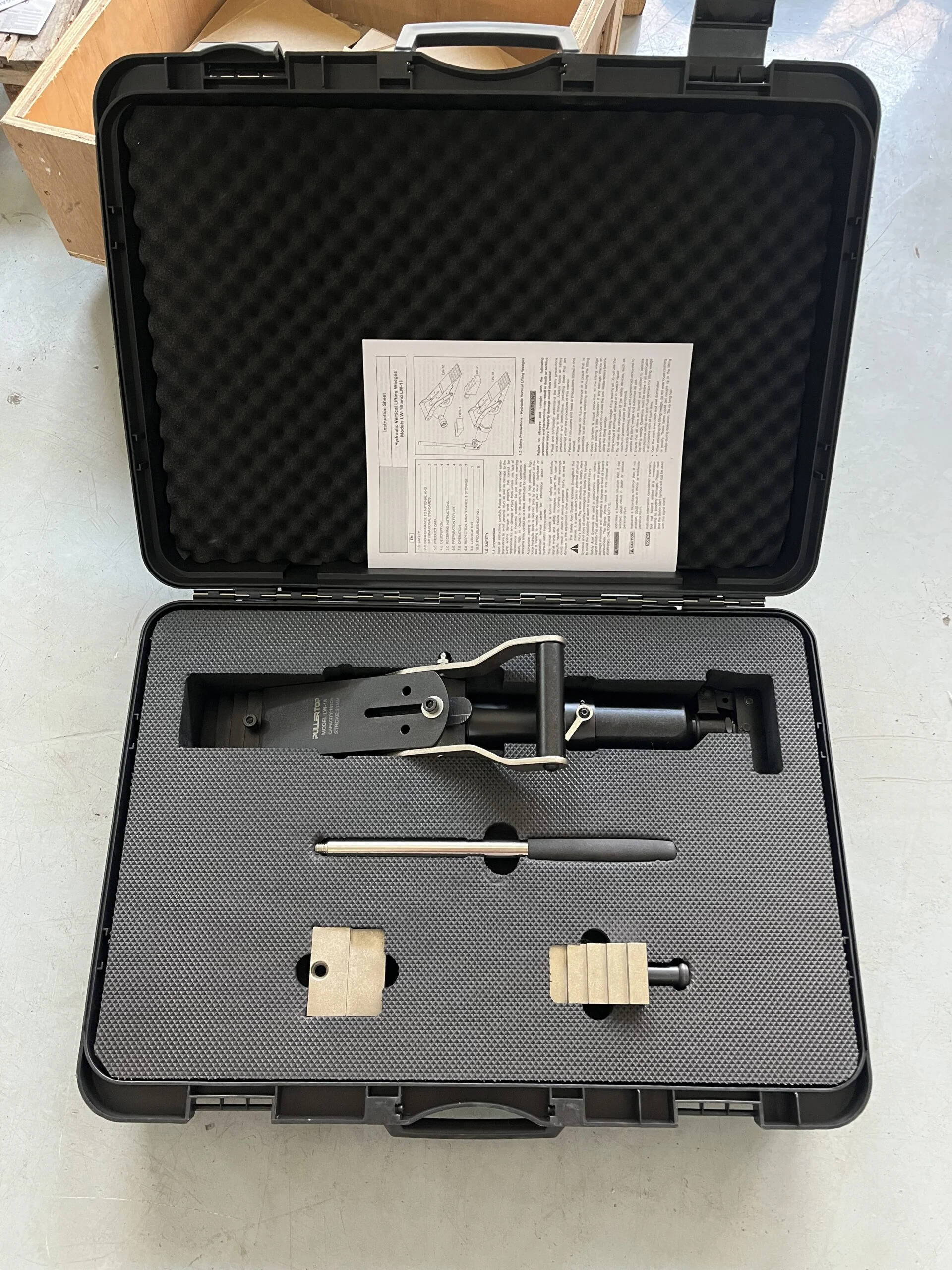

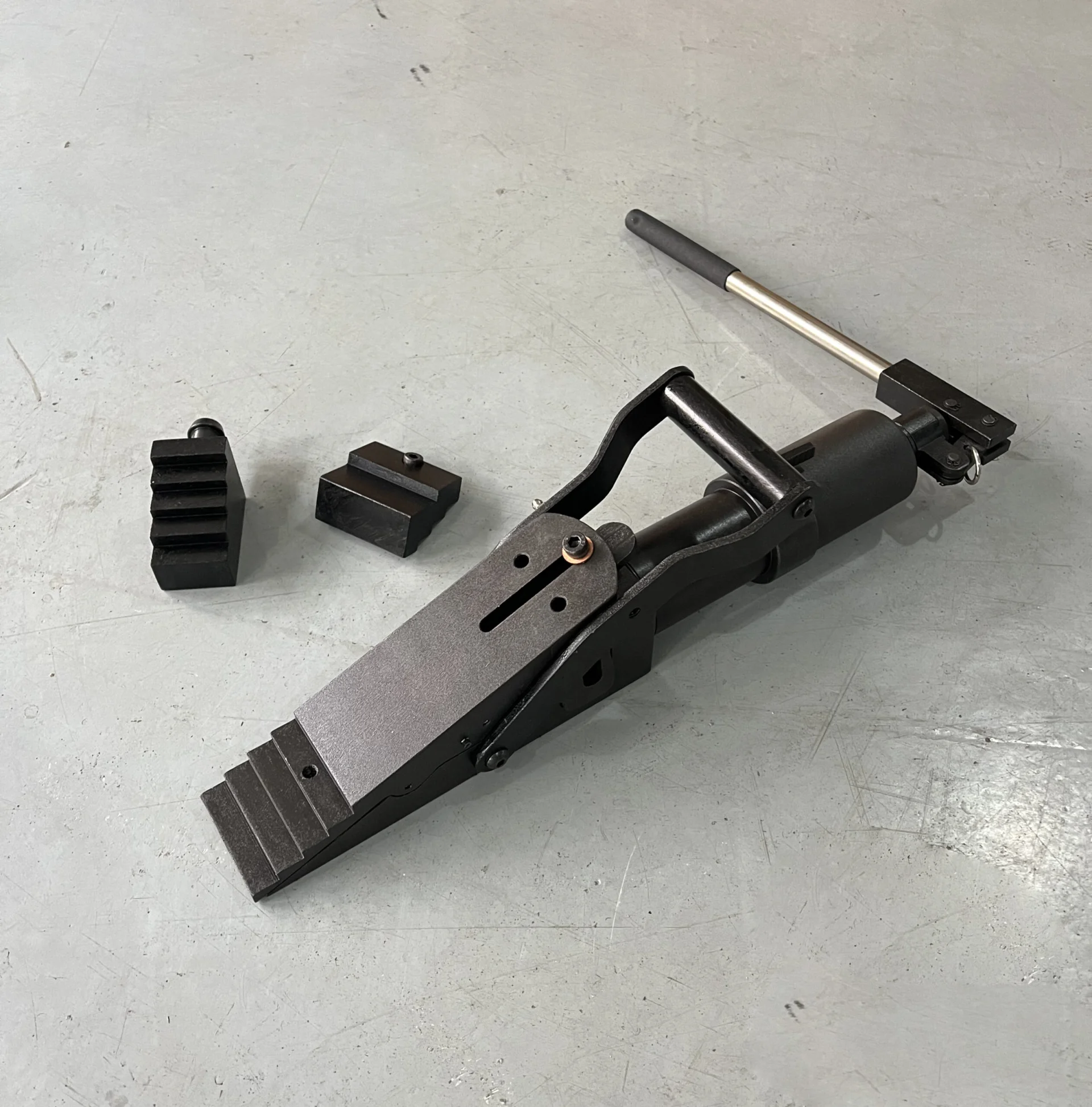

Image Gallery

Series Specifications

Maximum Operating Pressure (bar) 700
Maximum Lifting Force (ton) 16
Maximum Spread (mm) 81
Stroke (mm) 21
Min Width(mm) 10
Power Source Integral Hydraulic Type
Weight(Kg) 12
