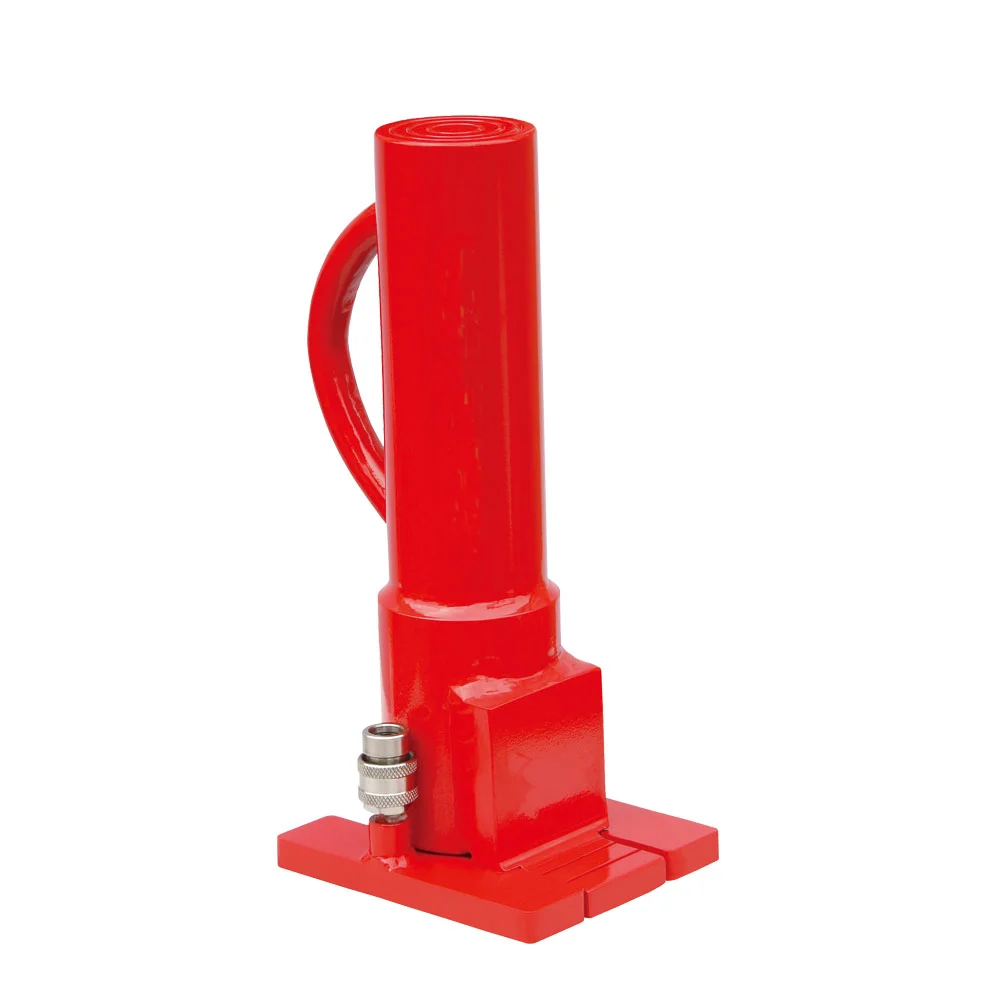

Split Type Remote Control Hydraulic Toe Jack
Pullertop C series hydraulic toe jack comes with a capacity ranging from 5 tons to 50 tons, It is suitable for working with a separate hydraulic pump and hose.
Product Description
Series: C Series
Product Lines: Hydraulic Jacks
- Single-acting, load return
- The split-type hydraulic toe jack is suitable for working with a separate hydraulic pump and hose.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Capacity: | 5-50 Ton |
| Rated Working Pressure: | 52Mpa |
| Min. Height: | 350-538 |
| Min. Toe Height: | 13-35mm |
| Stroke: | 200-259mm |
| Weight: | 11-116Kg |
Series Comparison
| Model Number | Capacity(Tons) | Stroke(mm) | Min. Toe Height(mm) | Min. Hight(mm) | Rated Working Pressure(Mpa) | Weight(Kg) |
|---|---|---|---|---|---|---|
| C5 | 5 | 245 | 13 | 350 | 52 | 11 |
| C10 | 10 | 259 | 21 | 370 | 52 | 20 |
| C30 | 30 | 200 | 30 | 454 | 52 | 56 |
| C50 | 50 | 250 | 35 | 538 | 52 | 116 |
