Product Description
Series: EJ-Series
Product Lines: Hydraulic Toe Jacks
- Previously patented lifting claw. It ensures a safe lifting of the load and can be adjusted with one hand without tilting movement.
- A minimal self-weight. Improved construction and high-quality material have reduced weight by up to 20% compared to similar devices.
- A finely dosed release valve, with which the load can be lowered precisely and the lowering speed can be precisely controlled.
- Starting at 10 tonnes, external pumps can be connected with the drip-free hydraulic nipple.
- Side-mounted handles, that allow full stroke movement of the 225º rotatable pump unit from all positions. The handles are not over at the top and do not need to be removed when the top plate is used for lifting.
- Two Speed (EJ150/EJ250): The jacks EJ150-3S and EJ250-3S are equipped with a second pump unit. When in idle, the quick lifting feature generates an almost three times higher lifting speed.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

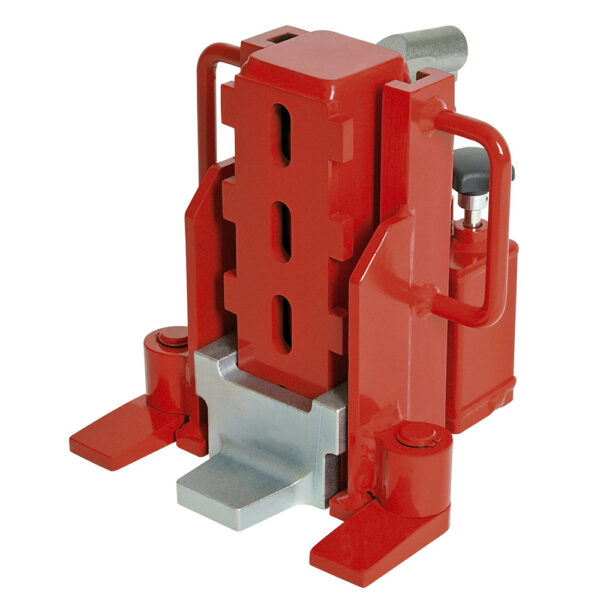

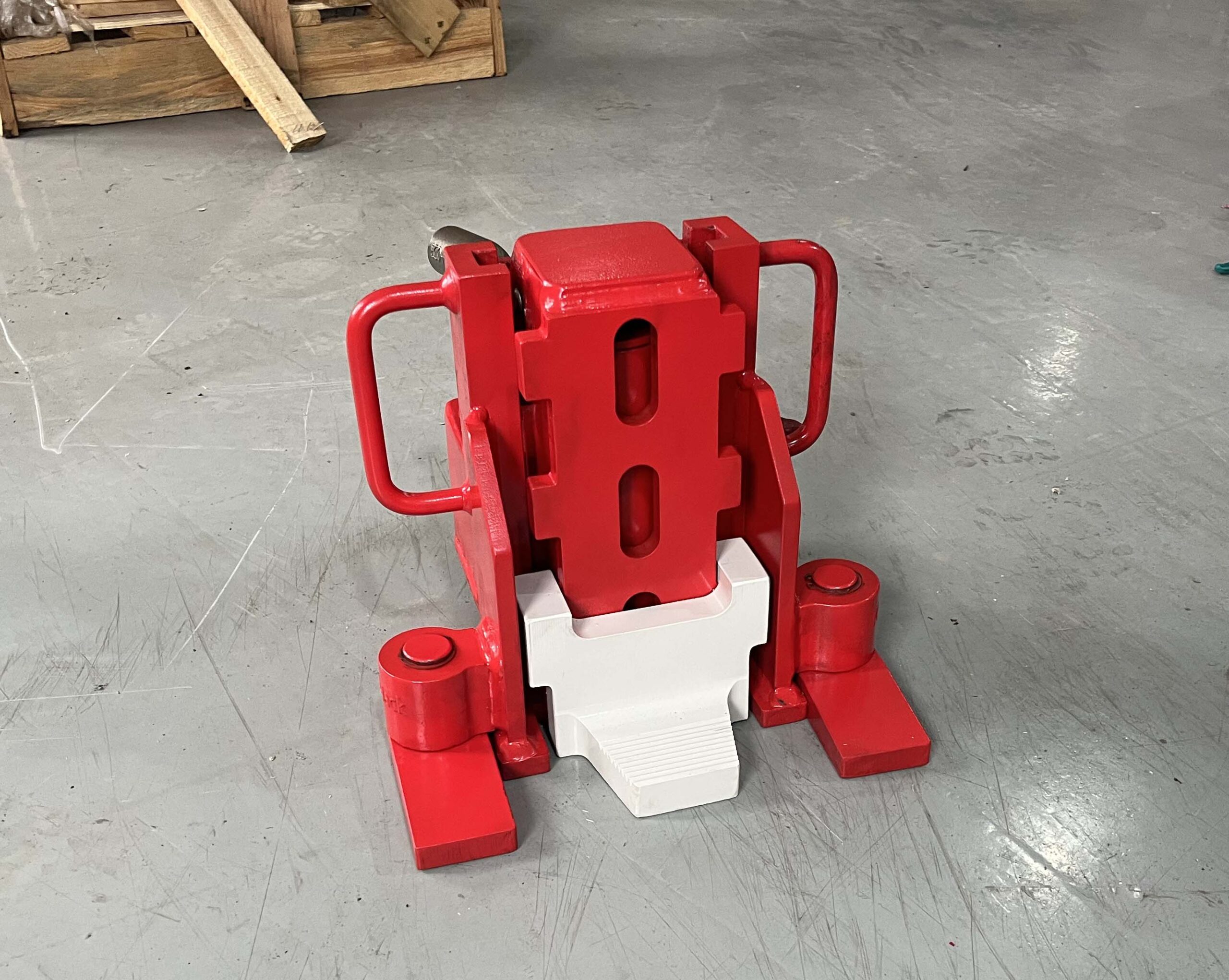

Product Picture
Series Specifications
| Capacity: | 3-25 Ton |
| Min. Toe Height: | 12-30mm |
| Max. Toe Height: | 170-230mm |
| Collapsed Height: | 250-330mm |
| Stroke: | 140mm |
| Weight: | 15-72Kg |

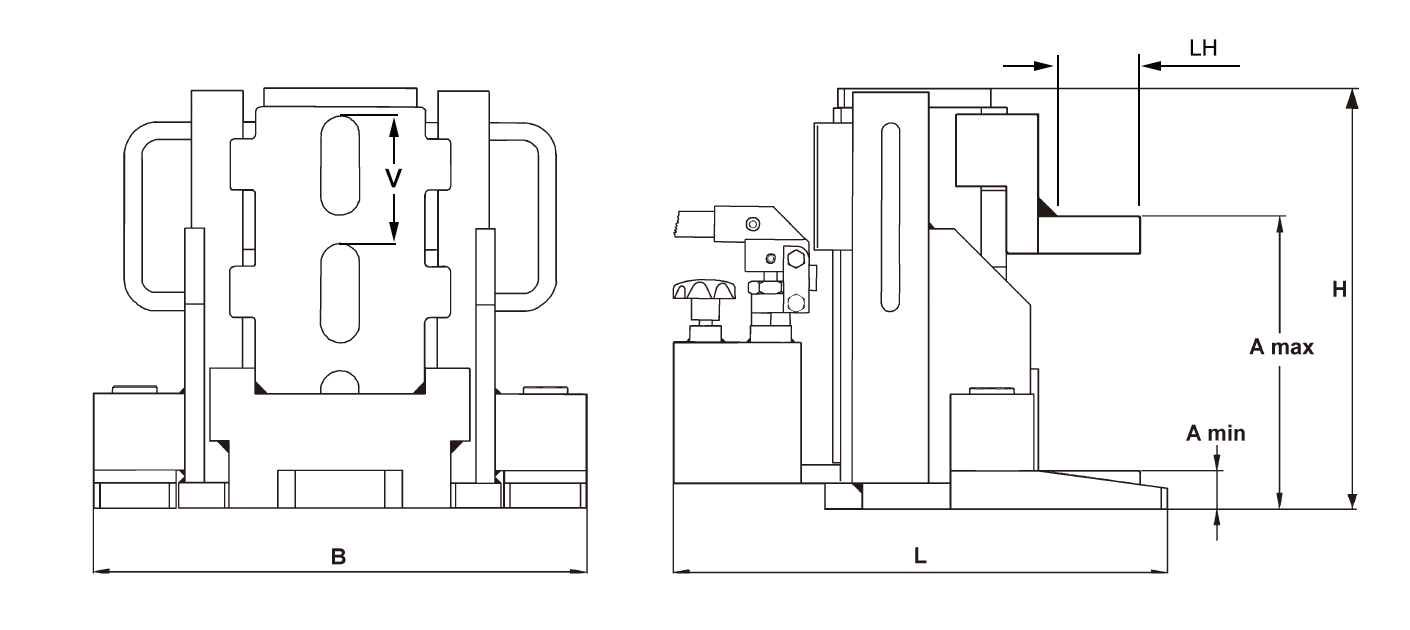

Dimension
Series Comparison
| Model No. | Capacity（T） | Stroke（mm） | Min. Toe A（mm) | Max. Toe A（mm) | Dimensions: L x B x H（mm） | Lift Toe Adjustment V（mm) | Toe Depth LH（mm) | Oil Capacity(L) | Max.Working Pressure | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| EJ 30‑5S | 3 | 140 | 12 | 196 | 198 x 207 x 250 | 5 x 46 | 44 | 0.3 | 520 bar | 15 |
| EJ 60‑4S | 6 | 140 | 15 | 189 | 216 x 228 x 252 | 4 x 58 | 40 | 0.4 | 520 bar | 19 |
| EJ 100‑3S | 10 | 140 | 20 | 170 | 271 x 277 x 250 | 3 x 75 | 45 | 0.5 | 520 bar | 28 |
| EJ 150‑3S | 15 | 140 | 25 | 219 | 345 x 331 x 316 | 3 x 97 | 55 | 0.7 | 520 bar | 50 |
| EJ 250‑3S | 25 | 140 | 30 | 230 | 388 x 392 x 330 | 3 x 100 | 60 | 1 | 520 bar | 72 |
