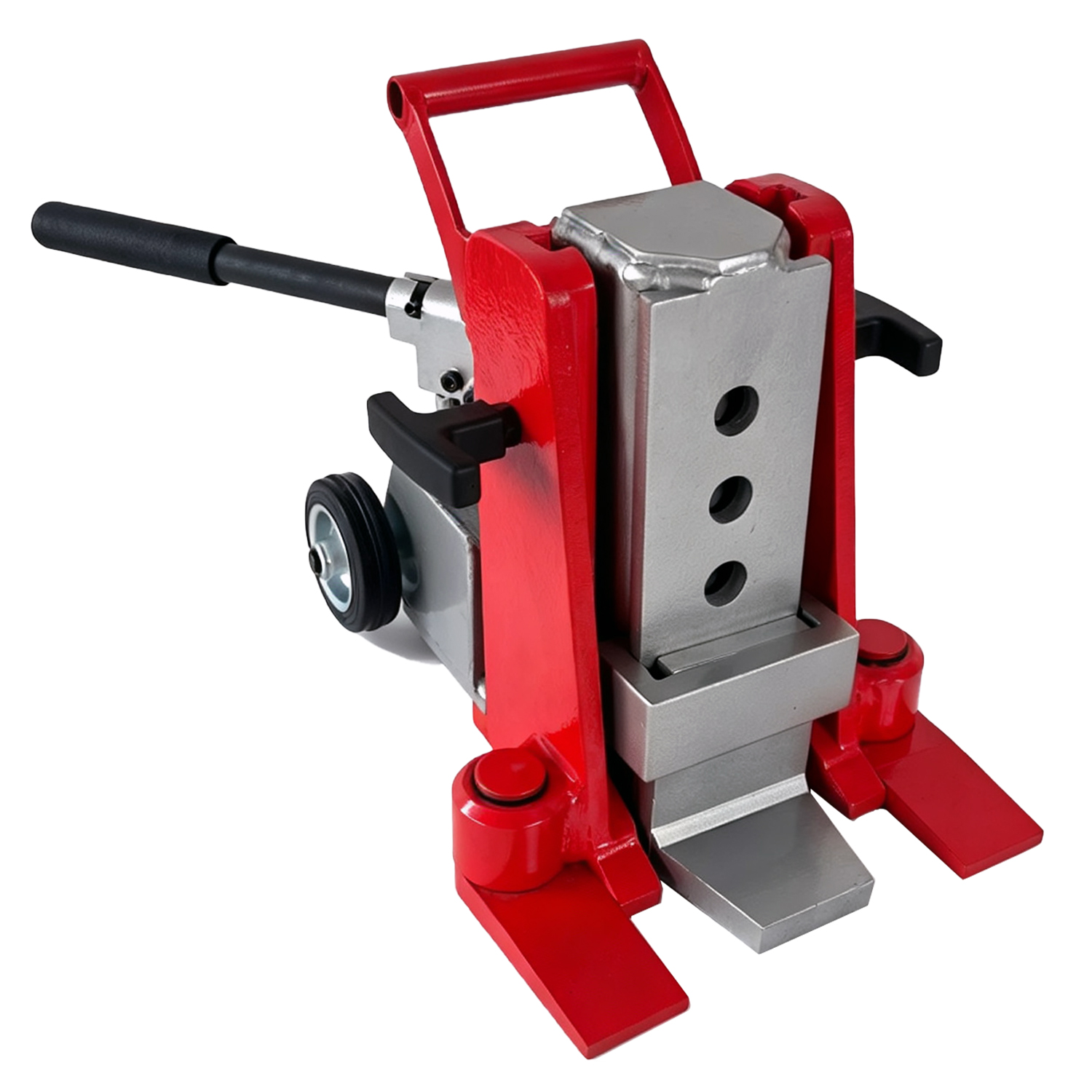

JH G Plus Hydraulic Toe Jack

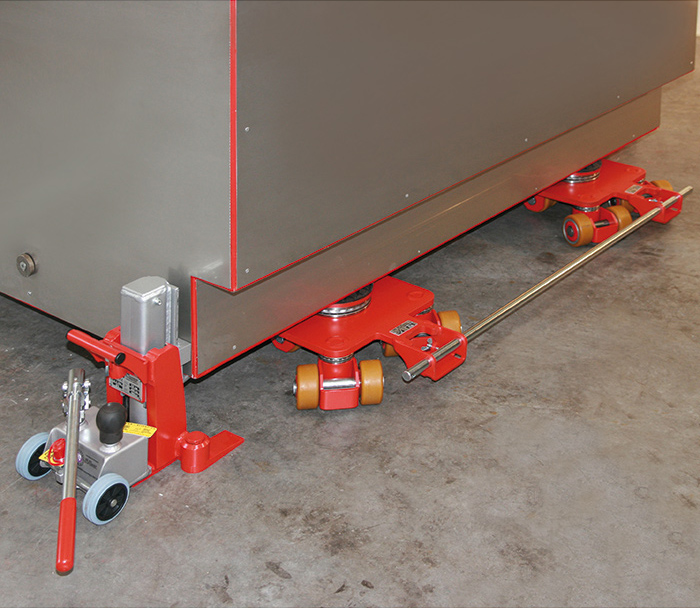

It is a kind of toe jack that is suitable for moving large loads through tight spaces.

Upload File

Product Description

Series: JH G plus Series

Product Lines: Hydraulic Toe Jacks

  • Slide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better force distribution, less friction and reduced wear compared to conventional jacks.
  • Reduced maintenance costs due to easy change slide shoes and removable pump unit.
  • Extremely lightweight with high performance due to the use of highquality material and innovative design.
  • Continuous adjustment to the load due to swiveling safety toe. Secure stableness in every situation even in lifted position.
  • JH 15 / JH 20 G plus serial outfitted with fast stroke.
  • Die-forged steel toe provides impact resistance.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

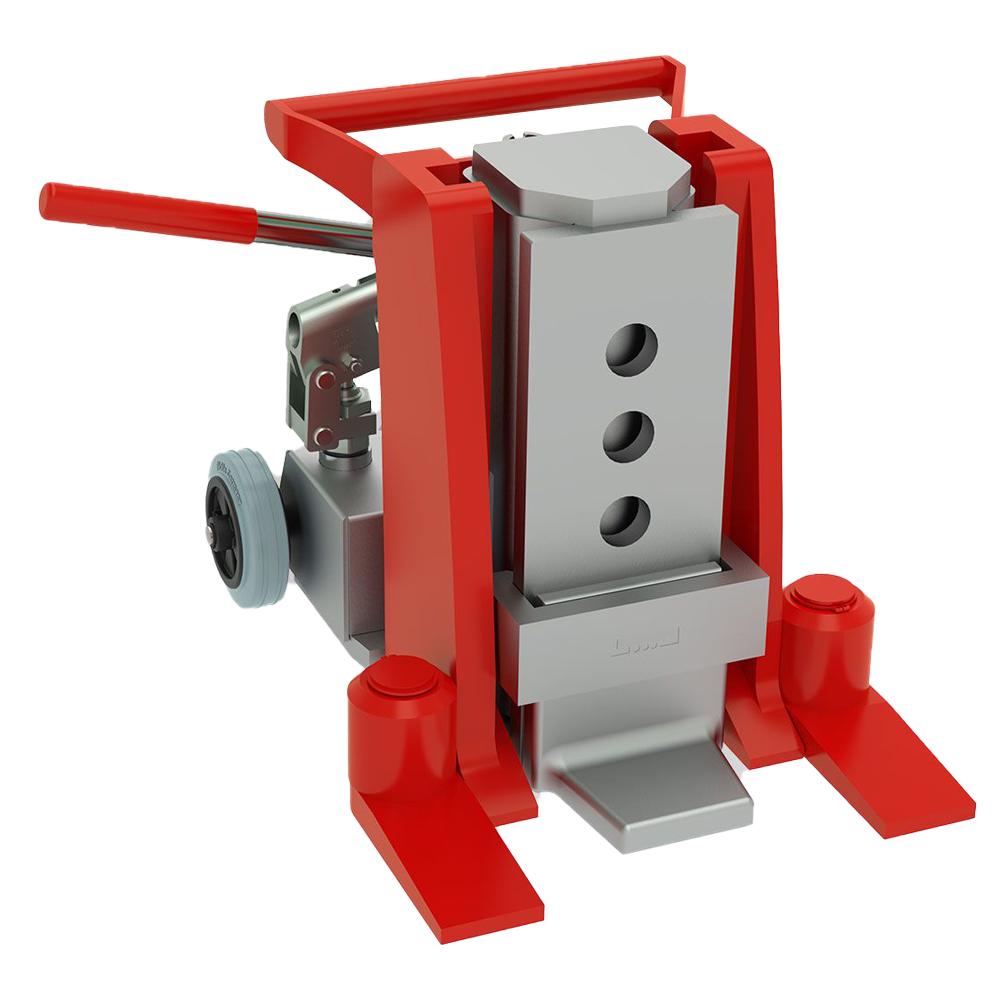

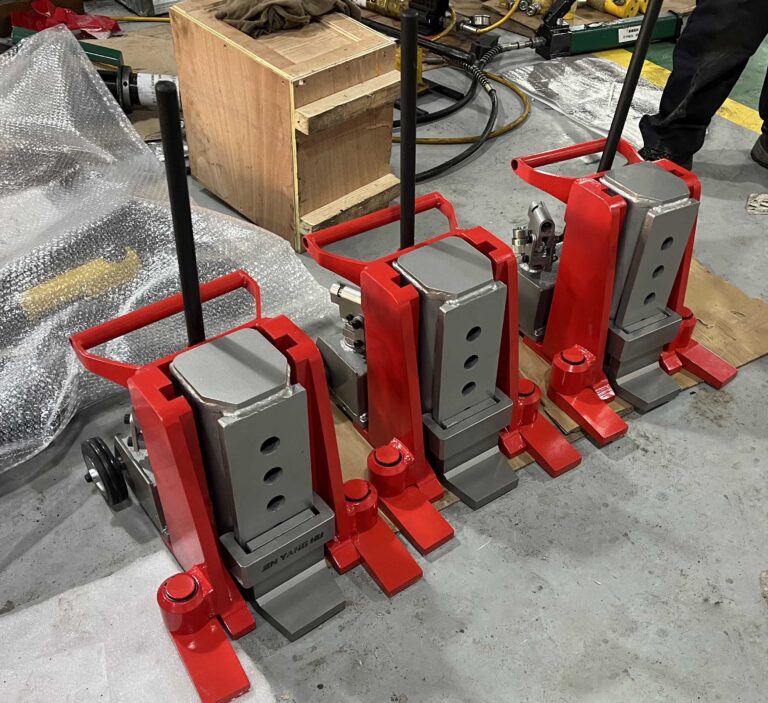

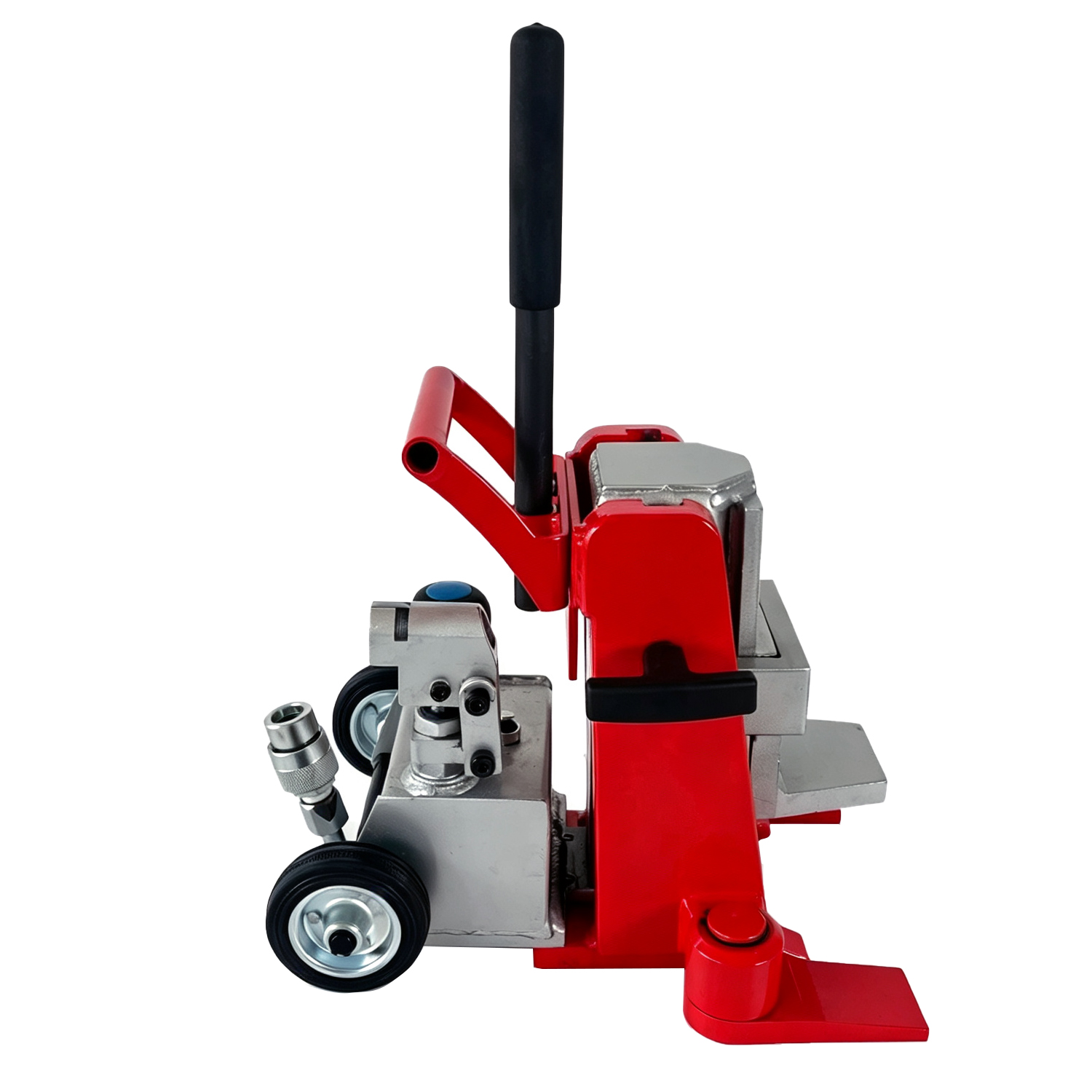

Product Picture

Series Specifications

Capacity: 6-20 Ton
Min. Toe Height: 12-20mm
Max. Toe Height: 157-225mm
Collapsed Height: 245-340mm
Stroke: 140-190mm
Weight: 22-60Kg

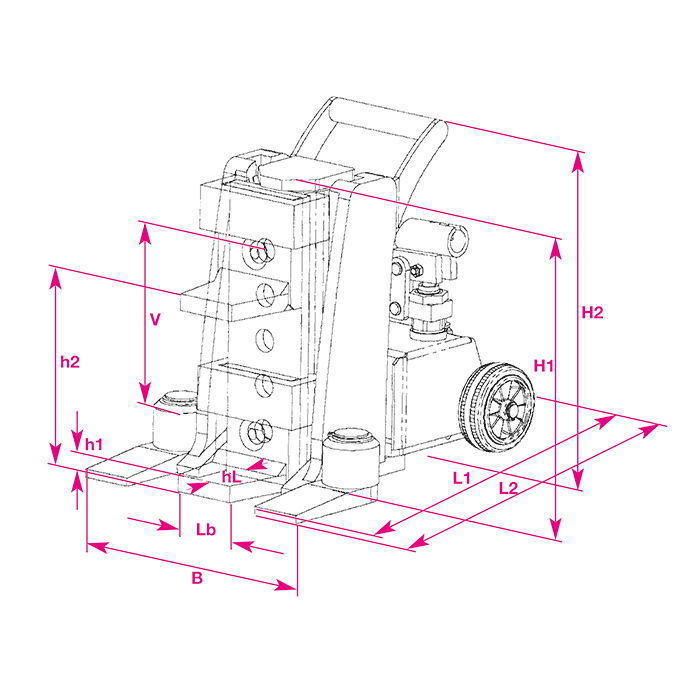

Dimension

Series Comparison

Model No. Capacity(T) Stroke(mm) Min. Lift Toe Height h1(mm) Max. Lift Toe Height h2(mm) Length Feet in Front L2(mm) Width B(mm) Top Plate Height H1(mm) Toe Width Front Lb(mm) Lift Toe Adjustment V(mm) Toe Depth nL(mm) Oil CapacityL Weight(Kg)
JH 6 G Plus 6 140 12 157 326 233 245 50 6X29 50 0.18 22
JH 10 G Plus 10 150 15 180 346 247 275 60 5X41 55 0.3 29
JH 15 G Plus 15 175 20 205 415 322 310 80 5X46 64 0.5 48
JH 20 G Plus 20 190 20 225 425 322 340 80 5X51 64 0.73 60
