LGHMS-Series, Hydraulic Lock-Grip Master Puller Sets

Product Lines: LGHMS-Series

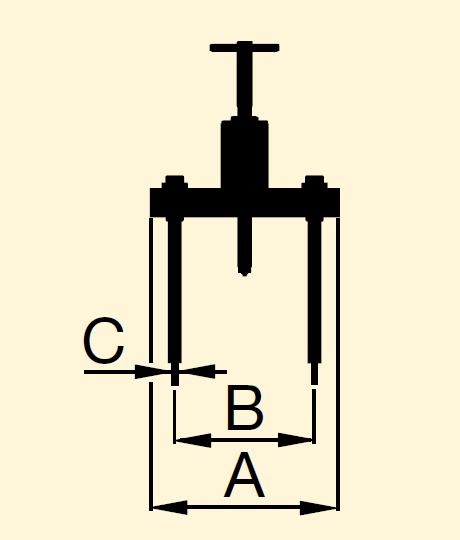

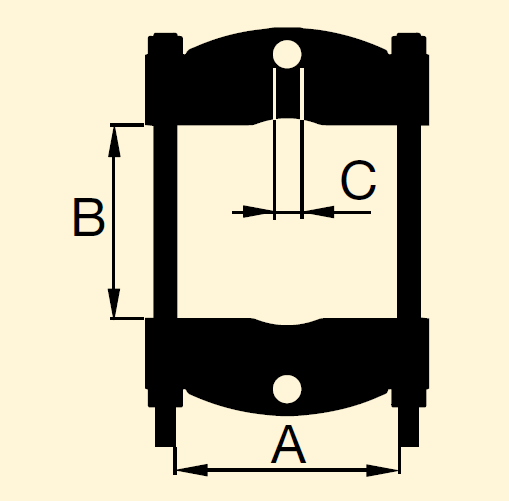

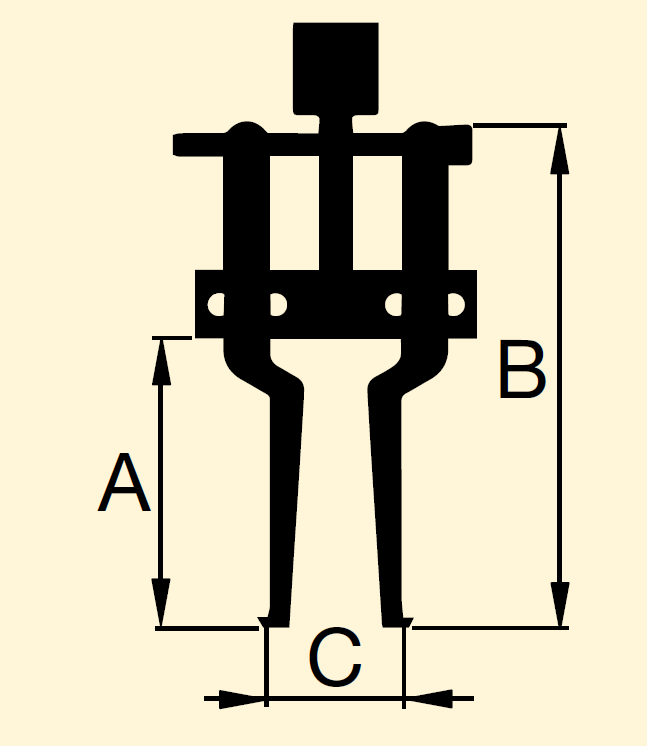

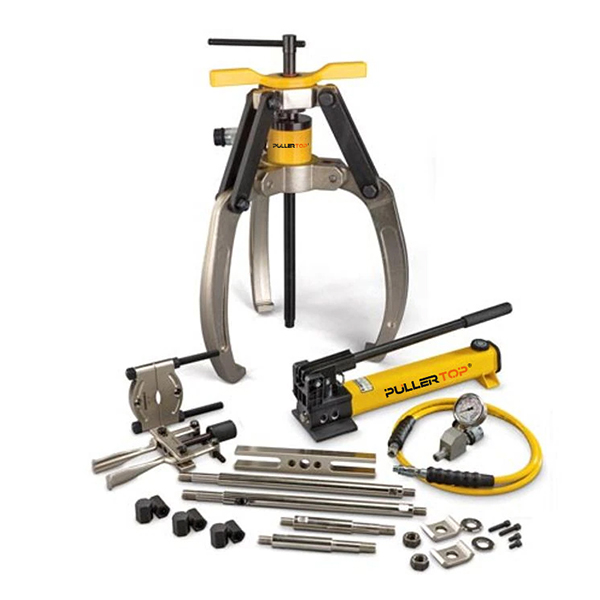

• •All LGHMS-Series Master Puller Sets include an LGH-Series Puller, a Cross Puller, a Bearing Separator, a Bearing Cup Puller, a detachable Hollow Cylinder, a hose, a gauge and a pump

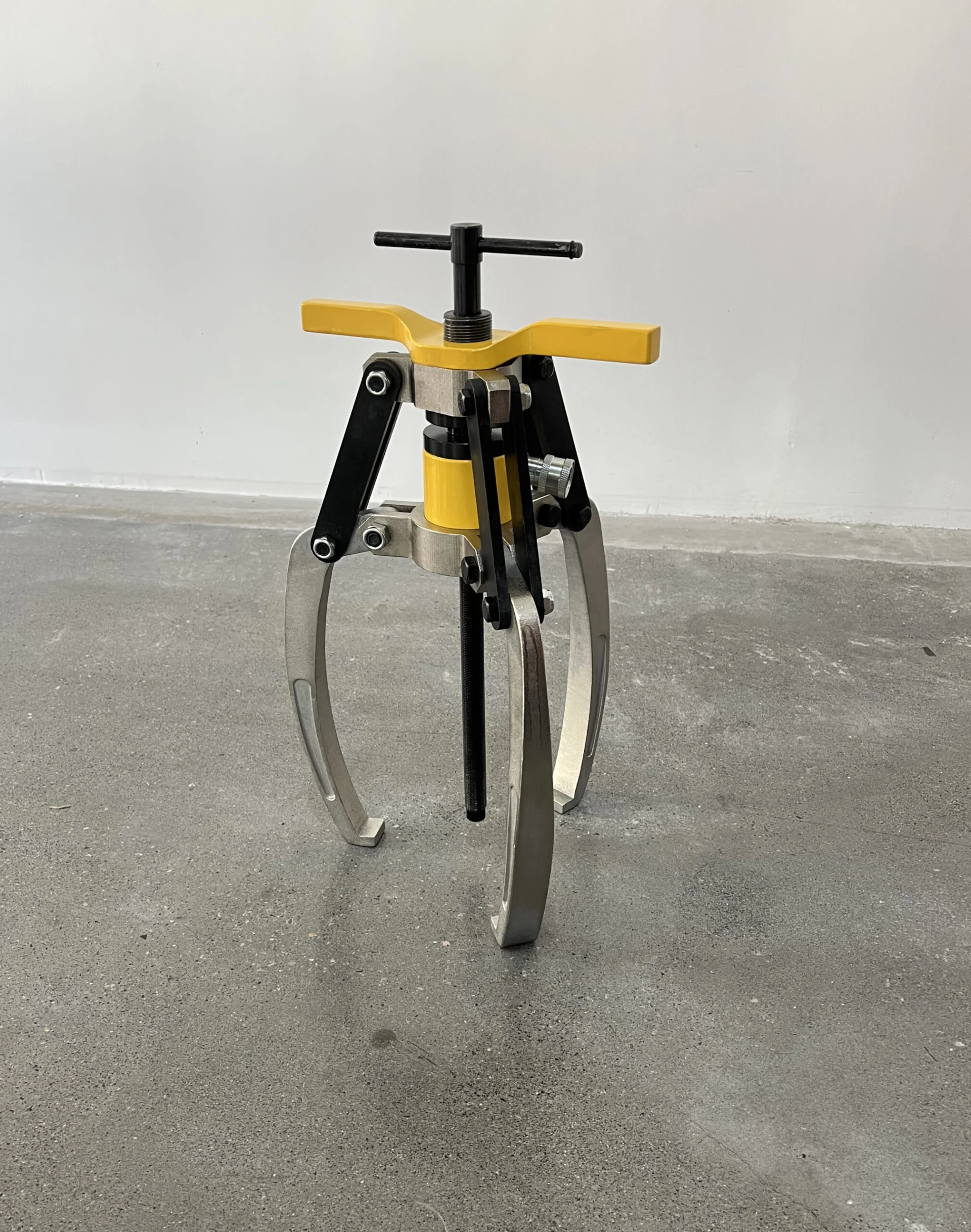

• •LGH-Series Pullers provide the same safety and ease of use as their mechanical counterparts, with the pulling force applied by a standard 10,150 psi hydraulic cylinder.
• •Quickly and easily mount on a wide range of applications
• •Hydraulically applied pulling force increases pulling capacity, reducing operator fatigue
• •Lock-on jaws offer a secure grip for safe and easy operation
• Synchronous jaw movement enables the entire pulling job to be performed by a single operator
• •LGH-Series Pullers MUST be used with a point protector if the shaft end does not contain a drilled center hole. A point protector is included with every puller.
• •Our cylinders and pumps can be operated to 10,150 psi, but should not be operated past 5,000 psi when using the Cross Bearing Puller Set tools.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
