Product Description

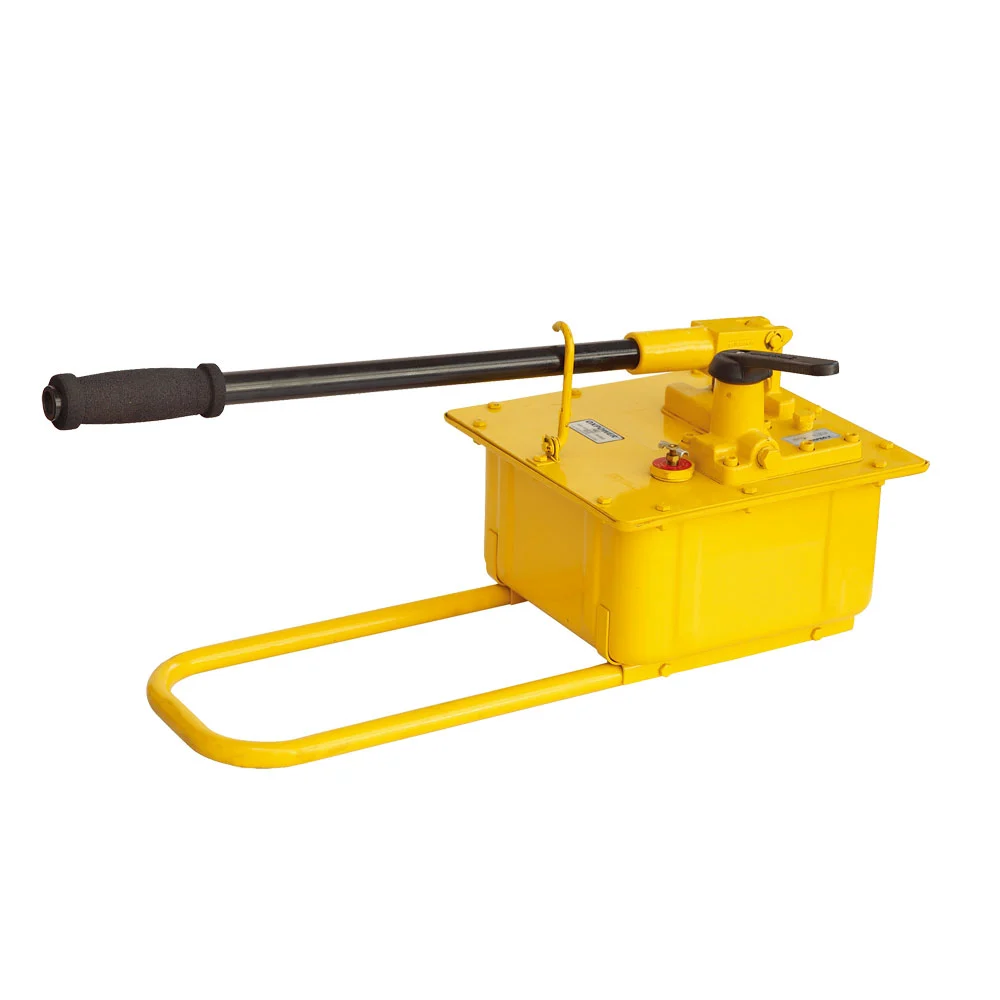

Product Lines: Hydraulic Hand Pump
- Lightweight and compact design
- Lower handle effort to minimize operator fatigue
- The two-speed operation can reduce the work intensity of the operator
- Equipped with an external pressure relief valve, it can be used to operate double acting hydraulic cylinder
- The internal safety valve is equipped to protect the pump from overloading
- The oil capacity is big enough to match a wide range of hydraulic tools
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
Series Specifications
| Oil Capacity: | 7423cm3 |
| Pump Type: | Two Speed |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 28-32Kg |
Series Comparison
| Model | Usable Oil Capacity/cm3 | Pump Type | First Stage Pressure/bar | Second Stage Pressure/bar | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Piston Stroke | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| P462 | 7423 | Single Actint, Two-speed | 14 | 700 | 126 | 4.75 | 38.1 | 28 |
| P464 | 7423 | Double Acting, Two-speed | 14 | 700 | 126 | 4.75 | 38.1 | 32 |
